3 Robot information release

According to different models, you only need to set the purchased model in [.bashrc], X1(ordinary four-wheel drive) X3(Mike wheel) X3plus(Mike wheel mechanical arm) R2(Ackerman differential) and so on. Section takes X3 as an example

Open the [.bashrc] file

xxxxxxxxxx
sudo vim .bashrc

Find the [ROBOT_TYPE] parameter and modify the corresponding model

xxxxxxxxxx
export  ROBOT_TYPE=X3    # ROBOT_TYPE: X1 X3 X3plus R2 X7

This section takes X3, Mecanum wheeler as an example.

3.1 Node subscription and publishing topics

3.1.1 Function package path:

xxxxxxxxxx
~/yahboomcar_ws/src/yahboomcar_bringup

Functions that ROSMASTER needs to implement: speed control, speed information feedback, battery voltage feedback, buzzer control, running water lamp control.(Note: In the version with a robotic arm, it is also necessary to implement robotic arm control, robotic arm status feedback and PTZ control)

3.2 node data view

3.2.1 Start

xxxxxxxxxx
roslaunch yahboomcar_bringup yahboomcar.launch

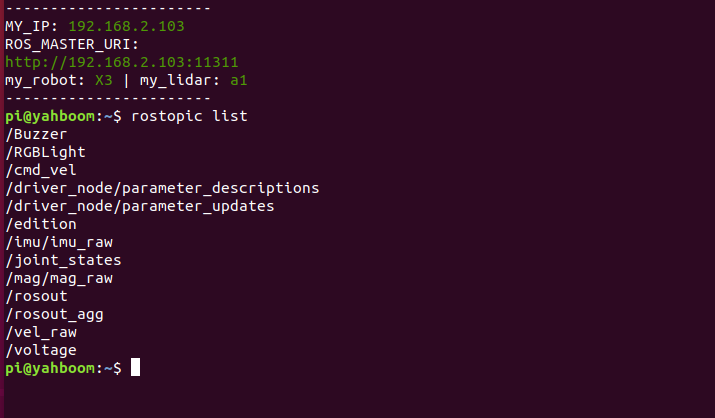

3.2.2 View topic list

xxxxxxxxxx
rostopic list

xxxxxxxxxx

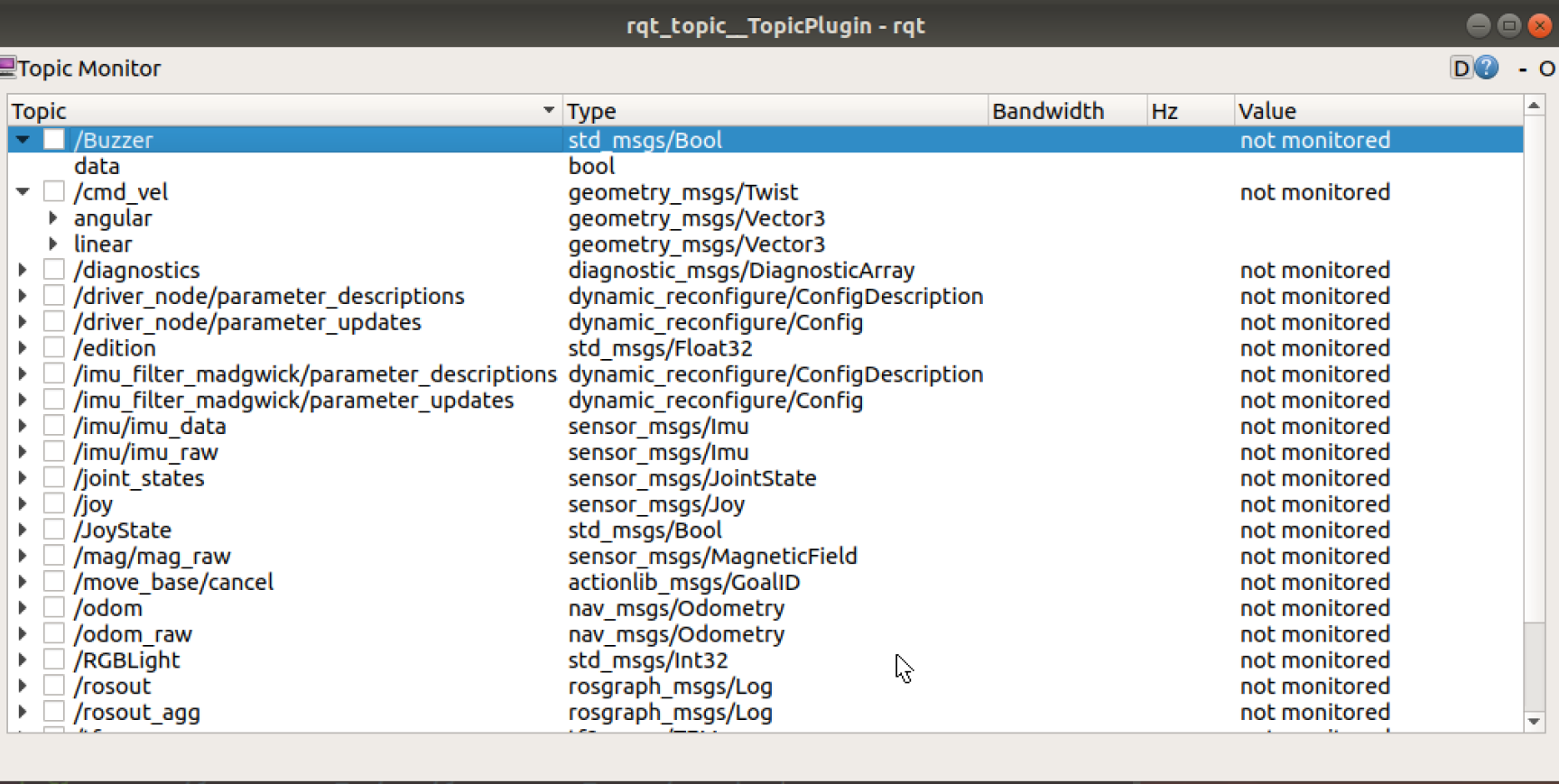

rosrun  rqt_topic rqt_topic  #Graphically   view the topic

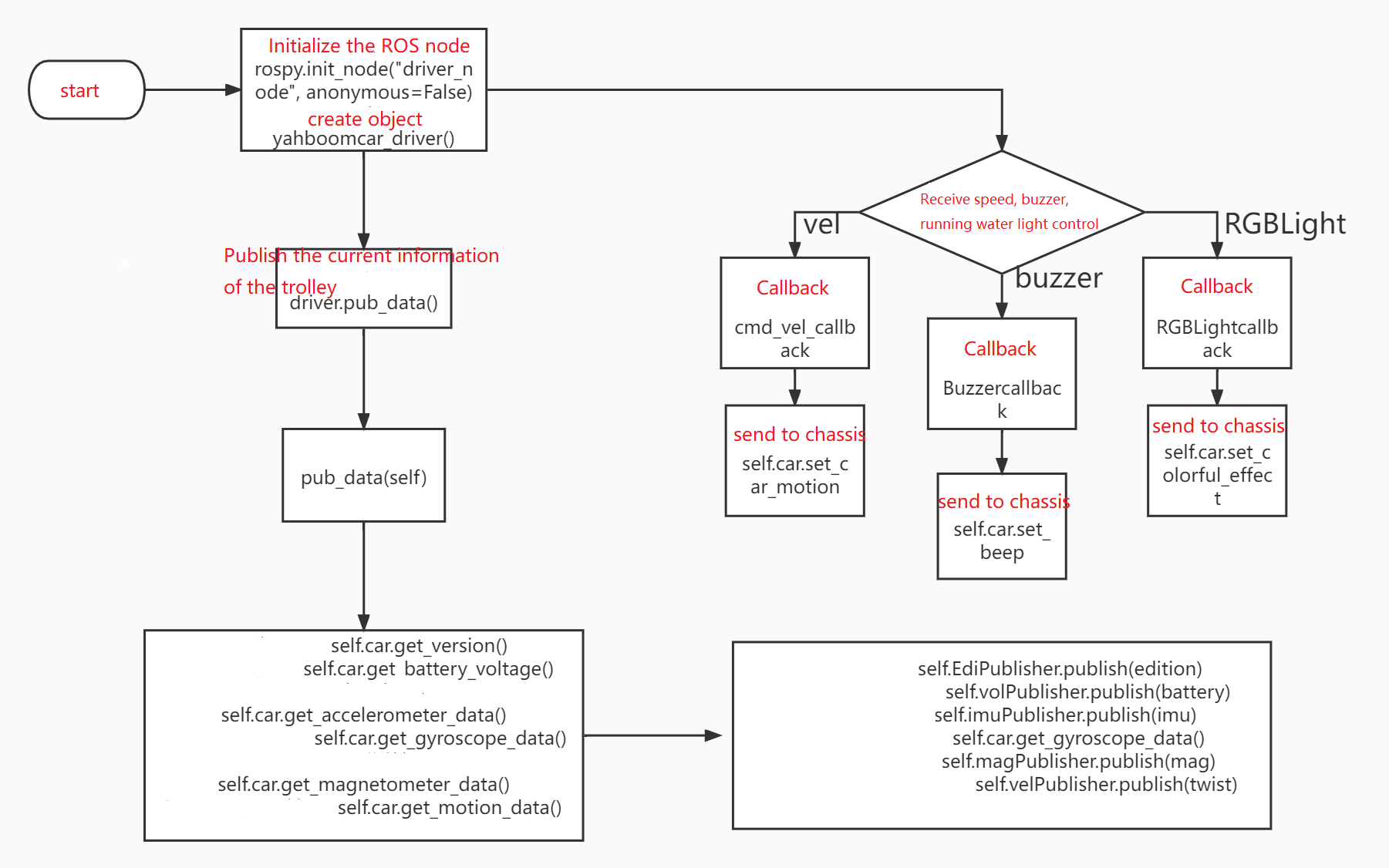

3.2.3 Program flow chart

3.2.4 Core code(Mcunamu_driver.py)

xxxxxxxxxx
Get data(core board -> host computer)
  edition.data  =  self.car.get_version()
  battery.data  =  self.car.get_battery_voltage()
  ax, ay, az  =  self.car.get_accelerometer_data()
  gx, gy, gz  =  self.car.get_gyroscope_data()
  mx, my, mz  =  self.car.get_magnetometer_data()
  vx, vy, angular  =  self.car.get_motion_data()
Publish data(host computer -> host computer)
  self.EdiPublisher.publish(edition)
  self.volPublisher.publish(battery)
  self.imuPublisher.publish(imu) Note: The imu data here is the combined data of gyroscope and acceleration data
  self.magPublisher.publish(mag)
  self.velPublisher.publish(twist)
Process the acquired data(topic receiving data, transferring data between nodes)
  cmd_vel_callback(self, msg)
  RGBLightcallback(self, msg)
  Buzzercallback(self, msg)
Publish data(host computer -> core board)
  self.car.set_car_motion(vx, vy, angular)
  self.car.set_colorful_effect(msg.data, 6, parm = 1)
  self.car.set_beep _ self.car.set_beep _ _(1) or _ _ _ _(1)

3.2.5 Analysis of three callback functions

xxxxxxxxxx
    # Water light control, server callback function RGBLight control
    '''
effect=[0, 6], 0: stop light effect, 1: running water light, 2: marquee light, 3: breathing light, 4: gradient light, 5: starlight, 6: battery display
speed=[1, 10], the smaller the value, the faster the speed changes.
'''
    # Car motion control, subscriber callback function
    '''
     vx = msg.linear.x
     vy = msg.linear.y
     angular = msg.angular.z
Note: Because this model is a Mecanum wheel, it can be moved on the y-axis, other models are not applicable
'''
    #Buzzer control, subscriber callback function
    '''
self.car.set_beep(1): turn on the buzzer
self.car.set_beep(0): turn off the buzzer
'''

3.2.6 Use rostopic pub command to send running water light control, speed control, buzzer control commands

x
Water light control
rostopic pub /RGBLight std_msgs/Int32 1  # turn on water light
speed control
rostopic  pub /cmd_vel  geometry_msgs/Twist  "linear:
  x : 0.0
  y : 0.0
  z : 0.0
angular :
  x : 0.0
  y : 0.0
  z : 0.1 " #The car moves at an angular velocity of 0.1
Buzzer control
rostopic pub /Buzzer std_msgs/Bool true  # true  on the buzzer, send false when off

3.2.7 Use the rostopic echo command to view speed information and battery voltage

speed information
rostopic echo /cmd_vel
battery voltage
rostopic echo /voltage
