13. Mediapipe recognizes and tracks palm-controlled robotic arms

13.1. Introduction

MediaPipe is a data stream processing machine learning application development framework developed and open sourced by Google. It is a graph-based data processing pipeline for building data sources that use many forms, such as video, audio, sensor data, and any time series data.

MediaPipe is cross-platform and can run on embedded platforms (Raspberry Pi, etc.), mobile devices (iOS and Android), workstations and servers, and supports mobile GPU acceleration.

MediaPipe provides cross-platform, customizable ML solutions for real-time and streaming.

13.2. Using

After the program starts, after the camera captures the image, the robotic arm will follow the movement of the palm in the screen. The movement speed of the palm movement here should not be too fast, otherwise the image processing will not be able to keep up, which will cause stuttering.

roslaunch arm_mediapipe mediaArm.launch # Robots
rosrun arm_mediapipe ArmCtrl.py #Robots

After startup, press R2 of the handle to turn on the function.

After the function is turned on, the robotic arm will move with the palm, and at the same time, the end gripper will also change with the opening and closing of the palm.

13.3. Core code parsing ArmCtrl.py

• Code reference location

  xxxxxxxxxx
  ~/yahboomcar_ws/src/arm_mediapipe/scripts


• Code analysis

  1）、Import important library files

  xxxxxxxxxx
  from media_library import *


  2）、Detect hand, get finger information

  xxxxxxxxxx
  frame, lmList, bbox = self.hand_detector.findHands(frame)
  #bbox is the minimum and maximum xy value of the frame that frames the detected hand. This value is very important. By calculating the center coordinates, the position of the palm on the screen can be determined. The source code is in media_library.py
  angle = self.hand_detector.ThumbTOforefinger(lmList)
  #Here you can calculate the bending angle of the thumb to control the opening and closing of the jaws


  3）、Calculate the angle of each servo

  xxxxxxxxxx
  indexX = (bbox[0] + bbox[2]) / 2
  indexY = (bbox[1] + bbox[3]) / 2
  if indexY > 400: indexY = 400
  elif indexY < 200: indexY = 200
  joint2 = -0.4 * indexY + 170
  joint3 = 0.05 * indexY + 25
  joint4 = -0.125 * indexY + 85
  if 300 < indexX < 340: joint1 = 90
  else: joint1 = -0.3 * indexX + 186


  It can be seen that indexX and indexY are the coordinates of the center point of the picture frame. Through judgment, the angle that the servos 1-5 should be rotated is calculated.The parameters of the calculation method of each angle are calibrated according to the actual angle that can be rotated and the visual range of the camera.

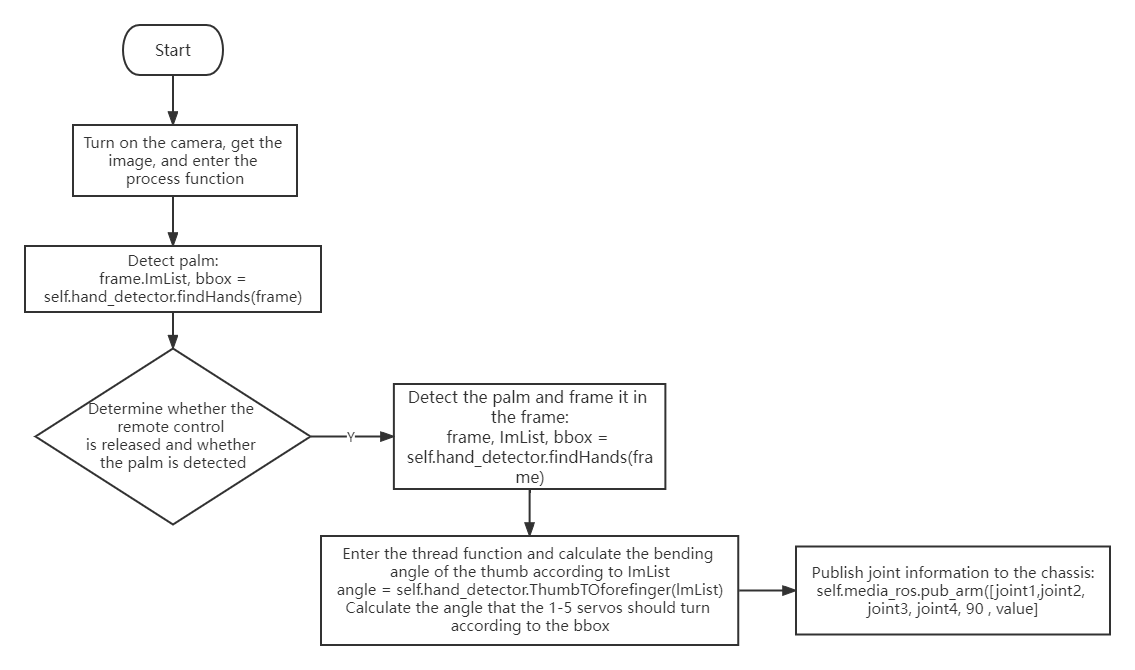

  13.4. Flowchart
