How to use Astra camera

Official website link：https://orbbec3d.com/develop/

Astra camera：https://github.com/orbbec/ros_astra_camera

Ordinary camera：https://github.com/bosch-ros-pkg/usb_cam.git

Linux environment


sudo apt-get install ros-melodic-serial ros-melodic-bfl ros-melodic-mbf-msgs ros-melodic-pointcloud-to-laserscan ros-melodic-astra-camera ros-melodic-astra-launch ros-melodic-rgbd-launch ros-melodic-libuvc-* ros-melodic-uvc-camera ros-melodic-usb-cam ros-melodic-ar-track-alvar ros-melodic-camera-calibration build-essential freeglut3 freeglut3-dev libsfml-dev

Create astra udev rule


xxxxxxxxxx
cd ~/astra_ws/src
./create.sh

launch start up file

Launch file	Start the camera model
astra.launch	Astra,Astra S,Astra mini，Astra mini S
astraplus.launch	Astra plus
astraproplus.launch	Astra pro plus
embedded_s.launch	Deeyea
dabai_u3.launch	Dabai
gemini.launch	Gemini

1、SDK usage（Linux）

Dependent on the environment


xxxxxxxxxx
sudo apt-get install ros-melodic-serial ros-melodic-bfl ros-melodic-mbf-msgs rosmelodic-pointcloud-to-laserscan ros-melodic-rgbd-launch ros-melodic-libuvc-* rosmelodic-uvc-camera ros-melodic-usb-cam ros-melodic-ar-track-alvar ros-melodiccamera-calibration build-essential freeglut3 freeglut3-dev libsfml-dev

Camer SDK&Samples


xxxxxxxxxx
tar -zxvf AstraSDK-v2.1.3-Ubuntu18.04-x86_64.tar.gz
cd AstraSDK-v2.1.3-Ubuntu18.04-x86_64.tar.gz/install  #Enter the install folder
sudo sh ./install.sh

The output contains the following two lines.

Note: Delete install in the penultimate path:


xxxxxxxxxx
export ASTRA_SDK_INCLUDE=/home/yahboom/astra/AstraSDK-v2.1.3-Ubuntu18.04-x86_64/install/include
export ASTRA_SDK_LIB=/home/yahboom/astra/AstraSDK-v2.1.3-Ubuntu18.04-x86_64/install/lib

After deleting install:


xxxxxxxxxx
export ASTRA_SDK_INCLUDE=/home/yahboom/astra/AstraSDK-v2.1.3-Ubuntu18.04-x86_64/include
export ASTRA_SDK_LIB=/home/yahboom/astra/AstraSDK-v2.1.3-Ubuntu18.04-x86_64/lib

Copy the output to the end of ~/.bashrc


xxxxxxxxxx
gedit ~/.bashrc
source ~/.bashrc

The sample program is in the amples directory, which depends on the include and lib directories.

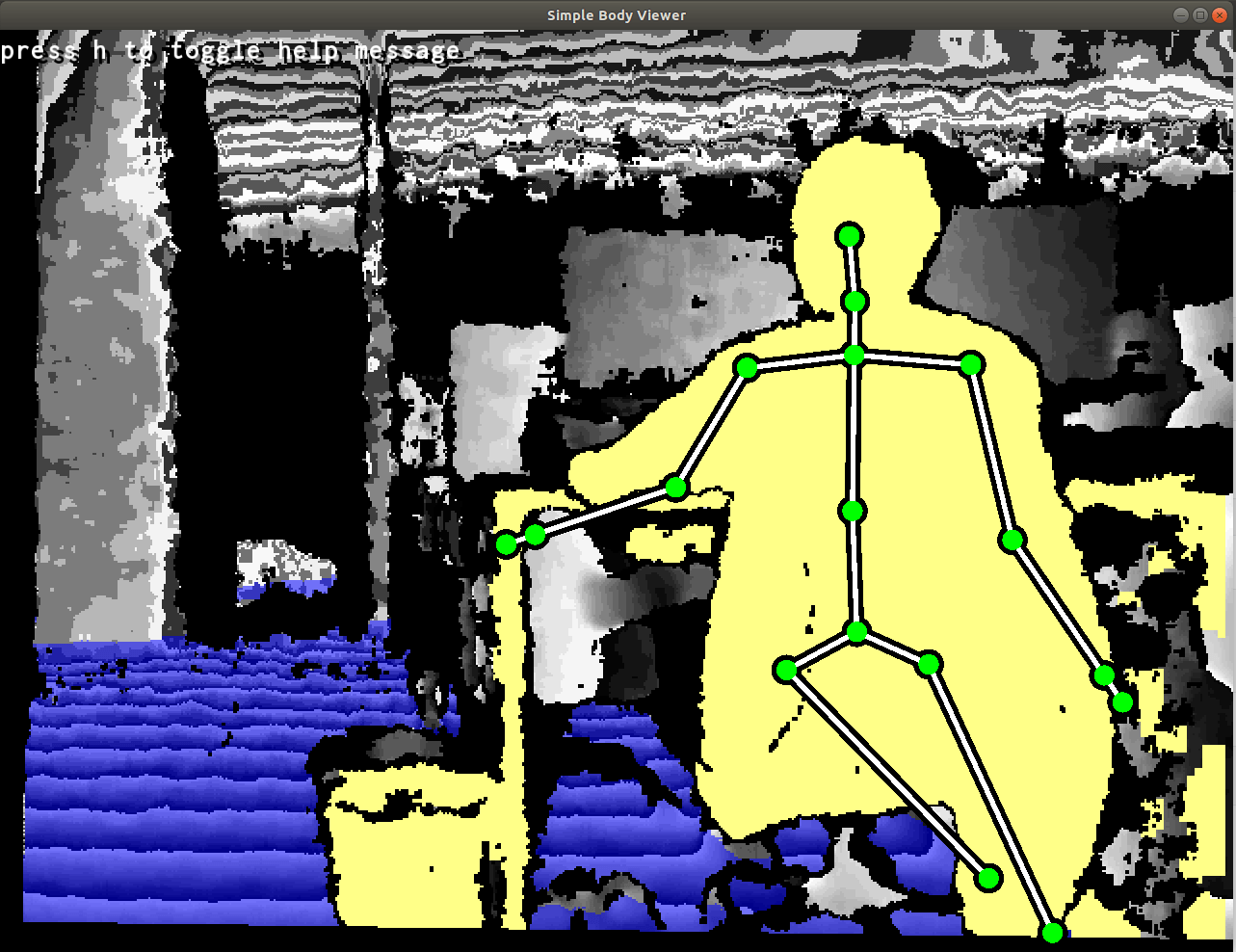

SFML effect demonstration

Note: sudo can be used in the bin folder/ Or/ Start the file with - SFML suffix in the mode of; Both ways Similarly, other effects can be tested.

The virtual opportunity fails to start successfully. Please try several times.


x
cd ~/AstraSDK-v2.1.3-Ubuntu18.04-x86_64/bin/
./SimpleBodyViewer-SFML   # Bone detection

9104

OpenNI camera test tool

Install OpenNI


x
unzip  OpenNI-Linux-x64-2.3.0.66.zip
cd OpenNI-Linux-x64-2.3.0.66
chmod  +x  install.sh
sudo  ./install.sh

Replug the device Initialize the OpenNI environment


xxxxxxxxxx
source OpenNIDevEnvironment

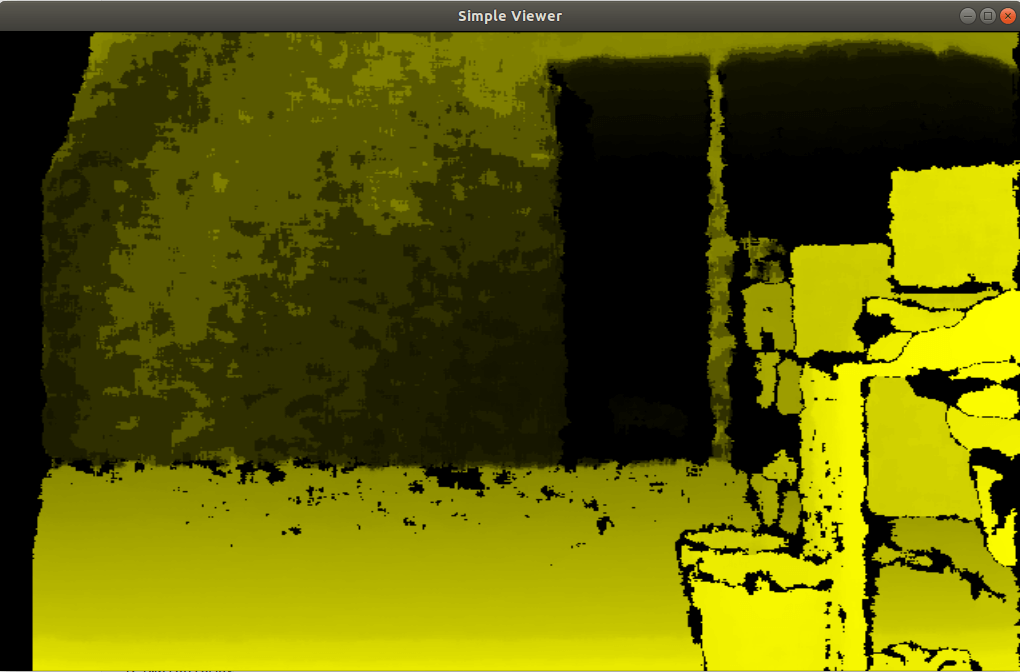

Compile and run


xxxxxxxxxx
cd Samples/SimpleViewer
make
cd Bin/x64-Release
./SimpleViewer

9103

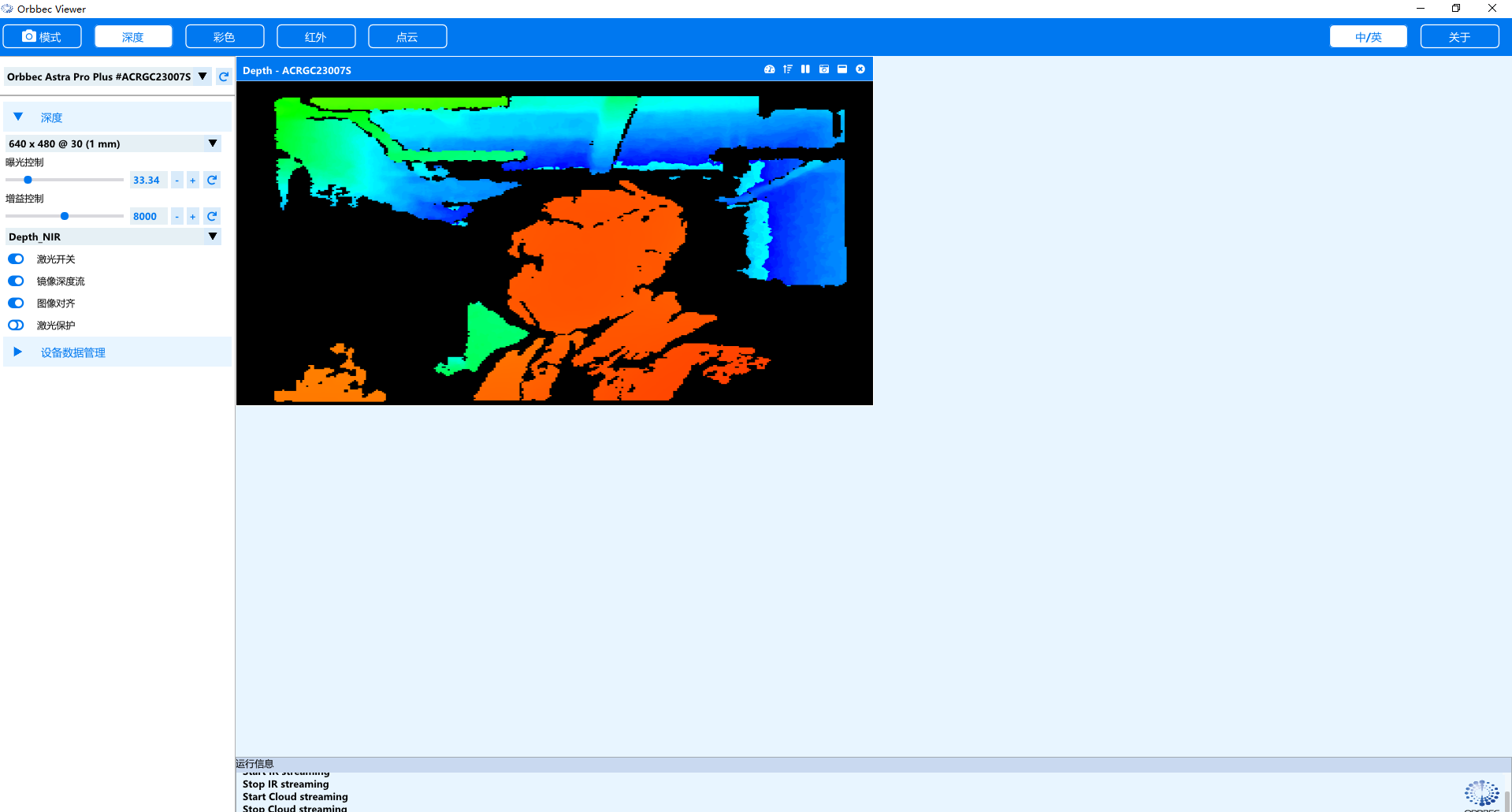

3.OrbbecViewer-win

Unzip OrbbecViewer for OpenNI2_ v1.1.13_ 20220722_ windows_ X64, enter the unzipped file, double-click to run OrbbecViewer.exe.

9104

4、Web monitoring

Environment setup


xxxxxxxxxx
sudo apt-get install ros-melodic-async-web-server-cpp ros-melodic-web-video-server ros-melodic-usb-cam

Start up camera


x
roslaunch astra_camera astraproplus.launch    # Astra

roslaunch usb_cam usb_cam-test.launch     # USB

Start up web_video_server


rosrun web_video_server web_video_server

View


xxxxxxxxxx
Local web browser view
http://localhost:8080/
Must be in the same local area network, other devices can view
http://192.168.2.103:8080/
(192.168.2.103 is the IP address of the master)
Note: It is recommended to use Google Chrome or mobile QQ browser, other browsers may not be able to open the image
