4.Publisher

4.1 Publisher

Publishers, as the name suggests, serve to publish messages. The message here can be sensor information transmitted from the lower computer to the upper computer, which is then packaged and sent to subscribers who have subscribed to the topic through the upper computer; It can also be the data from the upper computer that has been processed, packaged, and sent to subscribers who subscribe to the topic.

4.2. Create a workspace and topic feature pack

4.2.1 Creating a workspace

mkdir -p ~/catkin_ws/src
cd ~/catkin_ws/src
catkin_init_workspace

4.2.2 Compilation workspace

xxxxxxxxxx
cd ~/catkin_ws/
catkin_make

4.2.3. Updating Environmental Variables

xxxxxxxxxx
source devel/setup.bash

4.2.4. Checking Environmental Variables

xxxxxxxxxx
echo $ROS_PACKAGE_PATH

4.2.5. Create Function Package

xxxxxxxxxx
cd ~/catkin_ws/src
catkin_create_pkg learning_topic std_msgs rospy roscpp geometry_msgs turtlesim

4.2.6 Compilation Function Package

xxxxxxxxxx
cd ~/catkin_ws
catkin_make
source ~/catkin_ws/devel/setup.bash

4.3. Creating a Publisher

4.3.1 Creation steps

1. Initialize ROS node
2. Create handleRegister
3. node information with ROS Master, including the published topic name, message types in the topic, and queue length
4. Create and initialize message data
5. Cycle sending messages at a certain frequency

4.3.2. C++Language Implementation

1. In the src folder of the feature pack, create a c++file (with the suffix. cpp) and name it turtle_ velocity_ publisher.cpp
2. Copy and paste the program code below into the title_ velocity_ In the publisher.cpp file

​x
#include <ros/ros.h>
#include <geometry_msgs/Twist.h>
int main(int argc, char **argv){

    ros::init(argc, argv, "turtle_velocity_publisher");

    ros::NodeHandle n;


    ros::Publisher turtle_vel_pub = n.advertise<geometry_msgs::Twist>("/turtle1/cmd_vel", 10);

    ros::Rate loop_rate(10);

    while (ros::ok()){

        geometry_msgs::Twist turtle_vel_msg;
        turtle_vel_msg.linear.x = 0.8;
        turtle_vel_msg.angular.z = 0.6;

        turtle_vel_pub.publish(turtle_vel_msg);/


        ROS_INFO("Publsh turtle velocity command[%0.2f m/s, %0.2f rad/s]", turtle_vel_msg.linear.x, turtle_vel_msg.angular.z);

        loop_rate.sleep();/
    }
    return 0;
}

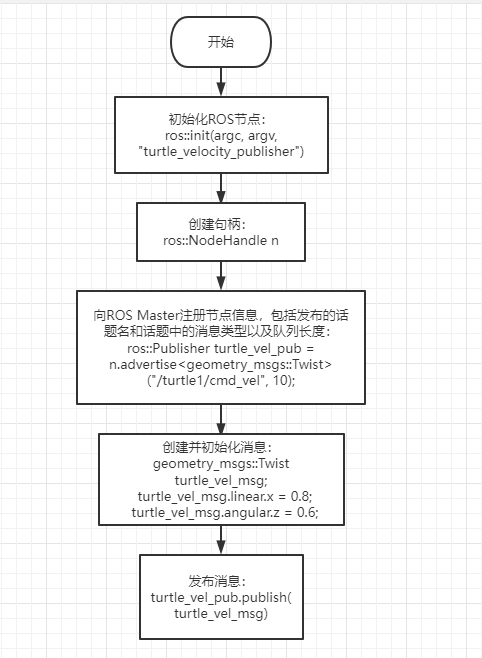

3. Program flowchart, corresponding to 1.3.1 content for viewing

4. Configure in CMakelist.txt, under the build area, add the following content

xxxxxxxxxx
add_executable(turtle_velocity_publisher src/turtle_velocity_publisher.cpp)
target_link_libraries(turtle_velocity_publisher ${catkin_LIBRARIES})

5. Compiling code under workspace directory

xxxxxxxxxx
cd ~/catkin_ws
catkin_make
source devel/setup.bash

6. run a program

• Run score

xxxxxxxxxx
roscore

• Running the Little Turtle Node

xxxxxxxxxx
rosrun turtlesim turtlesim_node

• Run the publisher and continuously send speed to Little Turtle

xxxxxxxxxx
rosrun learning_topic turtle_velocity_publisher

7. Screenshot of operation effect

8. Program operation instructions

• Entering the rostopic list on the terminal to view the topic list will reveal/tourle1/cmd_ The topic of vel
• We use rostopic info/tourle1/cmd_ Looking at vel, you will find that

This indicates that Little Turtle is a subscription/tourle1/cmd_ The speed topic is vel, so the publisher keeps sending speed data. After receiving it, the little turtle starts to move according to the speed

4.3.3. Python Language Implementation

1. In the feature pack directory, create a new folder called scripts, and then create a new Python file (with the suffix. py) under the scripts folder, named turtle_ velocity_ publisher.py
2. Copy and paste the program code below into the title_ velocity_ In the publisher.py file

xxxxxxxxxx
#!/usr/bin/env python
# -*- coding: utf-8 -*-

import rospy
from geometry_msgs.msg import Twist

def turtle_velocity_publisher():

    rospy.init_node('turtle_velocity_publisher', anonymous=True) # ROS节点初始化


    turtle_vel_pub = rospy.Publisher('/turtle1/cmd_vel', Twist, queue_size=8)


    rate = rospy.Rate(10) #设置循环的频率

    while not rospy.is_shutdown():
        # 初始化geometry_msgs::Twist类型的消息
        turtle_vel_msg = Twist()
        turtle_vel_msg.linear.x = 0.8
        turtle_vel_msg.angular.z = 0.6

        # 发布消息
        turtle_vel_pub.publish(turtle_vel_msg)
        rospy.loginfo("linear is :%0.2f m/s, angular is :%0.2f rad/s",
                turtle_vel_msg.linear.x, turtle_vel_msg.angular.z)


        rate.sleep()# 按照循环频率延时

if __name__ == '__main__':
    try:
        turtle_velocity_publisher()
    except rospy.ROSInterruptException:
        pass

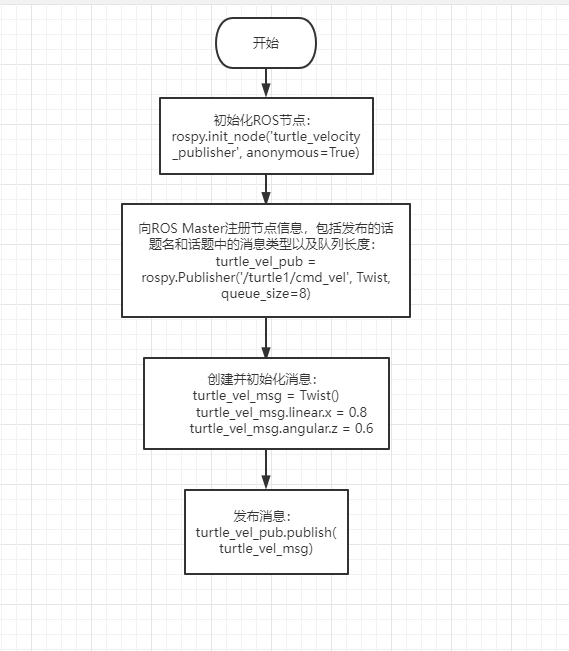

3. Process Flow Chart

4. run a program

• Run score

xxxxxxxxxx
roscore

• Running the Little Turtle Node

xxxxxxxxxx
rosrun turtlesim turtlesim_node

• Run the publisher and continuously send speed to Little Turtle

xxxxxxxxxx
rosrun learning_topic turtle_velocity_publisher

Note: Before running, it is necessary to give the title_ velocity_ Publisher.py adds executable permissions in the title_ velocity_ Open the terminal in the publisher.py folder,

xxxxxxxxxx
sudo chmod a+x turtle_velocity_publisher.py

All Python requires adding execute file permissions, otherwise an error will be reported!5) Refer to 1.3.2 for operational effects and program instructions.
