Handle ROS1 course

1、Operating environment Operating System: Ubuntu 18.04 ROS version: mellodic Devices: Jetson nano, Raspberry Pi, PC

2、Install the driver


sudo apt install ros-melodic-joy ros-melodic-joystick-drivers

3、Usage steps

Connect the USB end of the wireless controller to the device

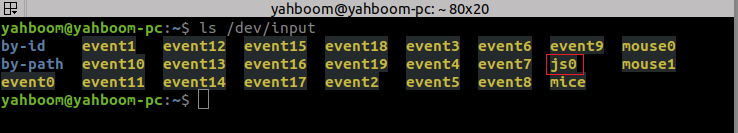

View Device


xxxxxxxxxx
ls /dev/input

010

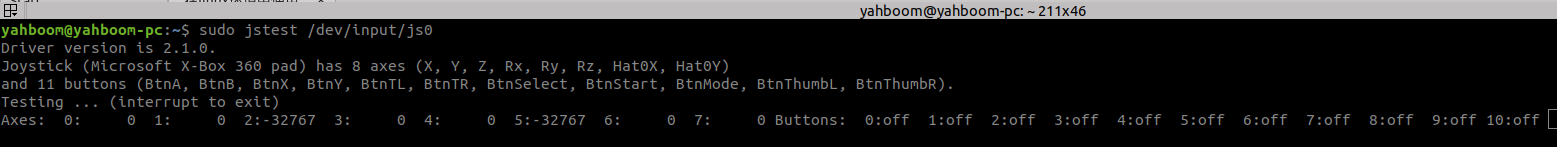

Test handle


xxxxxxxxxx
sudo jstest /dev/input/js0

011

If jstest is not installed, run the following command:


xxxxxxxxxx
sudo apt-get install joystick

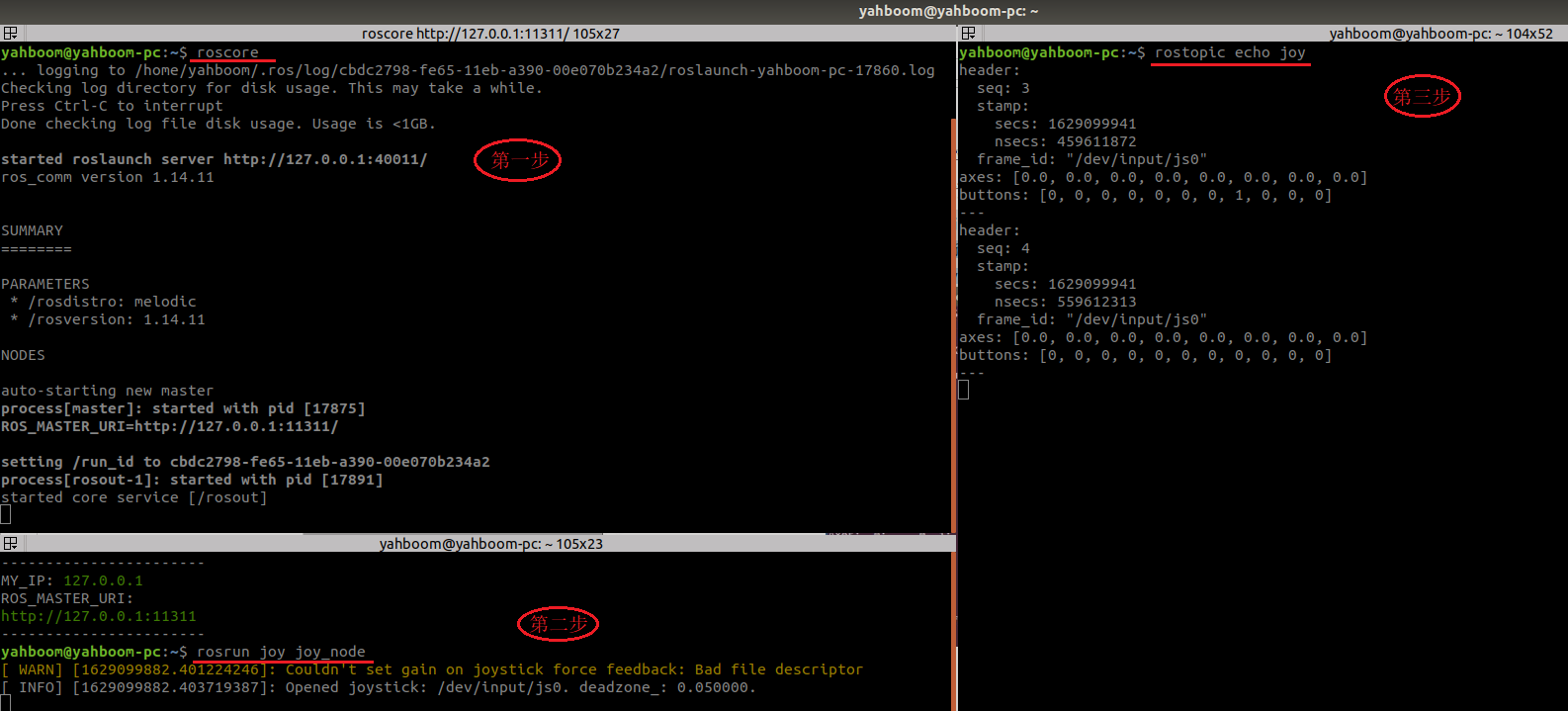

Operation handle node


x
roscore step1
rosrun joy joy_node Step3
rostopic echo joy Step3

012

4、Handle control Little Turtle

Copy the wireless handle control function package to the workspace, compile and update the environment


x
Catkin_ Make # Compile
Source dev/setup. bash # Update environment
Note: Any modifications to C++code require this step to take effect.

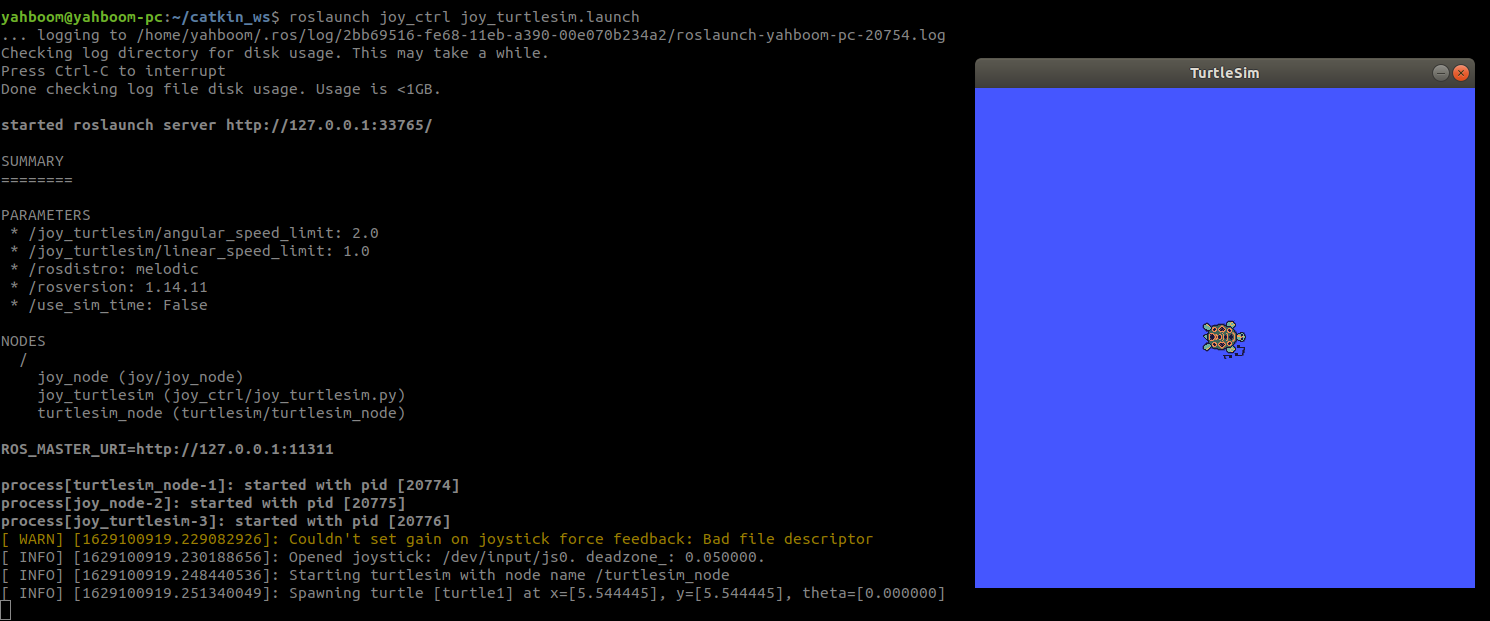

Start Python code command


xxxxxxxxxx
roslaunch joy_ctrl joy_turtlesim.launch

Start C++code command


xxxxxxxxxx
roslaunch joy_ctrl joy_turtle.launch

013

At this point, the handle can be used to control the operation of the little turtle. Corresponding relationship between the handle and the operation of the little turtle

Handle	Little turtle
Left rocker up	forward
Left rocker down	back
Right rocker left	turn left
Right rocker right	turn right

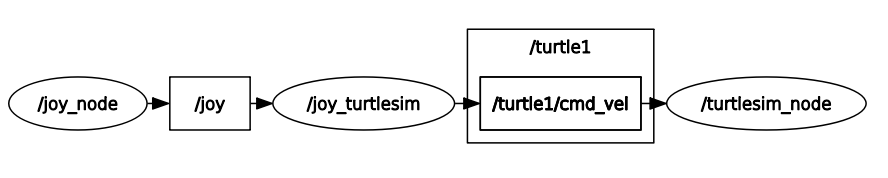

View node diagram


xxxxxxxxxx
rqt_graph

014

5、Handle controlled turbobot

Due to the need to start gazebo, there is a high demand for device performance. It is recommended to use it on a PC, as Jetson nano and Raspberry pie may become particularly sluggish and may not run properly.

Install gazebo and turbobot simulations


xxxxxxxxxx
sudo apt-get update
sudo apt-get upgrade
sudo apt-get install gazebo9 libgazebo9-dev ros-melodic-turtlebot3*

Copy the wireless handle control function package to the workspace, compile and update the environment


x
Catkin_ Make # Compile
Source dev/setup. bash # Update environment
Note: Any modifications to C++code require this step to take effect.

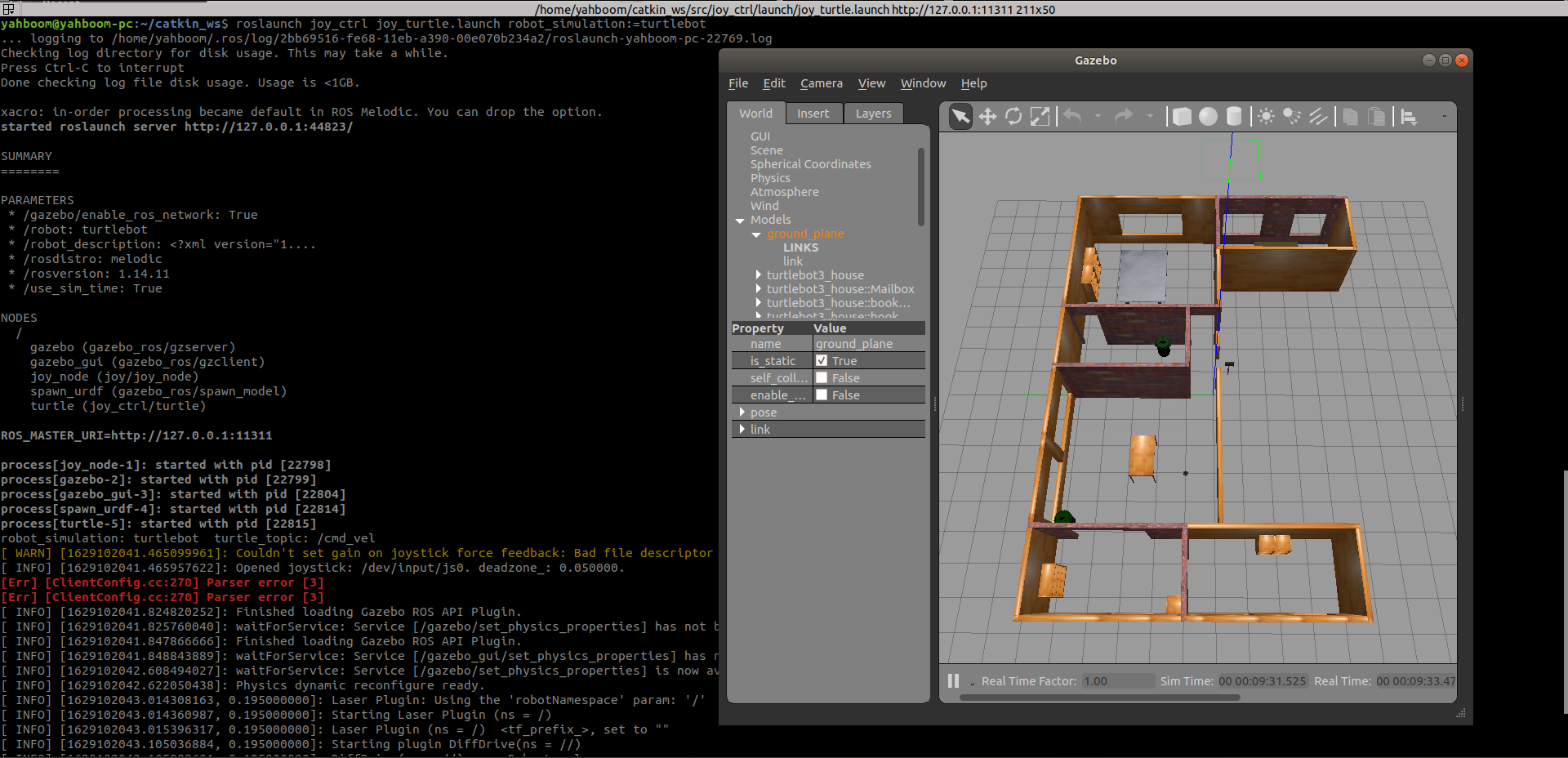

Start Python code command


xxxxxxxxxx
roslaunch joy_ctrl joy_turtlesim.launch

Start C++code command


xxxxxxxxxx
roslaunch joy_ctrl joy_turtle.launch robot_simulation:=turtlebot

015

At this point, the handle can be used to control the operation of the turbobot.

Corresponding relationship between the handle and the operation of the little turtlebot

Handle	turtlebot
Left rocker up	forward
Left rocker down	back
Right rocker left	turn left
Right rocker right	turn right

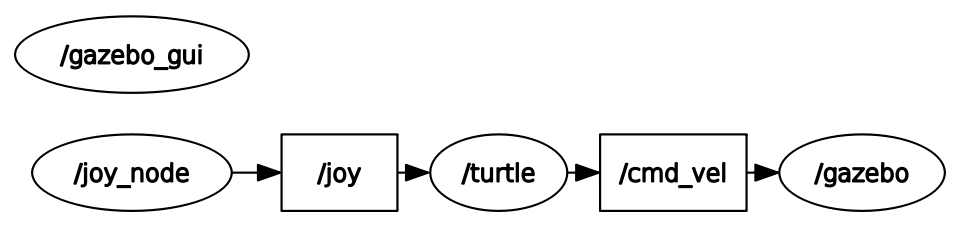

View node diagram


xxxxxxxxxx
rqt_graph

016

gazebo close command


xxxxxxxxxx
killall gzserver gzclient

Appendix

jetson nano


xxxxxxxxxx
joy_data.buttons: header:
  seq: 335
  stamp:
    secs: 1628324636
    nsecs: 962988952
  frame_id: "/dev/input/js0"
axes: [0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0]
buttons: [0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0]

axes（8）

Code Parsing	Handle buttons
axes[0]	Left rocker (left positive and right negative)
axes[1]	Left rocker (up positive and down negative)
axes[2]	Right rocker (left positive and right negative)
axes[3]	Right rocker (up positive and down negative)
axes[4]
axes[5]
axes[6]	Left button (left positive and right negative)
axes[7]	Left button (up positive and down negative)

buttons（15）

Code Parsing	Handle buttons
buttons[0]	A
buttons[1]	B
buttons[2]
buttons[3]	X
buttons[4]	Y
buttons[5]
buttons[6]	L1
buttons[7]	R1
buttons[8]	L2
buttons[9]	R2
buttons[10]	SELECT
buttons[11]	START
buttons[12]
buttons[13]	Press left rocker
buttons[14]	Press right rocker

Raspberry Pi


xxxxxxxxxx
joy_data.buttons: header:
  seq: 264
  stamp:
    secs: 1628326479
    nsecs: 848359307
  frame_id: "/dev/input/js0"
axes: [-0.0, -0.0, 0.0, -0.0, -0.0, 0.0, 0.0, 0.0]
buttons: [0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0]

axes（8）

Code Parsing	Handle buttons
axes[0]	Left rocker (left positive and right negative)
axes[1]	Left rocker (up positive and down negative)
axes[2]	L2(Press:-1，release:1)
axes[3]	Right rocker (left positive and right negative)
axes[4]	Right rocker (up positive and down negative)
axes[5]	R2(Press:-1，release:1)
axes[6]	Left button (left positive and right negative)
axes[7]	Left button (up positive and down negative)

buttons（11）

Code Parsing	Handle buttons
buttons[0]	A
buttons[1]	B
buttons[2]	X
buttons[3]	Y
buttons[4]	L1
buttons[5]	R1
buttons[6]	SELECT
buttons[7]	START
buttons[8]	MODE
buttons[9]	Press left rocker
buttons[10]	Press right rocker
