7. Web page real-time monitoring

7. Web page real-time monitoring 7.1. Environment Construction 7.2. modify the launch file 7.3. effect demonstration

7.1. Environment Construction


sudo apt-get install ros-melodic-async-web-server-cpp ros-melodic-web-video-server ros-melodic-usb-cam

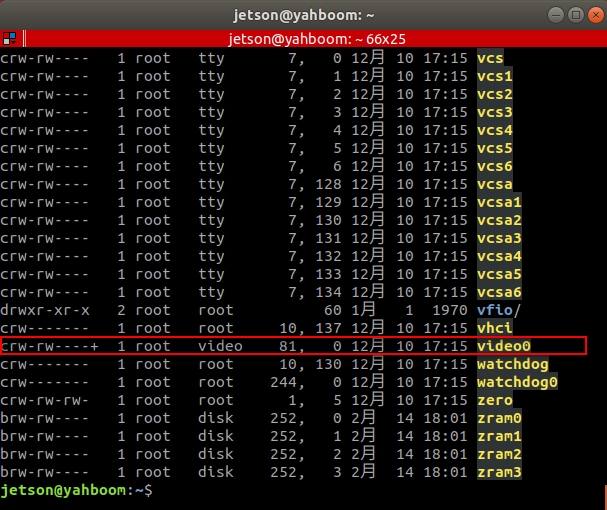

First make sure that the USB camera link is correct, enter the following command to check that the USB device number exists and is video0


xxxxxxxxxx
ll  /dev

If the execute permission is not enough, you need to add the execute permission


xxxxxxxxxx
sudo chmod 777 /dev/video*

7.2. modify the launch file


xxxxxxxxxx
sudo vim /opt/ros/melodic/share/usb_cam/launch/usb_cam-test.launch

Keep hitting the keyboard [d] to delete everything. Click [i] on the keyboard to enter the edit mode, and write the following content into it.


< launch >
    < arg  name = "open_view"  default = "false" />
    < node  name = "usb_cam"  pkg = "usb_cam"  type = "usb_cam_node"  output = "screen" >
        < param  name = "video_device"  value = "/dev/video0" />
        < param  name = "image_width"  value = "640" />
        < param  name = "image_height"  value = "480" />
        < param  name = "pixel_format"  value = "yuyv" />
        < param  name = "camera_frame_id"  value = "usb_cam" />
        < param  name = "io_method"  value = "mmap" />
    </ node >
    <!-- web_video_server -->
    < node  pkg = "web_video_server"  type = "web_video_server"  name = "web_video_server"  output = "screen" />
    <!-- image_view -->
    < group  if = "$(arg open_view)" >
        < node  name = "image_view"  pkg = "image_view"  type = "image_view"  respawn = "false"  output = "screen" >
            < remap  from = "image"  to = "/usb_cam/image_raw" />
            < param  name = "autosize"  value = "true" />
        </ node >
    </ group >
</ launch >

Click the [ESC] key twice (or multiple times), click the keyboard [shift plus;], enter [wq], and click the [Enter] key.

7.3. effect demonstration

open terminal, start


xxxxxxxxxx
roslaunch usb_cam usb_cam-test.launch

View in local web browser


xxxxxxxxxx
http://localhost:8080/

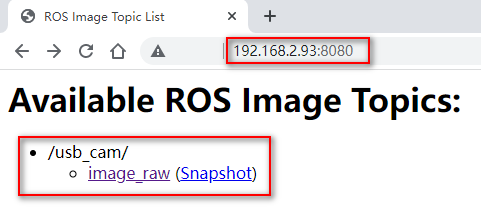

View other devices (must be under the same LAN, 192.168.2.93 is the IP address of the master)


xxxxxxxxxx
http://192.168.2.93:8080/

Note: It is recommended to use Google Chrome or mobile QQ browser, other browsers may not be able to open the image

Click [image_raw] to view the camera image in real time, and click [Snapshot] to display only one frame of image.
