2 Burning and Updating Firmwares

2.1 Burning M5Stack-basic Firmwares

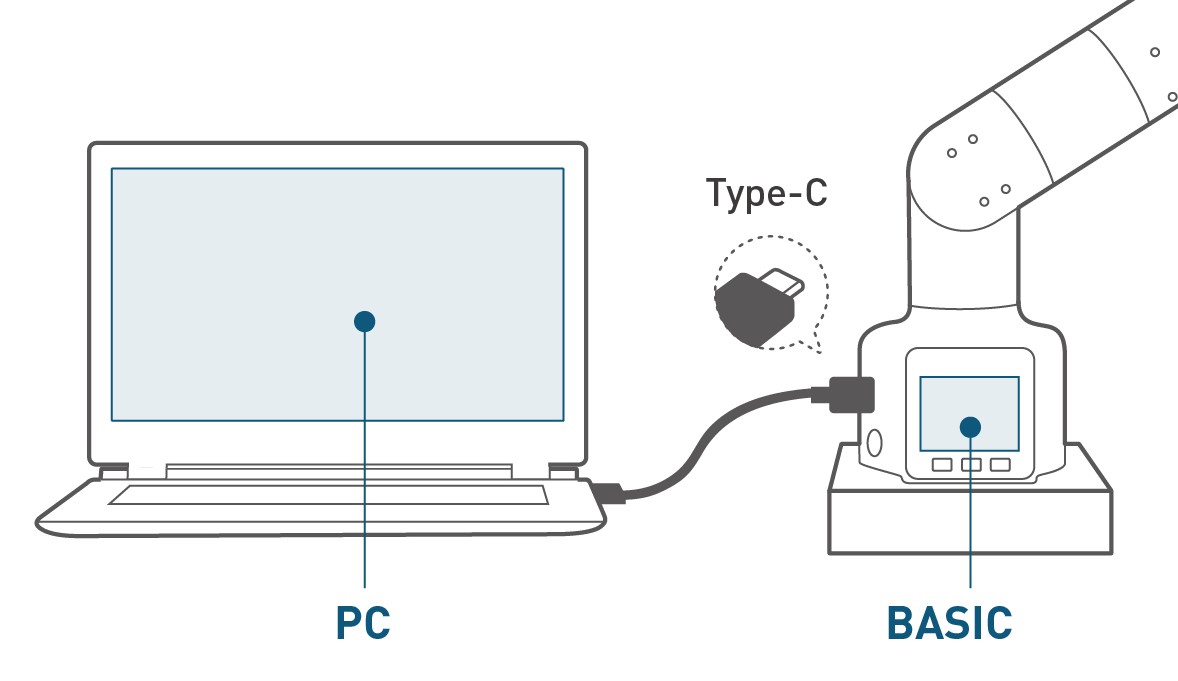

Step 1: Connect M5Stack-basic with PC with USB.

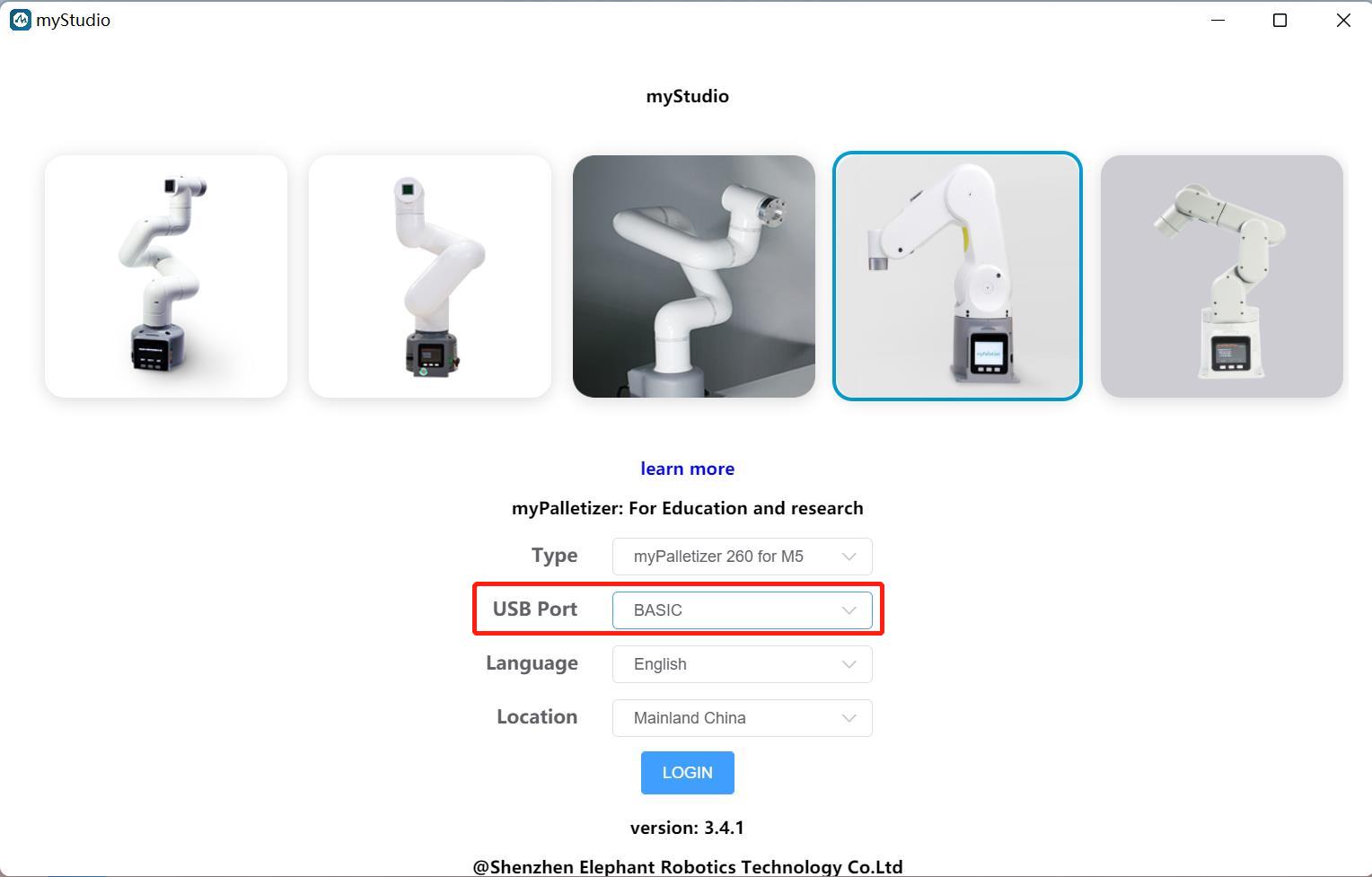

Step 2: Select USB Port. After connecting with PC, USB Port shows M5Stack-basic. The figure below takes myPalletizer 260 M5 as an example.

• Click on LOGIN-> M5Stack-basic, and then you can burn firmwares.

Notice: As 280 PI/Jetson nano/Arduino versions do not have M5Stack-basic, the USB Port cannot show anything after connection.

2.2 Burning Atom Firmware

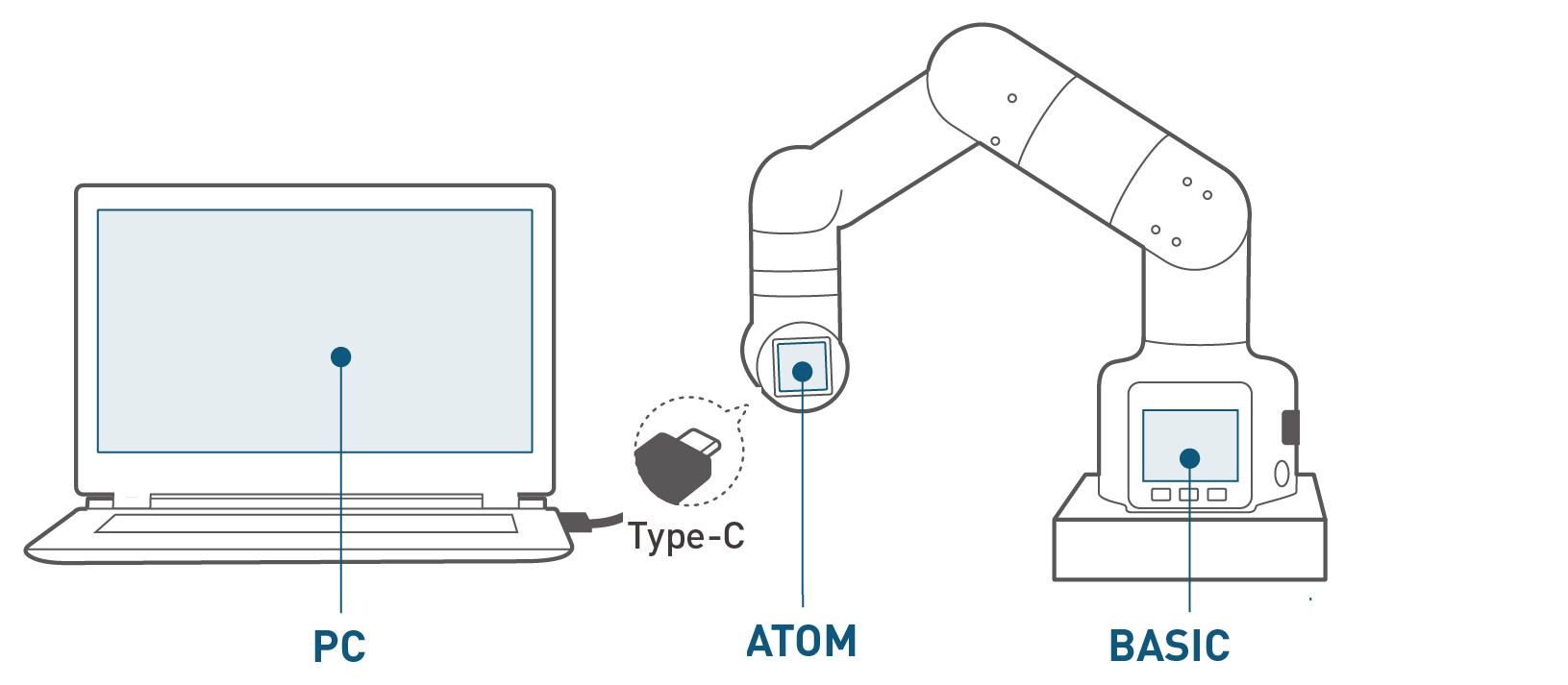

Step 1: Connect Atom with PC with USB.

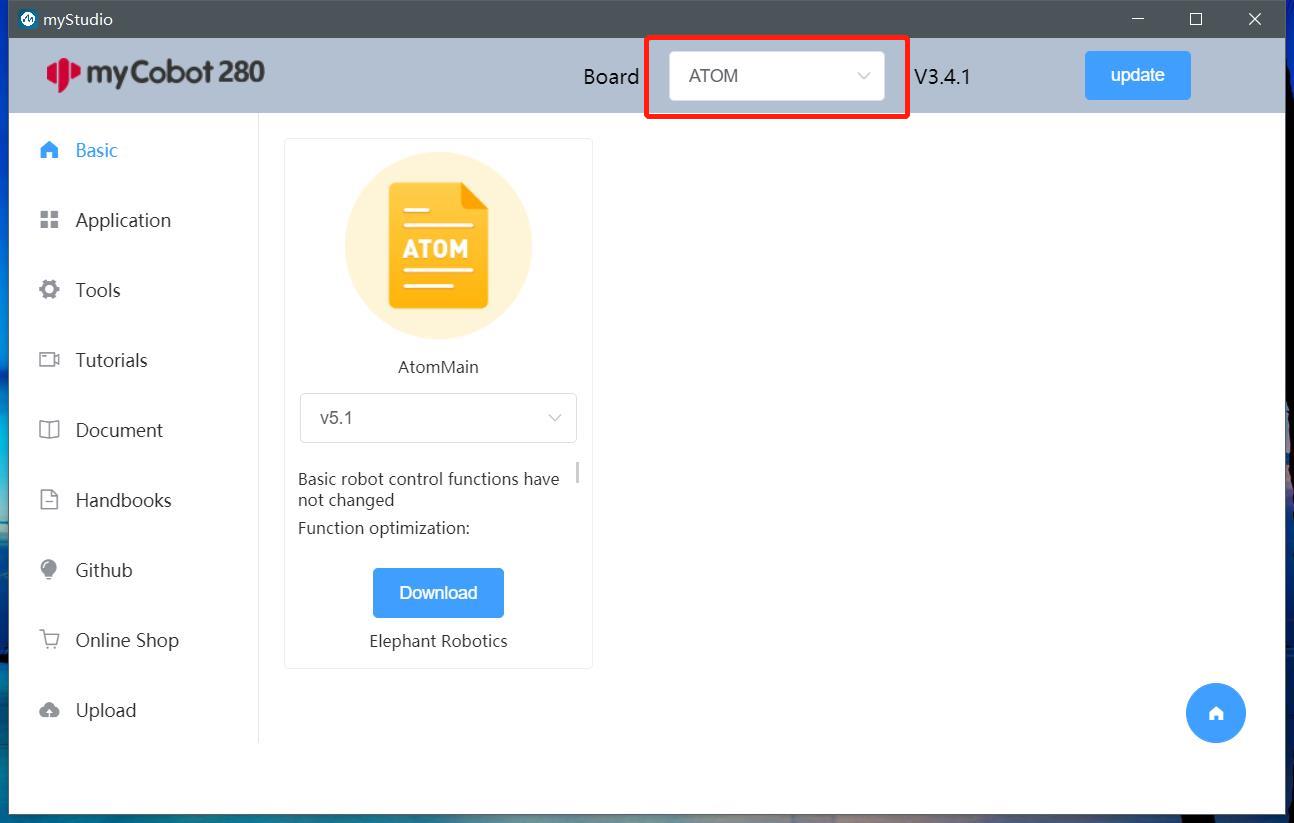

Step 2: Select ATOM at Board, and then burn AtomMain. The picture below takes myCobot 320 as an example.

2.3 Firmware Burning for myCobot 320 series

M5Stack-basic and picoMain are required to be burnt on myCobot 320 series. It should be noted that the two firmwares are burnt by different type-c interfaces.

1.Burning M5Stack-basic: miniRobot

Step 1: Connect M5Stack-basic and PC.

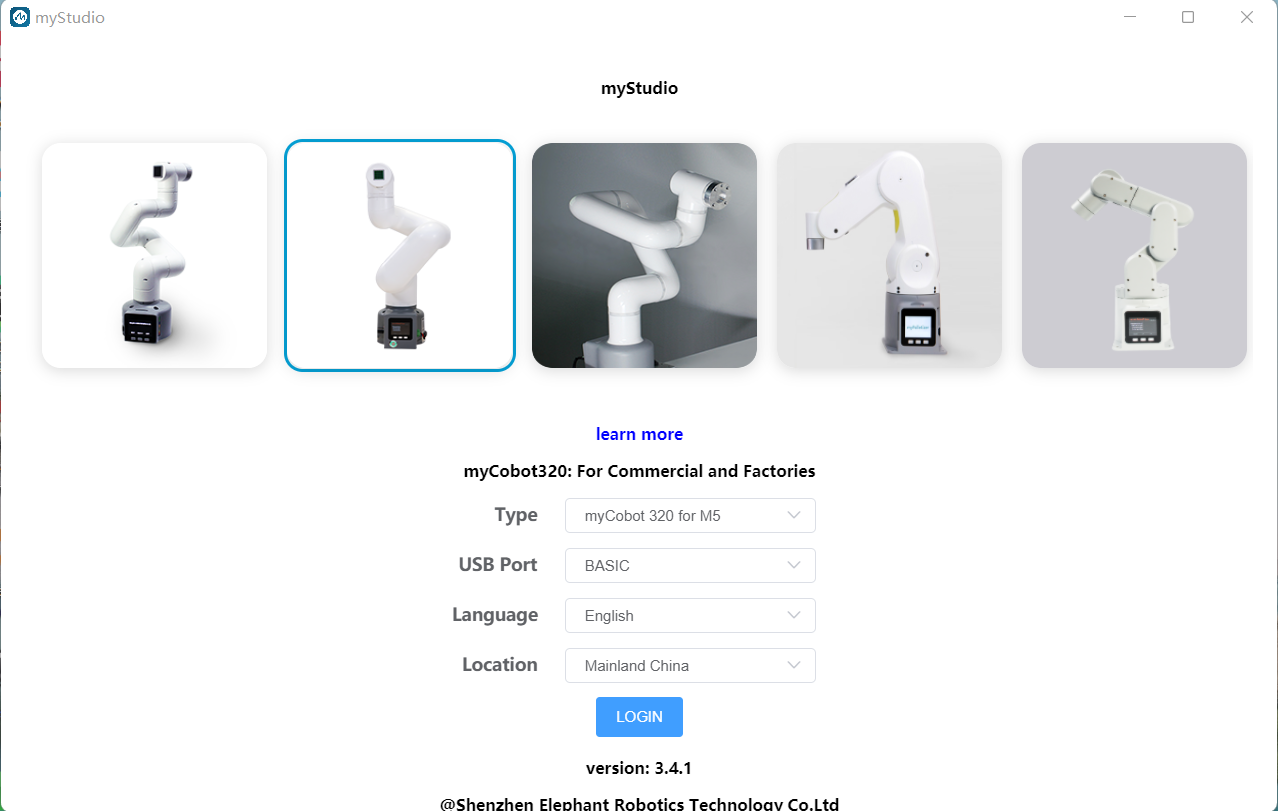

Step 2: Select the 320 series, language and region, and then click on LOGIN.

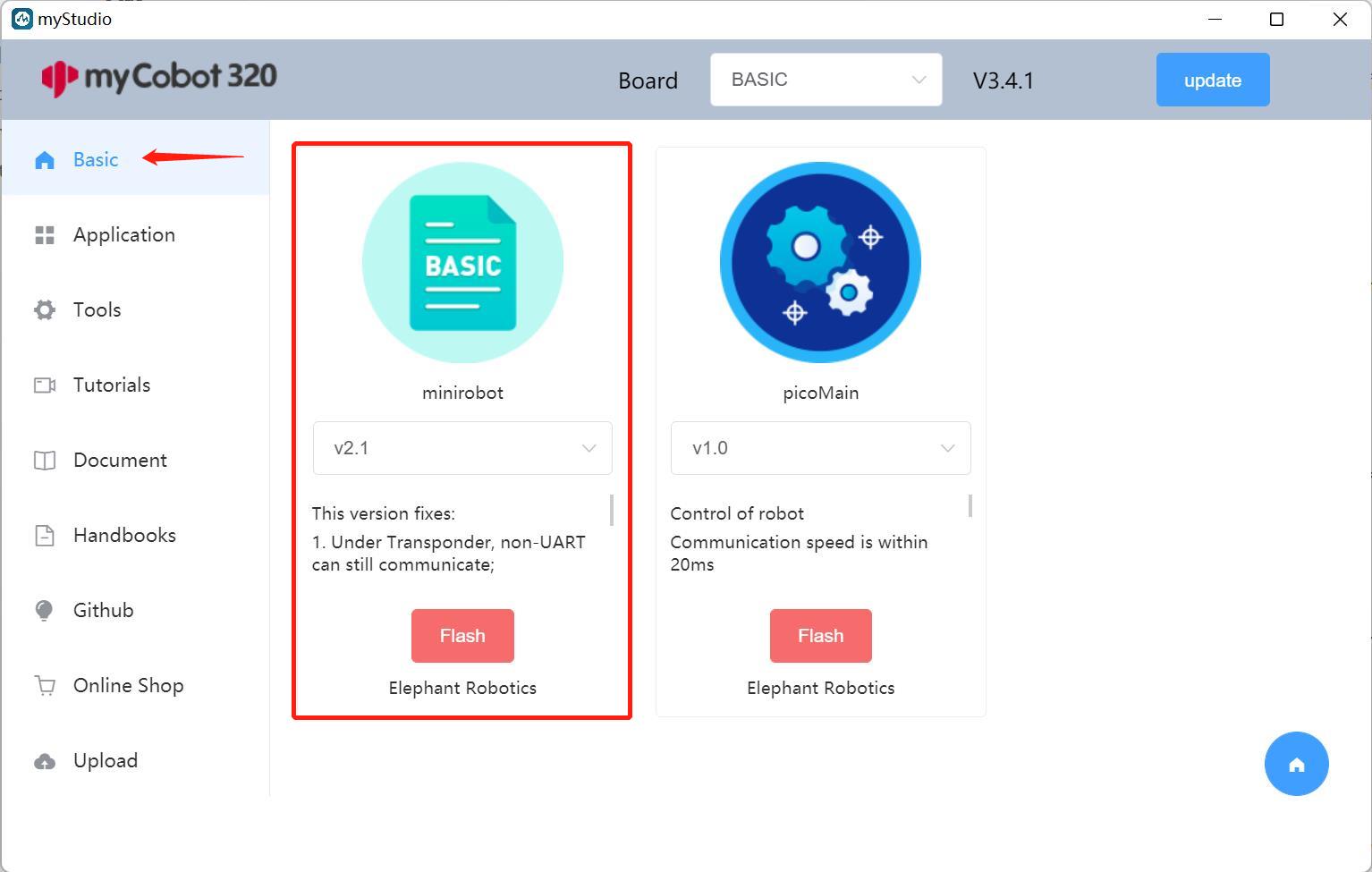

Step 3: Click on Basic, and select minirobot to burn.

2.Burning Pico Firmware: picoMain

Step 1: Connect M5Stack-basic with PC.

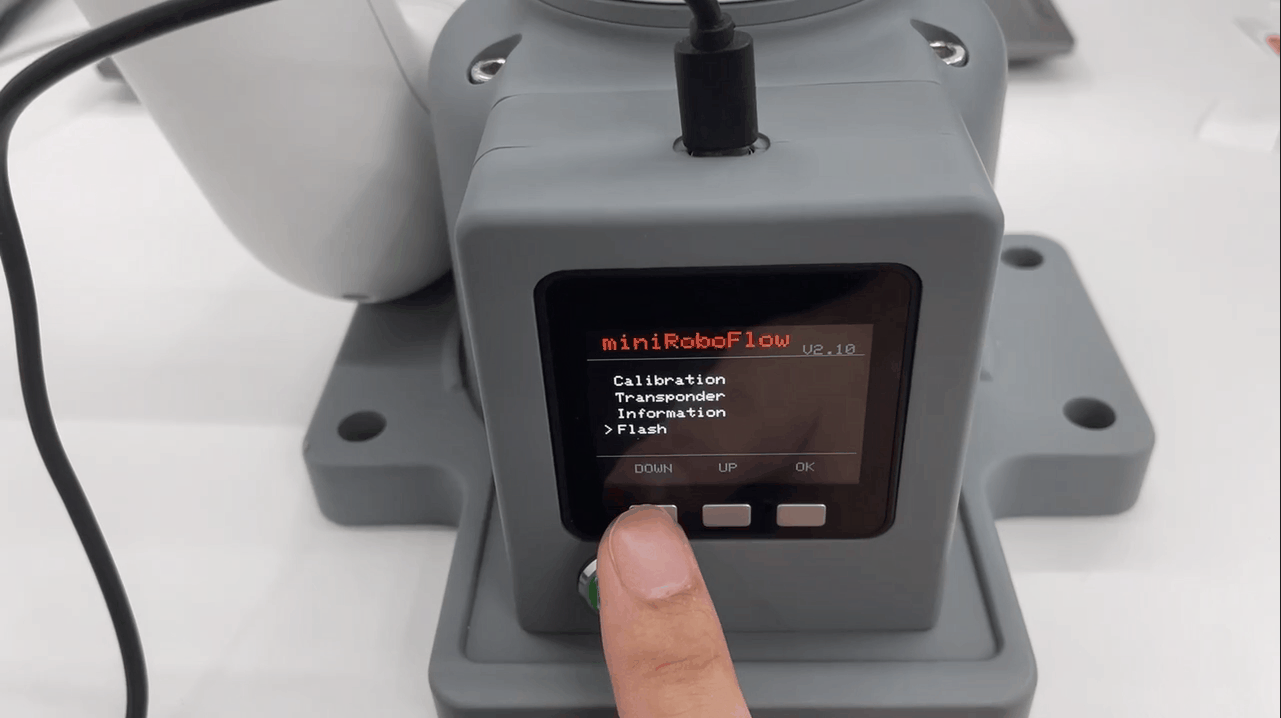

Step 2: Select Flash (press UP once or DOWN four times), and then the screen goes dark for approximately 30 seconds.

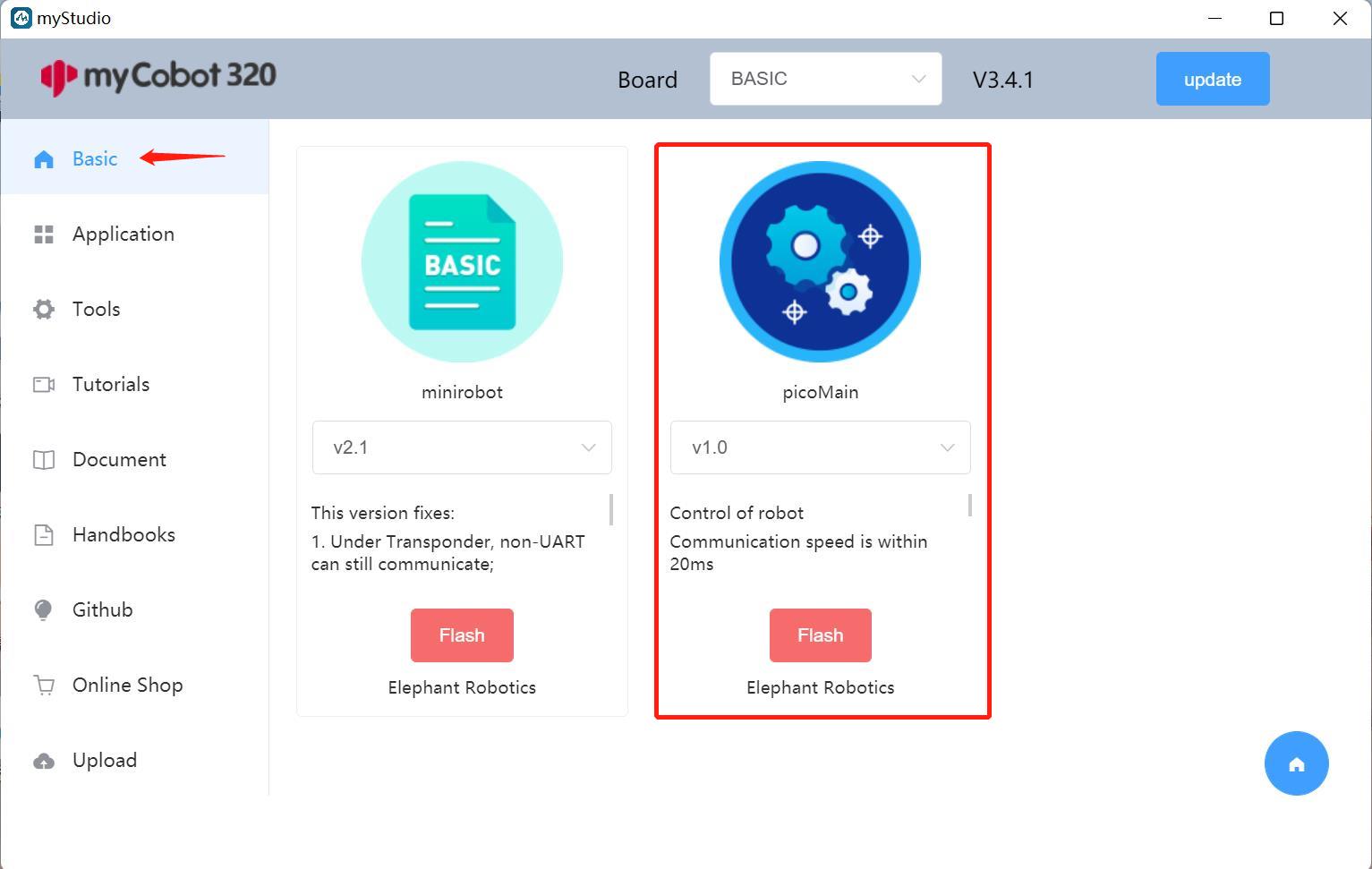

Step 3: select picoMain to burn via myStudio.

Notice: picoMain is required to be burnt during the sleep period of Flash mode. Otherwise it may fail to burn picoMain.

2.4 myAGV Firmware burning

1.Burning Pico Firmware: picoMain

Step 1: Turn on the computer and connect the screen.

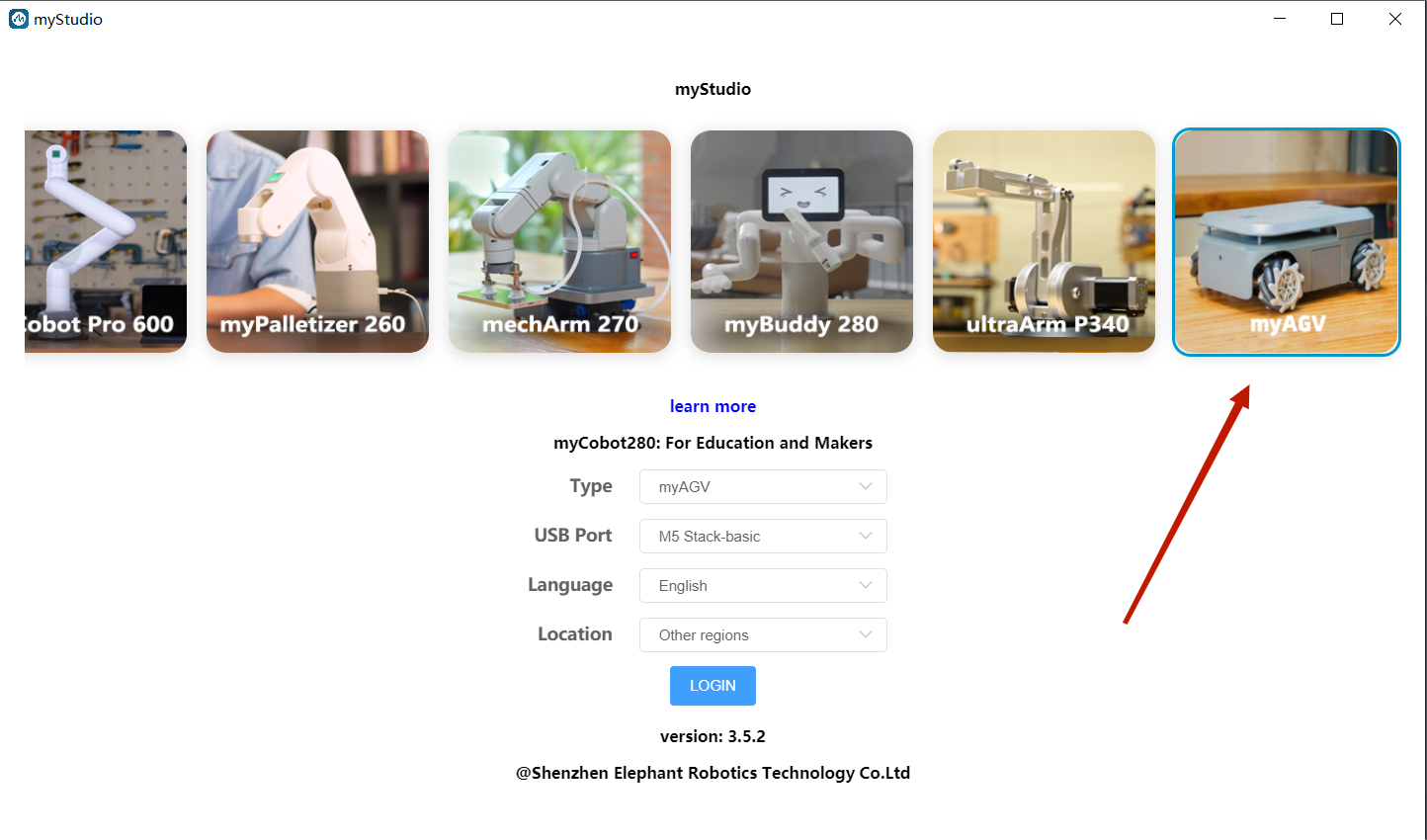

Step 2: Select the myAGV image, select the model language and region, and click to log in.

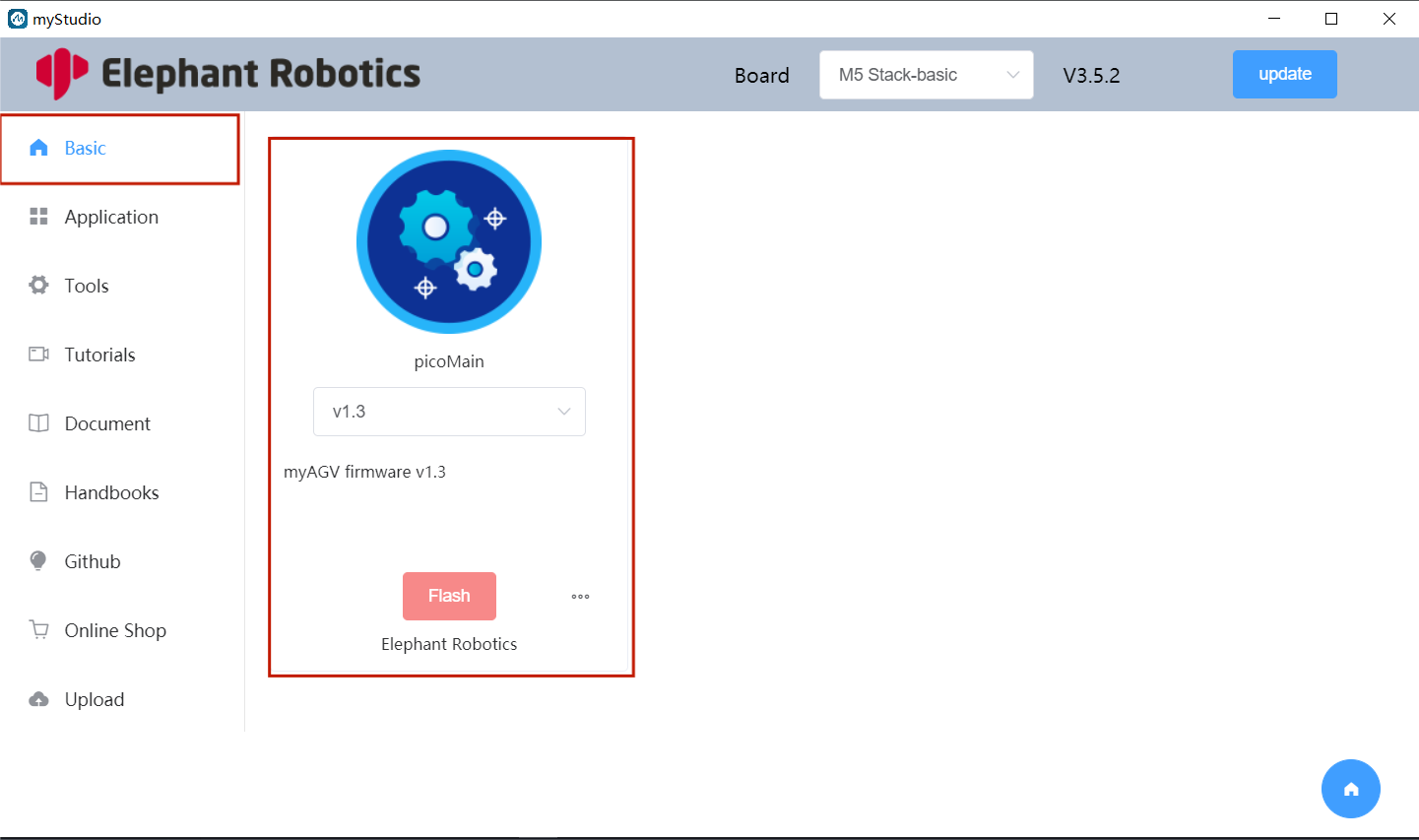

Step 3: After logging in, click 'Basic' and select picoMain to burn.

2.5 myArm Firmware burning

1.Burning Atom Firmware

Step 1: Connects to a PC. Use USB to connect the Atom interface (labeled 11 as Atom Type C interface).

Step 2: Select the myArm image, select the model language and region, and click to login.

Step 3: After login, click 'Basic', select AtomMain, click download, and then click the burn button to burn.

2.Burning Pico Firmware: picoMain

Step 1: Turn on the computer and connect the screen.

Step 2: Select the myArm image, select the model language and region, and click to login.

Step 3: After login, click 'Basic', select picoMain, click download, and then click the burn button to burn.
