6. ORB_SLAM2 PCL mapping

This routine is implemented on Orin NX and cannot be implemented on a virtual machine. It just explains how the process is implemented. If you want to implement this function on your own motherboard, you need to compile the entire function package and connect related peripherals.

6. ORB_SLAM2 PCL mapping6.1. Introduction6.2. Use6.3. Node analysis6.3.1. Display calculation graph6.3.2, pointcloud_mapping node details6.3.3, TF transformation

pcl official website address: http://pointclouds.org

pcl_ros wiki: https://wiki.ros.org/pcl_ros

pcl_ros github: https://github.com/ros-perception/perception_pcl

The operating environment and software and hardware reference configuration are as follows:



6.1. Introduction

PCL (The Point Cloud Library) is a large-scale open source project for 2D/3D image and point cloud processing. The PCL framework consists of many advanced algorithms, including filtering, feature estimation, surface reconstruction, registration, model stitching and segmentation, etc. These algorithms have many applications, for example, filtering outliers in noisy data, stitching together multiple sets of 3D point clouds, segmenting relevant parts of a scene, extracting key points and calculating descriptors of geometric shapes for identifying objects, creating and using point clouds. Visualize object surfaces, etc. PCL has been successfully compiled and deployed on Linux, MacOS, Windows, and Android/iOS platforms. To simplify development, PCL is split into a series of small code libraries that can be compiled independently.



Basic concepts of point cloud library and ROS PCL interface:

Point cloud library: Provides a set of data structures and algorithms for processing three-dimensional data;

ROS's PCL interface: Provides a set of messages and conversion functions between messages and PCL data structures.

From a C++ perspective, PCL contains a very important data structure, which is point cloud. This data structure is designed as a template class, which uses the point type as a parameter of the template class. The point cloud class is actually a container. This container contains all the public information required by the point cloud, regardless of the type of point. The following are the most important common fields in point clouds:

header: This field is of pcl:PCLHeader type. Specifies the point cloud acquisition time.

points: This field is of type std::vector<PointT...>, which is a container that stores all points. PointT in the vector definition corresponds to the template parameter of the class, that is, the type of point.

width: This field specifies the width of the point cloud when organized into an image, otherwise it contains the number of points in the cloud.

height: This field specifies the height of the point cloud when organized into an image, otherwise it is always 1.

is_dense: This field specifies whether there are invalid values (infinity or NaN values) in the point cloud.

sensor origin: This field is of type Eigen::Vector4f and defines the pose of the sensor based on translation relative to the origin.

sensororientation: This field is of type Eigen::Ouaternionf and defines the pose obtained by the rotation of the sensor.



6.2. Use

  1. Start the camera

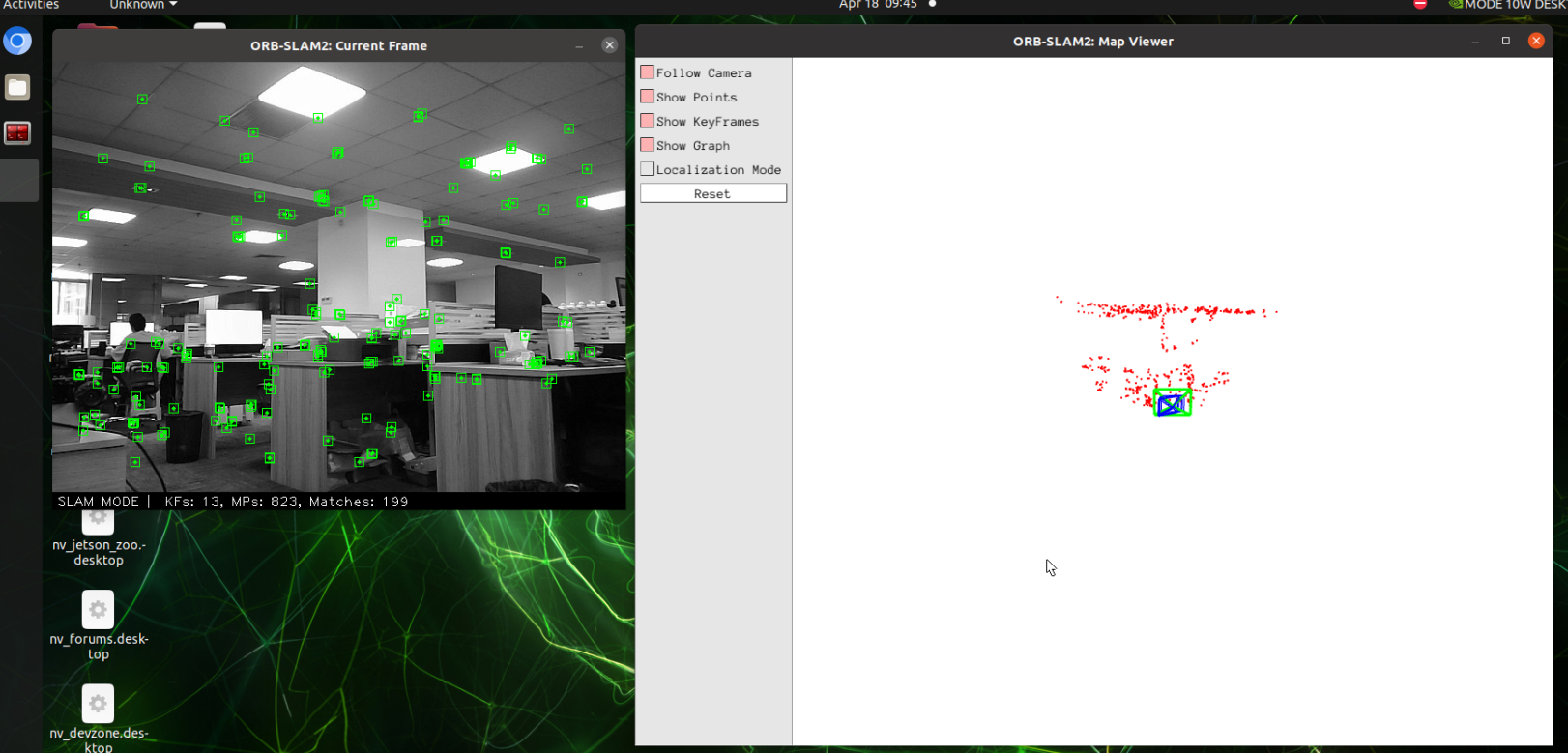

  1. Start orbslam to publish camera poses, color images, and depth images. Depending on the performance of different main controllers, the waiting time here is about 10 seconds.

image-20230418094624816

  1. Start point cloud mapping

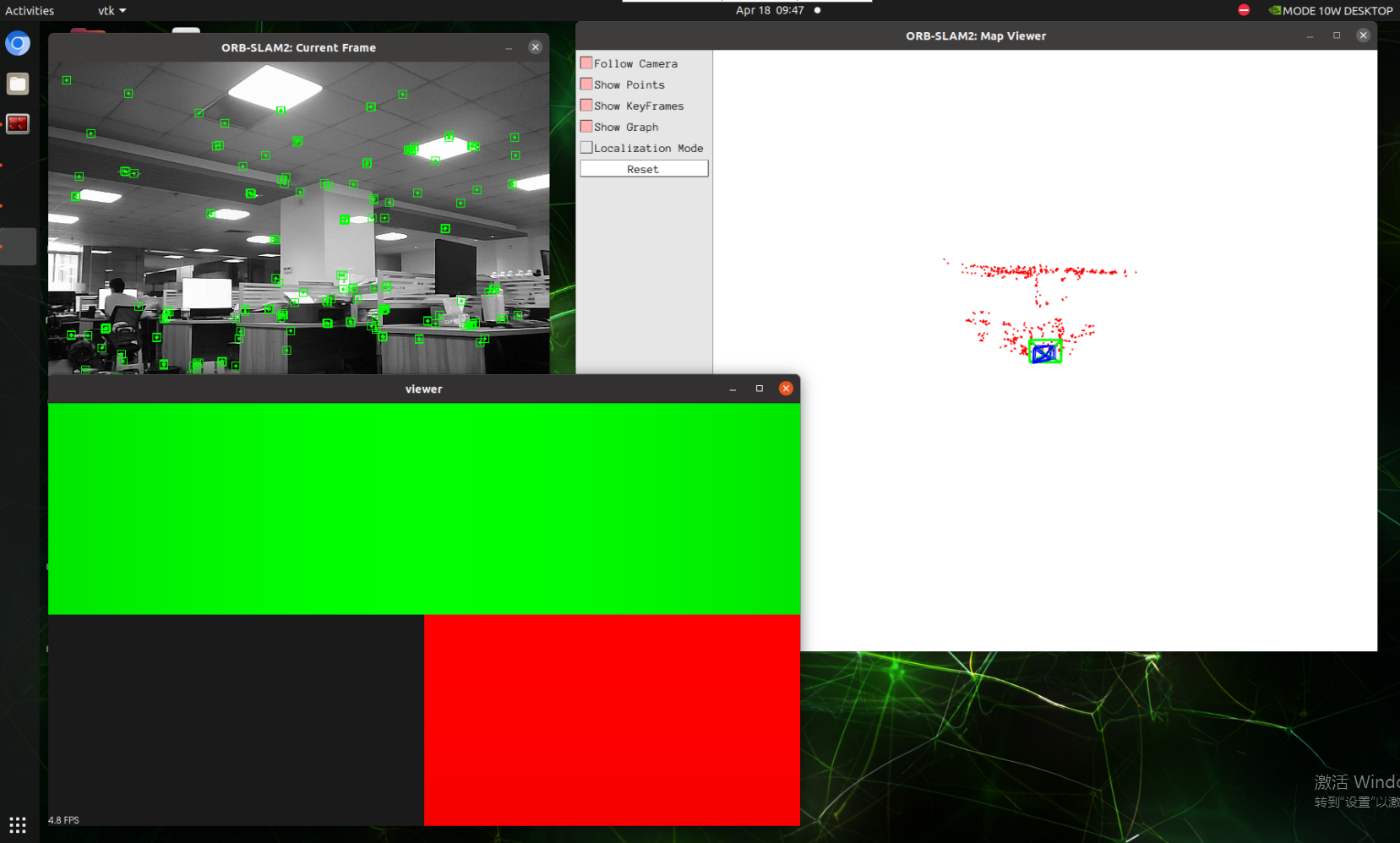

After opening, the [viewer] window will pop up. Move the camera slowly. When a picture appears, as shown below:

image-20230418094841269

The coordinate system needs to be scaled and rotated as shown in the figure below

Sliding wheel: zoom in or out

Press and hold scroll wheel: pan

⿏Left click: Rotate

Right mouse button: Zoom in or out

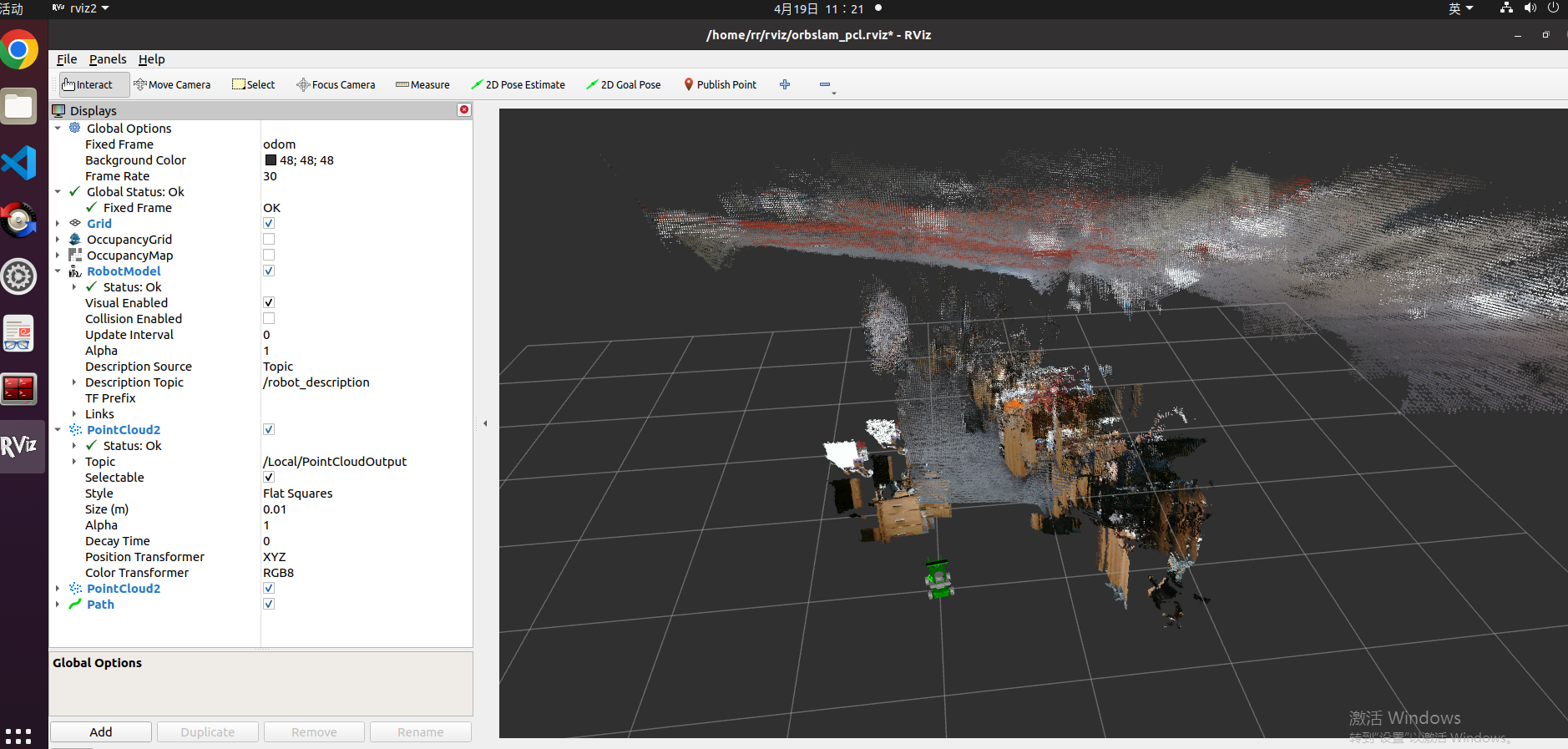

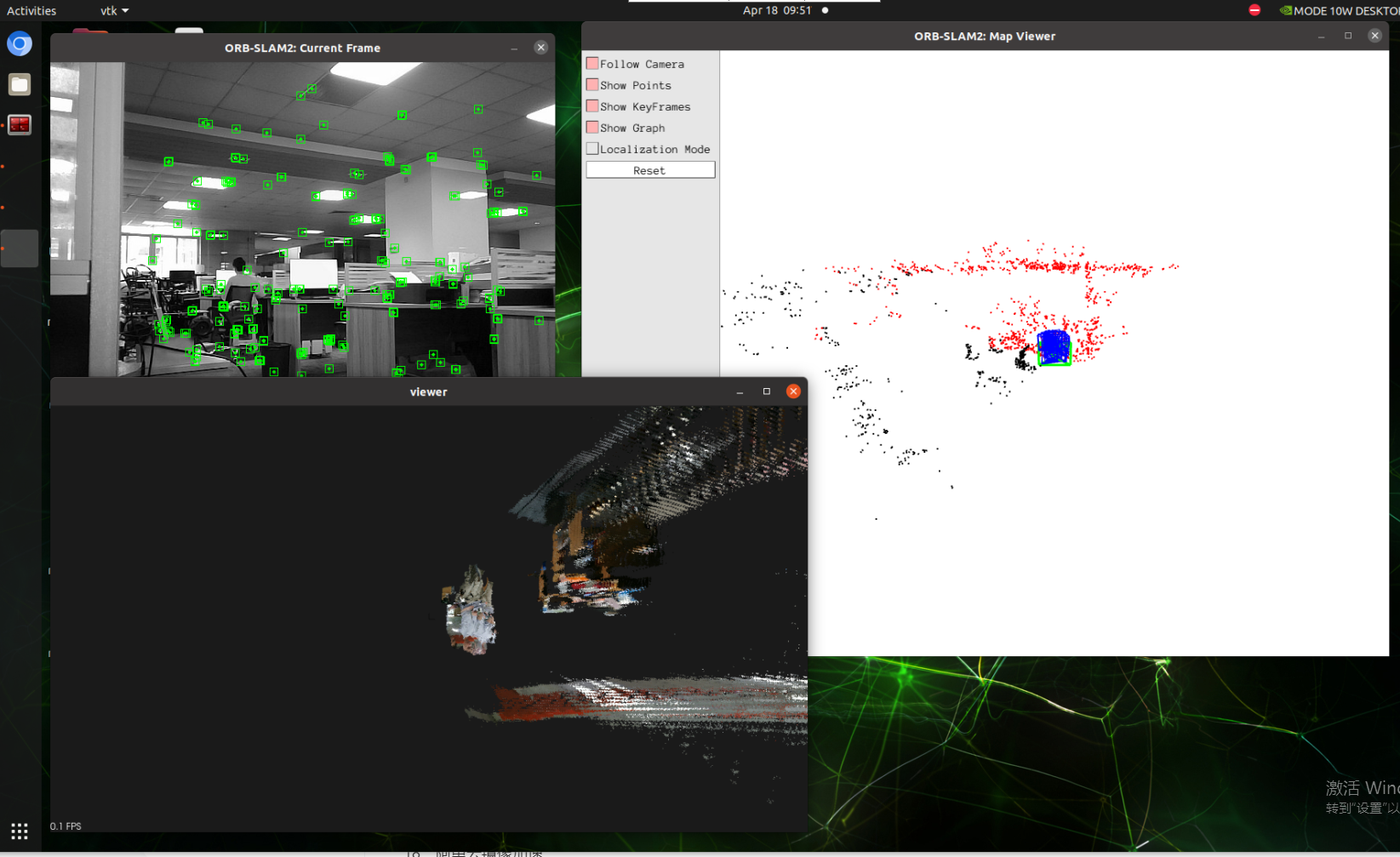

You can open rviz at the same time to view the real-time point cloud mapping effect. Considering that the CPU and memory overhead during the point cloud mapping process are extremely high, it is recommended to use the virtual machine to open rviz to view:

image-20230419112209078



image-20230418095240459

  1. Slowly move the camera to build the map as shown below. After building, press [Ctrl+c] to close and automatically save the pcd point cloud file resultPointCloudFile.pcd. The path is as follows:
  1. View the resultPointCloudFile.pcd file

(1) Method 1: Use the pcl_viewer tool

Install pcl_viewer command:

Enter the directory where the pcd file is located and enter the following command to view the pcd point cloud image

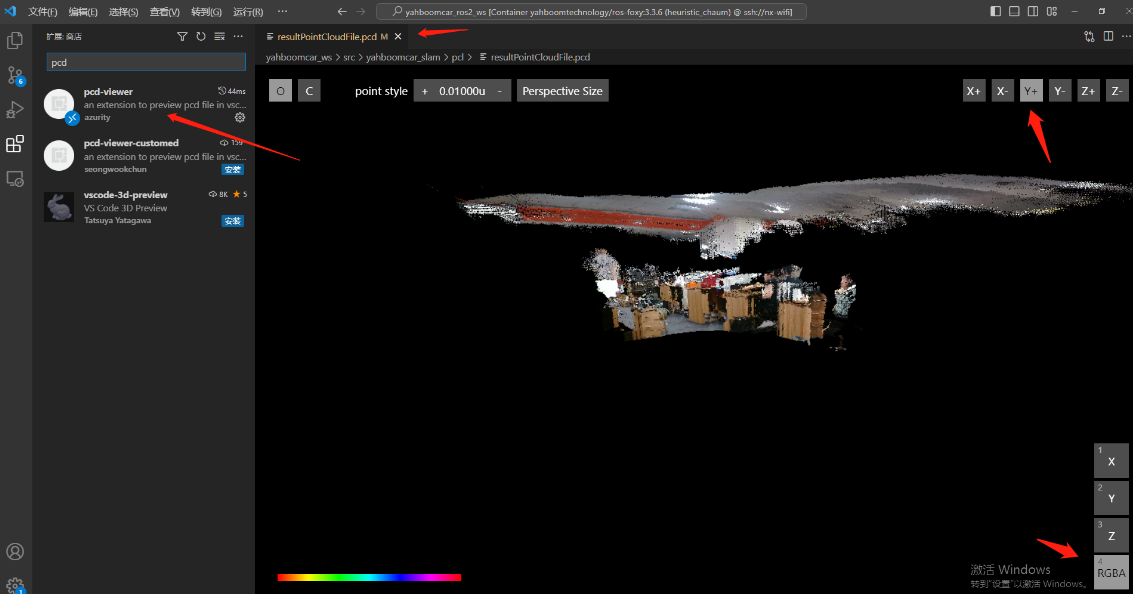

(2) Method 2: Use vscode’s pcd-viewer plug-in [Recommended]

First install the pcd-viewer plug-in in vscode, and then open resultPointCloudFile.pcd to view the pcd point cloud image. Here, directly select the Y+ direction and the RGBA mode at the bottom to quickly rotate the image to the main view.

image-20230419113618139



6.3. Node analysis

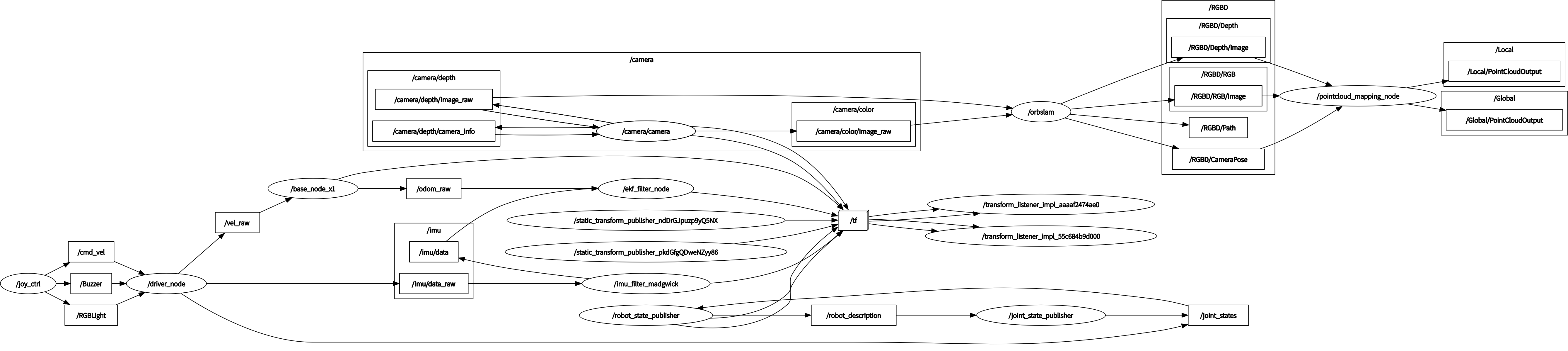

6.3.1. Display calculation graph

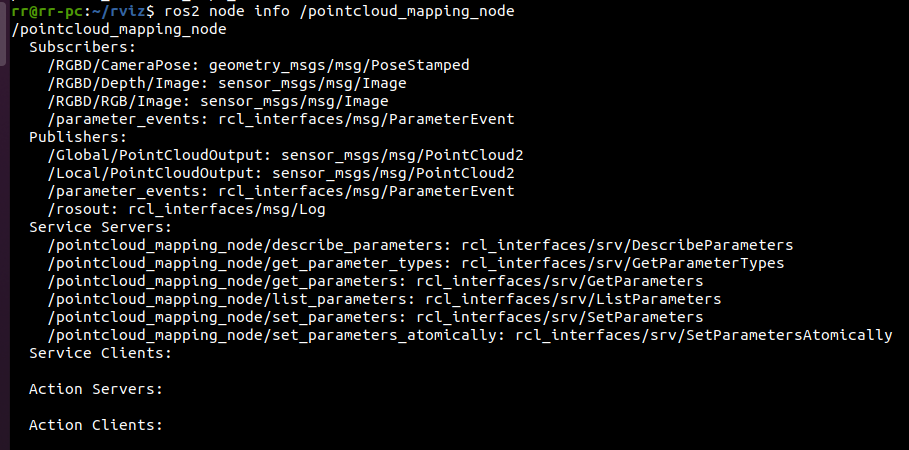

6.3.2, pointcloud_mapping node details

image-20230419121854299

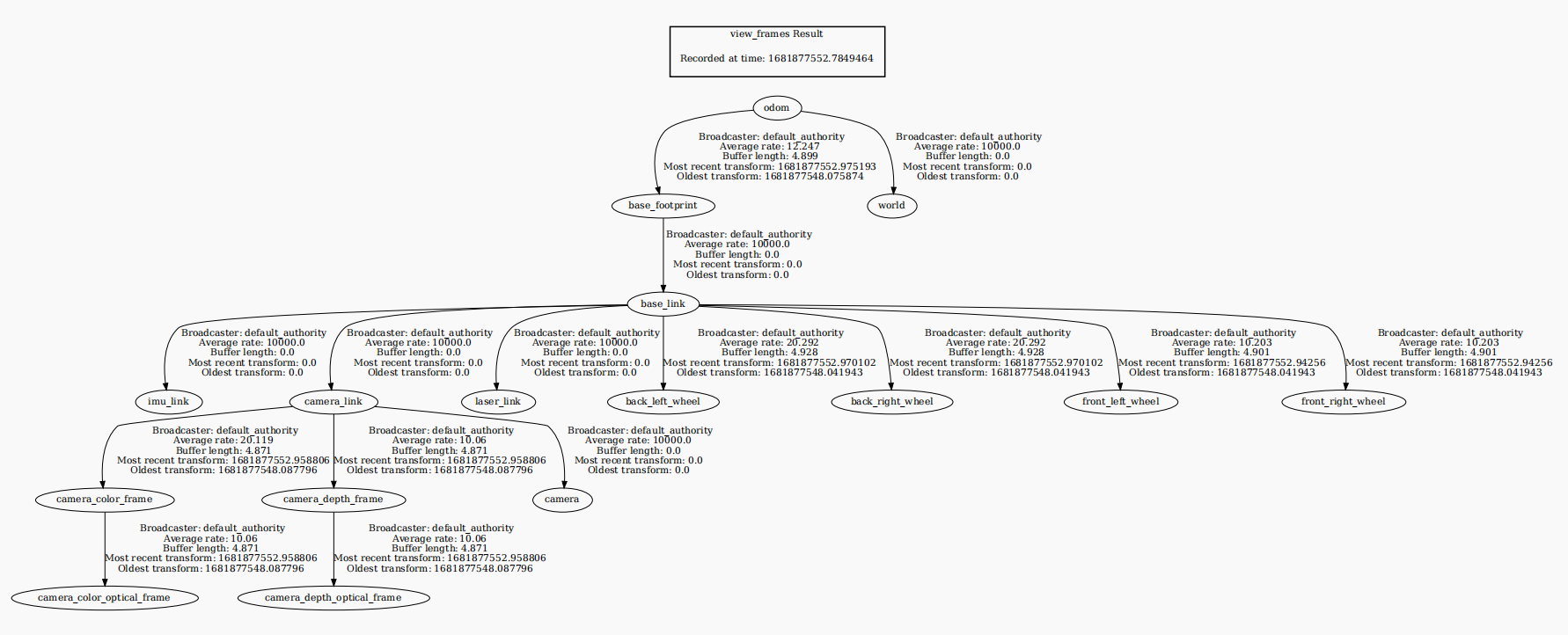

6.3.3, TF transformation

image-20230419144328427
