1. Introduction of voice module

1.1. Introduction to the voice module

1.1.1. CSK4002 chip

The voice control module on ROSMASTER is developed based on the CSK4002 chip. CSK4002 is an AISoC with higher performance, better computing power, lower power consumption and designed for the AloT field. It can be widely used in smart home, smart home appliances, and emerging consumer electronics industries.

• CSK4002 adopts Andes D1088 core, and its AI/DSP acceleration module MVA supports a variety of Neural Network operators and vector operations, and is deeply adapted to iFLYTEK AI algorithms, with a computing power of up to 128GOPS.

• Comes with 8M Flash, 8M PSRAM, 1M SRAM.

• Supports 8 channels of PDM audio input and 16 channels of I2S Audio Input data processing.

• Integrated rich mainstream peripheral interfaces: GPIO/UART/I2C/SPI/QSPI/SDIO/USB1.1/SDIO, etc.

• Equipped with low-latency embedded operating system Free RTOS, complete BSP driver, and complete development tool resources.

1.2. Using the voice module

1.2.1. Wiring

The module is connected to the ROSMASTER robot (or HUB board) through a Type-c data cable, and the speaker and the module are connected through a PH2.0 data cable.

• As shown below, one end of the Micro-USB data cable is connected to the "Program" port of the module, and the other end is connected to the port of the ROSMASTER main control board ( after this is plugged in, it cannot be modified after the rear port is bound). About this, please check the next course).

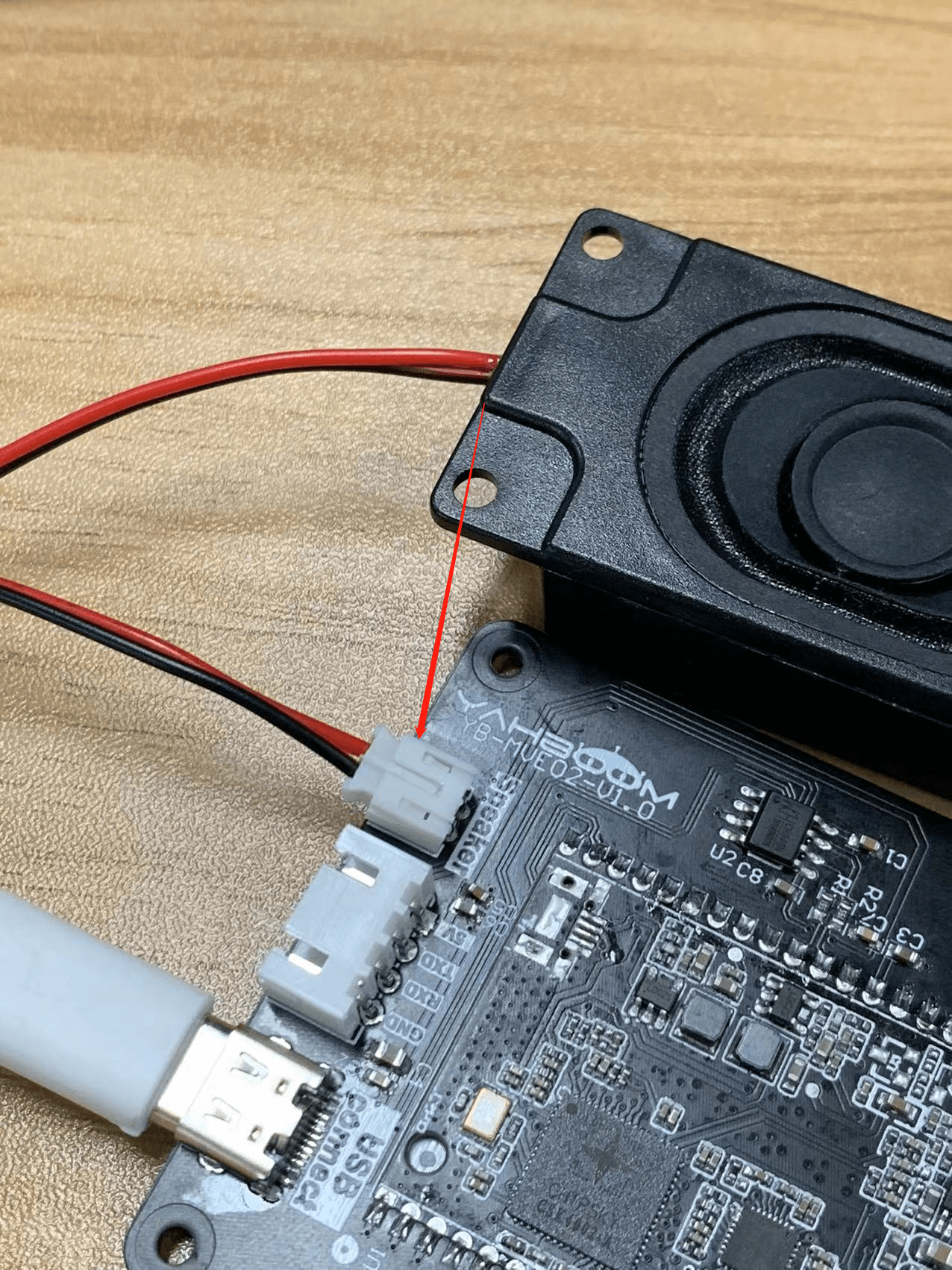

• As shown below, the PH2.0 data cable port is connected to the Speaker port on the module.

1.2.2. Wake-up word

The wake-up word is "Hi, Yahboom". When you wake up, you need to slow down your speech rate. If it is too fast, the module will not recognize it. After the module is woken up, other command words can be recognized later.

Within 20 seconds of waking up, you don't need to wake up again, just say the command word directly.

1.2.3. Command words

1.Voice control car movement

2.Voice control RGB light strip effect

3.Voice control color recognition

4.Voice control color tracking

5.Voice control automatic driving (line patrol)

6.Voice control multi-point navigation

7.Basic voice control of robotic arm

8. control of robotic arm

9. action of the robotic arm

10. robotic arm memory learning

11. Sort color block

2. Voice control module port binding

Since the ID device number of the ROS expansion board and the voice control module are the same, it is not possible to bind the ID device number according to the method in the previous tutorial. Unbound ports may cause port conflicts or device identification errors. Do not change the positions of bound ports at will. Otherwise, the bound ports become invalid.

This course is completed on the host, no docke binding is required, and this section uses the Raspberry PI as the host to demonstrate. Before binding, it is necessary to comment out the part involving myserial in the host rule file, otherwise the voice board and ROS extension board will be identified as the same device.

sudo gedit /etc/udev/rules.d/usb.rules

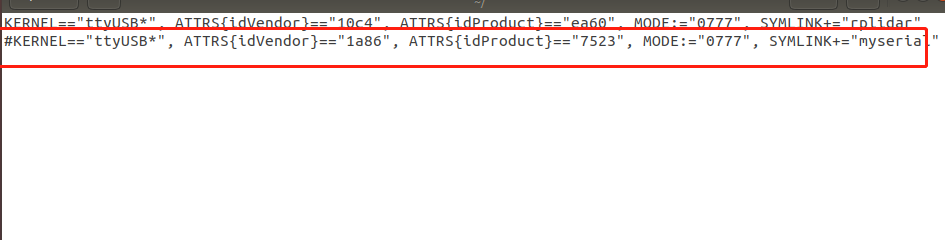

As shown in the figure above, the myserial related binding content is commented, saved and quit, and the terminal enters the following command to reload the rule.

xxxxxxxxxx
sudo udevadm trigger
sudo service udev reload
sudo service udev restart

2.1. Bind the device of the ROS expansion board

xxxxxxxxxx

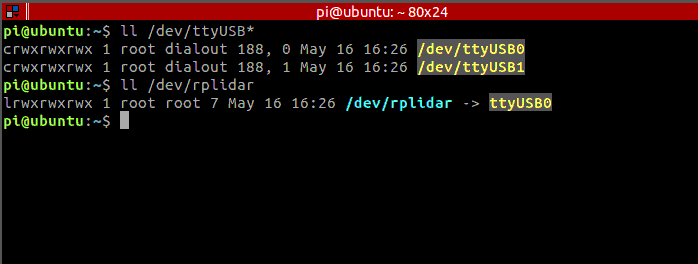

ll /dev/ttyUSB*
ll /dev/rplidar

• First, ttyUSB0 and ttyUSB1 can be obtained without accessing the voice control board

ttyUSB0 is the radar device , Then ttyUSB1 is the device of the ROS expansion board

• Second, we check the port information of the ROS expansion board, mainly to check the device path information and terminal input.

xxxxxxxxxx

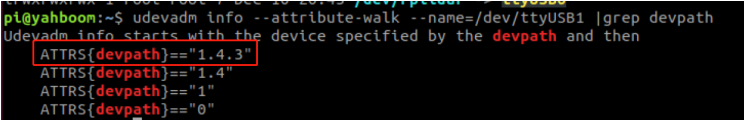

udevadm info --attribute-walk --name=/dev/ttyUSB1 |grep devpath

The following information is obtained (based on actual conditions). The red box indicates the path information of the device.

• Third, We modify (/etc/udev/rules.d/rplidar.rules) this file, bind the port number of the ROS expansion board, and enter the terminal

xxxxxxxxxx
sudo gedit /etc/udev/rules.d/myserial.rules

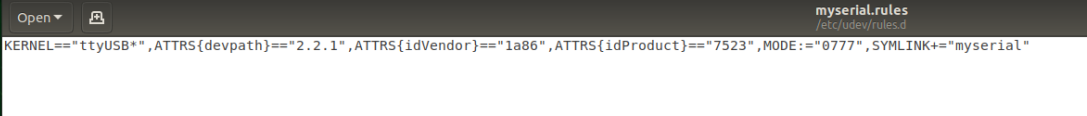

Add content as shown below

xxxxxxxxxx
KERNEL=="ttyUSB*",ATTRS{devpath}=="1.4.3",ATTRS{idVendor}=="1a86",ATTRS{idProduct}=="7523",MODE:="0777",SYMLINK+="myserial"

• Last, Save and exit. Run the following three commands to reload the device

xxxxxxxxxx
sudo udevadm trigger
sudo service udev reload
sudo service udev restart

2.2. bind the device of the voice board

• To access the voice board, run the following command on the terminal to view the device number

  xxxxxxxxxx
  ll /dev/ttyUSB*

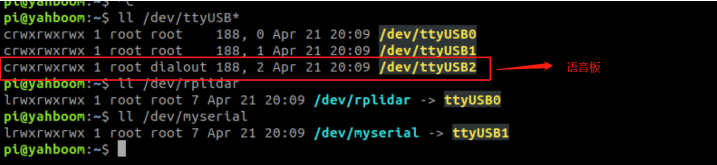

Here we find that the voice board is identified by the system as /dev/ttyUSB2, so we enter the following command to view the path of the device

xxxxxxxxxx

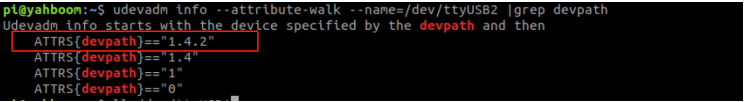

udevadm info --attribute-walk --name=/dev/ttyUSB2 |grep devpath

• Then, we modify (/etc/udev/rules.d/rplidar.rules) this file, bind the port number of the voice board, and enter the terminal

xxxxxxxxxx
sudo gedit /etc/udev/rules.d/myspeech.rules

Add content as shown below

xxxxxxxxxx
KERNEL=="ttyUSB*",ATTRS{devpath}=="1.4.2",ATTRS{idVendor}=="1a86",ATTRS{idProduct}=="7523",MODE:="0777",SYMLINK+="myspeech"

• Save and exit. Run the following three commands to reload the device

xxxxxxxxxx
sudo udevadm trigger
sudo service udev reload
sudo service udev restart

2.3. Test

Attention their wiring position. This is fixed after binding, do not change the position at will, otherwise the system will not recognize the device.

xxxxxxxxxx
ll /dev/myserial
ll /dev/myspeech

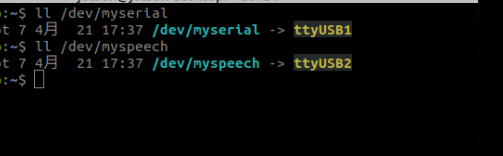

As shown in the figure above, if /dev/myserial and /dev/myspeech can be identified and the ttyUSB* port numbers behind them are inconsistent, the binding is successful

Attention: The ROS expansion board and voice board cannot be plugged into other ports after binding, otherwise the device number will not be recognized. If both are connected to the HUB expansion board, the HUB board cannot be plugged into other mainboard ports

2.4. Notes

After the voice board is bound to the container, you need to mount /dev/myspeech to identify the voice board in docker, Mount mode reference [07、Docker-05、Enter the robot's Docker container]
