Basic use of Jupyter Lab

The previous tutorial has demonstrated how to install Jupyter Lab. This tutorial mainly introduces the basic use of Jupyter Lab!

1. Start Jupyter Lab

Enter the jupyter lab command in the terminal:

jupyterlab

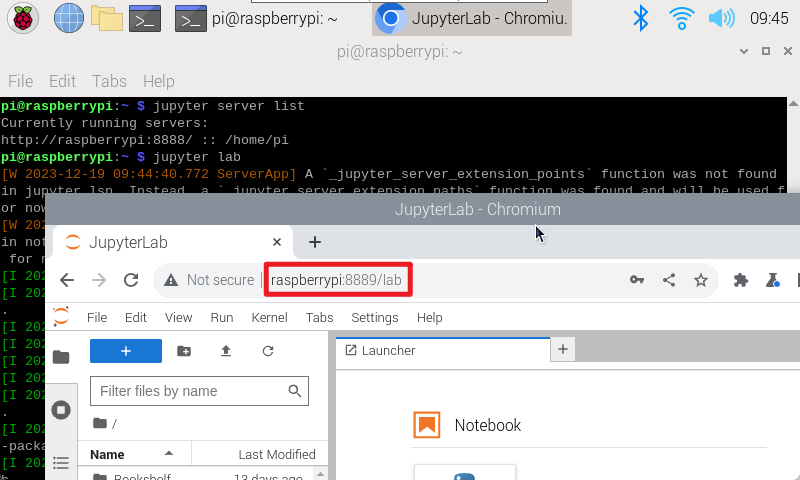

If you have set up Jupyter Lab to start automatically at boot, then if you run Jupyter Lab in the terminal again, it will be assigned a different port number (such as IP: 8889, etc.). It is recommended that you access Jupyter Lab directly according to IP: 8888;

Example: The Raspberry Pi IP is 192.168.93. After starting jupyter lab, you can enter 192.168.93:8888 on a device on the same LAN or in the local browser to access jupyter lab.

2. Introduction to Jupyter Lab interface

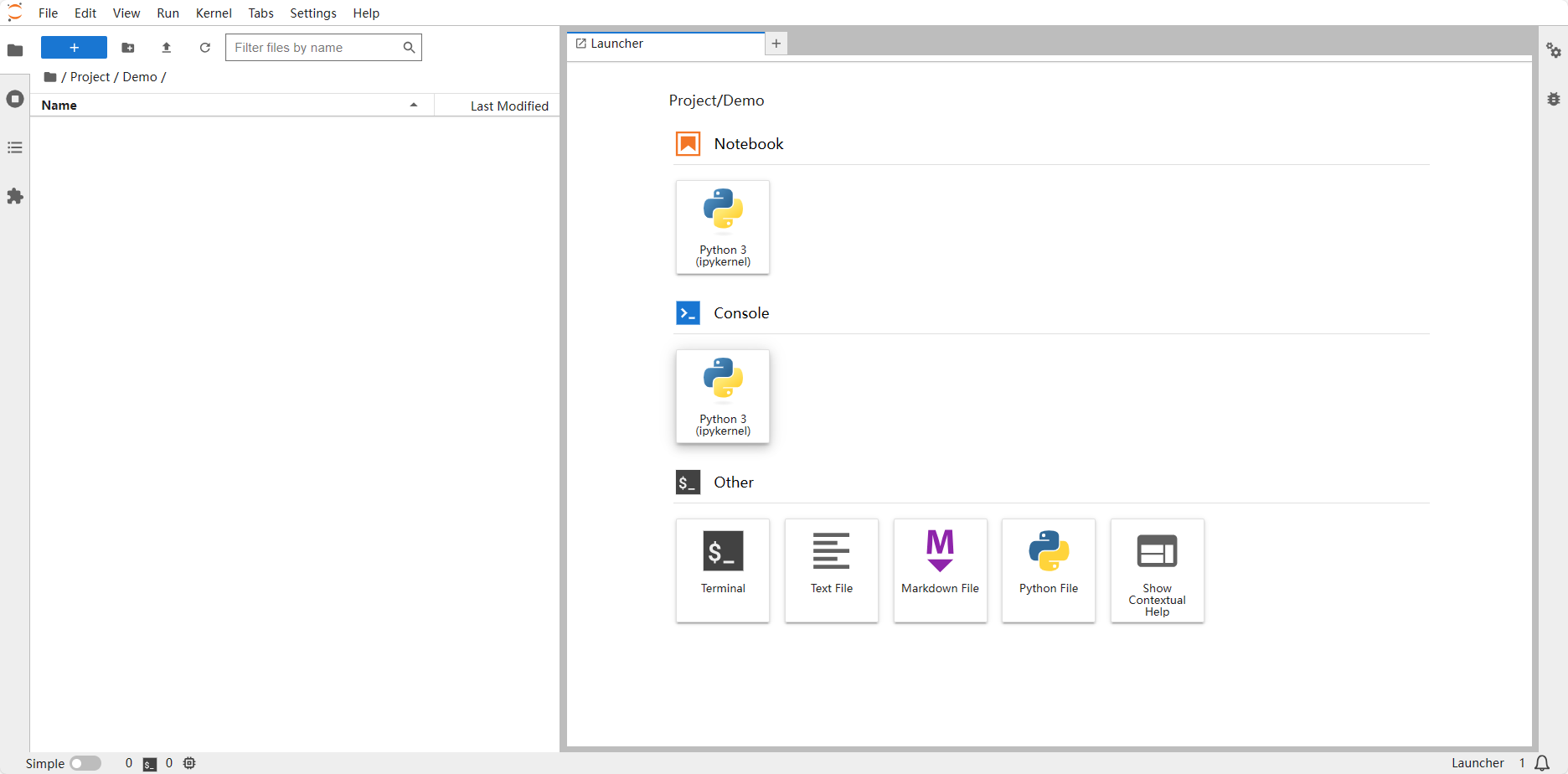

English interface

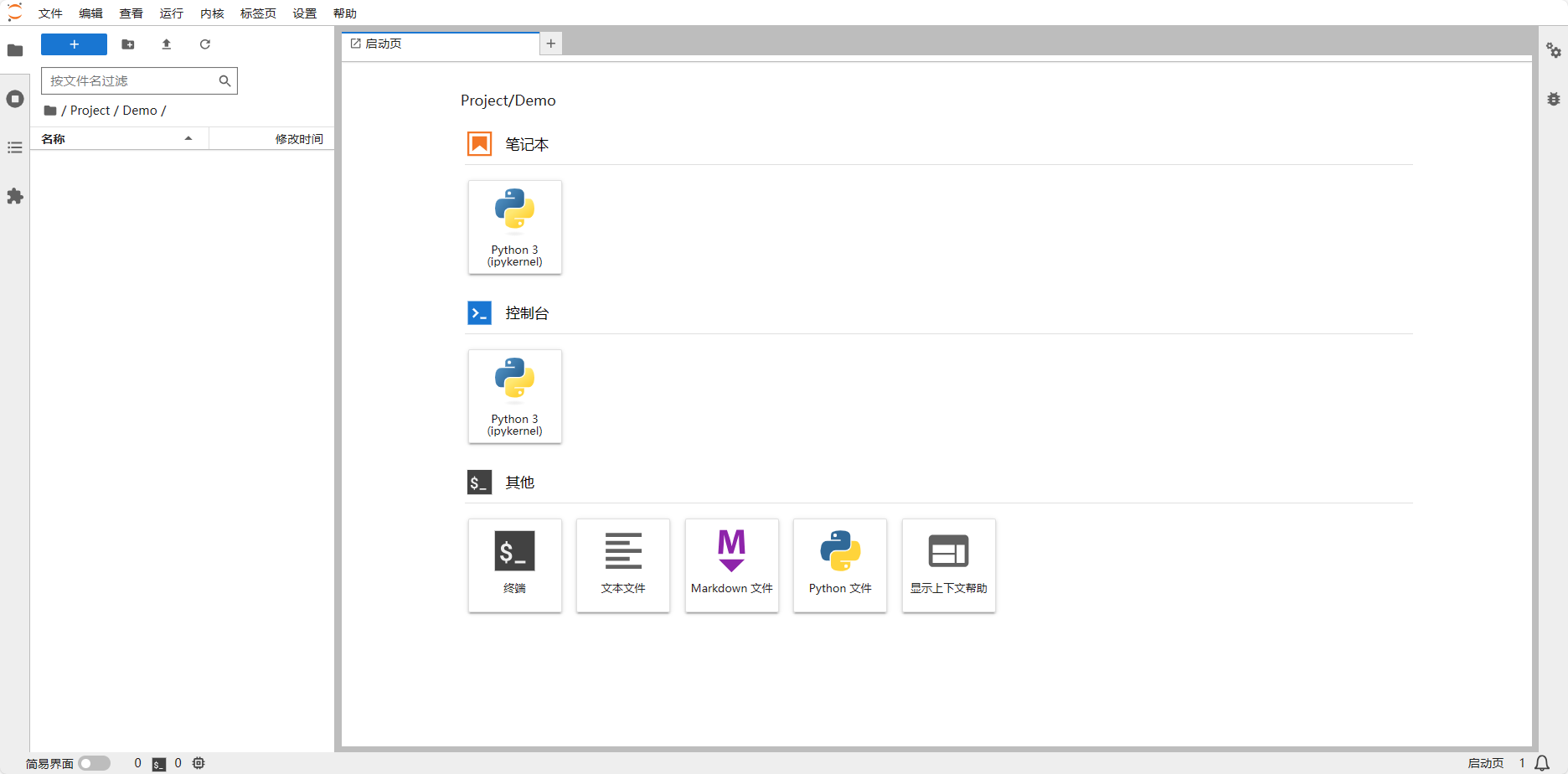

Chinese interface

How to Chineseize the interface

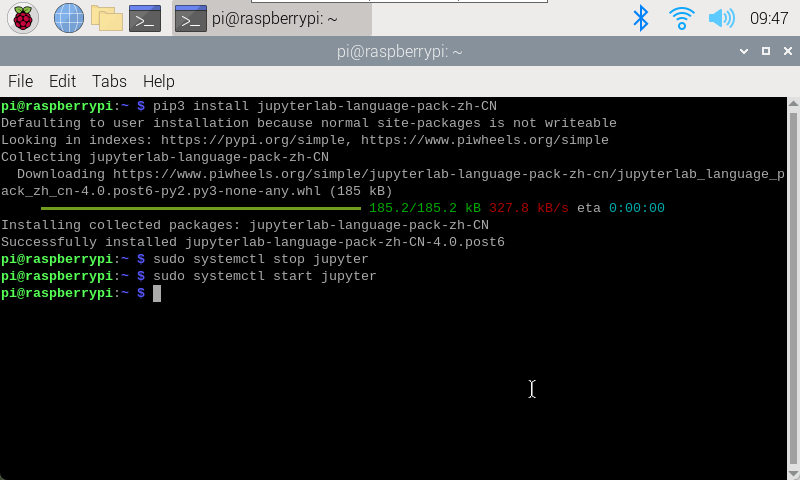

Use pip to install the Chinese interface and enter the following command in the terminal:

xxxxxxxxxx
pip3 install jupyterlab-language-pack-zh-CN

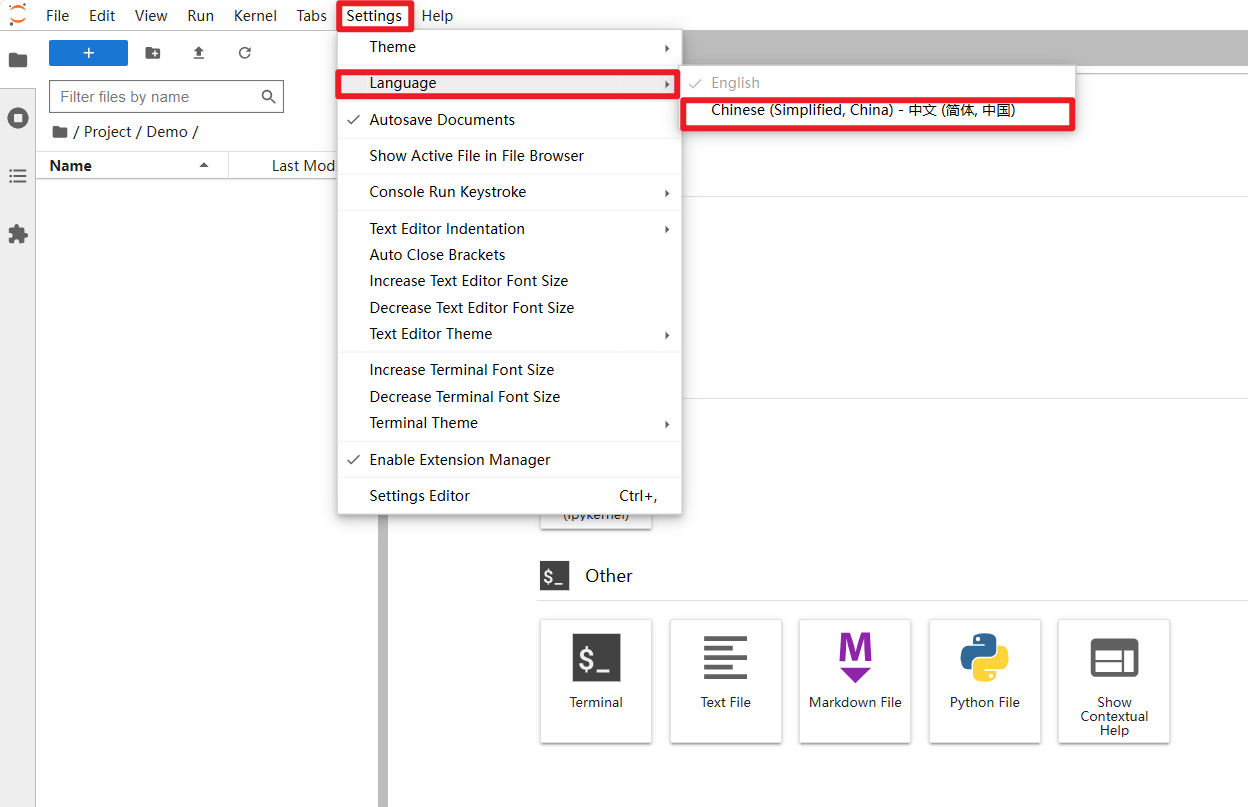

After the installation is complete, restart jupyter lab, then select "Settings → Language → Chinese Simplified" and reload the page.

xxxxxxxxxx
The interface options will not be explained here. You can choose the Chinese or English interface!

3. HelloWorld

Write and run the HelloWorld program.

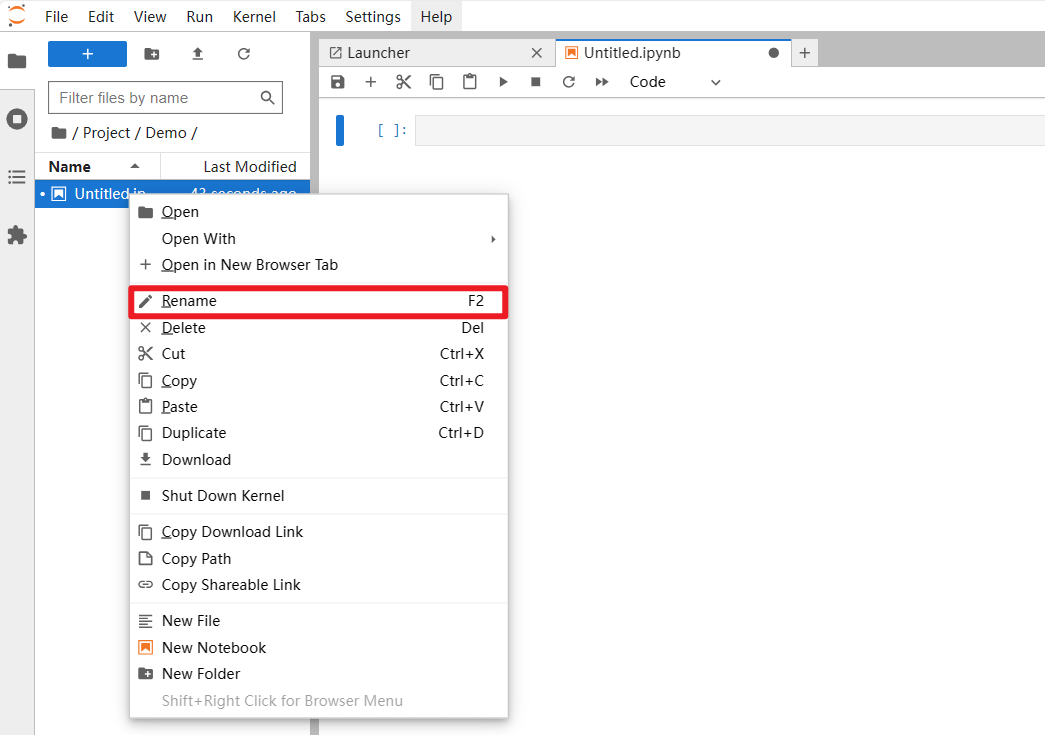

• Create a new file and name it HelloWorld

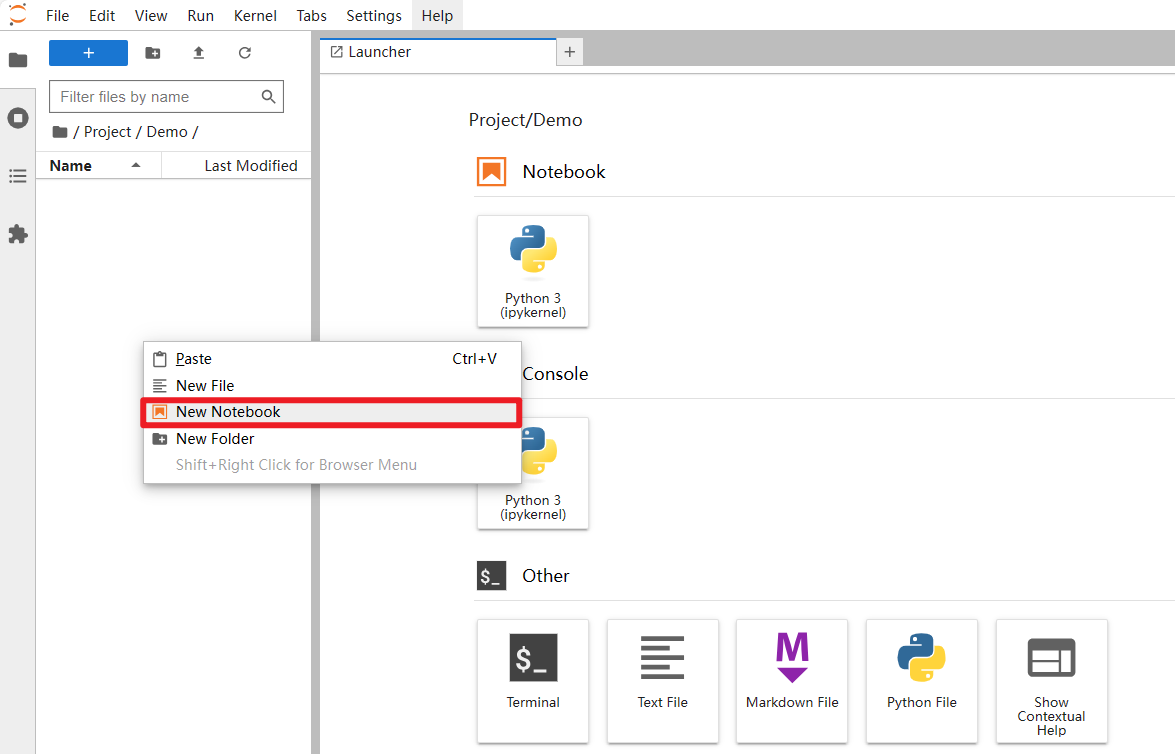

Right-click the file browser menu bar, select "New Notebook File (New Notebook)", select Python3 for the kernel, and then rename it to HelloWorld

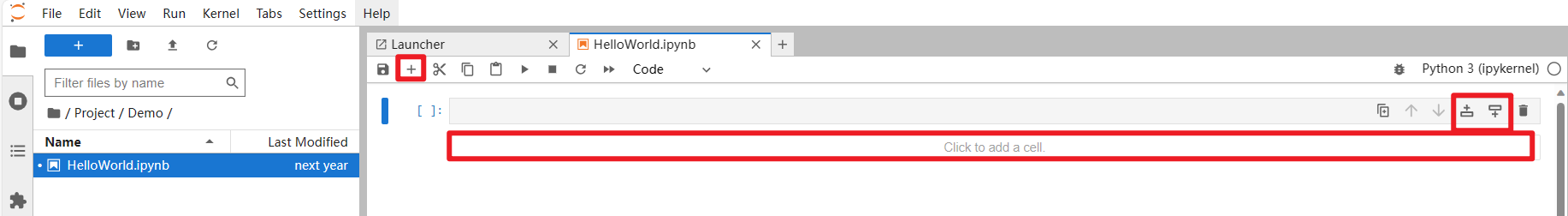

Code block

Select the following positions to add code blocks up or down

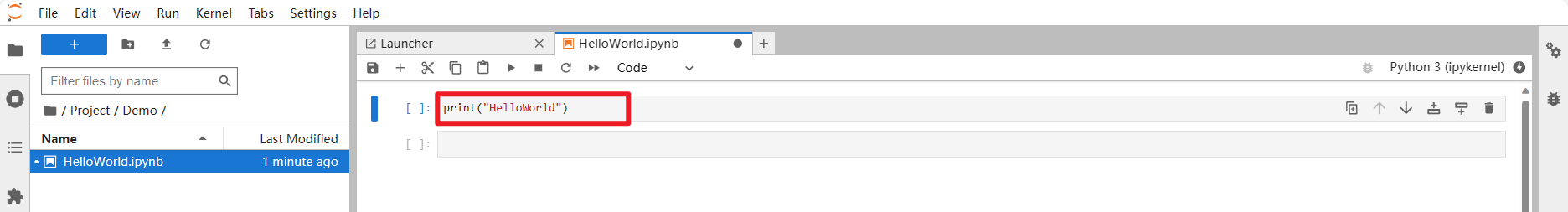

Write code

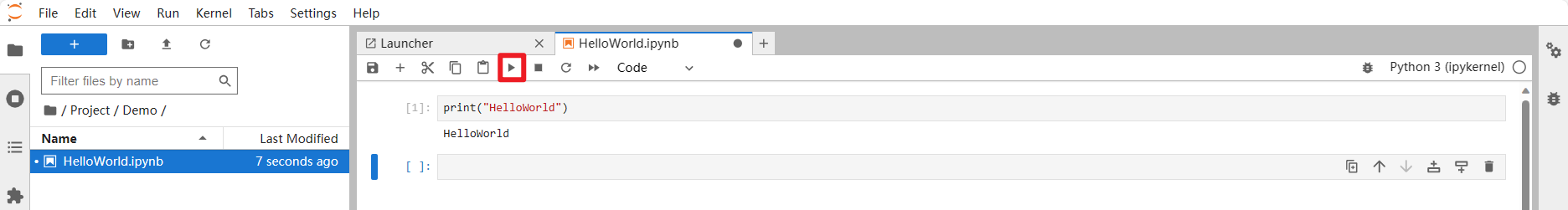

Run code

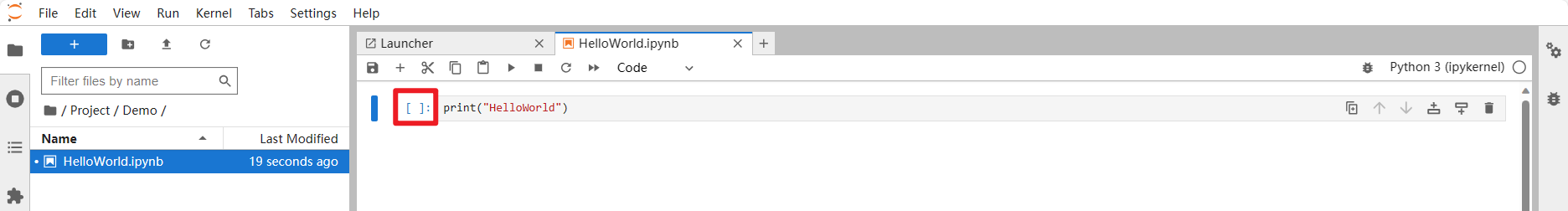

Code block description

The content in [ ] on the left side of the code block has two states: * and number

*: Indicates that the code block is still running

Number: represents the order in which code blocks are executed

Precautions

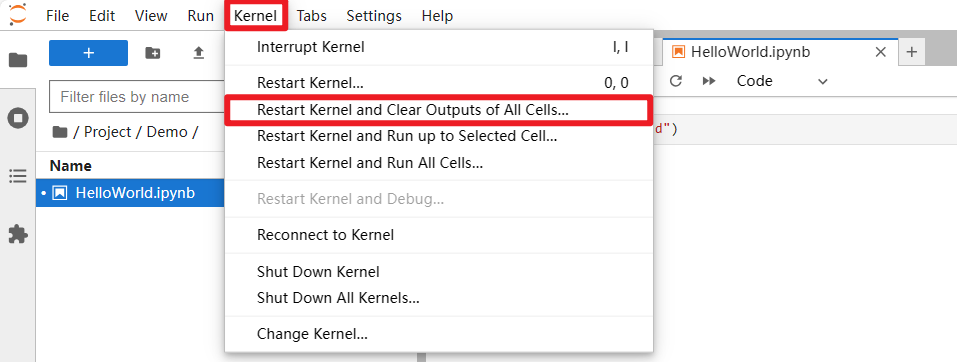

If you want to reset or abnormal problems occur while the code is running, you can do the following: restart all cores and clear all code block output.
