LLaVA

LLaVAModel sizePull LLaVAUse LLaVARun LLaVAHave a conversationEnd the conversationMemory optimizationReferences

Demo Environment

Development board: Jetson Orin series motherboard

SSD: 128G

Tutorial application scope: Whether the motherboard can run is related to the available memory of the system. The user's own environment and the programs running in the background may cause the model to fail to run

Motherboard model	Ollama	Open WebUI
Jetson Orin NX 16GB	√	√
Jetson Orin NX 8GB	√	√
Jetson Orin Nano 8GB	√	×
Jetson Orin Nano 4GB	×	×

LLaVA (Large-scale Language and Vision Assistant) is a multimodal model designed to achieve general vision and language understanding by combining visual encoders and large-scale language models.

Model size

Model	Parameters
LLaVA	7B
LLaVA	13B
LLaVA	34B

Pull LLaVA

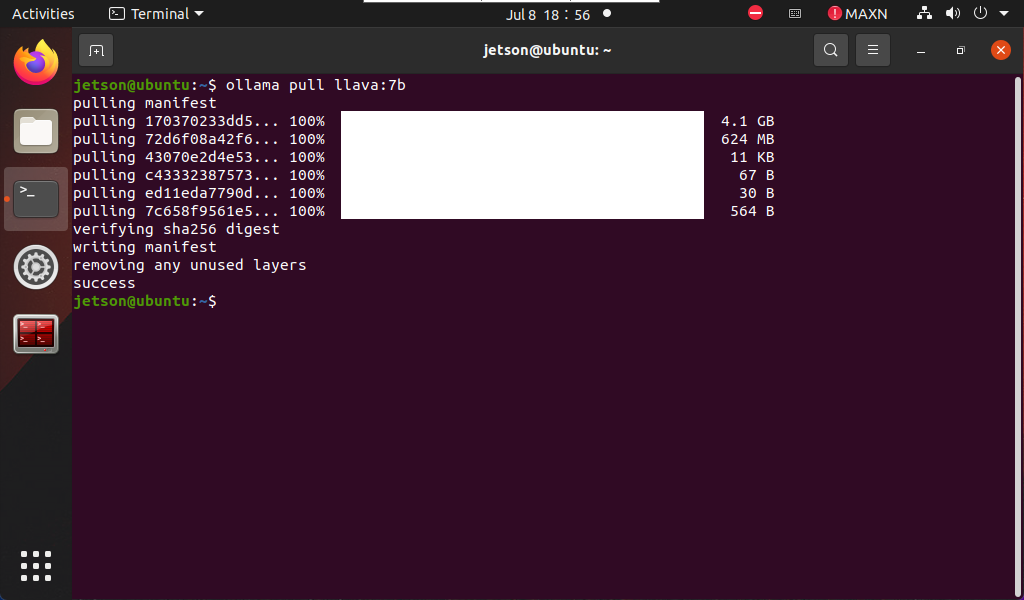

Using the pull command will automatically pull the model of the Ollama model library:


xxxxxxxxxx
ollama pull llava:7b

Use LLaVA

Use LLaVA to recognize local image content.

Run LLaVA

If the system does not have a running model, the system will automatically pull the LLaVA 7B model and run it:


xxxxxxxxxx
ollama run llava:7b

Have a conversation

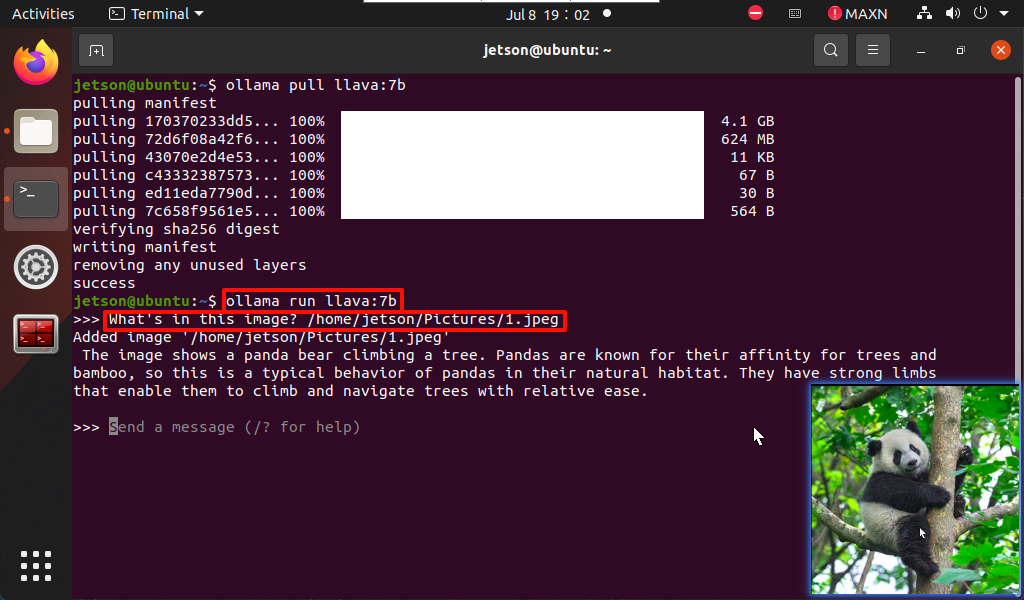

xxxxxxxxxx
What's in this image? /home/jetson/Pictures/1.jpeg

The time to reply to the question depends on the hardware configuration, so be patient!


xxxxxxxxxx
If the image does not have a corresponding image, you can download the image yourself (the resolution should not be too large) and put the image path after the question!

End the conversation

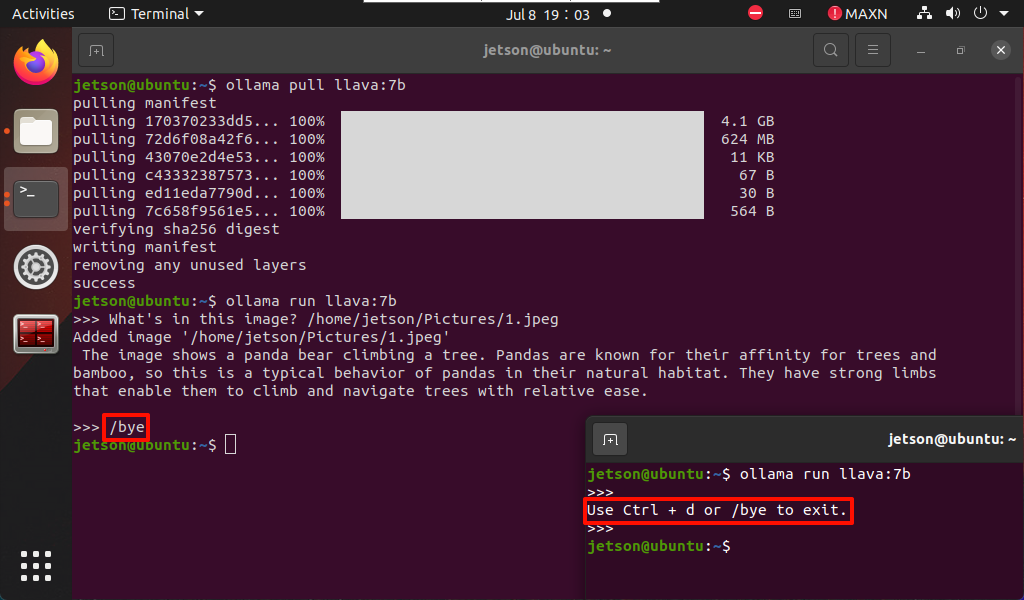

Use the Ctrl+d shortcut key or /bye to end the conversation!

Memory optimization

Since the local model has very high memory requirements, those who cannot run the model can follow the tutorial below to close the graphical interface and run the model in command line mode.


xxxxxxxxxx
For users without a display screen, the command line mode requires knowing your motherboard IP in advance

Command line mode


xxxxxxxxxx
sudo systemctl set-default multi-user.target

After running, restart the system to take effect, and then use SSH remote system to run the model.

Desktop mode (graphic interface)


xxxxxxxxxx
sudo systemctl set-default graphical.target

After running, restart the system to take effect and restore desktop mode.

References

Ollama

Official website: https://ollama.com/

GitHub: https://github.com/ollama/ollama

LLaVA

GitHub: https://github.com/haotian-liu/LLaVA

Ollama corresponding model: https://ollama.com/library/llava
