2. Posture Detection

2.1. Introduction

MediaPipe is an open-source data stream processing machine learning application development framework developed by Google. It is a graph-based data processing pipeline used to build data sources in various forms, such as video, audio, sensor data, and any time series data. MediaPipe is cross-platform and can run on embedded platforms (Raspberry Pi, etc.), mobile devices (iOS and Android), workstations and servers, and supports mobile GPU acceleration. MediaPipe provides cross-platform, customizable ML solutions for real-time and streaming media.

The core framework of MediaPipe is implemented in C++ and provides support for languages ​​such as Java and Objective C. The main concepts of MediaPipe include packets, streams, calculators, graphs, and subgraphs.

Features of MediaPipe:

• End-to-end acceleration: built-in fast ML inference and processing can be accelerated even on commodity hardware.
• Build once, deploy anywhere anytime: unified solution for Android, iOS, desktop/cloud, web and IoT.
• Ready-to-use solution: cutting-edge ML solution that demonstrates the full capabilities of the framework.
• Free and open source: framework and solution under Apache2.0, fully extensible and customizable.

2.2, MediaPipe Pose

MediaPipe Pose is an ML solution for high-fidelity body pose tracking, leveraging BlazePose research to infer 33 3D coordinates and full-body background segmentation masks from RGB video frames, which also provides power for the ML Kit pose detection API.

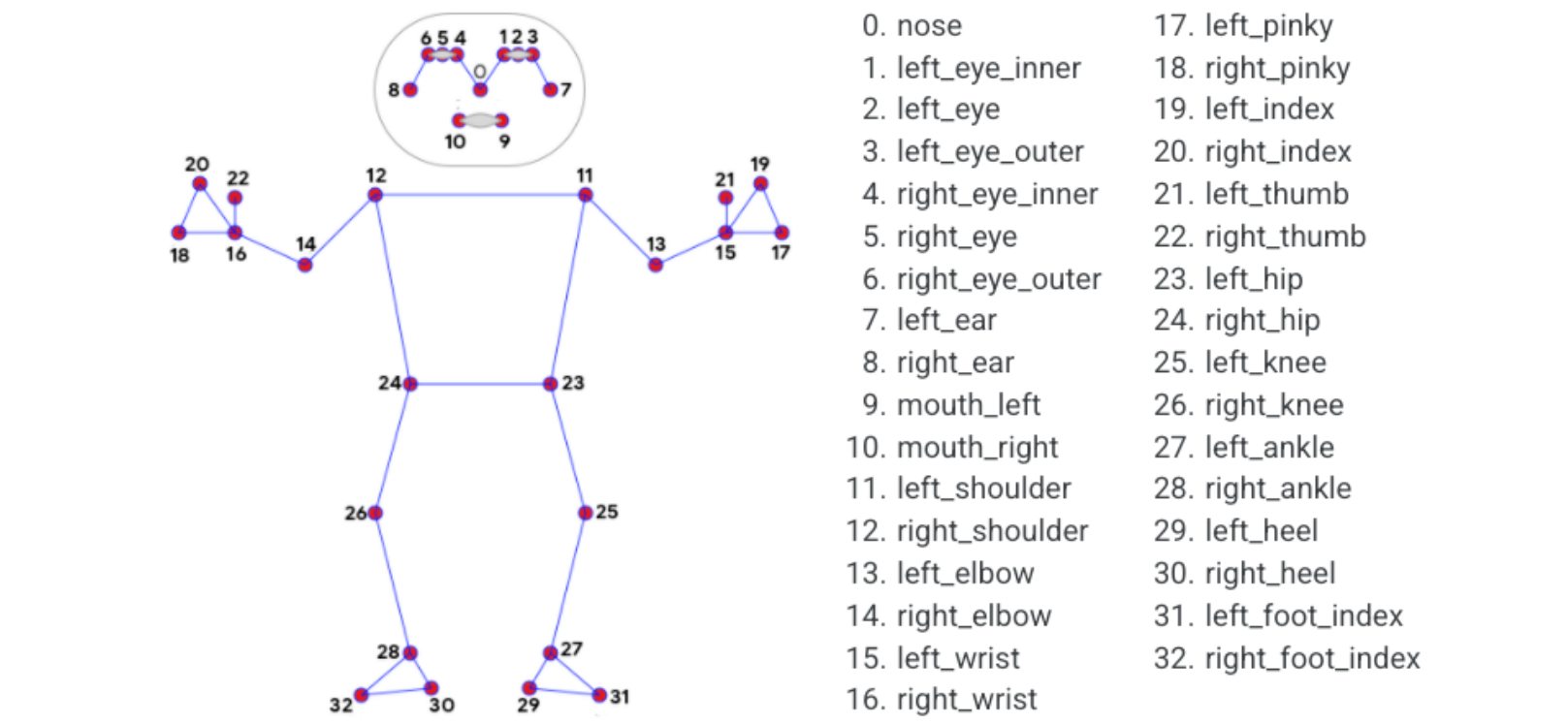

The landmark model in MediaPipe Pose predicts the location of 33 pose coordinates (see the figure below).

2.3, Posture detection

2.3.1, Start

Terminal input,

Please do this step before running the program

sudo supervisorctl stop ChassisServer #Turn off the self-starting chassis service
#Indoor version NAVROBO-astra_pro2 camera executes this command more
/home/yahboom/YBAMR-COBOT-EDU-00001/start/OBColorViewer #Release color stream video100
#[info][722318][Pipeline.cpp:251] Start streams done!
#[info][722318][Pipeline.cpp:234] Pipeline start done! #[warning][722318][Pipeline.cpp:327] Wait for frame timeout, you can try to increase the wait time! current timeout=100

xxxxxxxxxx
roslaunch yahboom_navrobo_mediapipe cloud_Viewer.launch# Point cloud viewing: support 01~04

xxxxxxxxxx
roslaunch yahboom_navrobo_mediapipe 02_PoseDetector.launch# Posture detection

2.3.2, Source code

Source code location: /home/yahboom/YBAMR-COBOT-EDU-00001/src/yahboom_navrobo_mediapipe/scripts/02_PoseDetector.py

​x
#!/usr/bin/env python3
# encoding: utf-8
import time
import rospy
import cv2 as cv
import numpy as np
import mediapipe as mp
from geometry_msgs.msg import Point
from yahboomcar_msgs.msg import PointArray
​
class PoseDetector:
    def __init__(self, mode=False, smooth=True, detectionCon=0.5, trackCon=0.5):
        self.mpPose = mp.solutions.pose
        self.mpDraw = mp.solutions.drawing_utils
        self.pose = self.mpPose.Pose(
            static_image_mode=mode,
            smooth_landmarks=smooth,
            min_detection_confidence=detectionCon,
            min_tracking_confidence=trackCon )
        self.pub_point = rospy.Publisher('/mediapipe/points', PointArray, queue_size=1000)
        self.lmDrawSpec = mp.solutions.drawing_utils.DrawingSpec(color=(0, 0, 255), thickness=-1, circle_radius=6)
        self.drawSpec = mp.solutions.drawing_utils.DrawingSpec(color=(0, 255, 0), thickness=2, circle_radius=2)
​
    def pubPosePoint(self, frame, draw=True):
        pointArray = PointArray()
        img = np.zeros(frame.shape, np.uint8)
        img_RGB = cv.cvtColor(frame, cv.COLOR_BGR2RGB)
        self.results = self.pose.process(img_RGB)
        if self.results.pose_landmarks:
            if draw: self.mpDraw.draw_landmarks(frame, self.results.pose_landmarks, self.mpPose.POSE_CONNECTIONS, self.lmDrawSpec, self.drawSpec)
            self.mpDraw.draw_landmarks(img, self.results.pose_landmarks, self.mpPose.POSE_CONNECTIONS, self.lmDrawSpec, self.drawSpec)
            for id, lm in enumerate(self.results.pose_landmarks.landmark):
                point = Point()
                point.x, point.y, point.z = lm.x, lm.y, lm.z
                pointArray.points.append(point)
        self.pub_point.publish(pointArray)
        return frame, img
​
    def frame_combine(slef,frame, src):
        if len(frame.shape) == 3:
            frameH, frameW = frame.shape[:2]
            srcH, srcW = src.shape[:2]
            dst = np.zeros((max(frameH, srcH), frameW + srcW, 3), np.uint8)
            dst[:, :frameW] = frame[:, :]
            dst[:, frameW:] = src[:, :]
        else:
            src = cv.cvtColor(src, cv.COLOR_BGR2GRAY)
            frameH, frameW = frame.shape[:2]
            imgH, imgW = src.shape[:2]
            dst = np.zeros((frameH, frameW + imgW), np.uint8)
            dst[:, :frameW] = frame[:, :]
            dst[:, frameW:] = src[:, :]
        return dst
​
if __name__ == '__main__':
    rospy.init_node('PoseDetector', anonymous=True)
    capture = cv.VideoCapture(6)
    capture.set(6, cv.VideoWriter.fourcc('M', 'J', 'P', 'G'))
    capture.set(cv.CAP_PROP_FRAME_WIDTH, 640)
    capture.set(cv.CAP_PROP_FRAME_HEIGHT, 480)
    print("capture get FPS : ", capture.get(cv.CAP_PROP_FPS))
    pTime = cTime = 0
    pose_detector = PoseDetector()
    index = 3
    while capture.isOpened():
        ret, frame = capture.read()
        # frame = cv.flip(frame, 1)
        frame, img = pose_detector.pubPosePoint(frame,draw=False)
        if cv.waitKey(1) & 0xFF == ord('q'): break
        cTime = time.time()
        fps = 1 / (cTime - pTime)
        pTime = cTime
        text = "FPS : " + str(int(fps))
        cv.putText(frame, text, (20, 30), cv.FONT_HERSHEY_SIMPLEX, 0.9, (0, 0, 255), 1)
        dist = pose_detector.frame_combine(frame, img)
        cv.imshow('dist', dist)
        # cv.imshow('frame', frame)
        # cv.imshow('img', img)
    capture.release()
    cv.destroyAllWindows()
