Set display resolution and rotation

The tutorial mainly introduces the relevant settings of the Raspberry Pi motherboard system interface display:

1. Resolution and rotation direction settings of the display screen
2. Resolution settings of VNC remote display when the display screen is not connected

If the display resolution is not selected correctly, the screen may be distorted. You can set it according to the display resolution supported by the product!

1. Display settings

1.1. System settings adjustment

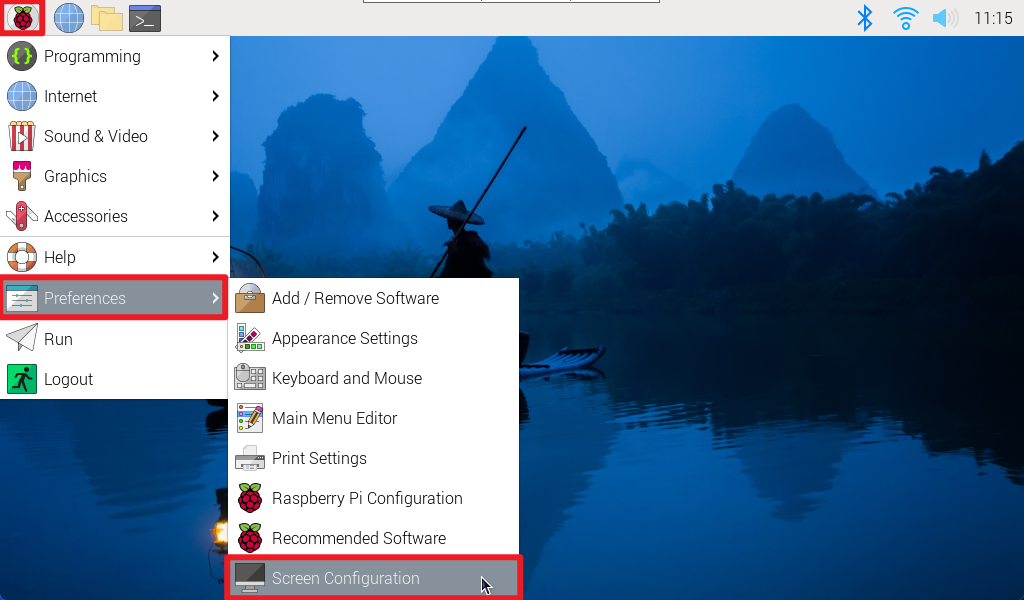

Adjust the resolution and rotation direction of the display screen: applications menu → Preferences → Screen Configuration

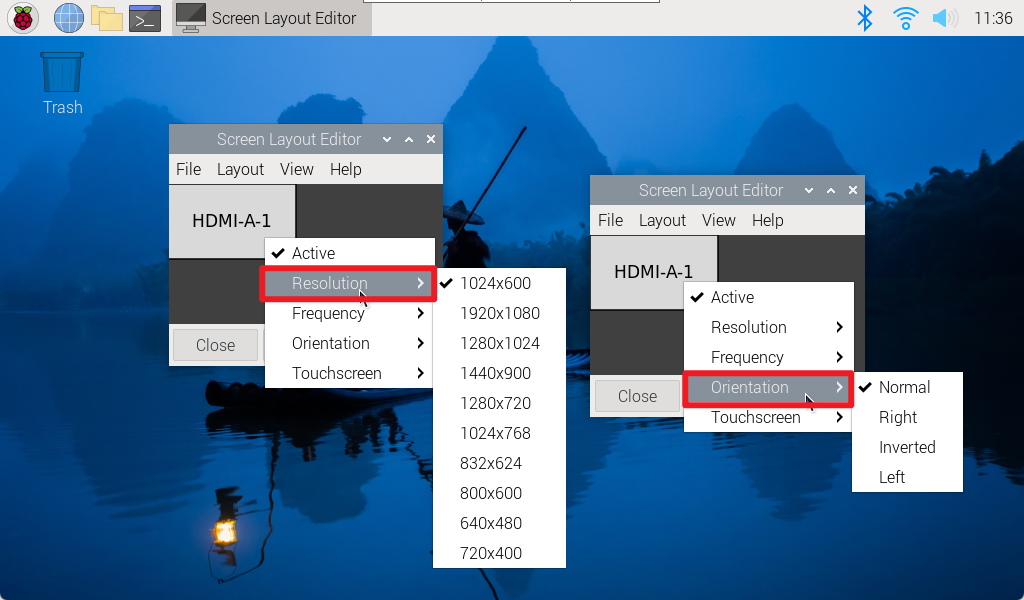

Right-click the corresponding HDMI output interface to set the resolution, rotation direction, etc.

1.2. Modify the configuration file

Enter the user directory of the Raspberry Pi system, display hidden files, and then enter the .config folder to modify the wayfire.ini file

xxxxxxxxxx
This method can customize the display resolution, position and rotation direction

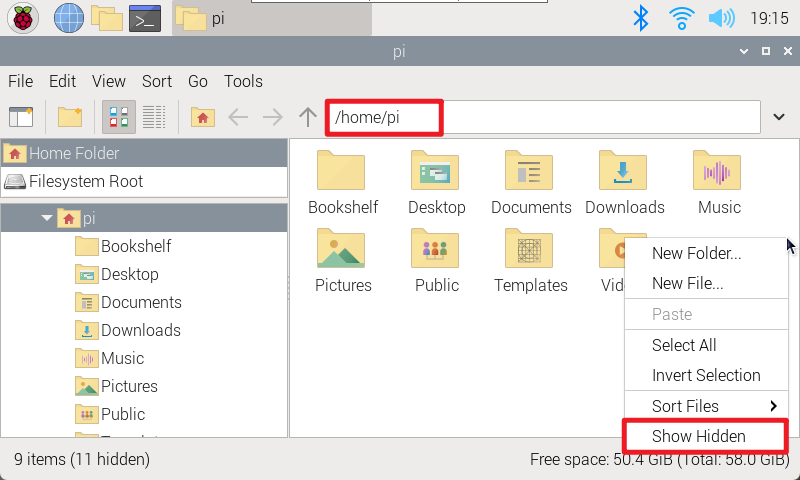

• Display hidden files

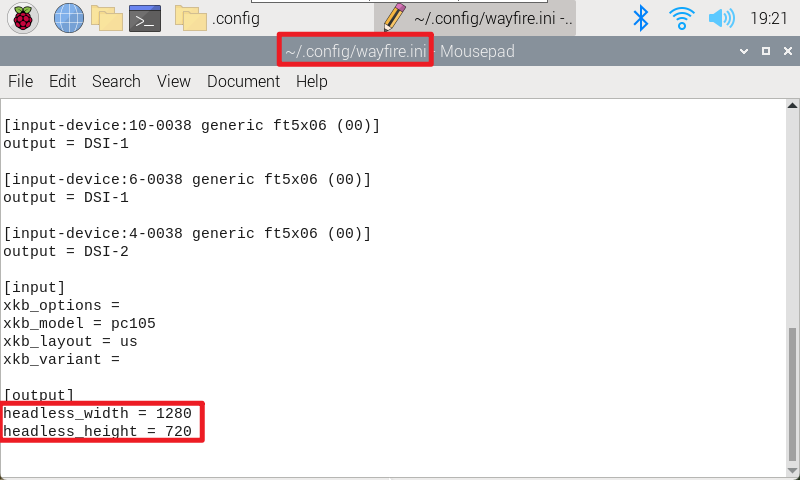

• Enter the .config folder to modify the wayfire.ini file

2. VNC remote display

Adjust the resolution displayed remotely.

xxxxxxxxxx
When connected to a monitor, adjusting the resolution of the VNC remote will not have any effect, the display will still be based on the resolution set on the monitor!

2.1, Graphical interface

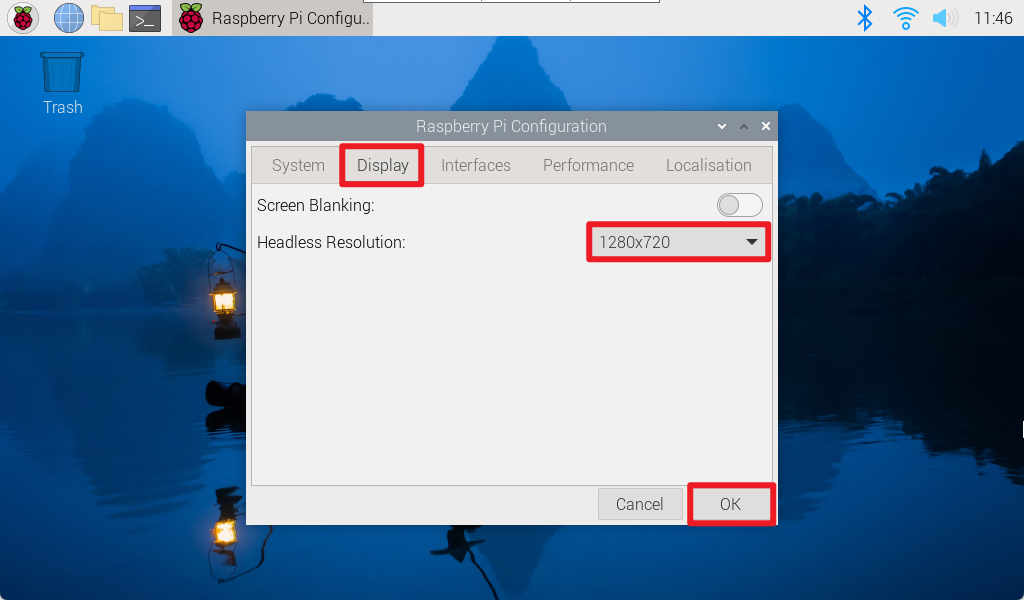

Enter Display to modify the resolution of the VNC remote. After modification, you need to restart the system and reconnect VNC!

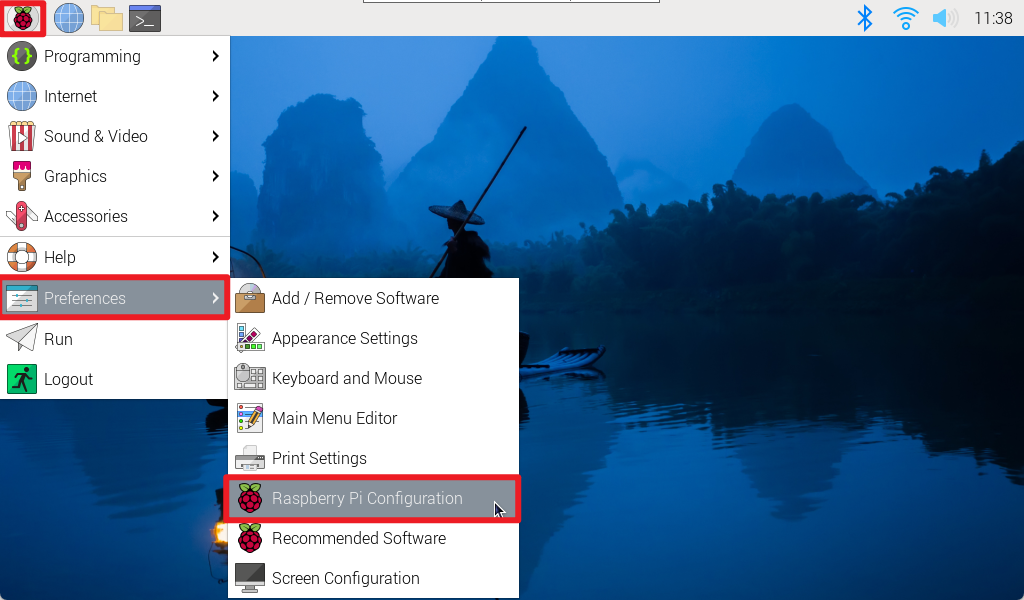

applications menu → Preferences → Raspberry Pi Configuration → Display

• 2.2, Command Line

  Use raspi-config tool to adjust VNC resolution.

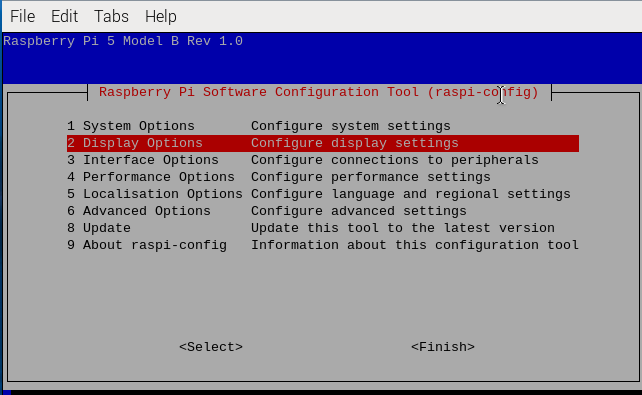

  • Display Options

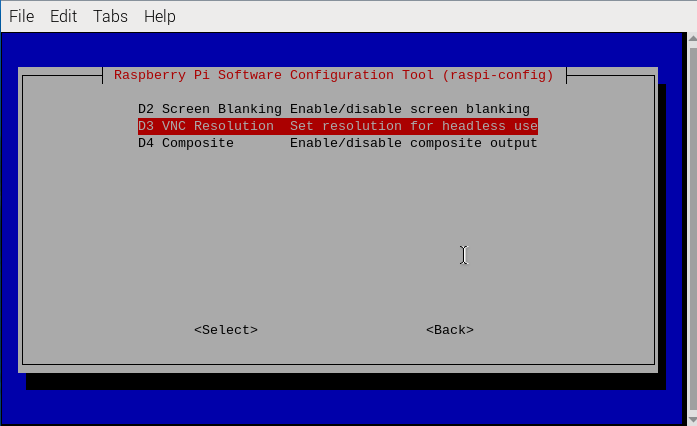

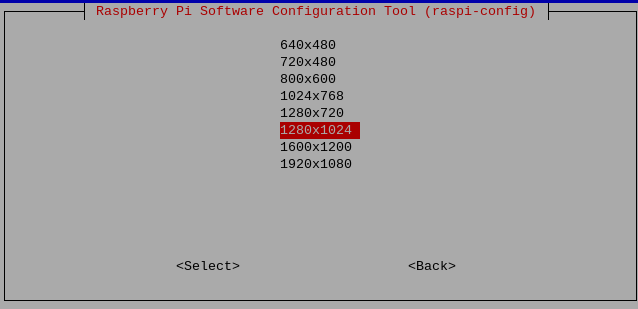

• VNC Resolution
