SPI communication (SPI)

The tutorial demonstrates how to use SPI to read the key values of a 2.4G wireless controller and print them through the serial port.

The tutorial only introduces the standard library project code

Hardware connection

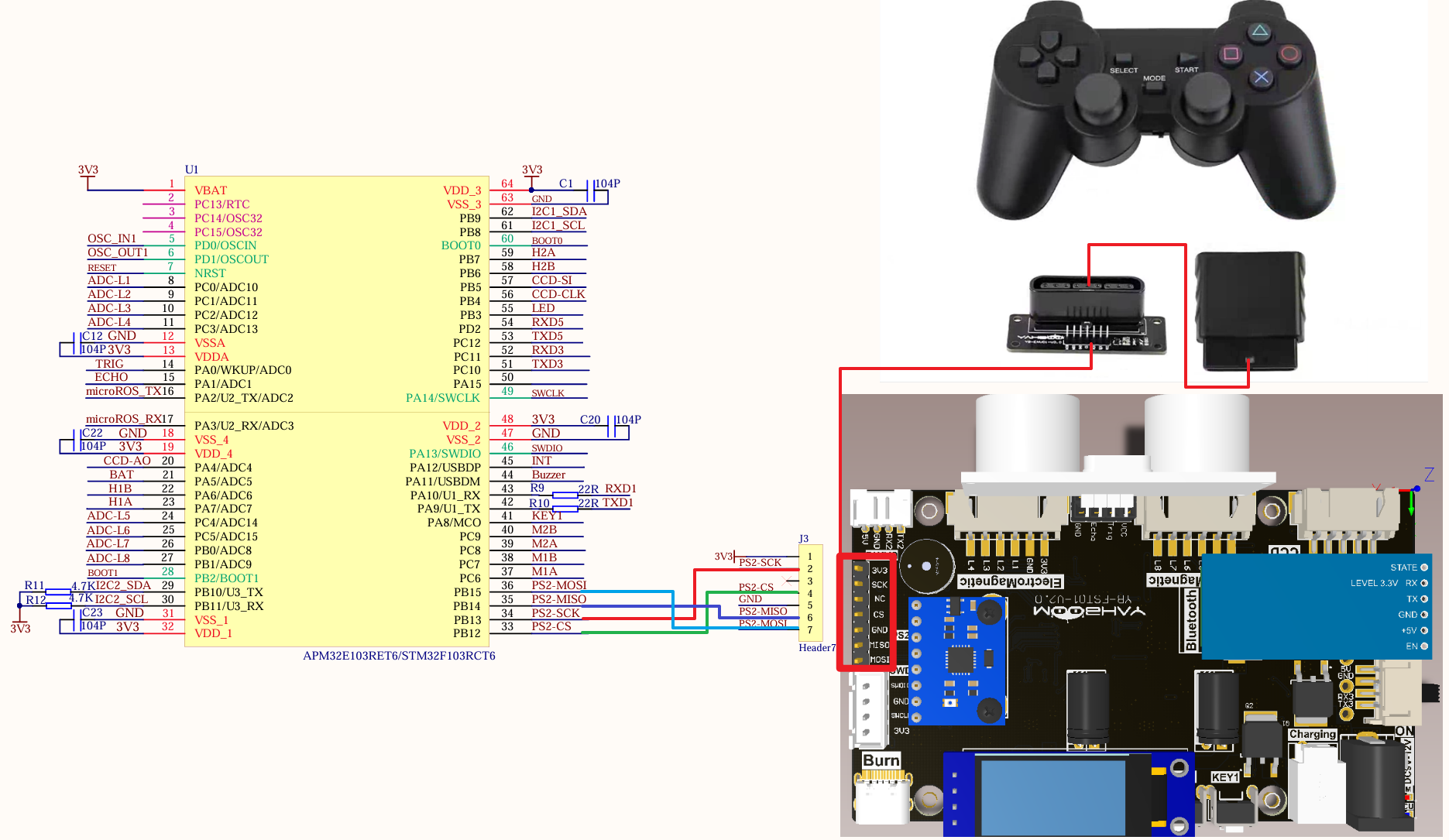

Since we have configured a special connection line, we only need to install it to the corresponding interface:

Control Principle

SPI (Serial Peripheral Interface) is a high-speed, full-duplex, synchronous serial communication interface that is commonly used to transmit data between microcontrollers, sensors, and external devices.

• SPI transmission mode

Clock polarity (CPOL): controls the idle and active states of the clock signal (0: idle state low level, 1: idle state high level)

Clock phase (CPHA): controls the sampling and transmission time of data (0: odd transition edge sampling, 1: even transition edge sampling)

• 2.4G wireless handle

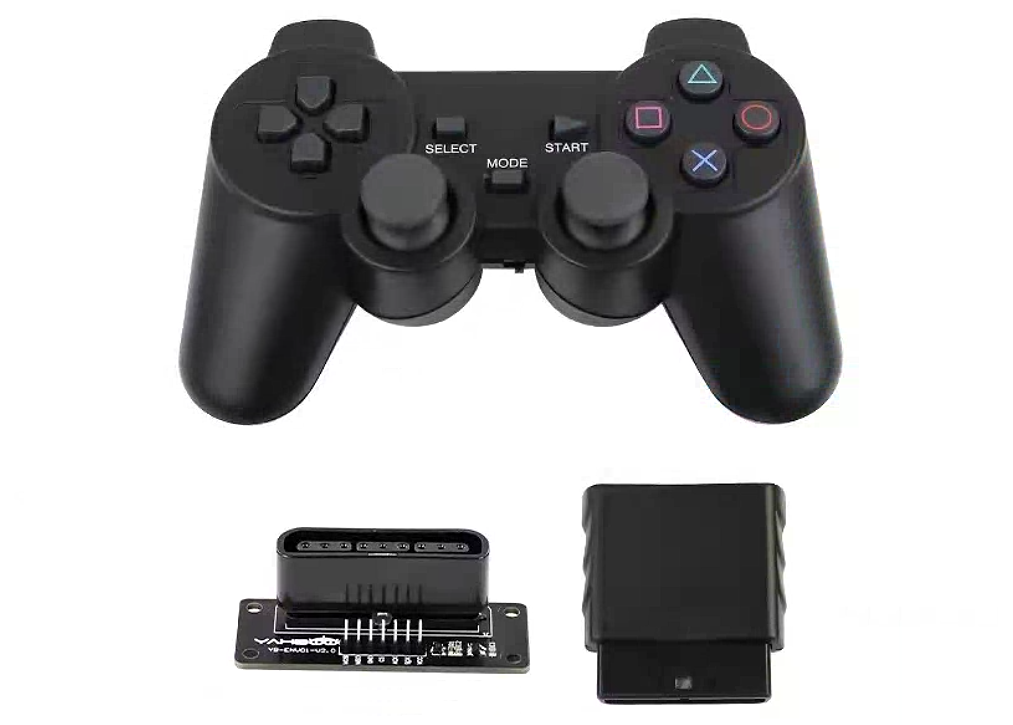

The 2.4G wireless handle is mainly composed of a handle and a receiver (the receiver adapter board is convenient for pin connection with the development board).

Handle

Send key information to the receiver.

Receiver

Receive the data sent by the handle and pass it to the development board; the development board can also send data through the handle to configure the handle's sending mode.

• Controller mode description

Single light mode: one controller indicator light is on

Dual light mode: two controller indicator lights are on

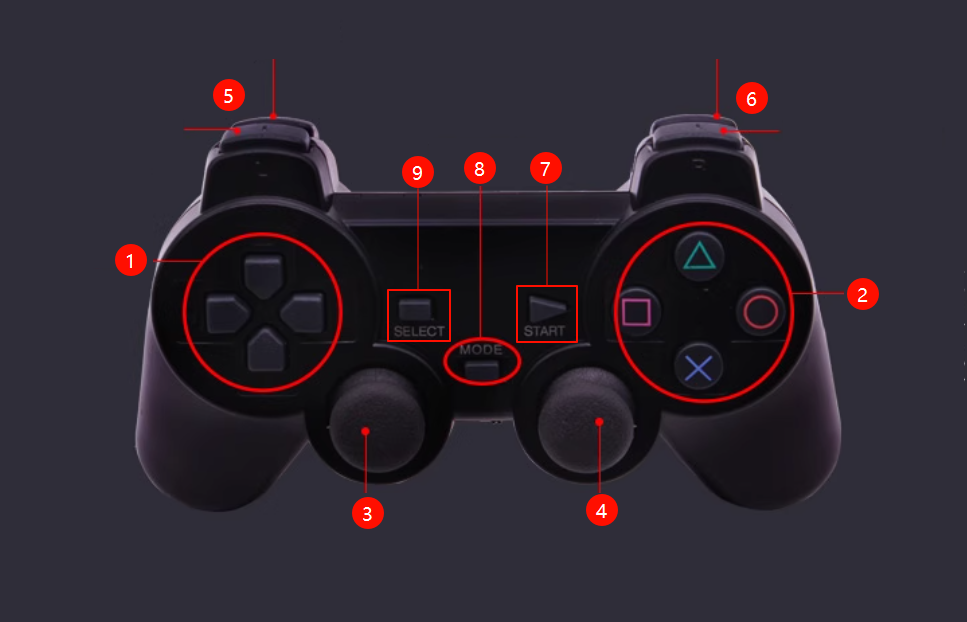

• Controller Button Description

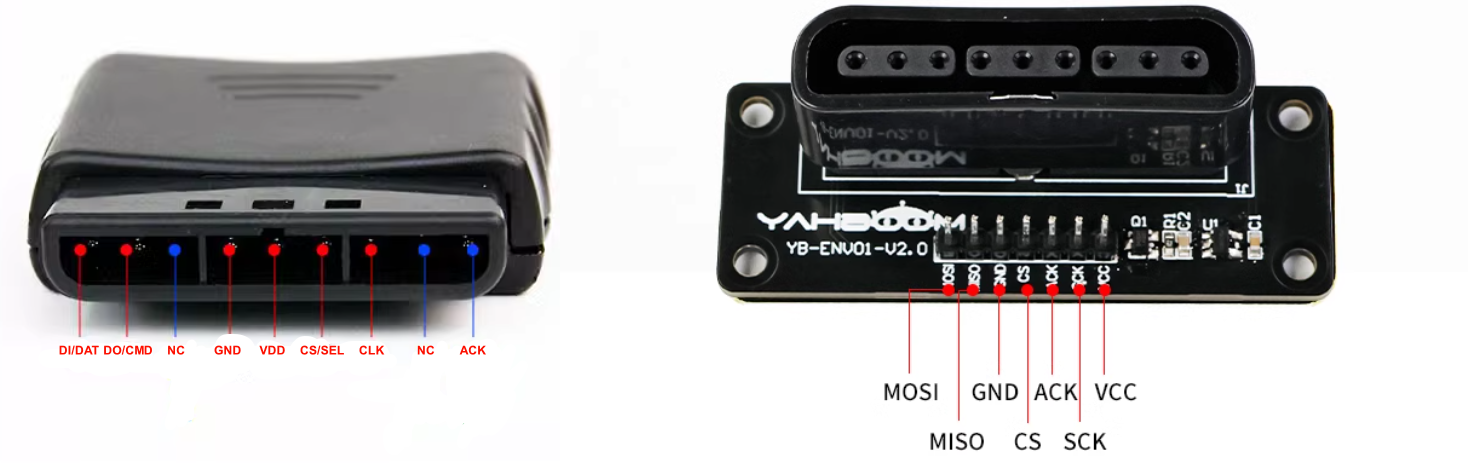

• Receiver and adapter board pin description

Software configuration

Pin definition

Software code

Since the default function of the pin is the ordinary IO pin function, we need to use the multiplexing function.

xxxxxxxxxx
Product supporting materials source code path: Attachment → Source code summary → 1.Base_Course → 11.SPI

Control function

The tutorial only briefly introduces the code, you can open the project source code to read it in detail.

PS2_Init

​x
void PS2_Init(void)
{
     GPIO_InitTypeDef GPIO_InitStructure; //Define GPIO_InitStructure structure
    //DI
    RCC_APB2PeriphClockCmd(PS_RCC_DI,ENABLE);
    GPIO_InitStructure.GPIO_Mode=GPIO_Mode_IPU; //Pull-up, pull-down and floating input modes will cause abnormalities when the handle is not connected
    GPIO_InitStructure.GPIO_Pin=PS_PIN_DI;
    GPIO_InitStructure.GPIO_Speed=GPIO_Speed_50MHz; //50MHZ
    GPIO_Init(PS_PORT_DI,&GPIO_InitStructure);

    //DO
    RCC_APB2PeriphClockCmd(PS_RCC_DO,ENABLE); //Turn on GPIOB clock
    GPIO_InitStructure.GPIO_Mode=GPIO_Mode_Out_PP; //Multiplexed push-pull output mode
    GPIO_InitStructure.GPIO_Pin=PS_PIN_DO; //DO port
    GPIO_InitStructure.GPIO_Speed=GPIO_Speed_50MHz; //50MHZ
    GPIO_Init(PS_PORT_DO,&GPIO_InitStructure);

    //CS
    RCC_APB2PeriphClockCmd(PS_RCC_CS,ENABLE); //Turn on GPIOB clock
    GPIO_InitStructure.GPIO_Mode=GPIO_Mode_Out_PP; //Multiplexed push-pull output mode
    GPIO_InitStructure.GPIO_Pin=PS_PIN_CS; //CS port
    GPIO_InitStructure.GPIO_Speed=GPIO_Speed_50MHz; //50MHZ
    GPIO_Init(PS_PORT_CS,&GPIO_InitStructure);

    //SCK
    RCC_APB2PeriphClockCmd(PS_RCC_CLK,ENABLE); //Turn on GPIOB clock
    GPIO_InitStructure.GPIO_Mode=GPIO_Mode_Out_PP; //Multiplexed push-pull output mode
    GPIO_InitStructure.GPIO_Pin=PS_PIN_CLK; //CLK port
    GPIO_InitStructure.GPIO_Speed=GPIO_Speed_50MHz; //50MHZ
    GPIO_Init(PS_PORT_CLK,&GPIO_InitStructure);
}

PS2_Cmd

xxxxxxxxxx
void PS2_Cmd(u8 CMD)
{

}

PS2_RedLight

xxxxxxxxxx
u8 PS2_RedLight(void)
{
    volatile u16 ref=0x01;
    Data[1] = 0;
    for(ref=0x01;ref<0x0100;ref<<=1)
    {
        if(ref&CMD)
        {
            DO_H; //output a control bit
        }
        else DO_L;
        CLK_H; //clock high
        DELAY_TIME;
        CLK_L;
        DELAY_TIME;
        CLK_H;
        if(DI) //when high
        Data[1] = ref|Data[1];
    }
    delay_us(16);
}

PS2_ReadData

xxxxxxxxxx
void PS2_ReadData(void)
{
    volatile u8 byte=0;
    volatile u16 ref=0x01;
    CS_L;
    PS2_Cmd(Comd[0]);
    PS2_Cmd(Comd[1]);
    for(byte=2;byte<9;byte++)
    {
        for(ref=0x01;ref<0x100;ref<<=1)
        {
            CLK_H;
            DELAY_TIME;
            CLK_L;
            DELAY_TIME;
            CLK_H;
              if(DI)
              Data[byte] = ref|Data[byte];
        }
        delay_us(16);
    }
    CS_H;
}

PS2_DataKey

xxxxxxxxxx
u8 PS2_DataKey()
{
    u8 index;
    PS2_ClearData();
    PS2_ReadData();
    Handkey=(Data[4]<<8)|Data[3];
    for(index=0;index<16;index++)
    {
        if((Handkey&(1<<(MASK[index]-1)))==0)
        return index+1;
    }
    return 0;
}

PS2_AnologData

xxxxxxxxxx
u8 PS2_AnologData(u8 button)
{
    return Data[button];
}

PS2_ClearData

xxxxxxxxxx
void PS2_ClearData()
{
    u8 a;
    for(a=0;a<9;a++)
        Data[a]=0x00;
}

PS2_Vibration

xxxxxxxxxx
void PS2_Vibration(u8 motor1, u8 motor2)
{
    CS_L;
    delay_us(16);
    PS2_Cmd(0x01);
    PS2_Cmd(0x42);
    PS2_Cmd(0X00);
    PS2_Cmd(motor1);
    PS2_Cmd(motor2);
    PS2_Cmd(0X00);
    PS2_Cmd(0X00);
    PS2_Cmd(0X00);
    PS2_Cmd(0X00);
    CS_H;
    delay_us(16);
}

PS2_ShortPoll

xxxxxxxxxx
void PS2_ShortPoll(void)
{
    CS_L;
    delay_us(16);
    PS2_Cmd(0x01);
    PS2_Cmd(0x42);
    PS2_Cmd(0X00);
    PS2_Cmd(0x00);
    PS2_Cmd(0x00);
    CS_H;
    delay_us(16);
}

PS2_EnterConfing

xxxxxxxxxx
void PS2_EnterConfing(void)
{
    CS_L;
    delay_us(16);
    PS2_Cmd(0x01);
    PS2_Cmd(0x43);
    PS2_Cmd(0X00);
    PS2_Cmd(0x01);
    PS2_Cmd(0x00);
    PS2_Cmd(0X00);
    PS2_Cmd(0X00);
    PS2_Cmd(0X00);
    PS2_Cmd(0X00);
    CS_H;
    delay_us(16);
}

PS2_TurnOnAnalogMode

xxxxxxxxxx
void PS2_TurnOnAnalogMode(void)
{
    CS_L;
    PS2_Cmd(0x01);
    PS2_Cmd(0x44);
    PS2_Cmd(0X00);
    PS2_Cmd(0x01);
    PS2_Cmd(0xEE);
    PS2_Cmd(0X00);
    PS2_Cmd(0X00);
    PS2_Cmd(0X00);
    PS2_Cmd(0X00);
    CS_H;
    delay_us(16);
}

PS2_VibrationMode

xxxxxxxxxx
void PS2_VibrationMode(void)
{
    CS_L;
    delay_us(16);
    PS2_Cmd(0x01);
    PS2_Cmd(0x4D);
    PS2_Cmd(0X00);
    PS2_Cmd(0x00);
    PS2_Cmd(0X01);
    CS_H;
    delay_us(16);
}

PS2_ExitConfing

xxxxxxxxxx
void PS2_ExitConfing(void)
{
    CS_L;
    delay_us(16);
    PS2_Cmd(0x01);
    PS2_Cmd(0x43);
    PS2_Cmd(0X00);
    PS2_Cmd(0x00);
    PS2_Cmd(0x5A);
    PS2_Cmd(0x5A);
    PS2_Cmd(0x5A);
    PS2_Cmd(0x5A);
    PS2_Cmd(0x5A);
    CS_H;
    delay_us(16);
}

PS2_SetInit

xxxxxxxxxx
void PS2_SetInit(void)
{
    PS2_ShortPoll();
    PS2_ShortPoll();
    PS2_ShortPoll();
    PS2_EnterConfing(); //Enter configuration mode
    PS2_TurnOnAnalogMode(); //"Traffic light" configuration mode, and choose whether to save
    //PS2_VibrationMode(); //Turn on vibration mode
    PS2_ExitConfing(); //Complete and save configuration
}

Experimental phenomenon

The SPI.hex file generated by the project compilation is located in the OBJ folder of the SPI project. Find the SPI.hex file corresponding to the project and use the FlyMcu software to download the program to the development board.

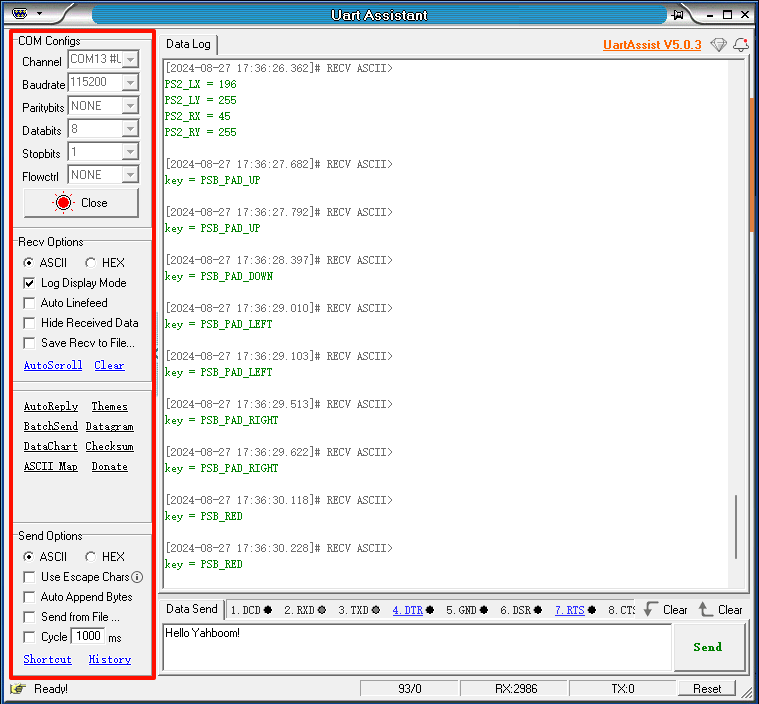

After the program is successfully downloaded: the serial port prints the key value pressed by the wireless controller.

xxxxxxxxxx
When using the serial port debugging assistant, you need to pay attention to the serial port settings. If the settings are wrong, the phenomenon may be inconsistent.
