Battery voltage detection (ADC)Hardware connectionControl PrinciplePin definitionSoftware codeControl functionExperimental phenomenon
The tutorial demonstrates the low voltage alarm function of the development board.
xADC collects the actual voltage of the battery pack, and determines whether to issue an alarm and the LED status through the obtained voltage value!
The tutorial only introduces the standard library project code
Peripherals | Development Board | Description |
---|---|---|
Battery Pack | PA5 | The battery pack DC interface needs to be connected to the development board |
The converted value of the battery BAT pin is obtained through a single ADC.
ADC
STM32F103RCT6 has three 12-bit analog-to-digital converters embedded, and each ADC controller has up to 16 channels.
ADC Channel
Only introduce the ADC channel corresponding to the battery pack interface.
Main control chip | Pin | Main function (after reset) | Default multiplexing function | Redefine function |
---|---|---|---|---|
STM32F103RCT6 | PA5 | PA5 | SPI1_SCK/DAC_OUT2/ADC12_IN5 |
ADC conversion value
The ADC of STM32F103RCT6 is a 12-bit successive approximation analog-to-digital converter with 12-bit resolution;
The converted value of ADC can be stored in 16-bit data register in left-aligned or right-aligned mode.
ADC conversion mode
The A/D conversion of each ADC channel can be performed in single, continuous, scan or intermittent mode.
Mode | Function |
---|---|
Single conversion mode | ADC performs only one conversion |
Continuous conversion mode | Starts another conversion as soon as the previous ADC conversion is completed |
Scan mode | Used to scan a group of ADC channels |
Intermittent mode | Converts multiple ADC channels in groups until the entire sequence is converted |
xxxxxxxxxx
Regular channel: Perform channel conversion in a certain order
Injection channel: The injection channel can interrupt the conversion of the regular channel to execute the injection channel, and then continue to execute the regular channel conversion after the injection channel is completed
ADC conversion time
The input clock of the ADC must not exceed 14MHz, which is generated by the frequency division of PCLK2.
Conversion time in this tutorial: ADC clock frequency 12MHz, sampling time 239.5 clock cycles
Actual voltage conversion: ADC internal reference voltage 3.3V

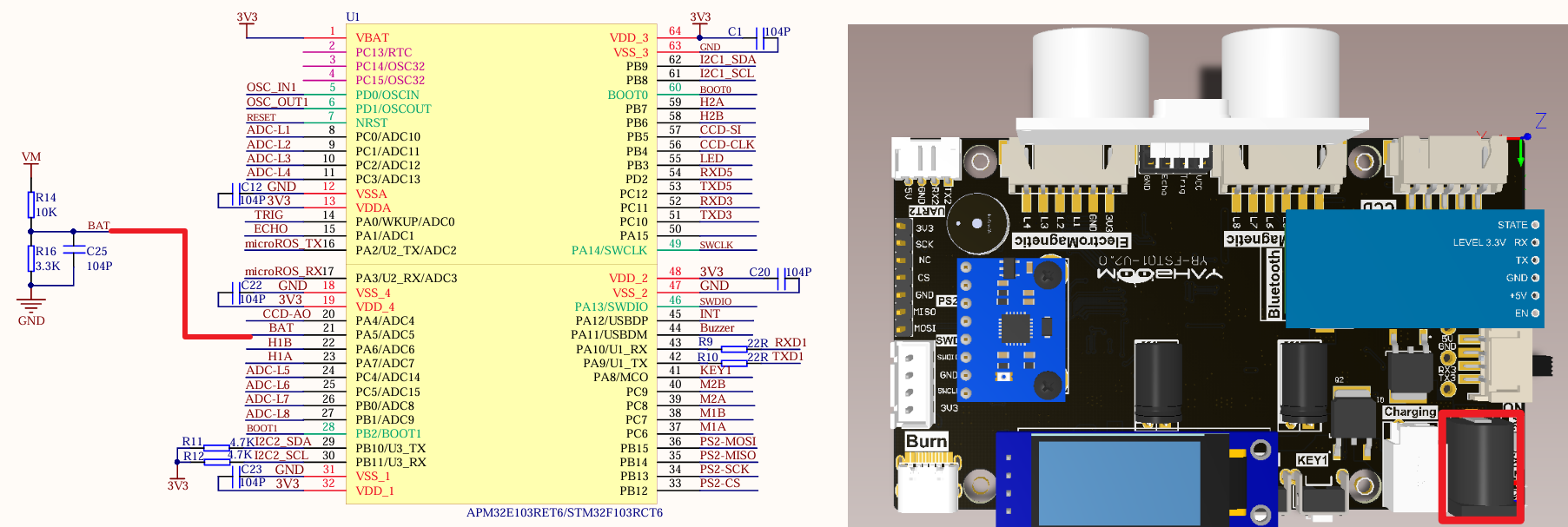

Referring to the hardware schematic diagram, we can see: Current equality principle
Main control chip | Pin | Main function (after reset) | Default multiplexing function | Redefine function |
---|---|---|---|---|
STM32F103RCT6 | PA5 | PA5 | SPI1_SCK/DAC_OUT2/ADC12_IN5 |
Since the default function of the PA5 pin is a normal IO pin function, we need to use the multiplexing function.
xxxxxxxxxx
Product supporting data source code path: Attachment → Source code summary → 2.Extended_Course → 1.Battery
The tutorial only briefly introduces the code, you can open the project source code to read it.
Battery_init
xxxxxxxxxx
//Battery power detection initialization
void Battery_init(void)
{
ADC_InitTypeDef ADC_InitStructure;
GPIO_InitTypeDef GPIO_InitStructure;
RCC_APB2PeriphClockCmd(BAT_GPIO_CLK | BAT_ADC_CLK, ENABLE); //Enable BAT_ADC channel clock
RCC_ADCCLKConfig(RCC_PCLK2_Div6); //Set ADC division factor 6
//72M/6=12, ADC maximum input clock cannot exceed 14M
//PA5 as analog channel input pin
GPIO_InitStructure.GPIO_Pin = BAT_GPIO_PIN;
GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AIN; //Analog input
GPIO_Init(BAT_GPIO_PORT, &GPIO_InitStructure); //Initialize GPIOA.5
ADC_DeInit(BAT_ADC); //Reset BAT_ADC and reset all registers of the peripheral BAT_ADC to default values
ADC_InitStructure.ADC_Mode = ADC_Mode_Independent; //ADC independent mode
ADC_InitStructure.ADC_ScanConvMode = DISABLE; //Single channel mode
ADC_InitStructure.ADC_ContinuousConvMode = DISABLE; //Single conversion mode
ADC_InitStructure.ADC_ExternalTrigConv = ADC_ExternalTrigConv_None; //Conversion is started by software instead of external trigger
ADC_InitStructure.ADC_DataAlign = ADC_DataAlign_Right; //ADC data right alignment
ADC_InitStructure.ADC_NbrOfChannel = 1; //Number of ADC channels for regular conversion in sequence
ADC_Init(BAT_ADC, &ADC_InitStructure); //Initialize peripheral ADCx according to specified parameters
ADC_Cmd(BAT_ADC, ENABLE); //Enable specified BAT_ADC
ADC_ResetCalibration(BAT_ADC); //Start reset calibration
while (ADC_GetResetCalibrationStatus(BAT_ADC)); //Wait for reset calibration to end
ADC_StartCalibration(BAT_ADC); //Start AD calibration
while (ADC_GetCalibrationStatus(BAT_ADC)); //Wait for calibration to end
}
Battery_Get
xxxxxxxxxx
// Get ADC value, ch: channel value
static uint16_t Battery_Get(uint8_t ch)
{
uint16_t timeout = 1000;
//Set the regular group channel of the specified ADC, set their conversion order and sampling time
ADC_RegularChannelConfig(BAT_ADC, ch, 1, ADC_SampleTime_239Cycles5);
//Channel 1, rule sampling order value is 1, sampling time is 239.5 cycles
ADC_SoftwareStartConvCmd(BAT_ADC, ENABLE); //Enable software conversion function
while (!ADC_GetFlagStatus(BAT_ADC, ADC_FLAG_EOC) && timeout--); //Wait for conversion to end
return ADC_GetConversionValue(BAT_ADC); //Return the most recent conversion result of the BAT_ADC rule group
}
Battery_Get_Average
xxxxxxxxxx
uint16_t Battery_Get_Average(uint8_t ch, uint8_t times)
{
uint16_t temp_val = 0;
uint8_t t;
for (t = 0; t < times; t++)
{
temp_val += Battery_Get(ch);
}
if (times == 4)
{
temp_val = temp_val >> 2;
}
else
{
temp_val = temp_val / times;
}
return temp_val;
}
Get_Measure_Volotage
xxxxxxxxxx
// Get the measured original voltage value
float Get_Measure_Volotage(void)
{
uint16_t adcx;
float temp;
adcx = Battery_Get(BAT_ADC_CH); // Battery channel 5 is measured once
temp = (float)adcx * (3.30f / 4096);
return temp;
}
Get_Battery_Volotage
xxxxxxxxxx
// Get the actual battery voltage before voltage division
float Get_Battery_Volotage(void)
{
float temp;
temp = Get_Measure_Volotage();
// The actual measured value is a little lower than the calculated value.
temp = temp * 4.03f; //temp*(10+3.3)/3.3;
return temp;
}
The Battery.hex file generated by the project compilation is located in the OBJ folder of the Battery project. Find the Battery.hex file corresponding to the project and use the FlyMcu software to download the program to the development board.
After the program is successfully downloaded:

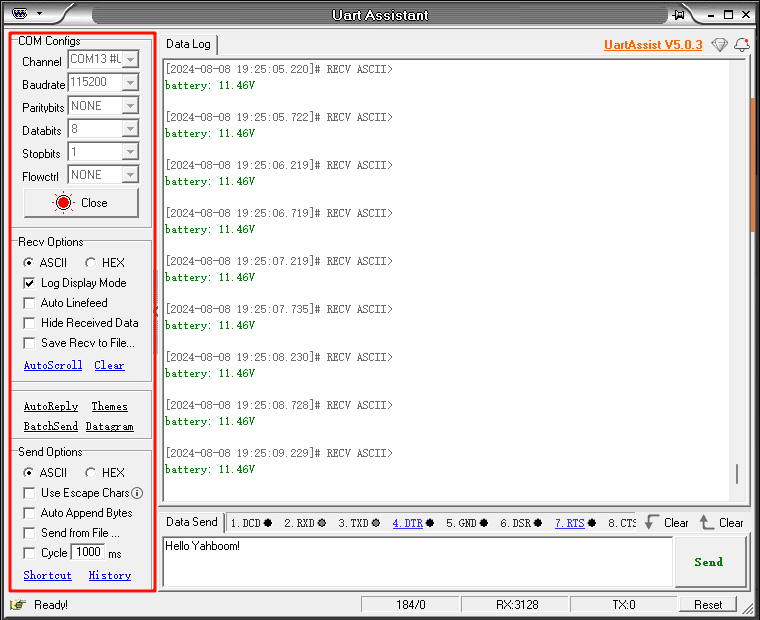

The program will enter the corresponding state according to the obtained voltage and print the real-time battery voltage information on the serial port:
Voltage is less than 9.6V: The buzzer keeps beeping and the LED is off;
Voltage is greater than or equal to 9.6V: The LED flashes
xxxxxxxxxx
When using the serial port debugging assistant, you need to pay attention to the serial port settings. If the settings are wrong, the phenomenon may be inconsistent
