MSPM0-IO Method

Experimental preparation

  1. TI's MSPM0G3507 motherboard

  2. 8-channel patrol module

  3. Several Dupont cables

MSPM0G3507 board needs to download the I2C communication source code provided in the document**

Experimental purpose

The content of this experiment is mainly to use the MSPM0G3507 master control to receive the data of the 8-channel patrol module through I2C.

Experimental wiring

MSPM0G3507 connected to the serial port assistant If the type-c port of the msp does not have the function of downloading programs, you need to use a USB to TTL module to connect to the computer. The wiring is described in the following table

MSPM0G3507usb to ttl
PA10TX
PA11RX
vccvcc
GNDGND
If the MSPM0G3507 MCU type has a download function, you can directly use the type-c to connect to the computer's serial port assistant
MSPM0G35078-channel line patrol module
PA0SDA
PA1SCL
5v5v
GNDGND



Experimental steps and phenomena

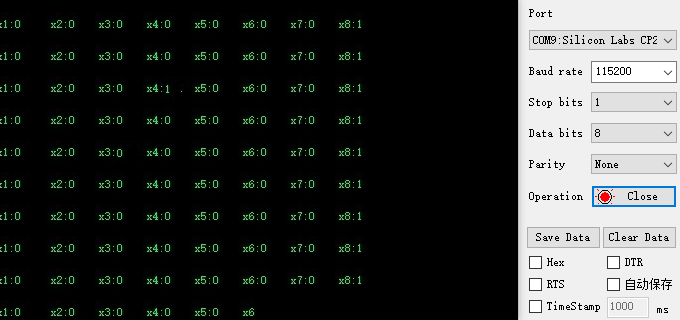

  1. After connecting the wires, open the serial port assistant and you can see the numerical data of the infrared module. Set the baud rate to 115200. As shown in the figure below

image-2024110100002

MSPM0 developers need to build the environment before compiling and running the project Environment building tutorial: https://wiki.lckfb.com/zh-hans/dmx/beginner/install.html

Experimental source code

Before powering on, press and hold the reset pin of mspM0, wait for the infrared module to work normally, and then release the reset button of MSP, otherwise it is easy to cause i2c deadlock. The main function of the source code is very simple, reading the probe pins of 8-way patrol line and printing them out.
