1. Learning Objectives

  1. Learn the basic use of the MSPM0G3507 motherboard timer.
  2. Realize the timed flipping of LED status.

Timer

The timer is a very important peripheral in the microcontroller, used for timing and generating timed interrupts. The core principle of the timer is to record time through an internal counter. The counter is incremented by one per machine cycle. When the counter reaches a preset value, it triggers an interrupt. The program can perform certain operations in the interrupt service program, such as flipping LEDs, reading sensor data, controlling motors, etc.

Basic parameters of the timer

  1. Prescaler

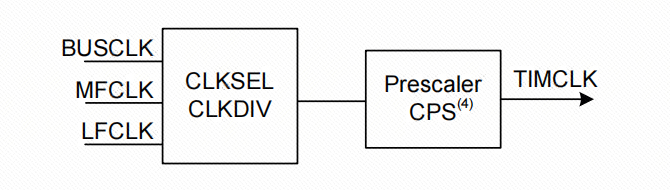

The prescaler can divide the timer clock (TIMCLK) frequency by any value between 1 and 256 (1 to 256 is based on the 8-bit timer divider). TIMG can choose BUSCLK, MFCLK, LFCLK as the clock source, and can divide the clock by a maximum of 8. After passing through an 8-bit prescaler, it is finally called the timer count clock.


  1. Up or down counting mode

Up counting means that the counter starts counting from 0 to the auto-load value. Once the counter counts to the auto-load value, it will start counting from 0 again and generate an overflow event. Down counting means that the counter starts counting from the auto-load value to 0. Once the counter counts to 0, it will start counting from the auto-load value again and generate an underflow event.

  1. Update event

The update event is triggered when the counter overflows or underflows and starts a new counting cycle. The update event can trigger a DMA request to update the timer's operating parameters in time at the beginning of the next counting cycle, which is particularly suitable for real-time control.

2. Hardware construction

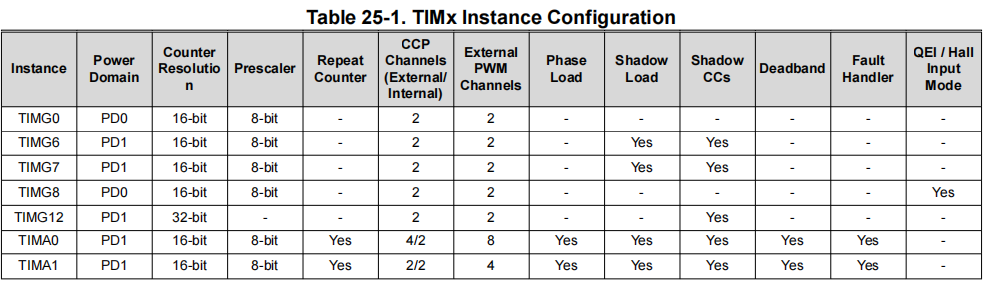

The MSPM0G series has a total of 7 timers, which can be divided into 2 types, general timers (TIMG) and advanced control timers (TIMA). Different types of timers have different numbers of functions. Generally, advanced timers have the most functions, followed by general timers.


3. Experimental steps

If the project needs to execute or repeat specific tasks at a fixed time, the configuration of the timer is particularly important. The following will introduce how to set the timer to trigger an interrupt every 1 second, and implement the LED state flip in the interrupt service function, so as to achieve the effect of LED on for 1 second and off for 1 second.

1. Open the SYSCONFIG configuration tool

Open the blank project empty in the SDK in KEIL.

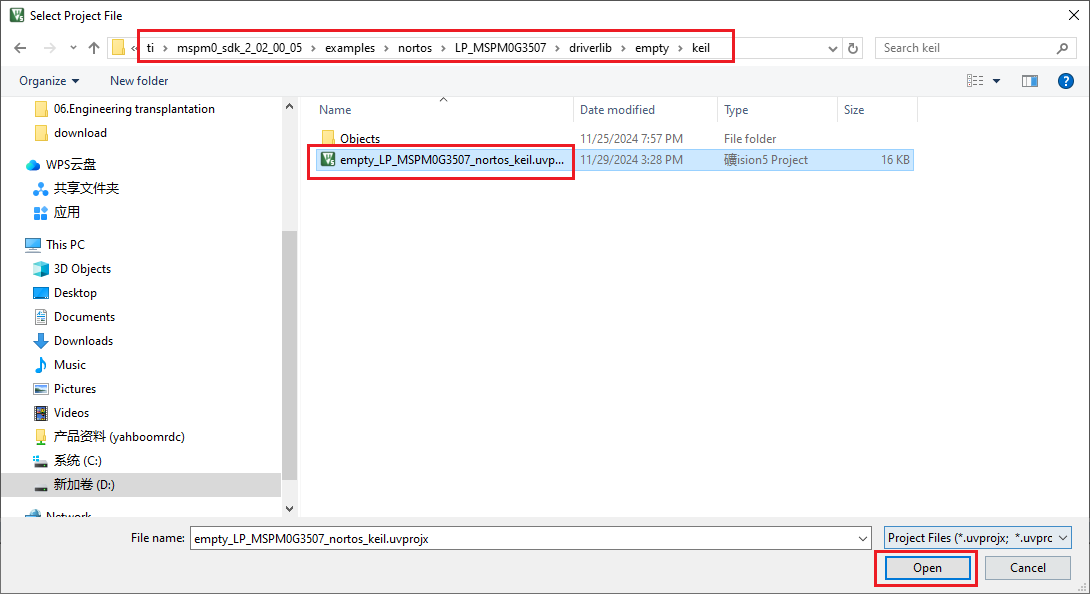

image-20241118204605335

Select and open, open the empty.syscfg file in the keil interface, with the empty.syscfg file open, then select to open the SYSCONFIG GUI interface in the Tools column.

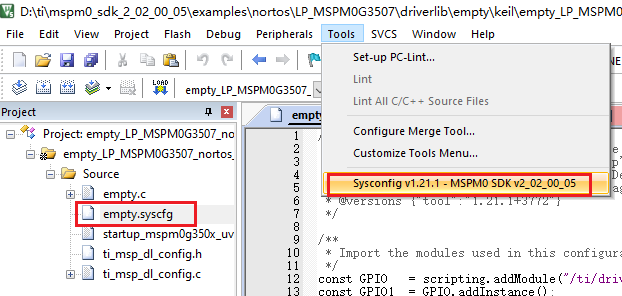

image-20241118204833195

In SYSCONFIG, select MCU peripherals on the left, find the TIMER option and click to enter. Click ADD in TIMER to add a timer peripheral.

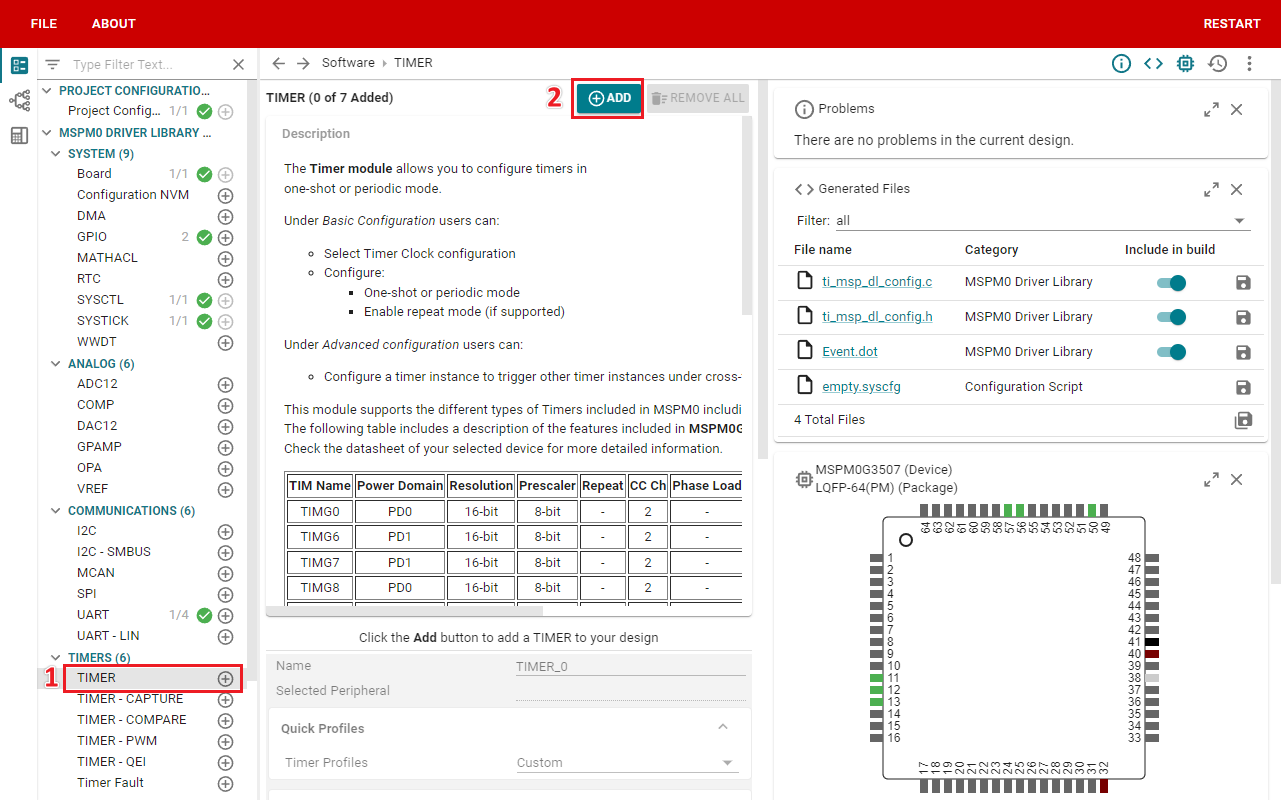

image-20241120200456599

2. Timer parameter configuration

In this case, select BUSCLK-32MHz for the Timer Clock Source, select 8 for the Timer Clock Divider, and configure 100 for the Timer Clock Prescaler, so the timer frequency is 40KHz. Desired Timer Period sets the timer period to 1S, Timer Mode to period down counting mode, Enable Interrupts turns on 0 overflow interrupt. The GPIO configuration of LED is carried out according to the LED light course.

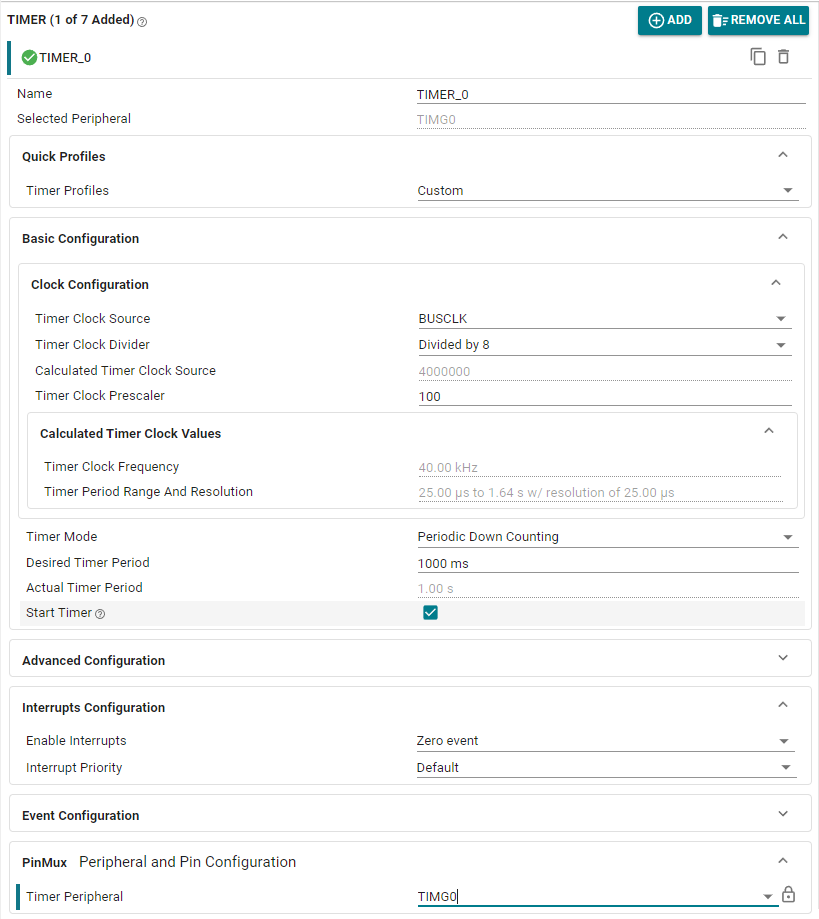

image-20241120200910786

Click SAVE to save the configuration in SYSCONFIG, then turn off SYSCONFIG and return to keil.

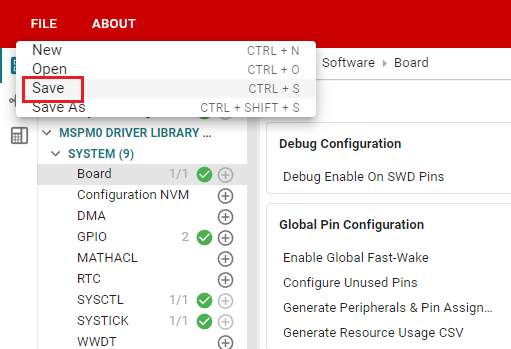

image-20241119193346732

Select Yes to All in the pop-up window

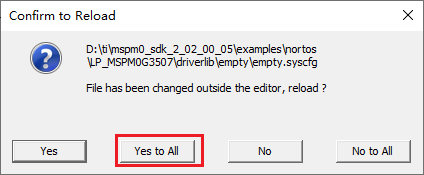

image-20241119143728060

Similarly, we also need to confirm whether the ti_msp_dl_config.c and ti_msp_dl_config.h files are updated. Compile directly, and the compilation will automatically update to keil. If there is no update, we can also copy the file content in SYSCONFIG.

3. Write the program

In the empty.c file, write the following code

4. Compile

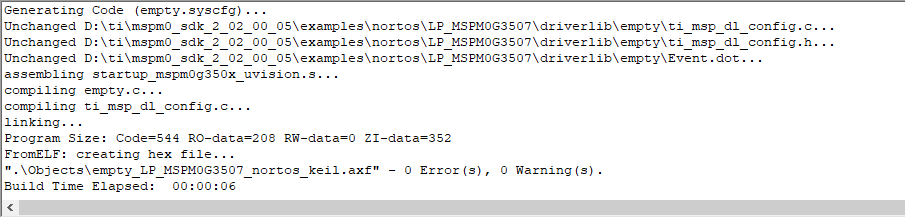

Click the Rebuild icon. The following prompt appears, indicating that the compilation is complete and there are no errors.

image-20241119150803274

image-20241119150902489

4. Program Analysis

This is a timer interrupt service program, which is used to handle timer overflow interrupts and perform corresponding operations. Every time the timer overflows, the state of an LED is flipped.

5. Experimental phenomenon

After the program is downloaded, you can see that the LED light is flashing according to the configuration of 1 second period.
