Button control

1. Learning objectives

1. Learn the basic working principle of the buttons of the MSPM0G3507 motherboard.
2. Use the onboard buttons to control the on/off of the onboard LED lights.

2. Hardware construction

Independent button principle

Independent buttons are usually implemented through mechanical switches, and their hardware structure consists of buttons, connecting lines, and pull-up/pull-down resistors. When the button is closed, the line is connected and the signal level changes; when the button is released, the line is disconnected and the signal returns to its initial state.

Key debounce

The mechanical elasticity of the button will cause the signal to jump multiple times in a short period of time when the button is closed or released, which is called button jitter. Usually, jitter is eliminated by software delay debounce or hardware plus RC filter circuit.

This course does not require additional hardware equipment, and directly uses the onboard function buttons on the MSPM0G3507 motherboard.

In the schematic diagram of the development board, a button is connected to the PA18 pin. One end of the button is connected to a high level (3.3V), and the other end is connected to a GPIO pin. At the same time, the PA18 pin is connected to the ground through a 47kΩ pull-down resistor R5. When the button is not pressed, the PA18 pin level is pulled down to 0V due to the pull-down resistor; when the button is pressed, the PA18 pin is directly connected to a high level of 3.3V, thereby achieving a change in high and low levels. The development board can determine whether the button is pressed by detecting the level state of the PA18 pin. This design is simple and stable, and can effectively avoid signal interference caused by pin suspension.

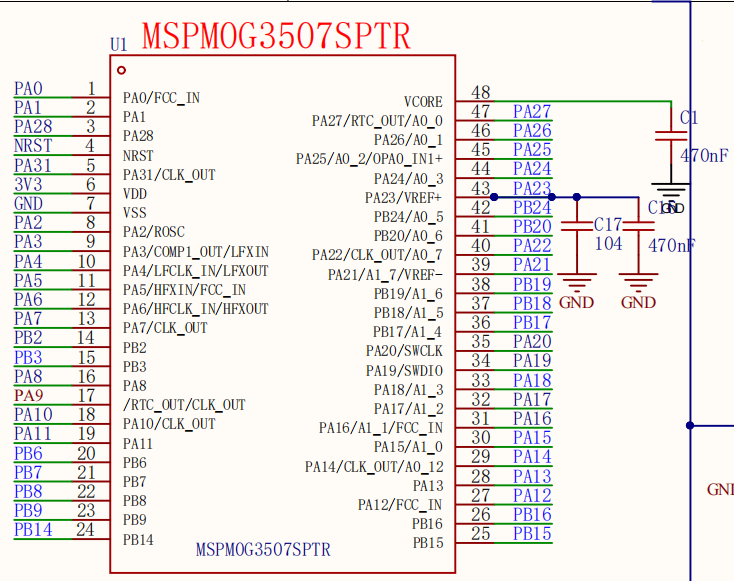

MSPM0G3507 main control diagram

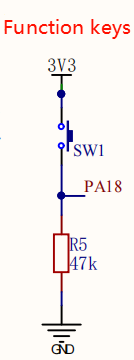

Key schematic diagram

3. Experimental steps

In the microcontroller, the input mode of the pin refers to configuring a pin as an input function to receive changes in external signals. The working principle of the key is based on this point: by setting the pin connected to the key to input mode, the microcontroller can detect the level change on the pin. When the key is not pressed, the pin level remains at a low level; when the key is pressed, the pin level becomes a high level. This change in high and low levels is the embodiment of the key input signal, and it is also the basis for the microcontroller to judge the key status. Therefore, the process of receiving external signals is actually the process of detecting the high and low level changes of the key through the input mode.

1. Open the SYSCONFIG configuration tool

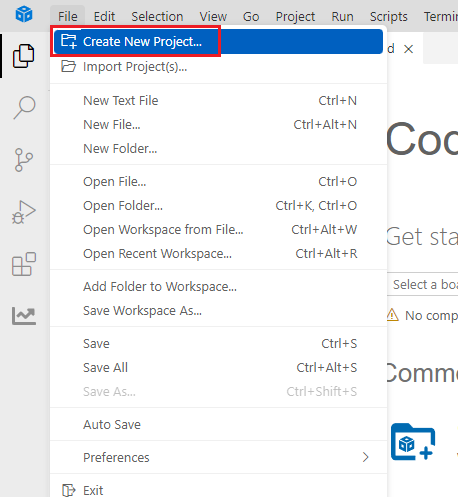

Create a blank project in CCS called empty.

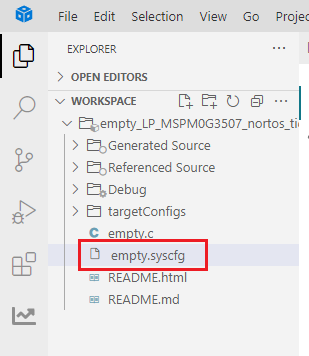

Find and open the empty.syscfg file in the left workspace of CCS.

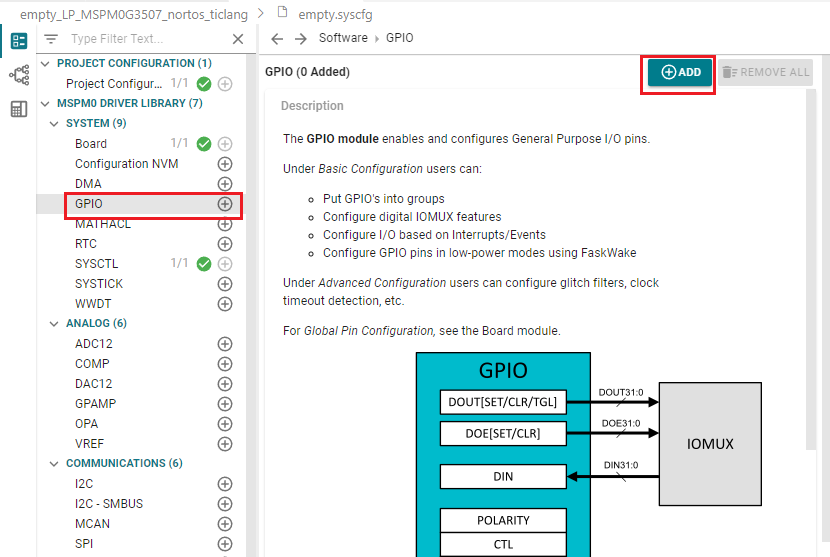

In SYSCONFIG, select MCU peripherals on the left, find the GPIO option and click to enter. Click ADD in GPIO to add two sets of pin peripherals, one set of LED pins and one set of button pins. For LED pins, please refer to the previous Light up LED course. Here we only talk about the configuration of key pins.

2. Configure pin mode

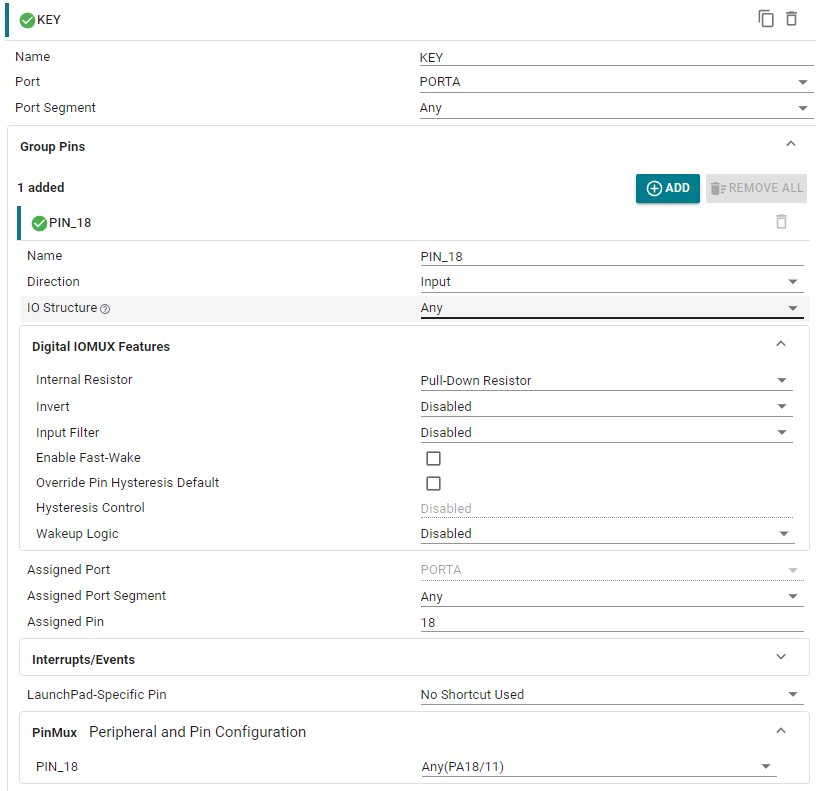

Configure pin parameters and name the GPIO instance as KEY. Since PA18 is connected, select PORTA for Port.

Set the pin name to PIN_18 and set it to input mode Input. Set Internal Resistor to pull-down resistor Pull-Down Resistor, and set the pin to be controlled in Assigned Pin to 18.

Save the configuration in the .syscfg file using the shortcut key Ctrl+S.

Compile after saving

3. Write the program

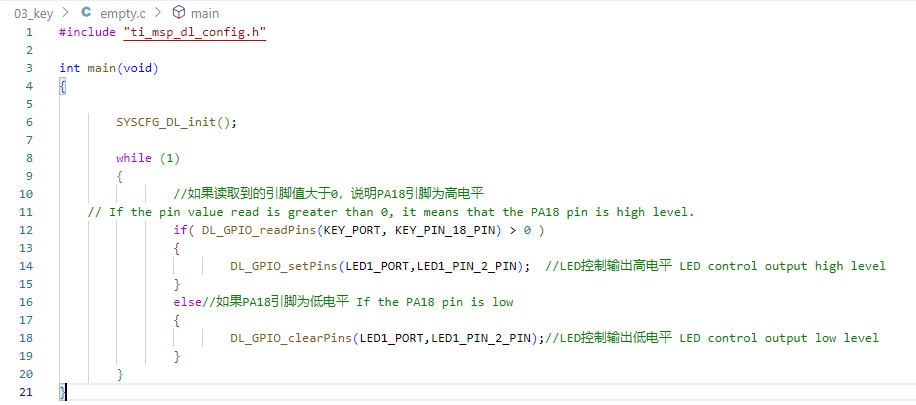

In the empty.c file, write the following code

​x
#include "ti_msp_dl_config.h"
​
int main(void)
{
​
        SYSCFG_DL_init();
​
        while (1)
        {
                //如果读取到的引脚值大于0，说明PA18引脚为高电平
                // If the pin value read is greater than 0, it means that the PA18 pin is high level.
                if( DL_GPIO_readPins(KEY_PORT, KEY_PIN_18_PIN) > 0 )
                {
                        DL_GPIO_setPins(LED1_PORT,LED1_PIN_2_PIN);  //LED控制输出高电平 LED control output high level
                }
                else//如果PA18引脚为低电平 If the PA18 pin is low
                {
                        DL_GPIO_clearPins(LED1_PORT,LED1_PIN_2_PIN);//LED控制输出低电平 LED control output low level
                }
        }
}

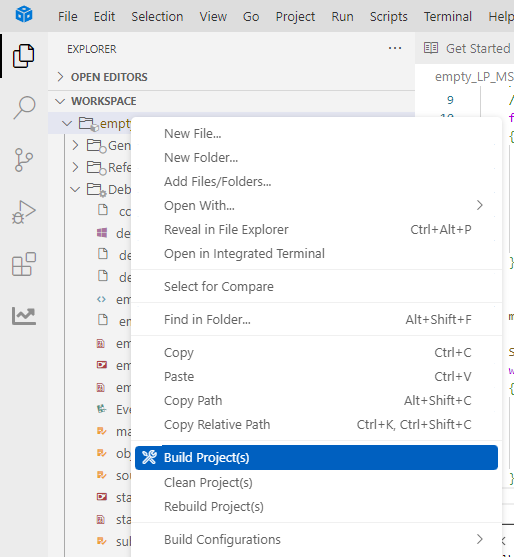

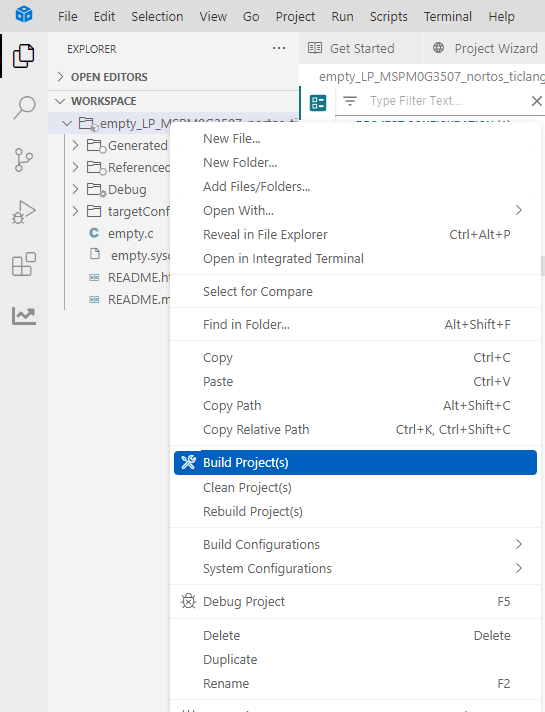

4. Compile

If the compilation is successful, you can download the program to the development board.

4. Program Analysis

• empty.c

uint32_t DL_GPIO_readPins(GPIO_Regs* gpio, uint32_t pins) is used to read the level status of the specified GPIO pin. Get the status of the specified pin by reading the value of the GPIO register. Enter the GPIO port and pin number to be read, and return the level status of the pin.

gpio: GPIO port to be read.

pins: pin number to be read.

This code continuously detects the level state of pin PA18 (button access pin) and controls the output level of LED1_PIN_2 (LED control pin) to realize the function of key control LED. When PA18 is high level, the LED is turned on (LED pin outputs high level); when PA18 is low level, the LED is turned off (LED pin outputs low level).

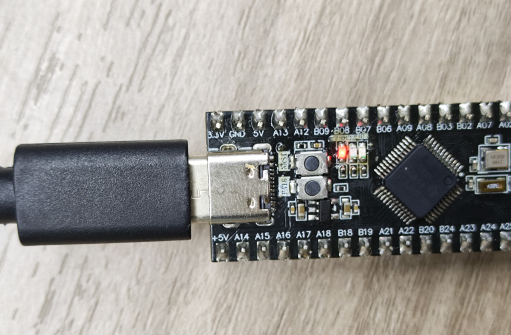

5. Experimental phenomenon

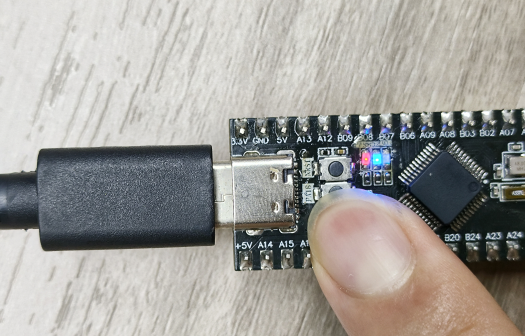

After the program is downloaded, the LED light can be controlled by the button. Press the button to turn on the LED light, and release the button to turn off the LED light.
