Upgrade to SUPER version

This tutorial supports upgrading SUPER from Jetson Orin official kit and Jetson Orin SUB kit. After upgrading SUPER, only the pure system will be retained, and the tutorial motherboard case cannot run.

Note: The startup system of Jetson series motherboards is closely related to the Jetpack version of the motherboard. Different Jetpack versions may fail to start

The tutorial uses VMware to start the Ubuntu22.04 virtual machine as a demonstration

1. File download

Official website: https://developer.nvidia.com/embedded/jetson-linux-r3643

Note: NVIDIA Jetson Linux 36.4.3 corresponds to Jetpack 6.2

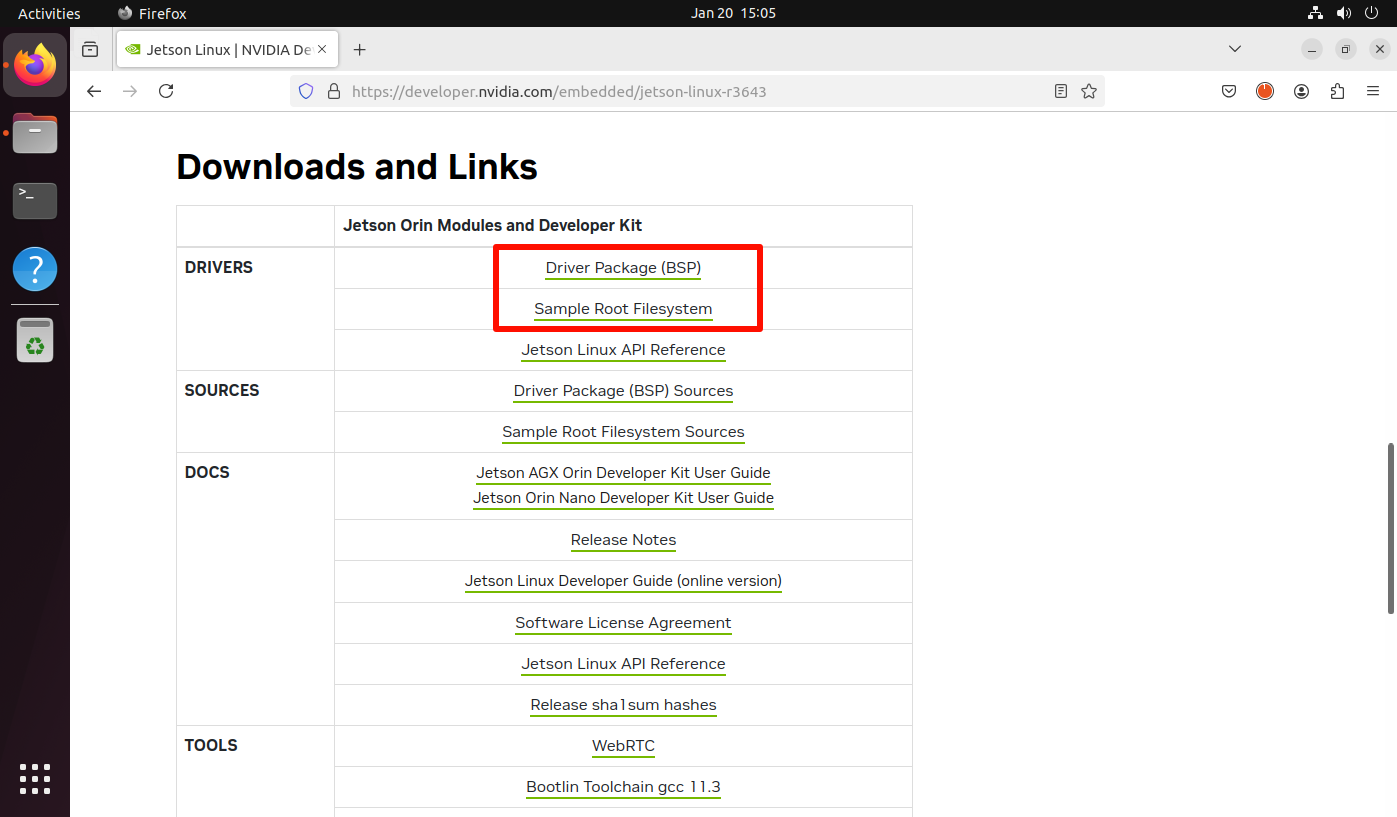

Download the compressed package files corresponding to Driver Package (BSP) and Sample Root Filesystem:

2. Flashing mode

2.1. Hardware connection

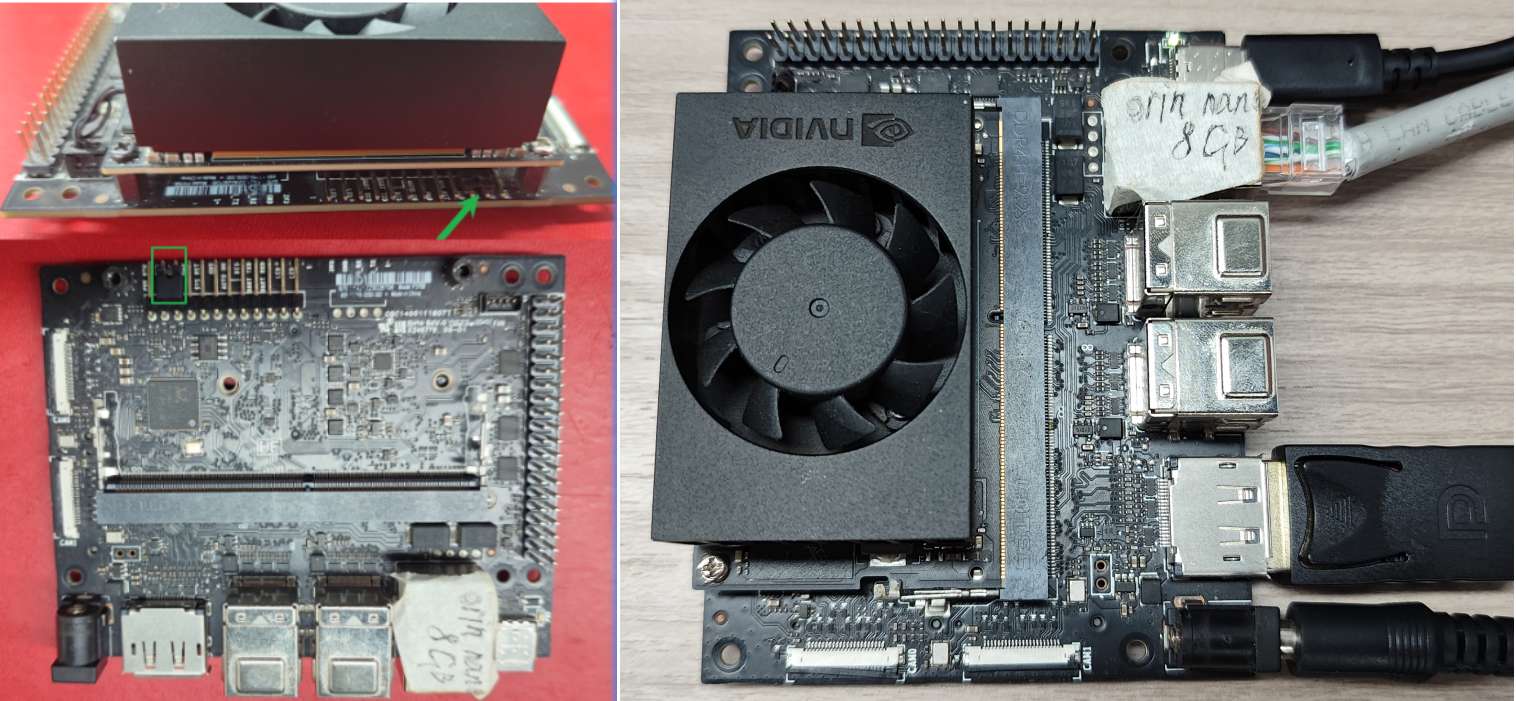

1. Use a jumper cap to short-circuit the FC REC and GND pins under the core board: the core board can be left unassembled, the picture is just for a clearer observation
2. The Jetson Orin motherboard needs to be connected to a DC power adapter, DP data cable, network cable, and Type C data cable: Type C data cable connects to the computer

2.2, Software connection

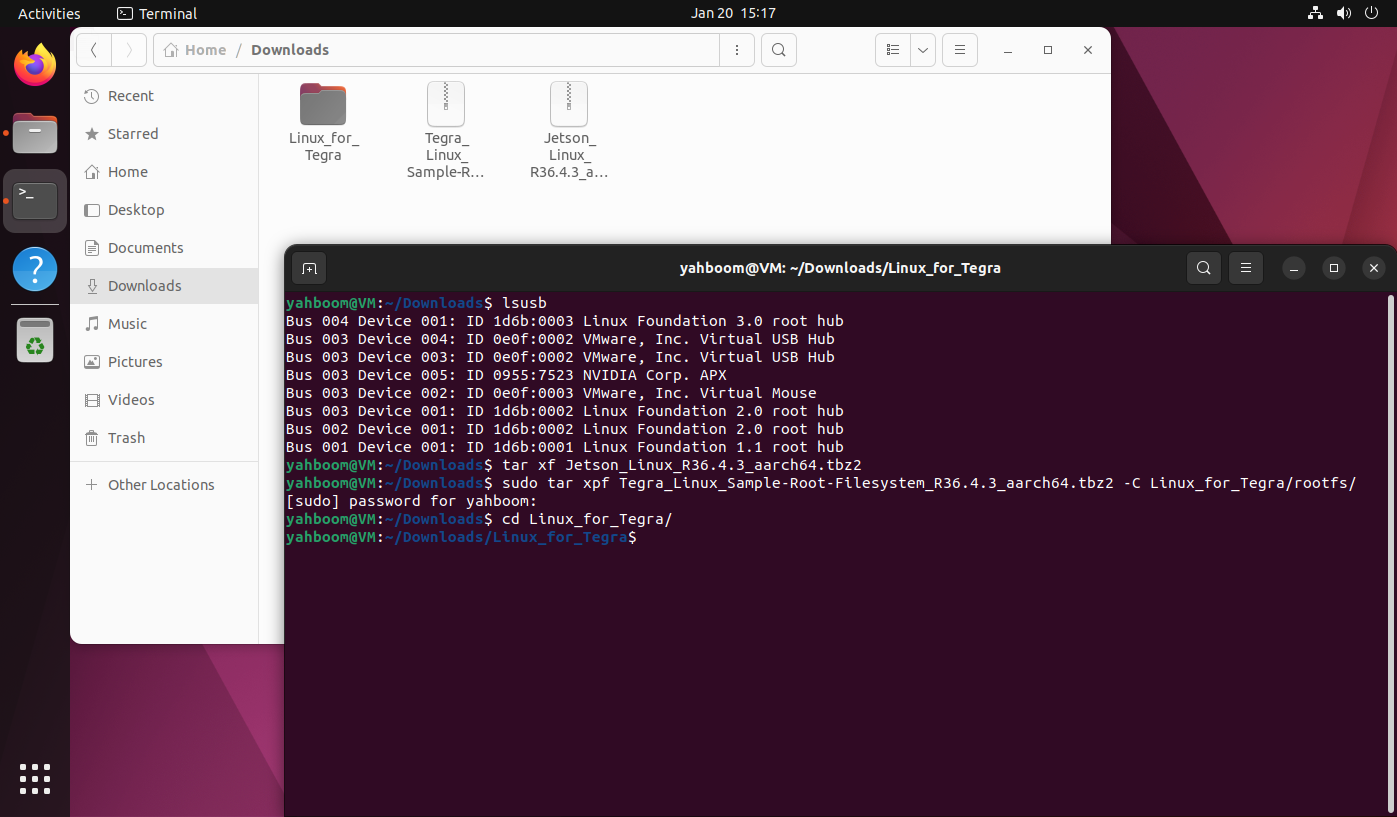

The motherboard is successfully connected to the Ubuntu system, and the lsusb command will show the NVIDIA Corp. APX information:

3. Burning system

3.1. Unzip files

Go to the download folder and open the terminal, then unzip the file in the terminal and go to the specified folder:

xxxxxxxxxx
tar xf Jetson_Linux_R36.4.3_aarch64.tbz2
sudo tar xpf Tegra_Linux_Sample-Root-Filesystem_R36.4.3_aarch64.tbz2 -C Linux_for_Tegra/rootfs/
cd Linux_for_Tegra/

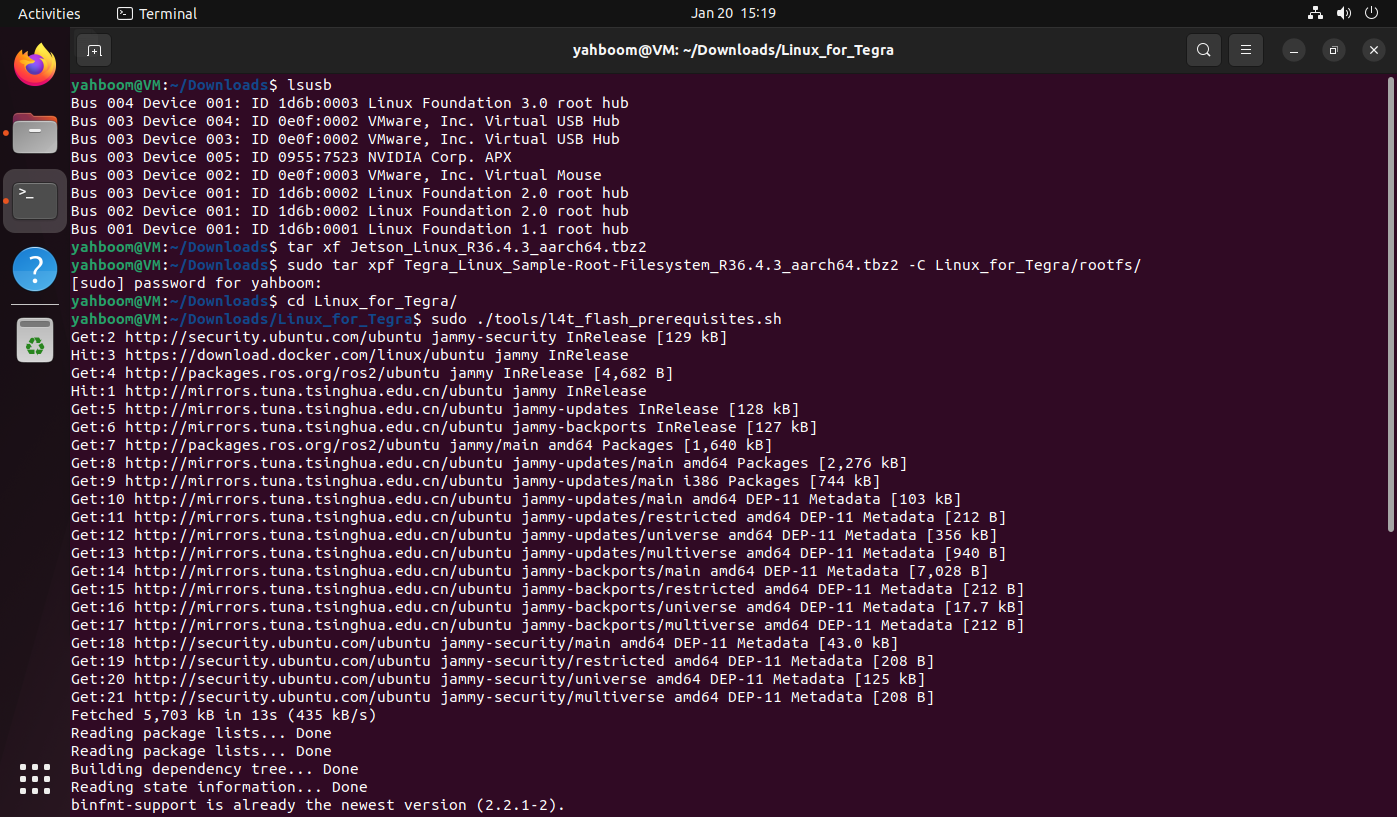

3.2. Run the script

xxxxxxxxxx
sudo ./tools/l4t_flash_prerequisites.sh

xxxxxxxxxx
sudo ./apply_binaries.sh

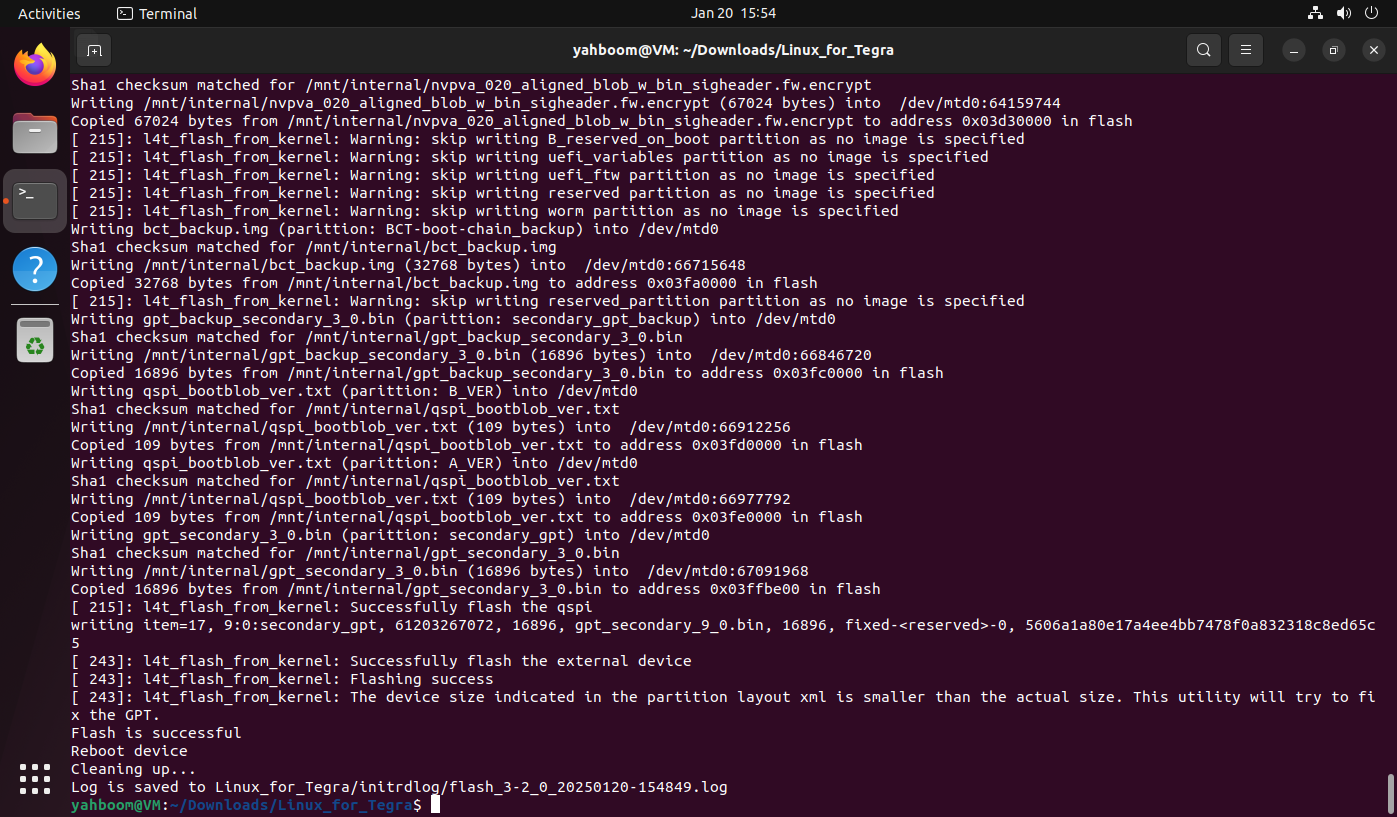

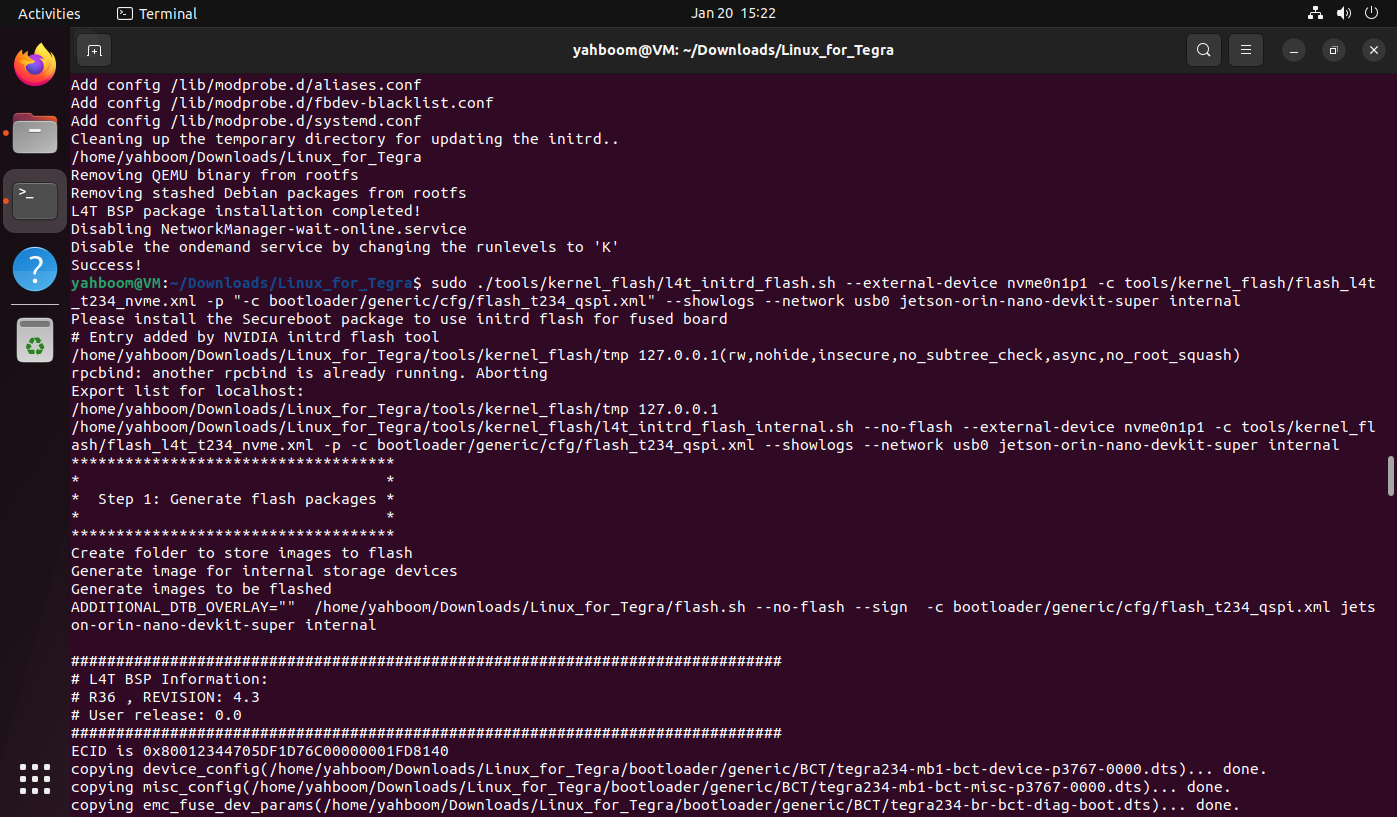

3.3. Burn the system to the solid state drive

xxxxxxxxxx
sudo ./tools/kernel_flash/l4t_initrd_flash.sh --external-device nvme0n1p1 -c tools/kernel_flash/flash_l4t_t234_nvme.xml -p "-c bootloader/generic/cfg/flash_t234_qspi.xml" --showlogs --network usb0 jetson-orin-nano-devkit-super internal

Note: Both Jetson Orin Nano and Jetson Orin NX can use the same command to burn the system to the SSD

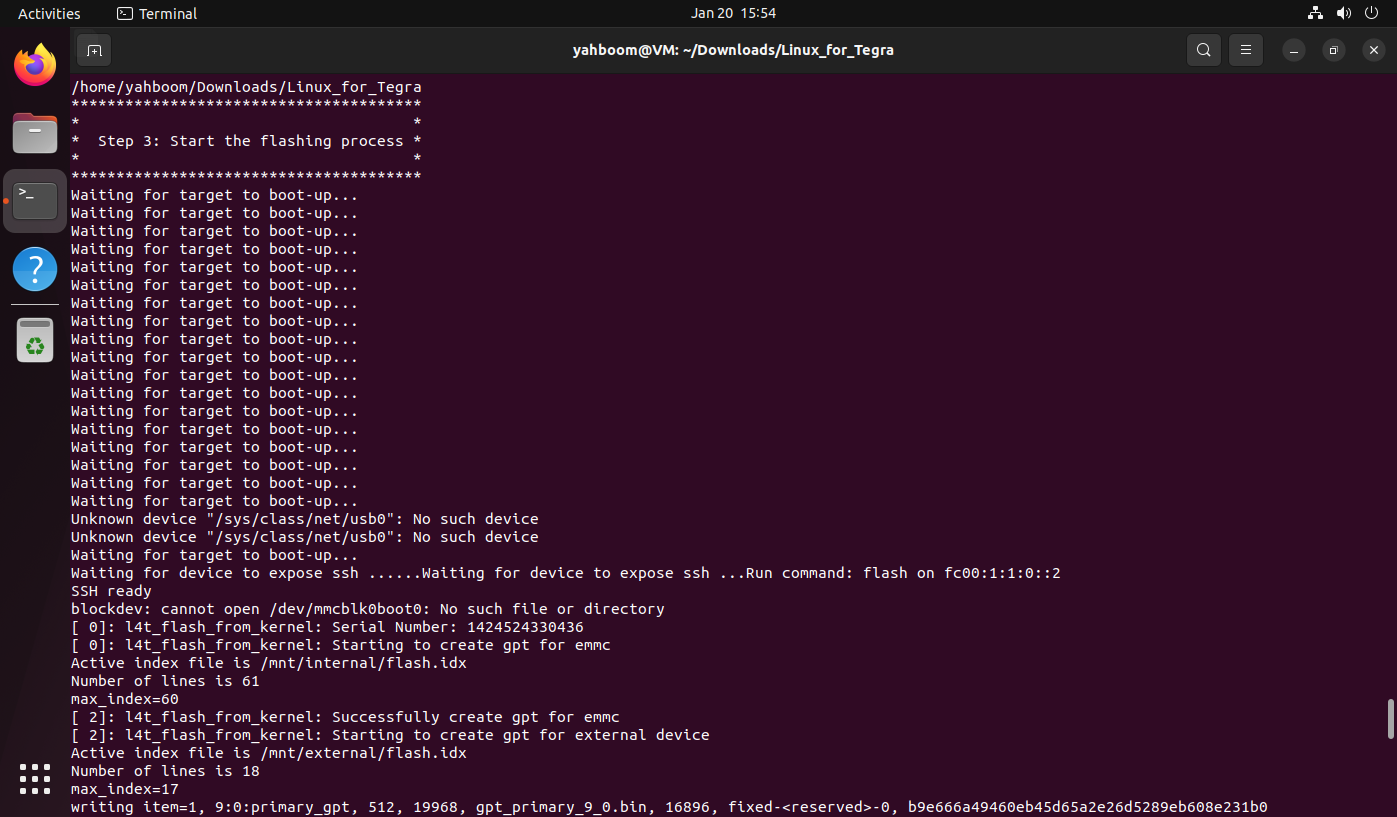

Note: During the burning process, the user needs to connect the device to the virtual machine in time, otherwise it will cause the link to time out!

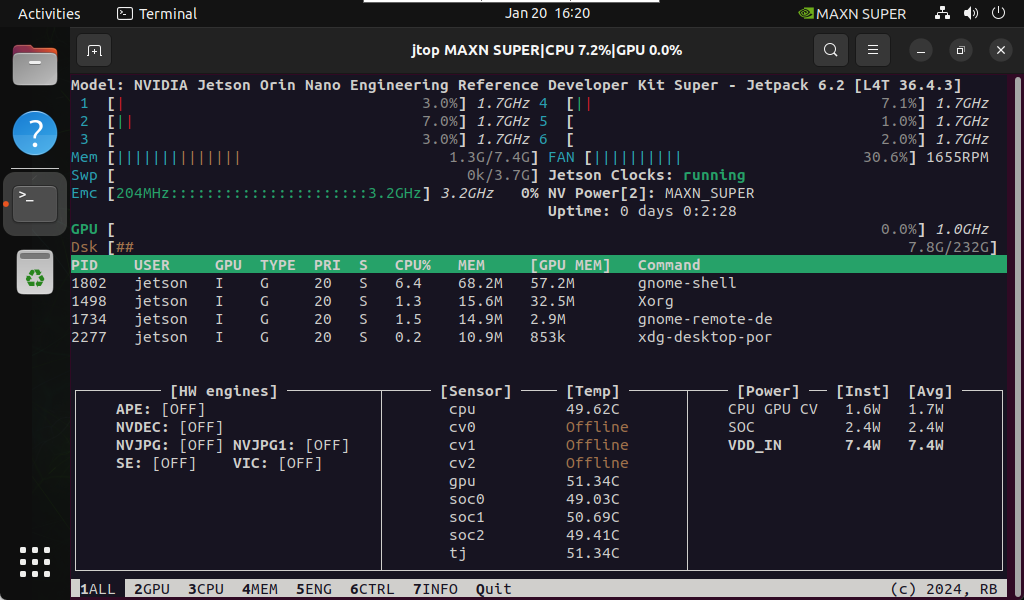

4. Start the system

After the system is successfully burned, disconnect the mainboard power supply (disconnect the DC power adapter and Type-C data cable), and then unplug the jumper cap that shorts FC REC and GND under the core board; after confirming that the above operations are completed, reconnect the DC power adapter and DP data cable (connect to the display) to start the system.

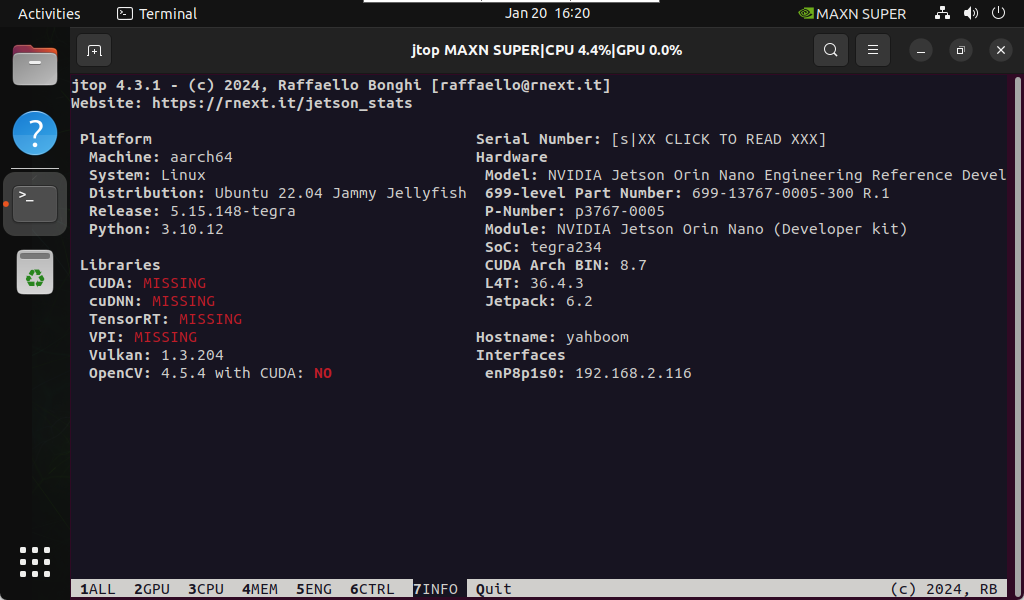

5. Component environment

The above is only to complete the burning of the pure system. If you need CUDA, TensorRT and other environments, users also need to refer to [Chapter 2 Motherboard Basics: Installing Jetson Component Environment] for operation!
