Model conversion
Model conversion1. Jetson Orin YOLO11 (benchmark)2. Enable optimal performance of the motherboard2.1. Enable MAX power mode2.2. Enable Jetson clocks3. Model conversion3.1. CLI: pt → onnx → engine3.2、Python：pt → onnx → engine4. Model predictionCLI usageFrequently asked questionsERROR: onnxslimReferences

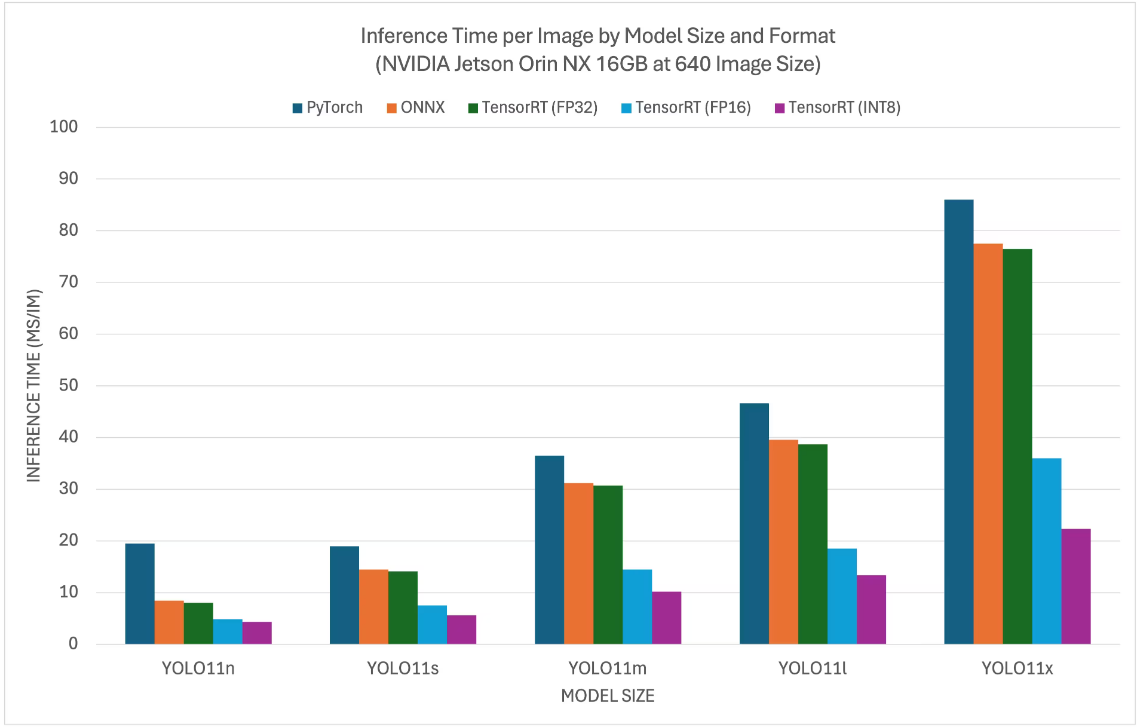

1. Jetson Orin YOLO11 (benchmark)
YOLO11 benchmark data comes from the Ultralytics team, which tests models in multiple formats (data is for reference only)
2. Enable optimal performance of the motherboard
2.1. Enable MAX power mode
Enabling MAX Power Mode on Jetson will ensure that all CPU and GPU cores are turned on:
sudo nvpmodel -m 2
2.2. Enable Jetson clocks
Enabling Jetson Clocks will ensure that all CPU and GPU cores run at maximum frequency:
xxxxxxxxxxsudo jetson_clocks
3. Model conversion
According to the test parameters of different formats provided by the Ultralytics team, we can find that the inference performance is best when using TensorRT!
xxxxxxxxxxWhen using the export mode of YOLO11 for the first time, some dependencies will be automatically installed. Just wait for it to be completed automatically!

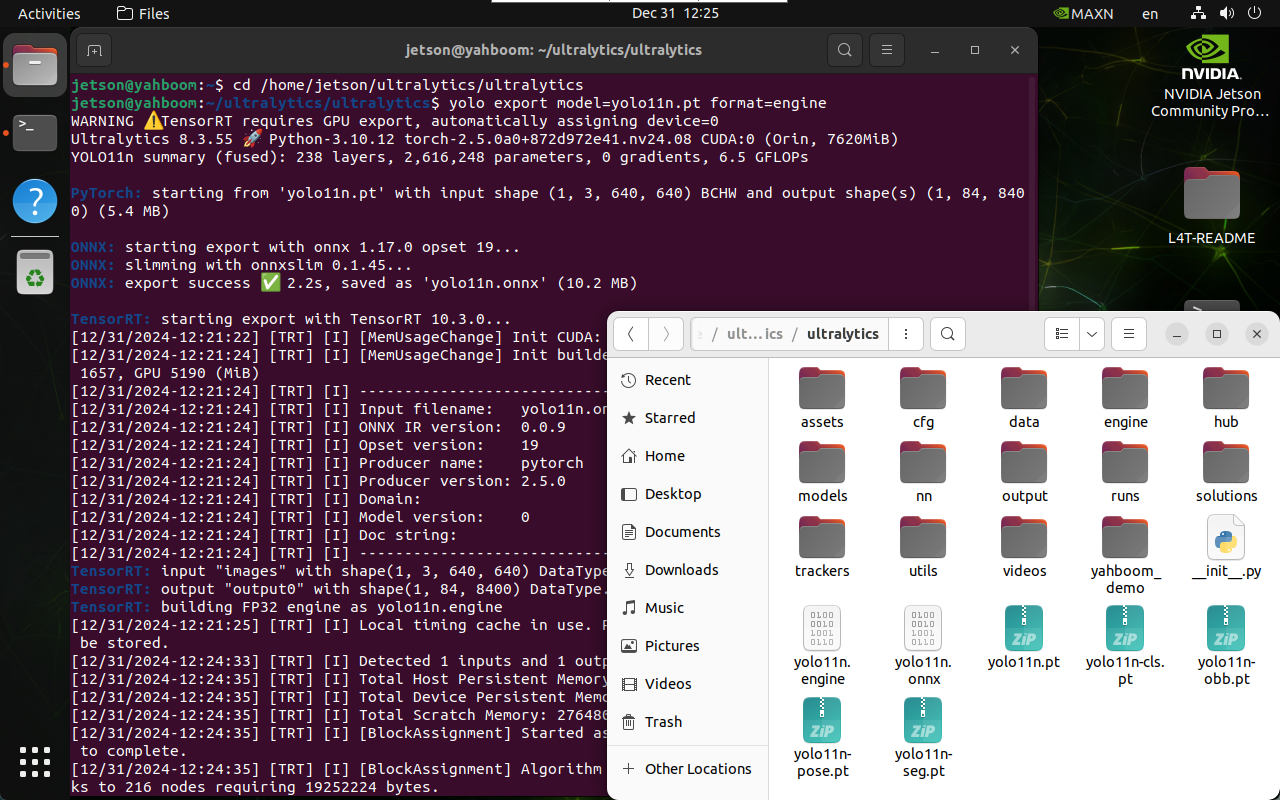

3.1. CLI: pt → onnx → engine
Convert the PyTorch format model to TensorRT: The conversion process will automatically generate an ONNX model
xxxxxxxxxxcd /home/jetson/ultralytics/ultralytics
xxxxxxxxxxyolo export model=yolo11n.pt format=engine# yolo export model=yolo11n-seg.pt format=engine# yolo export model=yolo11n-pose.pt format=engine# yolo export model=yolo11n-cls.pt format=engine# yolo export model=yolo11n-obb.pt format=engine

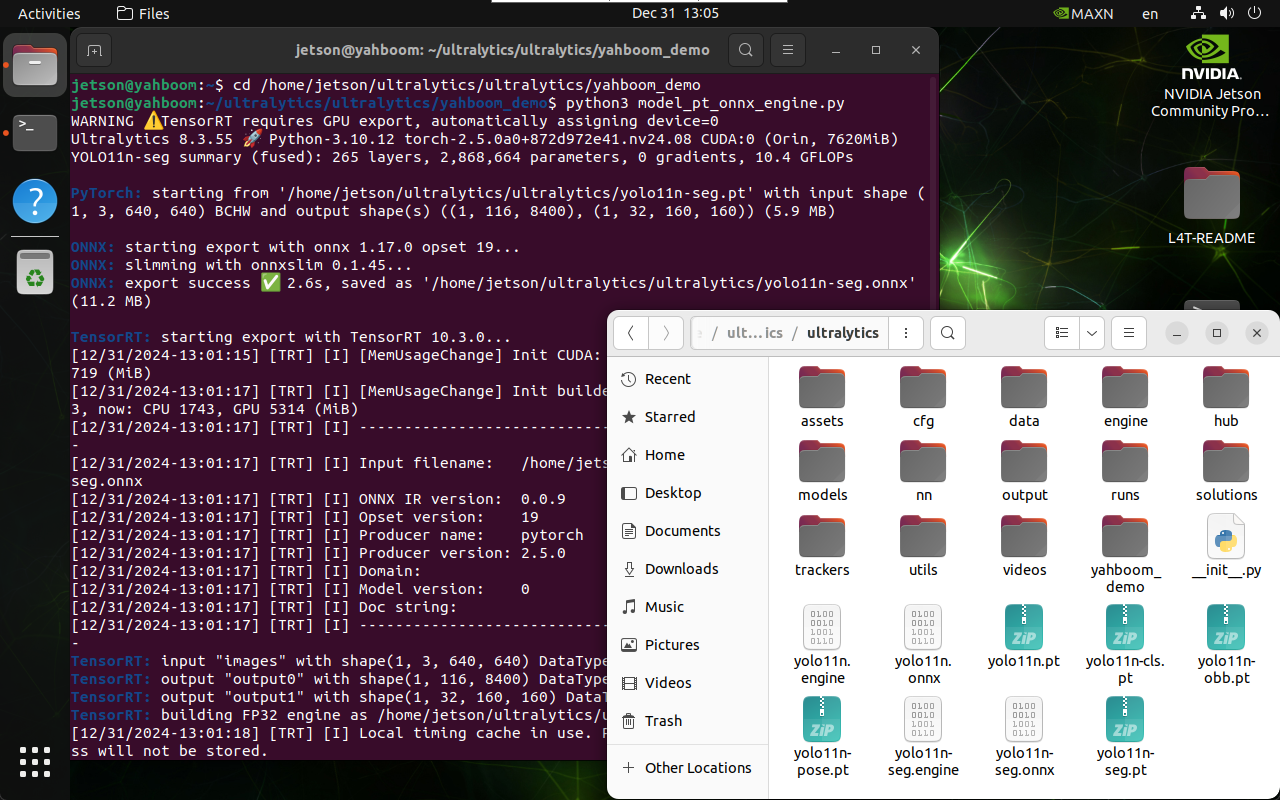

3.2、Python：pt → onnx → engine
Convert PyTorch format models to TensorRT: The conversion process will automatically generate ONNX models
xxxxxxxxxxcd /home/jetson/ultralytics/ultralytics/yahboom_demo
xxxxxxxxxxpython3 model_pt_onnx_engine.py
xfrom ultralytics import YOLO# Load a YOLO11n PyTorch model# model = YOLO("/home/jetson/ultralytics/ultralytics/yolo11n.pt")model = YOLO("/home/jetson/ultralytics/ultralytics/yolo11n-seg.pt")# model = YOLO("/home/jetson/ultralytics/ultralytics/yolo11n-pose.pt")# model = YOLO("/home/jetson/ultralytics/ultralytics/yolo11n-cls.pt")# model = YOLO("/home/jetson/ultralytics/ultralytics/yolo11n-obb.pt")# Export the model to TensorRTmodel.export(format="engine")
Note: The model file generated by the conversion is located in the converted model file location
4. Model prediction
CLI usage
CLI currently only supports calling USB cameras. CSI camera users can directly modify the previous python code to call onnx and engine models!
xxxxxxxxxxcd /home/jetson/ultralytics/ultralytics

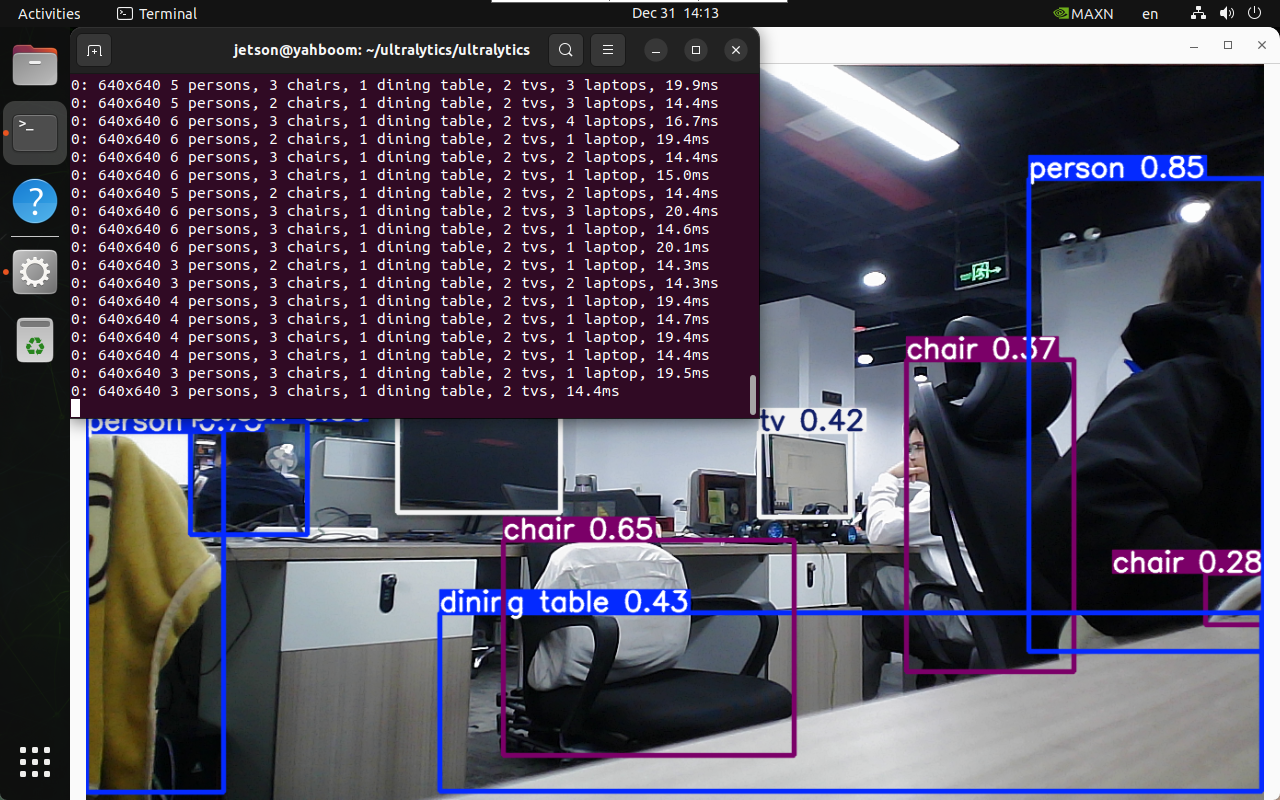

xxxxxxxxxxyolo predict model=yolo11n.onnx source=0 save=False show

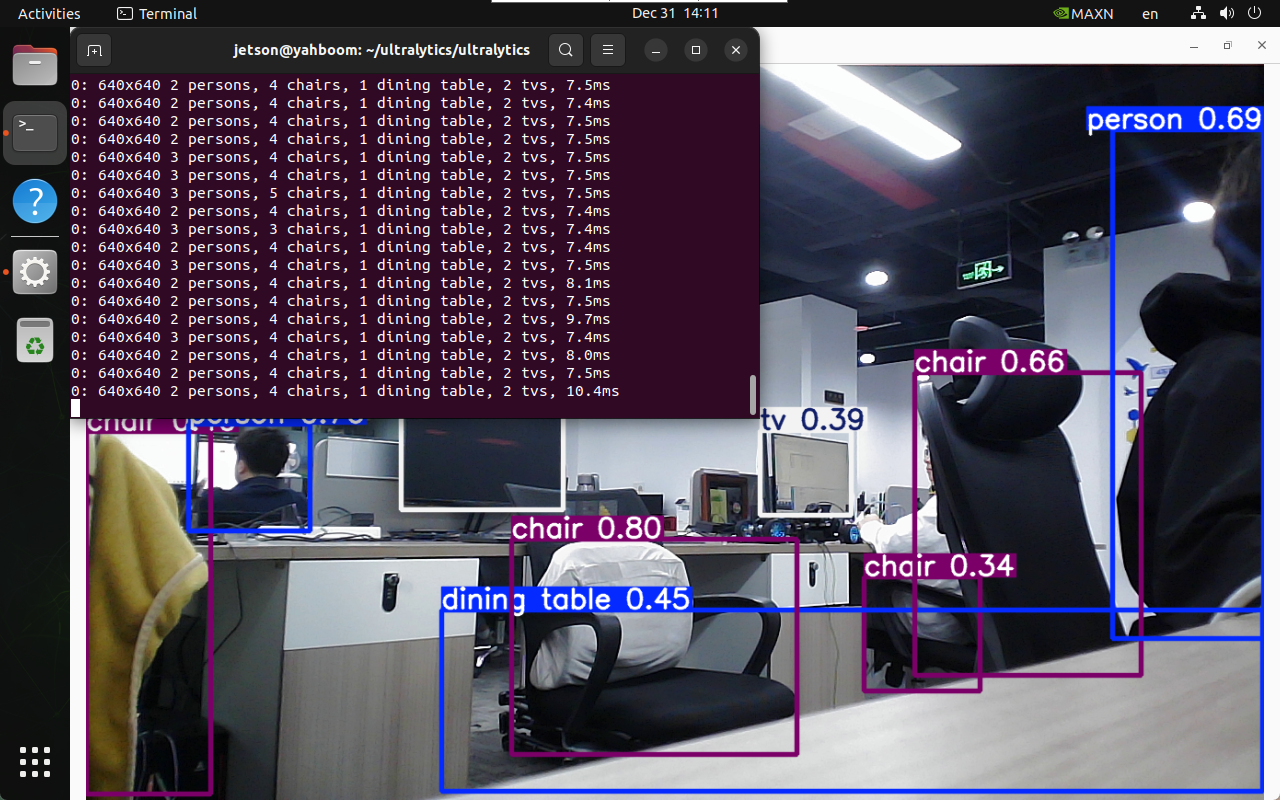

xxxxxxxxxxyolo predict model=yolo11n.engine source=0 save=False show
Frequently asked questions

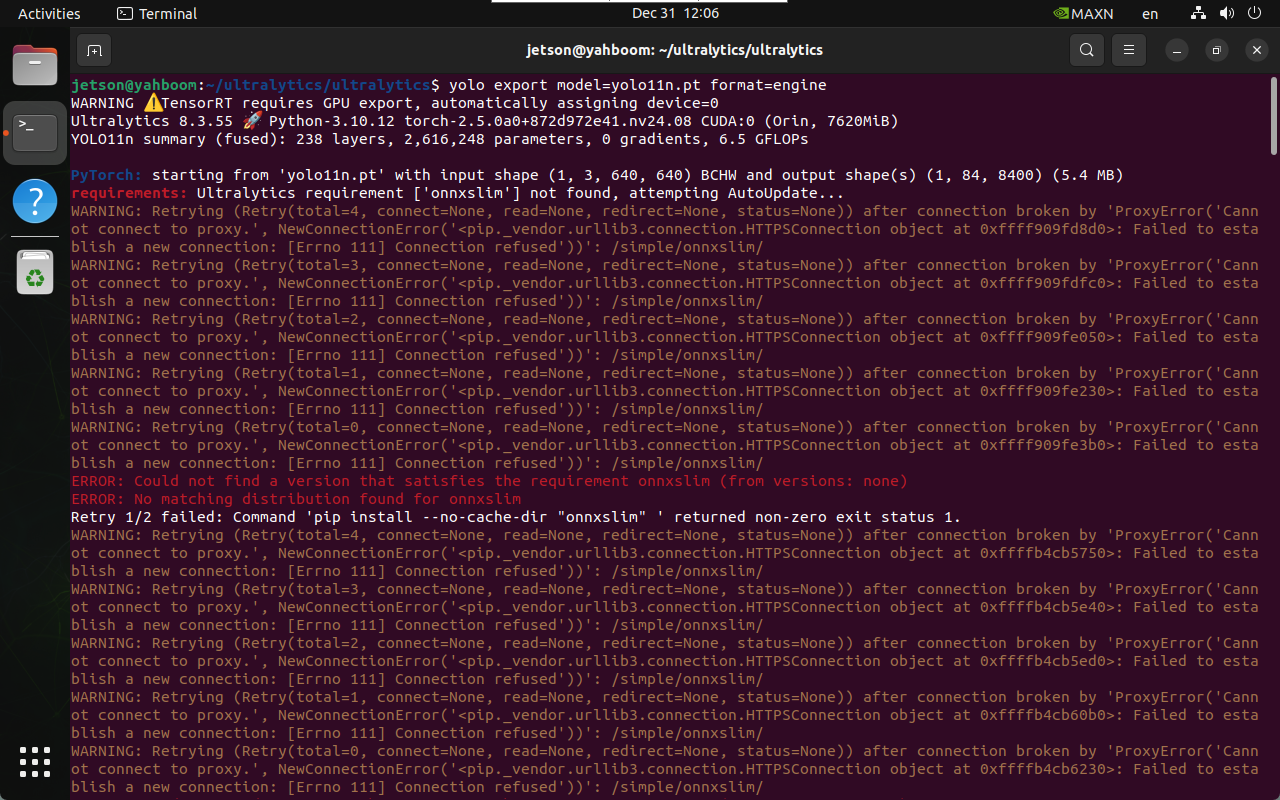

ERROR: onnxslim

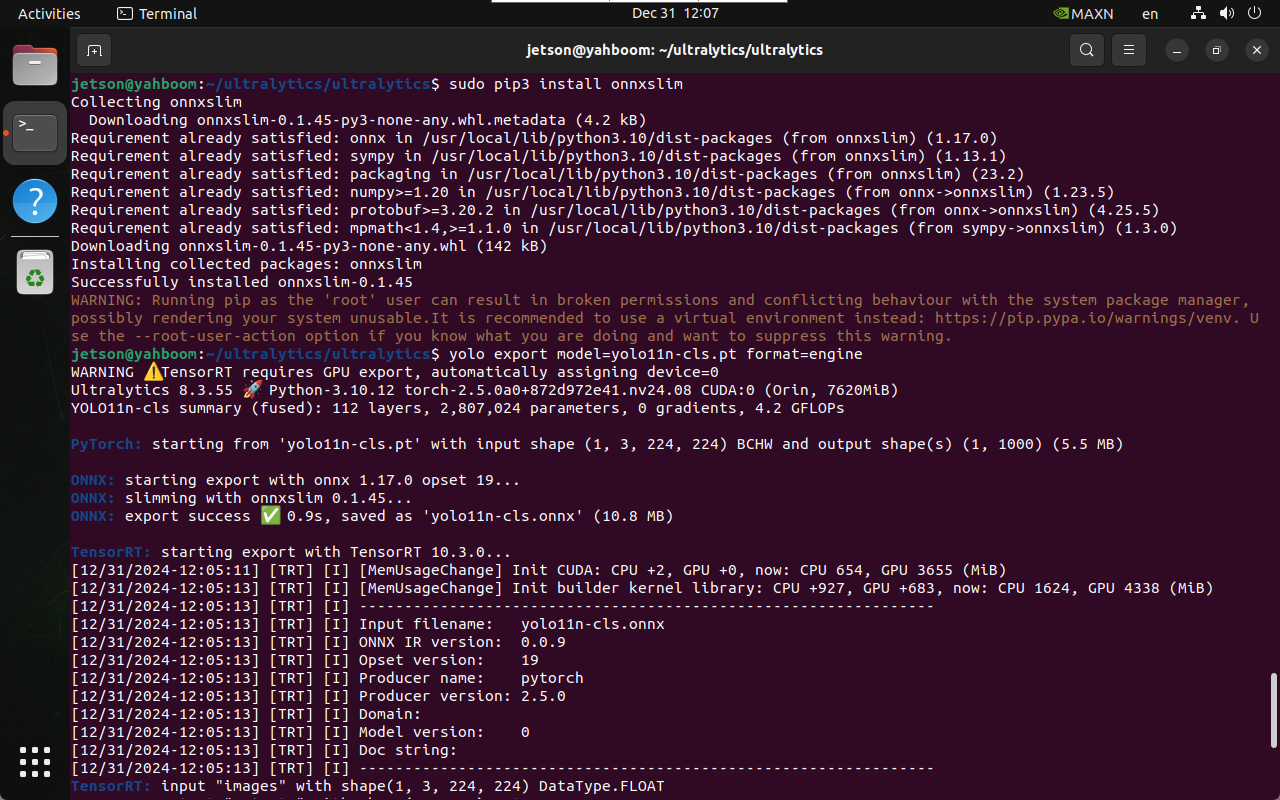

Solution: Enter the onnxslim installation command in the terminal
xxxxxxxxxxsudo pip3 install onnxslim
