Upgrade to SUPER version

This tutorial supports upgrading the Jetson Orin SUB kit to SUPER. After upgrading SUPER, only the pure system will be retained, and the tutorial motherboard case cannot be run.

Note: The startup system of the Jetson series motherboard is closely related to the Jetpack version of the motherboard. Different Jetpack versions may fail to start

The tutorial uses VMware to start the Ubuntu22.04 virtual machine as a demonstration

1. File download

Official website: https://developer.nvidia.com/embedded/jetson-linux-r3643

Note: NVIDIA Jetson Linux 36.4.3 corresponds to Jetpack 6.2

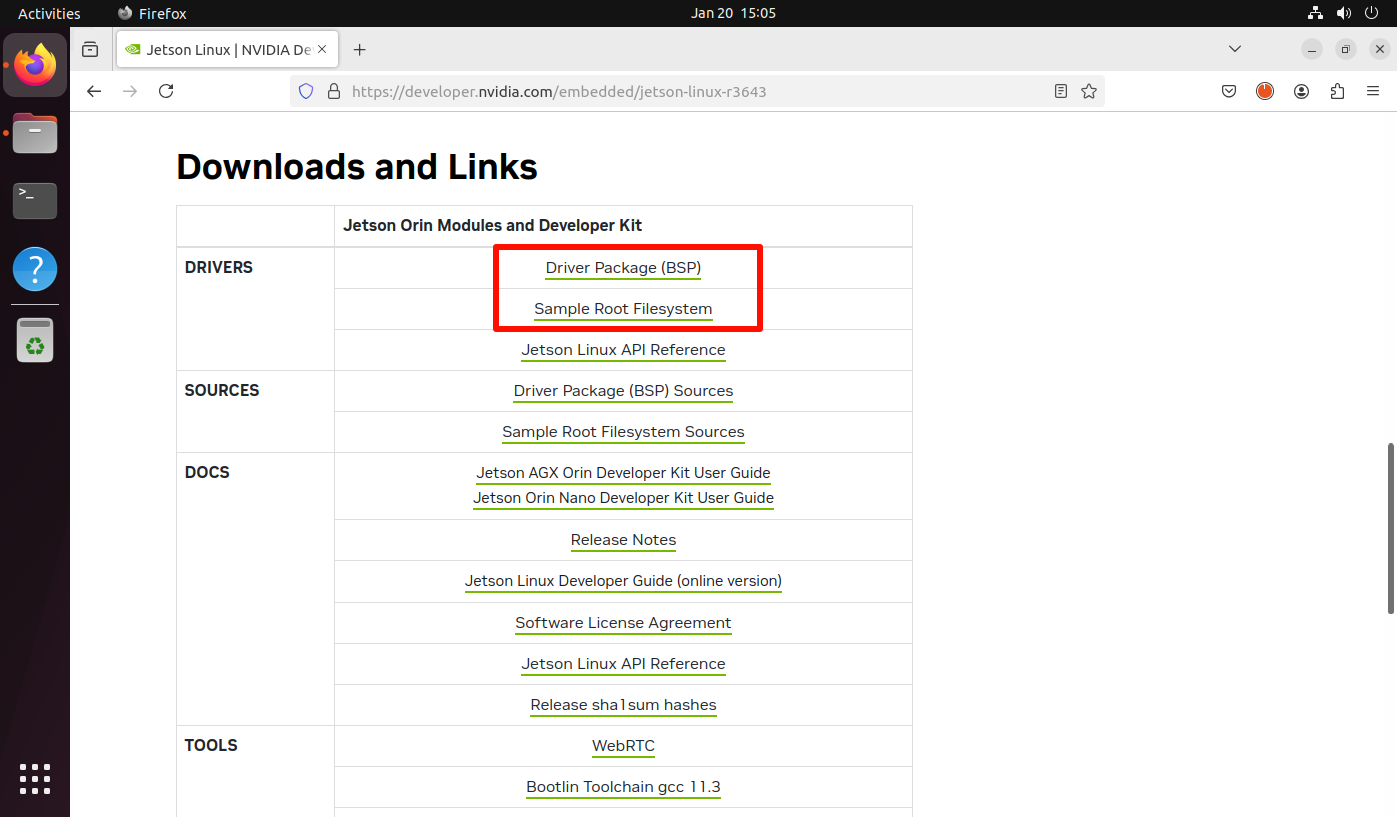

Download the compressed package files corresponding to Driver Package (BSP) and Sample Root Filesystem:

2. Flashing mode

2.1. Hardware connection

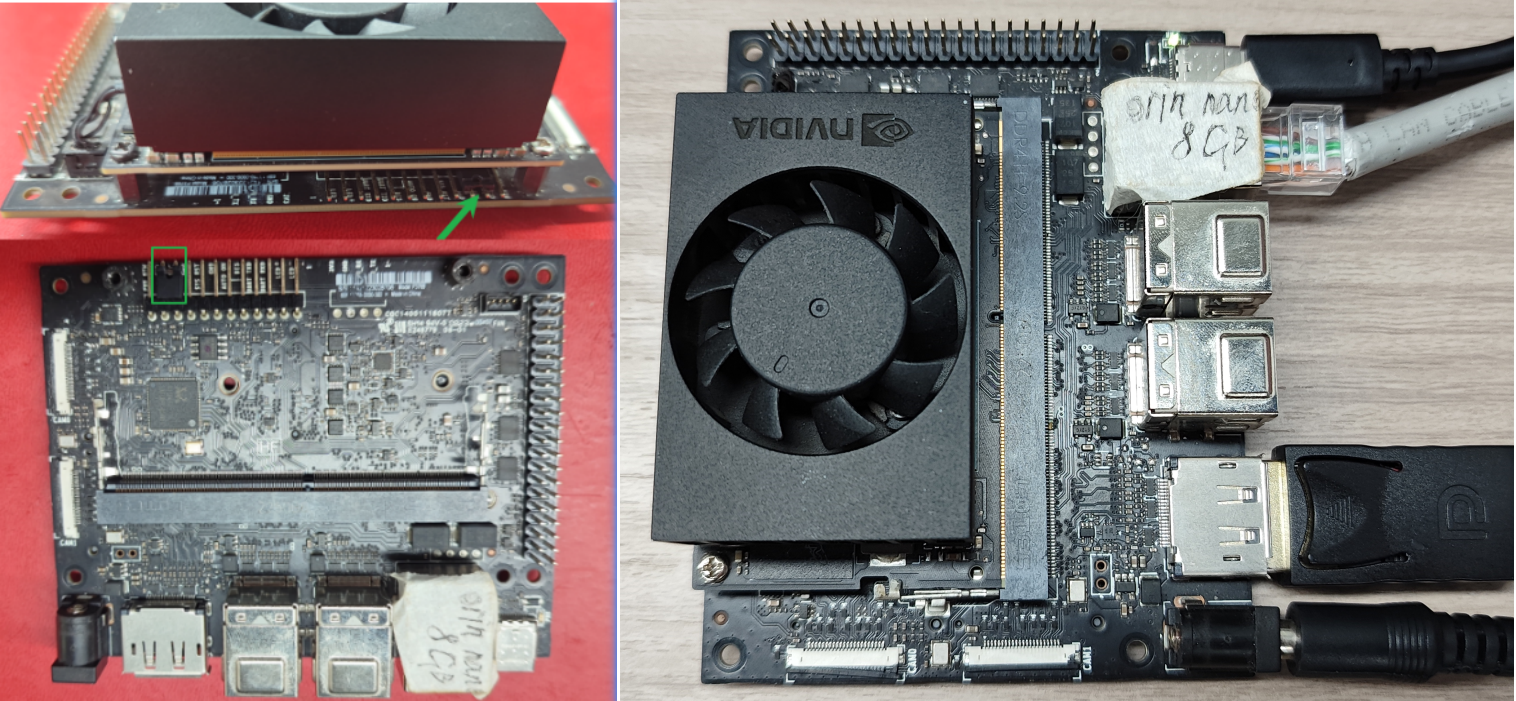

1. Use a jumper cap to short the FC under the core board REC and GND pins: You don't need to remove the core board, the picture is just for a clearer observation
2. The Jetson Orin motherboard needs to be connected to a DC power adapter, DP data cable, network cable and Type C data cable: Type C data cable connects to the computer

2.2, Software connection

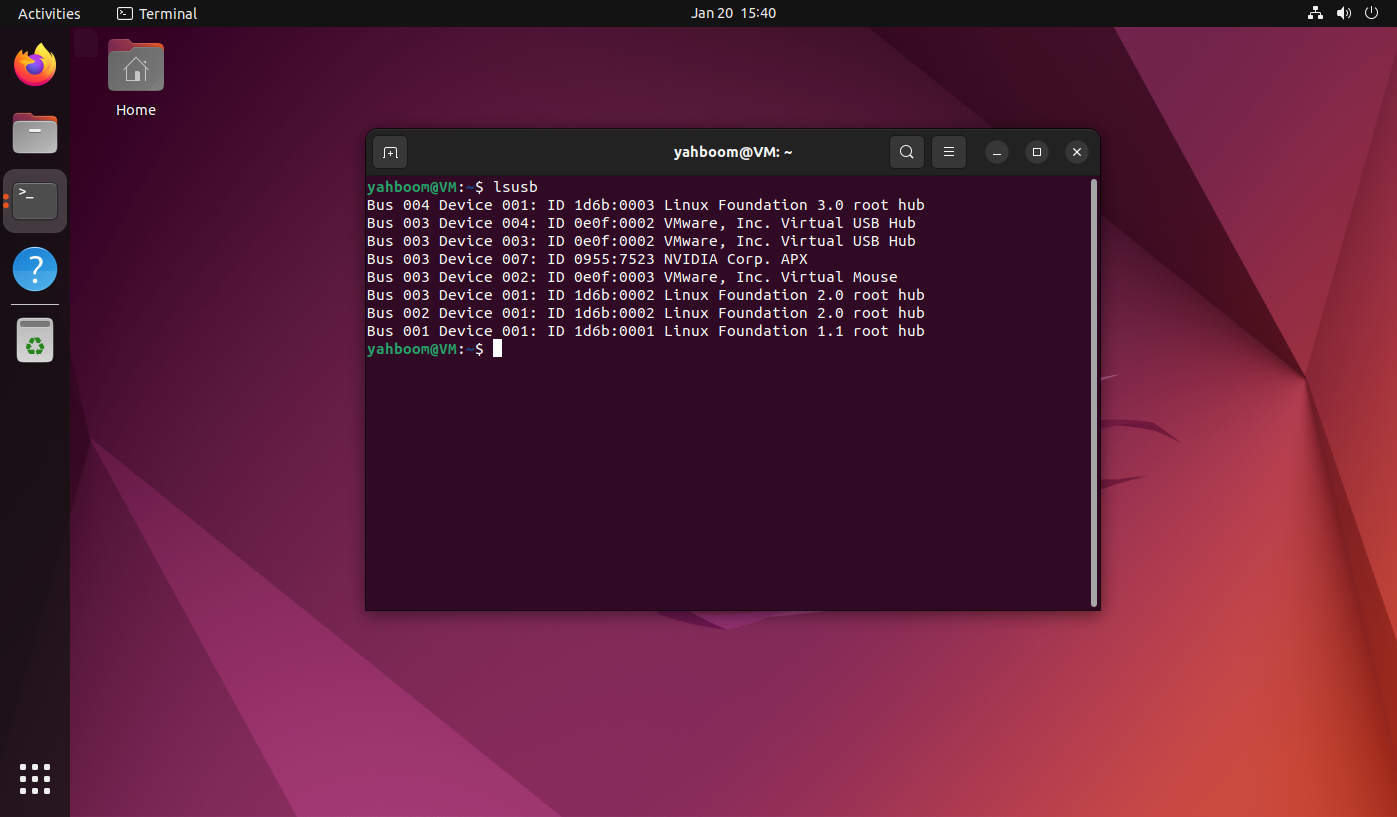

The motherboard is successfully connected to the Ubuntu system, and the lsusb command will display the NVIDIA Corp. APX information:

3, Burning system

3.1, Unzip the file

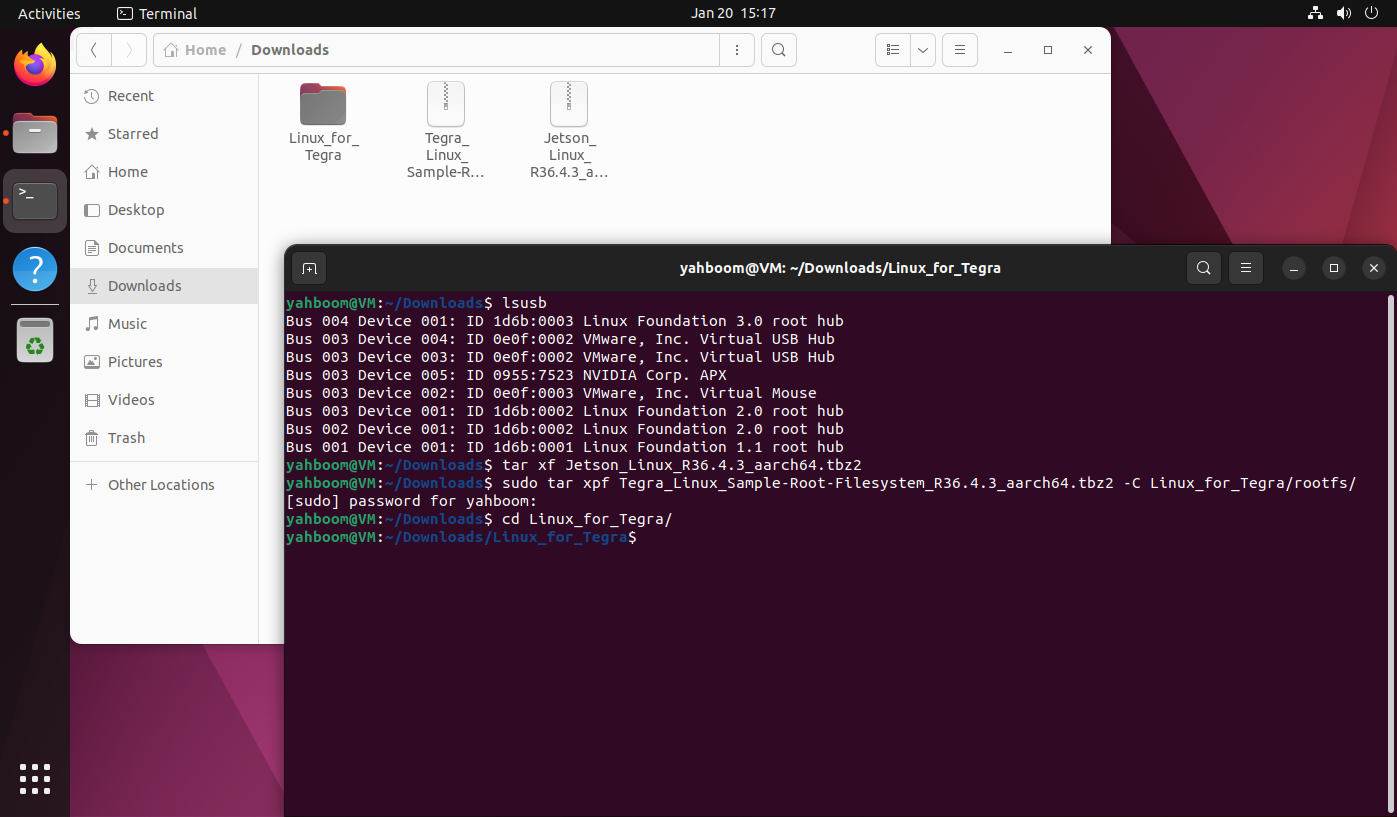

Enter the download folder and open the terminal, then unzip the file in the terminal and enter the specified folder:

xxxxxxxxxx

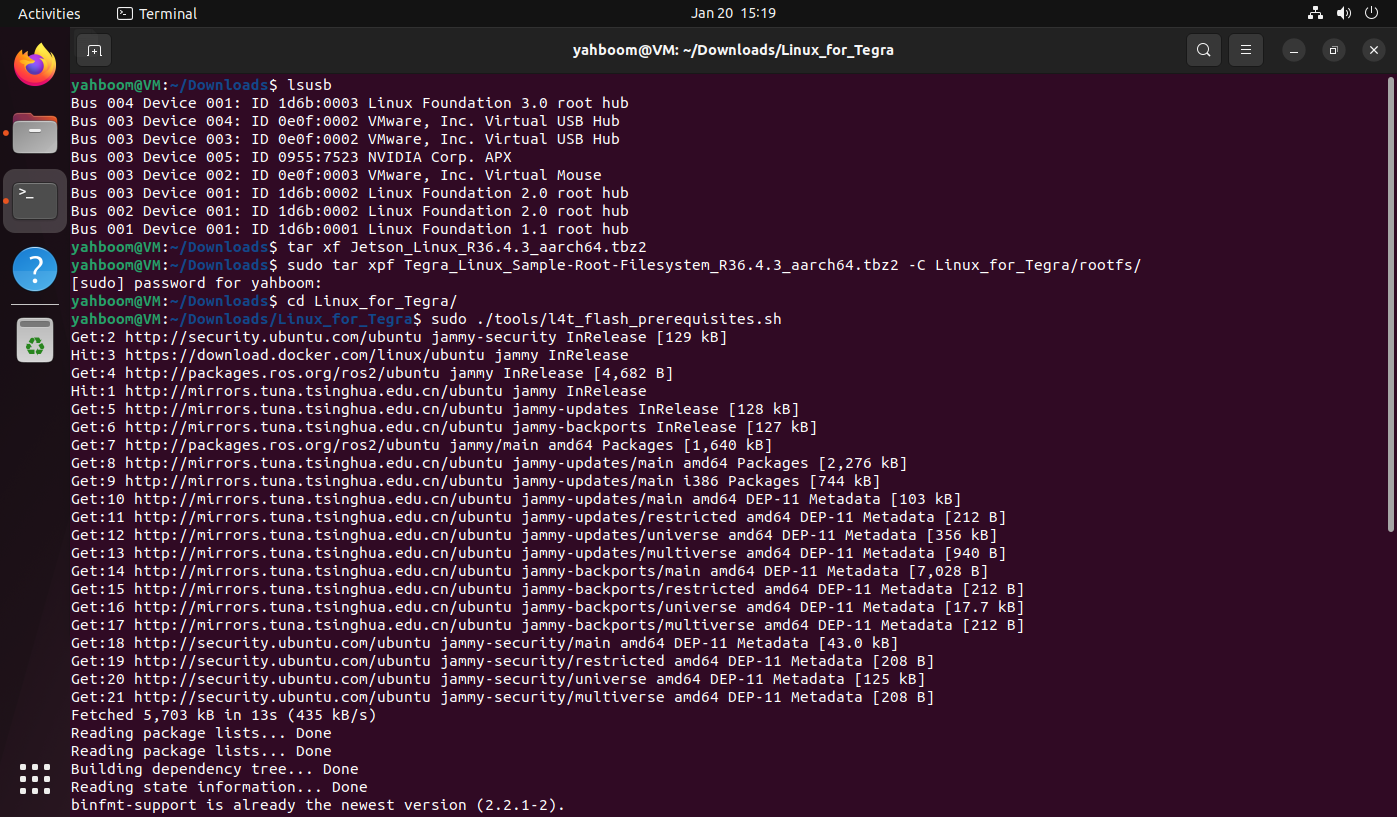

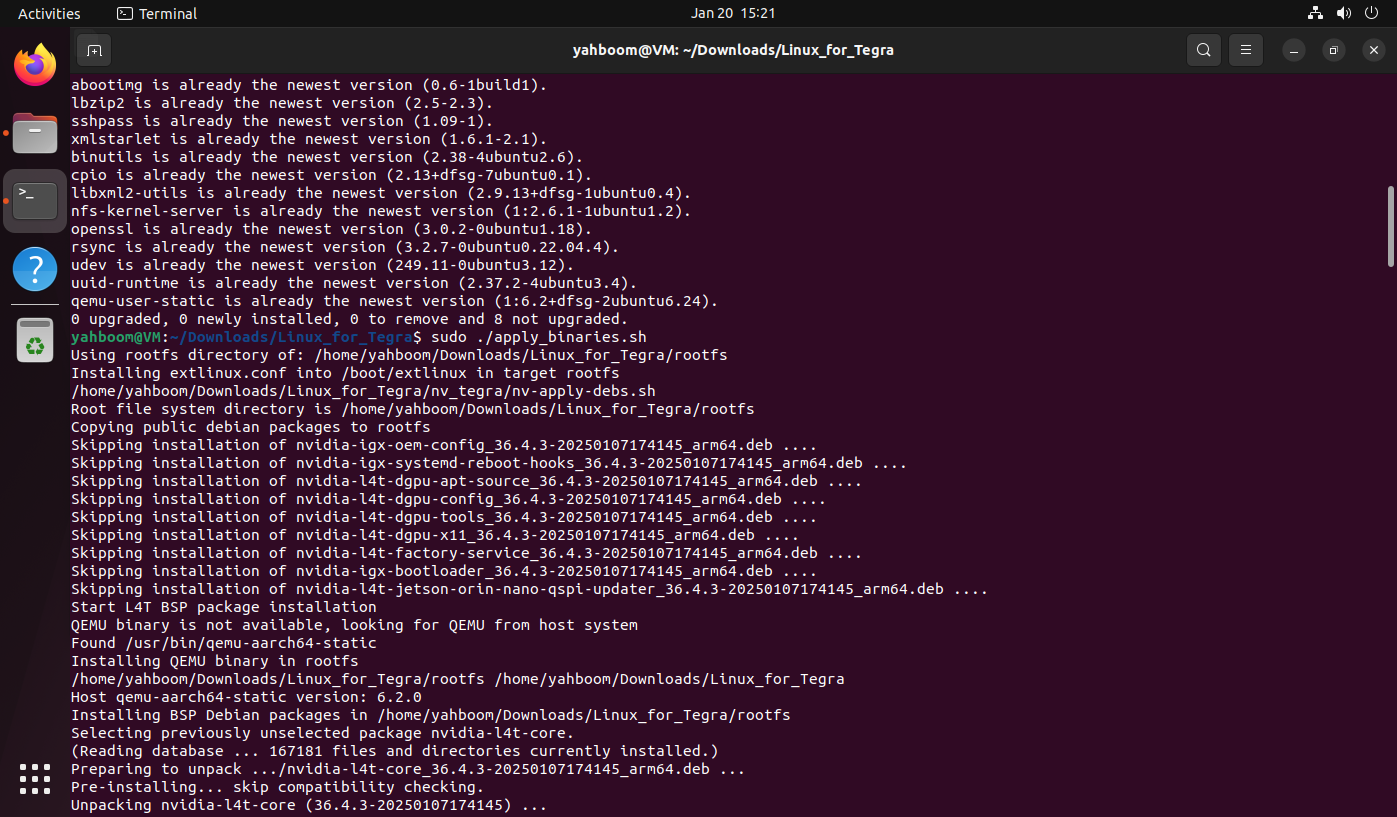

tar xf Jetson_Linux_R36.4.3_aarch64.tbz2 sudo tar xpf Tegra_Linux_Sample-Root-Filesystem_R36.4.3_aarch64.tbz2 -C Linux_for_Tegra/rootfs/ cd Linux_for_Tegra/ ``` ![image-20250120151802071](image-20250120151802071.png) ### 3.2. Run the script ``` sudo ./tools/l4t_flash_prerequisites.sh ``` ![image-20250120151922577](image-20250120151922577.png) ``` sudo ./apply_binaries.sh

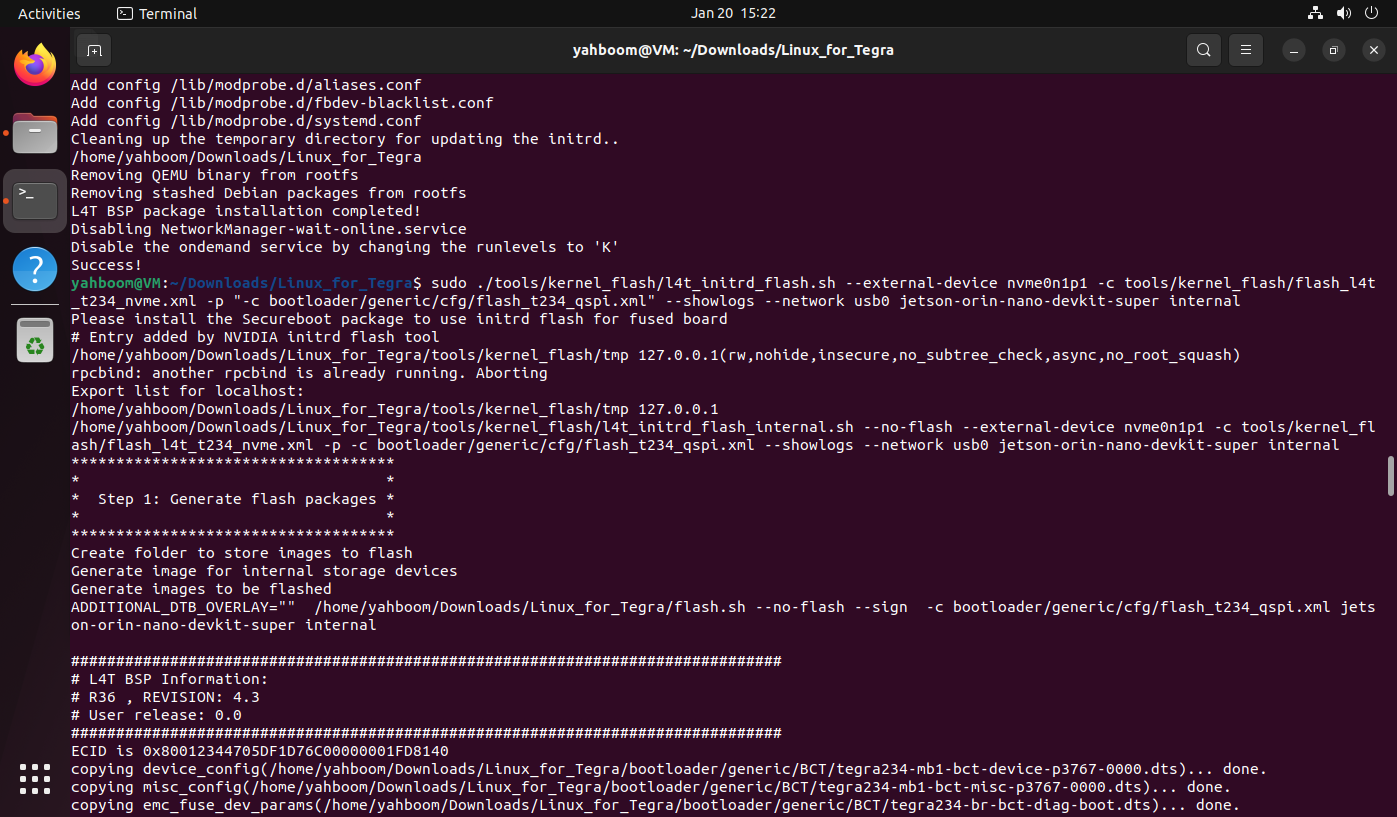

3.3, Burn the system to the SSD

xxxxxxxxxx

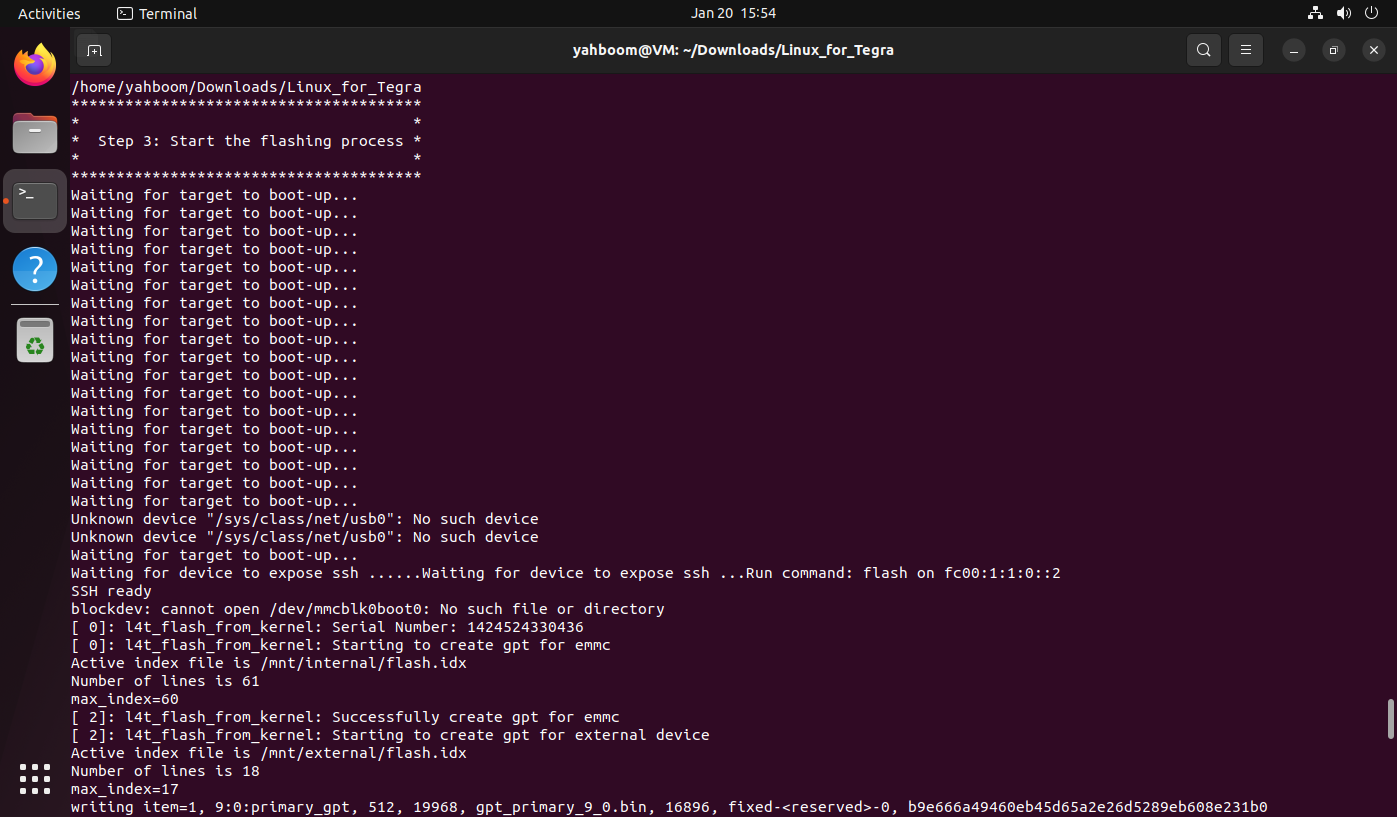

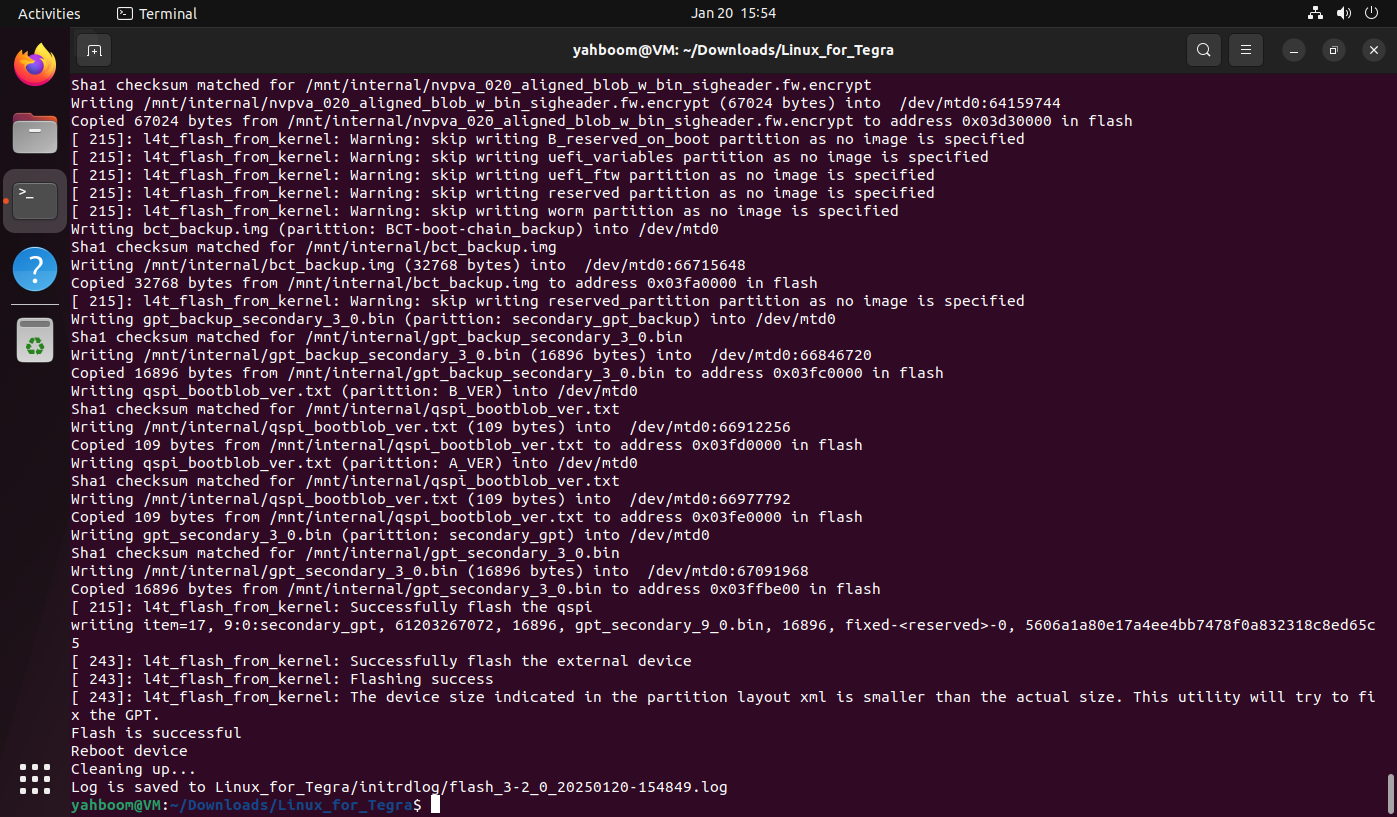

sudo ./tools/kernel_flash/l4t_initrd_flash.sh --external-device nvme0n1p1 -c tools/kernel_flash/flash_l4t_t234_nvme.xml -p "-c bootloader/generic/cfg/flash_t234_qspi.xml" --showlogs --network usb0 jetson-orin-nano-devkit-super internal

Description: jetson orin nano and jetson orin nx can use the same command to burn the system to the SSD

Note: During the burning process, the user needs to connect the device to the virtual machine in time, otherwise it will cause the link to time out!

4. Start the system

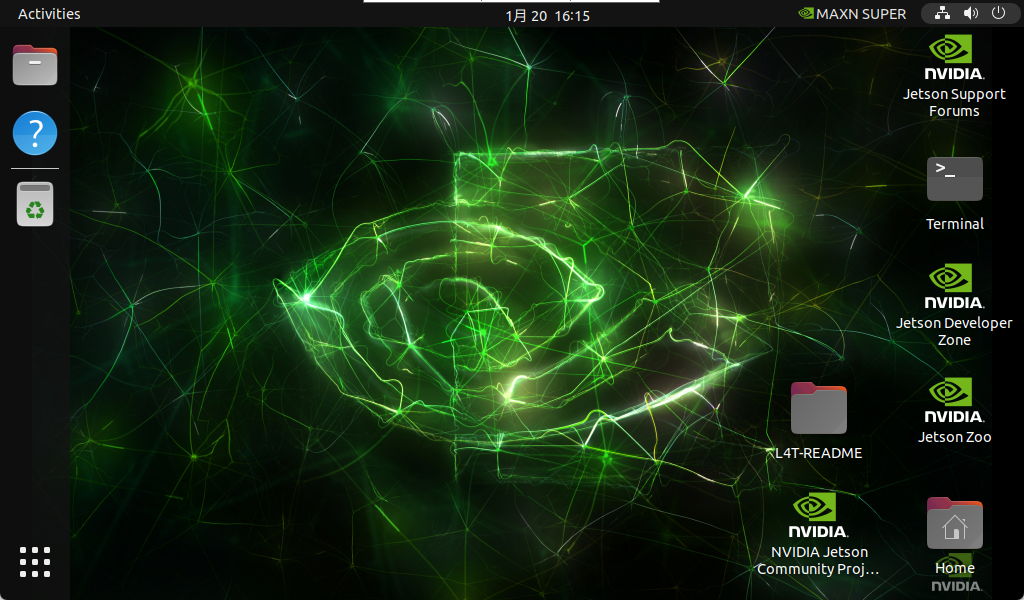

After the system is successfully burned, disconnect the mainboard power supply (disconnect the DC power adapter and Type-C data cable), and then unplug the jumper cap that shorts FC REC and GND under the core board; after confirming that the above operations are completed, reconnect the DC power adapter and DP data cable (connect the display) to start the system.

5. Component environment

The above is only to complete the burning of the pure system. If you need CUDA, TensorRT and other environments, users also need to refer to [Chapter 2 Jetson basic course: Installing Jetson environment]!
