Posture Detection

1. Introduction

MediaPipe is an open-source data stream processing machine learning application development framework developed by Google. It is a graph-based data processing pipeline used to build data sources in various forms, such as video, audio, sensor data, and any time series data. MediaPipe is cross-platform and can run on embedded platforms (such as Jetson nano), mobile devices (iOS and Android), workstations and servers, and supports mobile GPU acceleration. MediaPipe provides cross-platform, customizable ML solutions for real-time and streaming media.

The core framework of MediaPipe is implemented in C++ and provides support for languages ​​such as Java and Objective C. The main concepts of MediaPipe include packets, streams, calculators, graphs, and subgraphs.

Features of MediaPipe:

• End-to-end acceleration: built-in fast ML inference and processing can be accelerated even on commodity hardware.

• Build once, deploy anywhere: unified solution for Android, iOS, desktop/cloud, web and IoT.

• Ready-to-use solution: cutting-edge ML solution that demonstrates the full capabilities of the framework.

• Free and open source: framework and solution under Apache2.0, fully extensible and customizable.

2. MediaPipe Pose

MediaPipe Pose is an ML solution for high-fidelity body pose tracking, leveraging BlazePose research to infer 33 3D coordinates and full-body background segmentation masks from RGB video frames, which also provides power for the ML Kit pose detection API.

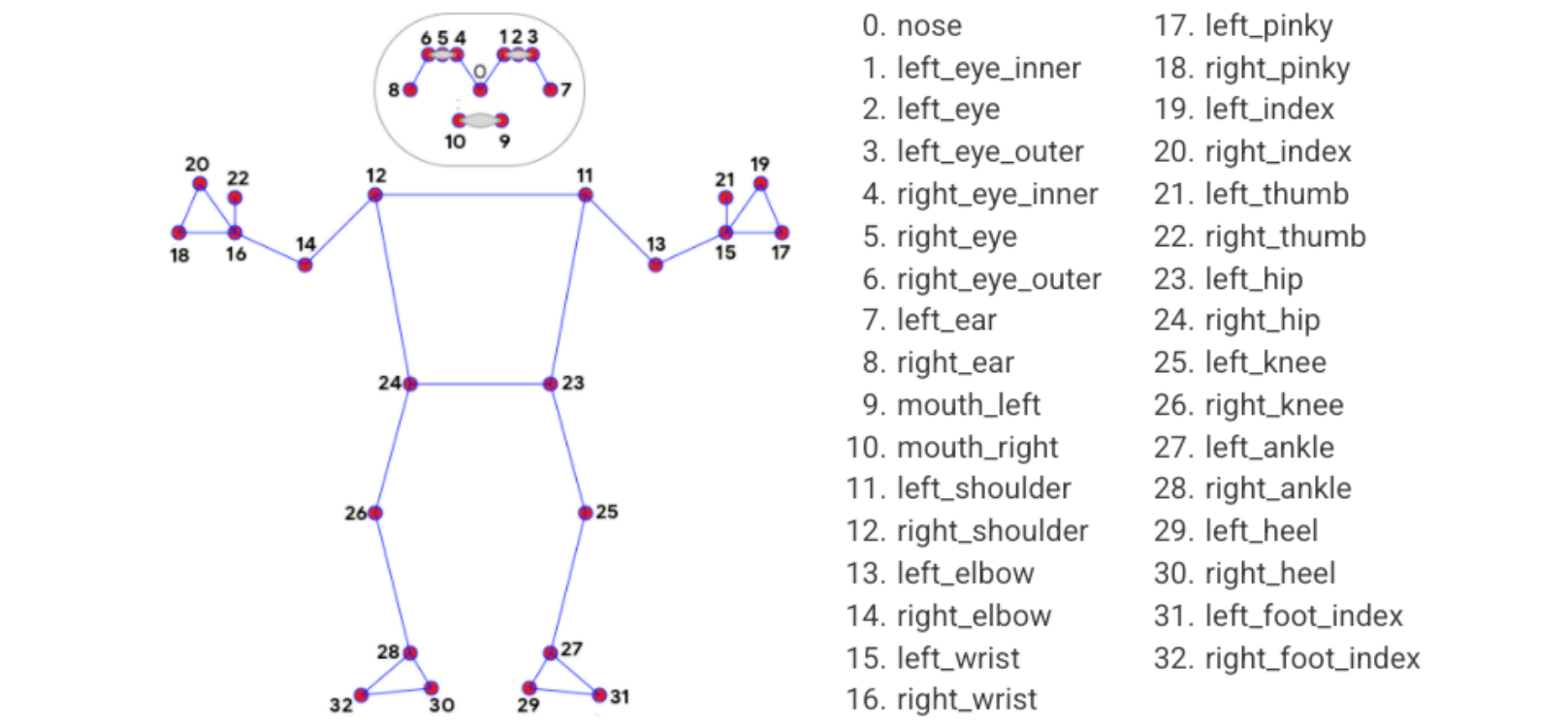

The landmark model in MediaPipe Pose predicts the location of 33 pose coordinates (see the figure below).

3. Posture detection

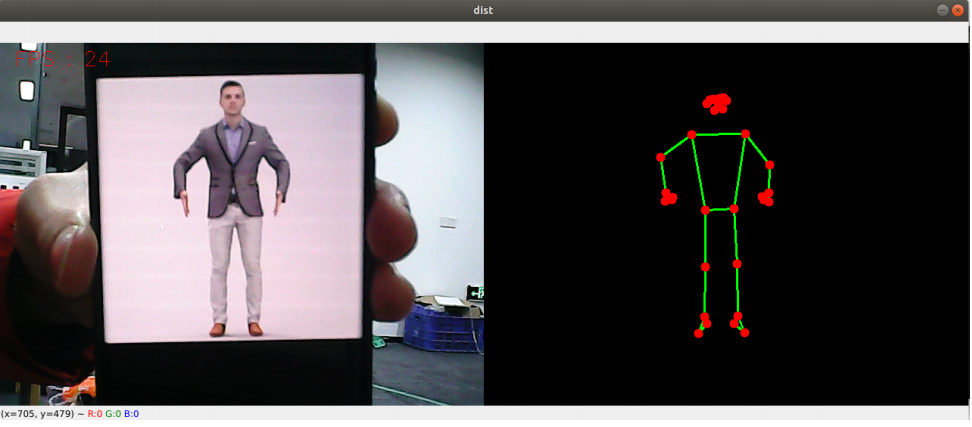

3.1. Startup

• Enter the following command to start the program

xxxxxxxxxx
ros2 run dofbot_pro_mediapipe 02_PoseDetector

3.2. Source code

Source code location: ~/dofbot_pro_ws/src/dofbot_pro_mediapipe/dofbot_pro_mediapipe/02_PoseDetector.py

xxxxxxxxxx
#!/usr/bin/env python3
# encoding: utf-8
import time
import rclpy
from rclpy.node import Node
import cv2 as cv
import numpy as np
import mediapipe as mp
from geometry_msgs.msg import Point
from dofbot_pro_msgs.msg import PointArray
from sensor_msgs.msg import Image
from cv_bridge import CvBridge

class PoseDetector(Node):
    def __init__(self):
        super().__init__('pose_detector')
        self.publisher_ = self.create_publisher(PointArray, '/mediapipe/points', 10)
        self.bridge = CvBridge()

        self.mpPose = mp.solutions.pose
        self.mpDraw = mp.solutions.drawing_utils
        self.pose = self.mpPose.Pose(
            static_image_mode=False,
            smooth_landmarks=True,
            min_detection_confidence=0.5,
            min_tracking_confidence=0.5 )

        self.lmDrawSpec = mp.solutions.drawing_utils.DrawingSpec(color=(0, 0, 255), thickness=-1, circle_radius=6)
        self.drawSpec = mp.solutions.drawing_utils.DrawingSpec(color=(0, 255, 0), thickness=2, circle_radius=2)

        self.capture = cv.VideoCapture(0, cv.CAP_V4L2)
        self.capture.set(6, cv.VideoWriter.fourcc('M', 'J', 'P', 'G'))
        self.capture.set(cv.CAP_PROP_FRAME_WIDTH, 640)
        self.capture.set(cv.CAP_PROP_FRAME_HEIGHT, 480)

        if not self.capture.isOpened():
            self.get_logger().error("Failed to open the camera")
            return

        self.get_logger().info(f"Camera FPS: {self.capture.get(cv.CAP_PROP_FPS)}")
        self.pTime = time.time()

        self.timer = self.create_timer(0.03, self.process_frame)

    def process_frame(self):
        ret, frame = self.capture.read()
        if not ret:
            self.get_logger().error("Failed to read frame")
            return

        frame, img = self.pubPosePoint(frame, draw=True)

        cTime = time.time()
        fps = 1 / (cTime - self.pTime)
        self.pTime = cTime
        text = "FPS : " + str(int(fps))
        cv.putText(frame, text, (20, 30), cv.FONT_HERSHEY_SIMPLEX, 0.9, (0, 0, 255), 1)

        combined_frame = self.frame_combine(frame, img)
        cv.imshow('PoseDetector', combined_frame)

        if cv.waitKey(1) & 0xFF == ord('q'):
            self.get_logger().info("Exiting program")
            self.capture.release()
            cv.destroyAllWindows()
            self.destroy_node()
            rclpy.shutdown()
            exit(0)

    def pubPosePoint(self, frame, draw=True):
        pointArray = PointArray()
        img = np.zeros(frame.shape, np.uint8)
        img_RGB = cv.cvtColor(frame, cv.COLOR_BGR2RGB)
        self.results = self.pose.process(img_RGB)

        if self.results.pose_landmarks:
            if draw:
                self.mpDraw.draw_landmarks(frame, self.results.pose_landmarks, self.mpPose.POSE_CONNECTIONS, self.lmDrawSpec, self.drawSpec)
                self.mpDraw.draw_landmarks(img, self.results.pose_landmarks, self.mpPose.POSE_CONNECTIONS, self.lmDrawSpec, self.drawSpec)
            for id, lm in enumerate(self.results.pose_landmarks.landmark):
                point = Point()
                point.x, point.y, point.z = lm.x, lm.y, lm.z
                pointArray.points.append(point)

        self.publisher_.publish(pointArray)
        return frame, img

    def frame_combine(self, frame, src):
        if len(frame.shape) == 3:
            frameH, frameW = frame.shape[:2]
            srcH, srcW = src.shape[:2]
            dst = np.zeros((max(frameH, srcH), frameW + srcW, 3), np.uint8)
            dst[:, :frameW] = frame[:, :]
            dst[:, frameW:] = src[:, :]
        else:
            src = cv.cvtColor(src, cv.COLOR_BGR2GRAY)
            frameH, frameW = frame.shape[:2]
            imgH, imgW = src.shape[:2]
            dst = np.zeros((frameH, frameW + imgW), np.uint8)
            dst[:, :frameW] = frame[:, :]
            dst[:, frameW:] = src[:, :]
        return dst

def main(args=None):
    rclpy.init(args=args)
    node = PoseDetector()
    try:
        rclpy.spin(node)
    except KeyboardInterrupt:
        pass
    finally:
        node.capture.release()
        cv.destroyAllWindows()
        node.destroy_node()
        rclpy.shutdown()

if __name__ == '__main__':
    main()
