Text and picture drawing

Function call: cv2.putText(img, str, origin, font, size, color, thickness)

The parameters are: image, added text, upper left corner coordinates (integer), font, font size, color, font thickness.

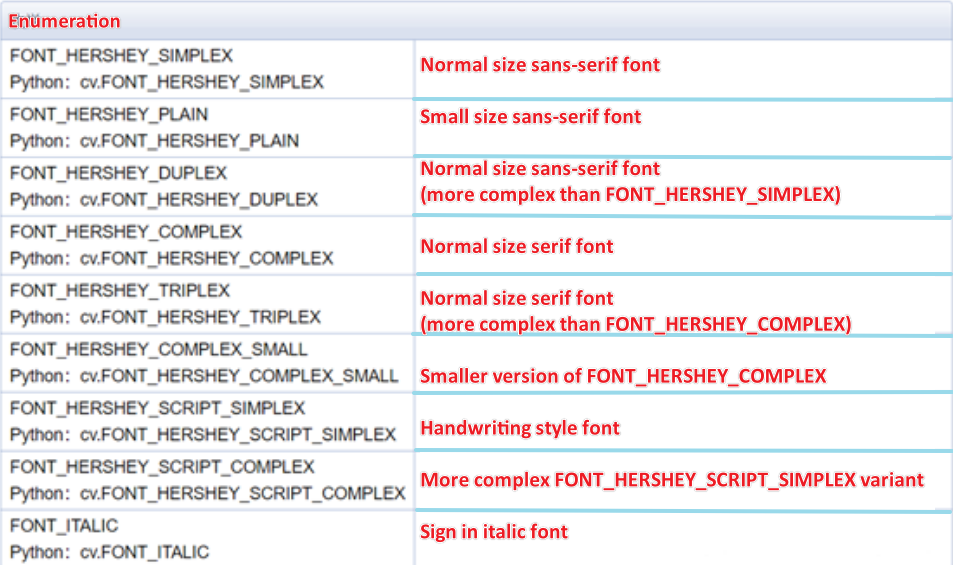

The font types are as follows.

Code path:

x
~/dofbot_pro/dofbot_opencv/scripts/3.draw_picture/06_draw_world.ipynb

​x
import cv2
import   numpy as np

img = cv2.imread('yahboom.jpg',1)

font =   cv2.FONT_HERSHEY_SIMPLEX

cv2.rectangle(img,(200,100),(500,400),(0,255,0),3)

# 1 dst 2 text content 3 coordinates 4 5 font size 6 color 7 thickness 8 line type

cv2.putText(img,'Yahboom',(250,50),font,1,(200,200,0),2,cv2.LINE_AA)

#   cv2.imshow('src',img)

#   cv2.waitKey(0)

xxxxxxxxxx

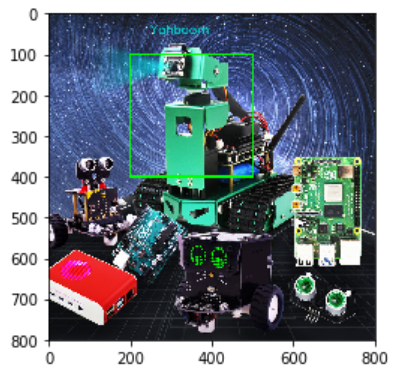

import   matplotlib.pyplot as plt

img =   cv2.cvtColor(img, cv2.COLOR_BGR2RGB)

plt.imshow(img)

plt.show()
