MoveIt2 configuration

MoveIt2 is an advanced software framework for robot motion simulation, planning and control.

1. Environment setup

Motherboard: Jetson Orin Nano/Nx

ROS2: Humble

1.1. Install MoveIt2

xxxxxxxxxx
sudo apt install ros-humble-moveit*

The Jetson Orin series motherboard can run MoveIt2 related cases directly on the motherboard, and the overall fluency is acceptable!

1.2. Create a folder

Create the configuration file automatically generated by MoveIt2:

xxxxxxxxxx
mkdir ~/dofbot_pro_ws/src/dofbot_pro_moveit

2. MoveIt2 configuration

MoveIt Setup Assistant is a graphical tool to simplify and speed up the creation and configuration of MoveIt2 configuration packages.

Through this tool, users can easily generate configuration files for robot motion planning and control without manually editing complex configuration files

2.1. Start the Assistant

Start MoveIt Setup Assistant:

xxxxxxxxxx
ros2 launch moveit_setup_assistant setup_assistant.launch.py

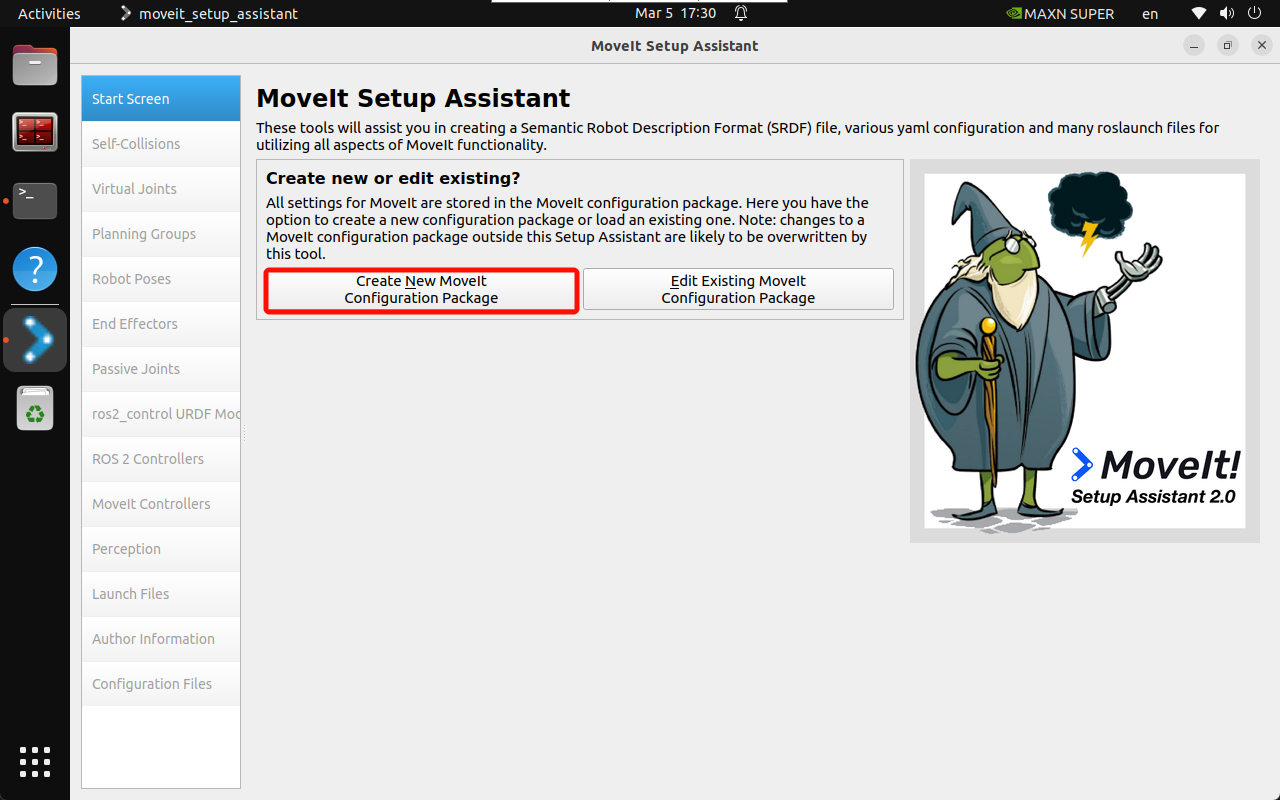

For the first time, you can choose to create a new MoveIt configuration package. For simple modifications later, you can choose to compile the existing MoveIt package:

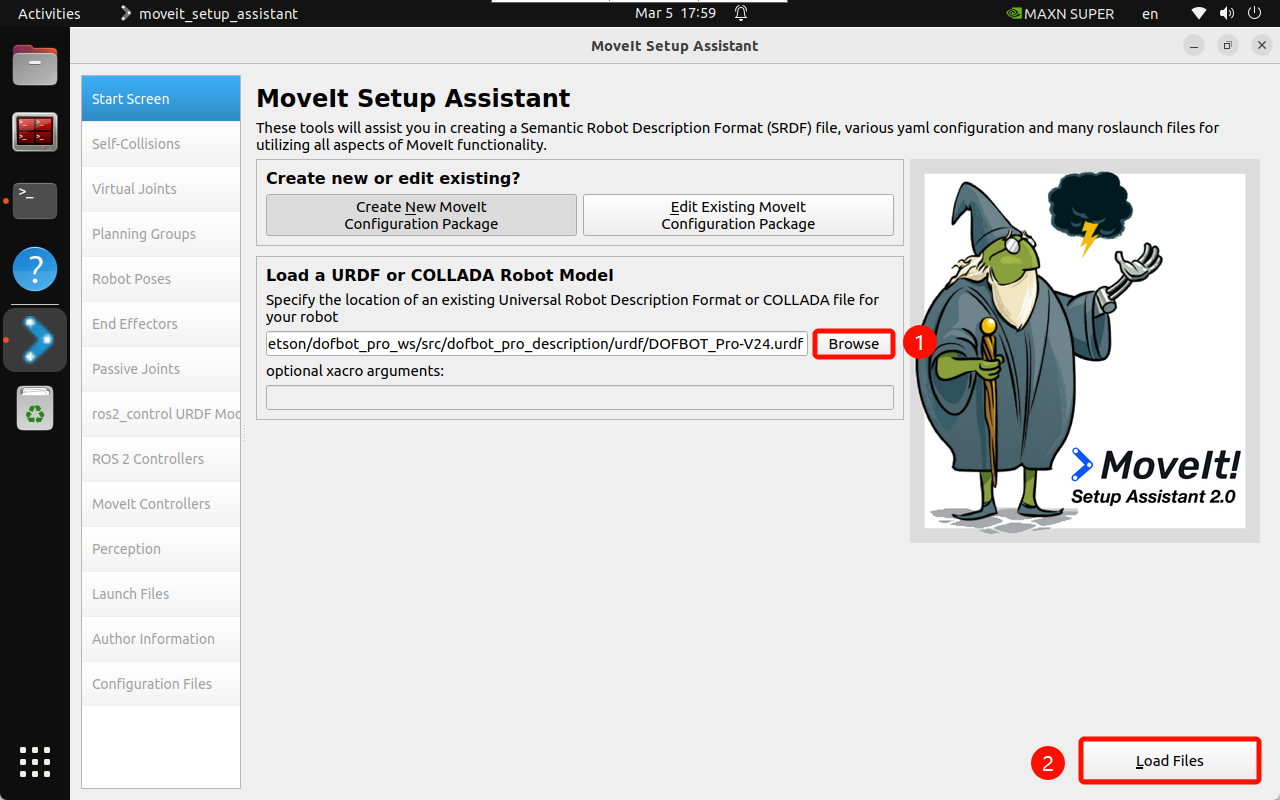

To create a new MoveIt configuration package, you need to import the robot's URDF model: Simply importing the URDF model file into the MoveIt Assistant will report an error, and you need to use the compiled package (dofbot_pro_description) URDF file path

x
/home/jetson/dofbot_pro_ws/src/dofbot_pro_description/urdf/DOFBOT_Pro-V24.urdf

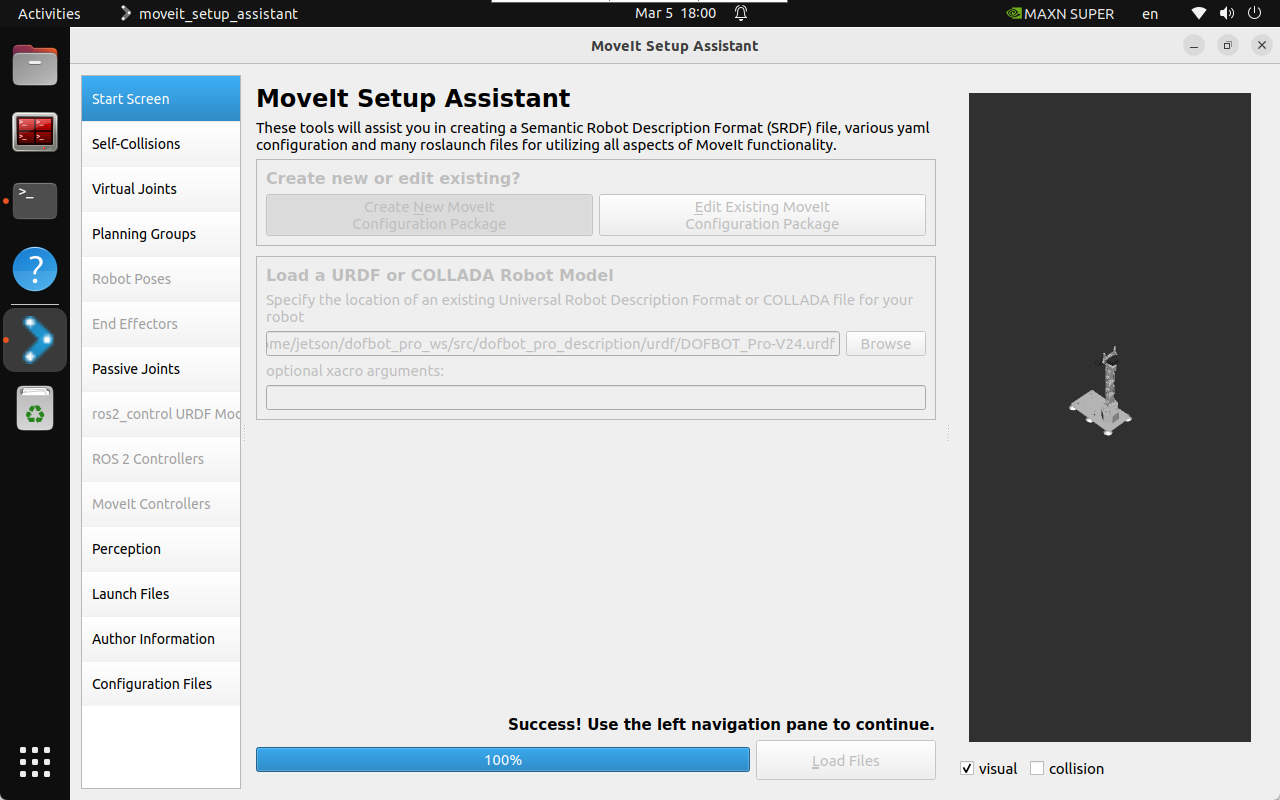

After selecting the URDF file, click Load File and the MoveIt Assistant will display the robot model:

2.2, Collision Detection

The self-collision matrix is a function used to optimize motion planning. Its main function is to generate a matrix to describe whether collisions may occur between the links in the robot model.

This matrix can help the motion planner avoid unnecessary collision detection when planning the path, thereby improving planning efficiency.

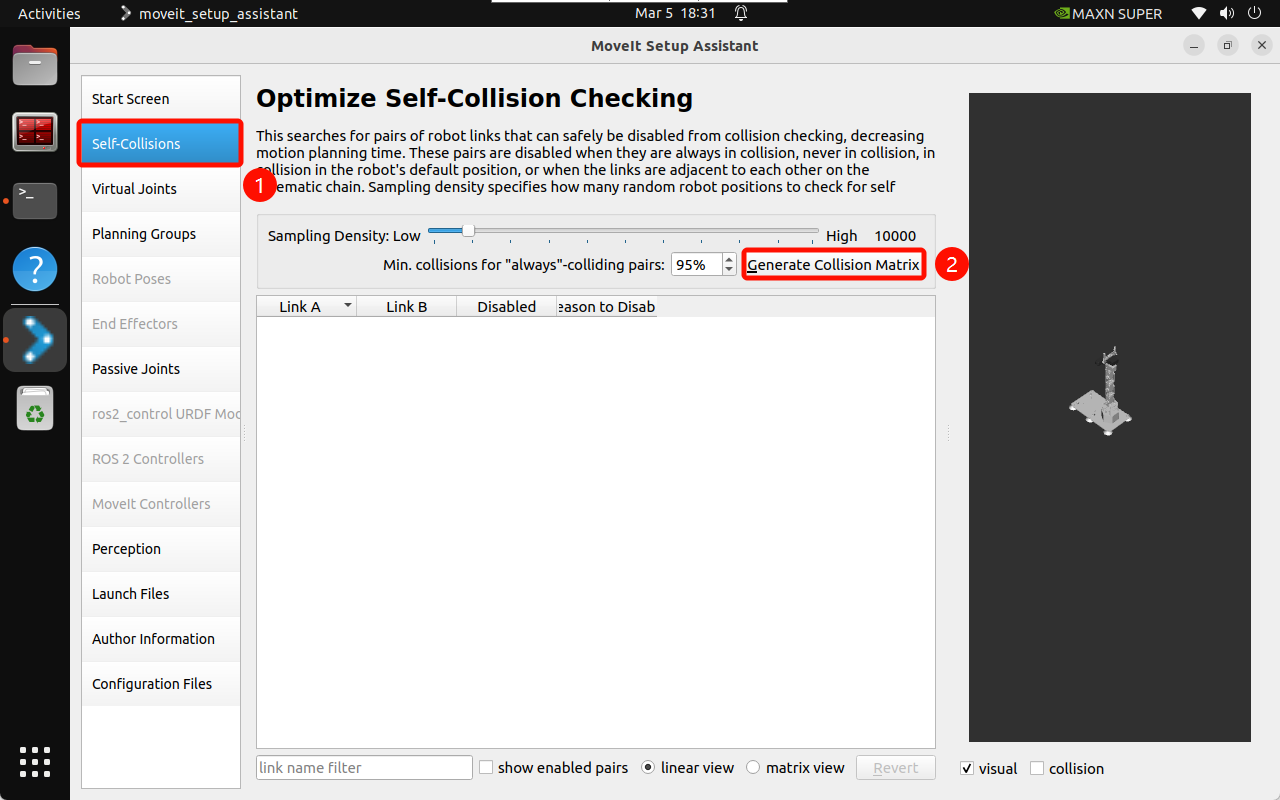

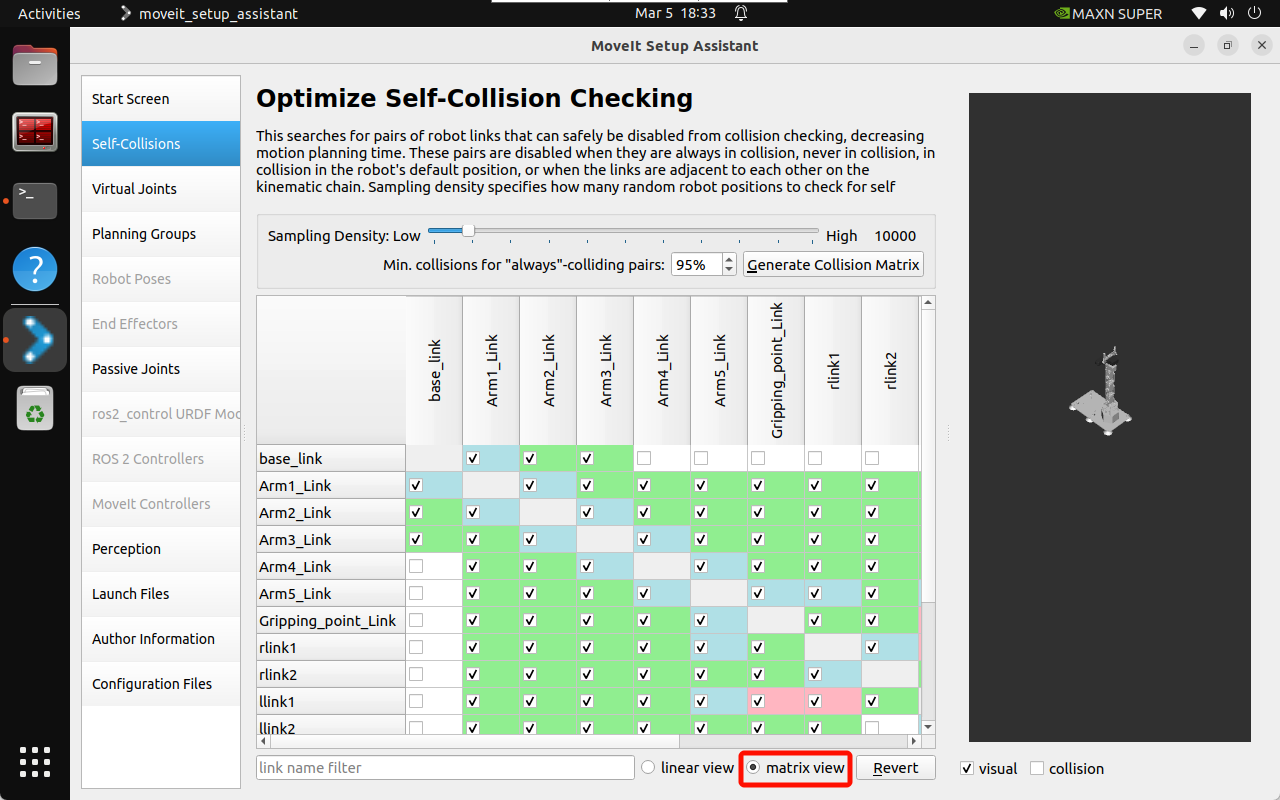

To generate a self-collision matrix, you can click the MoveIt Setup Assistant option to automatically generate it:

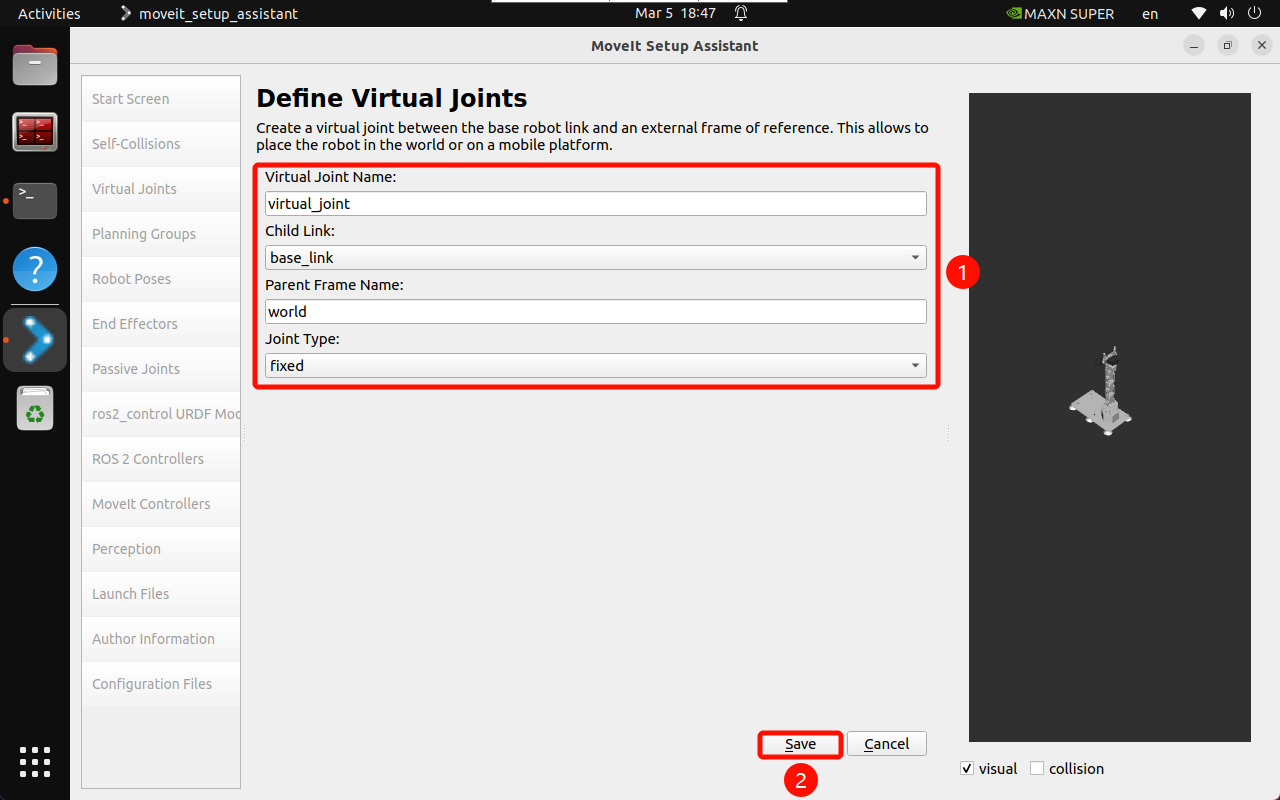

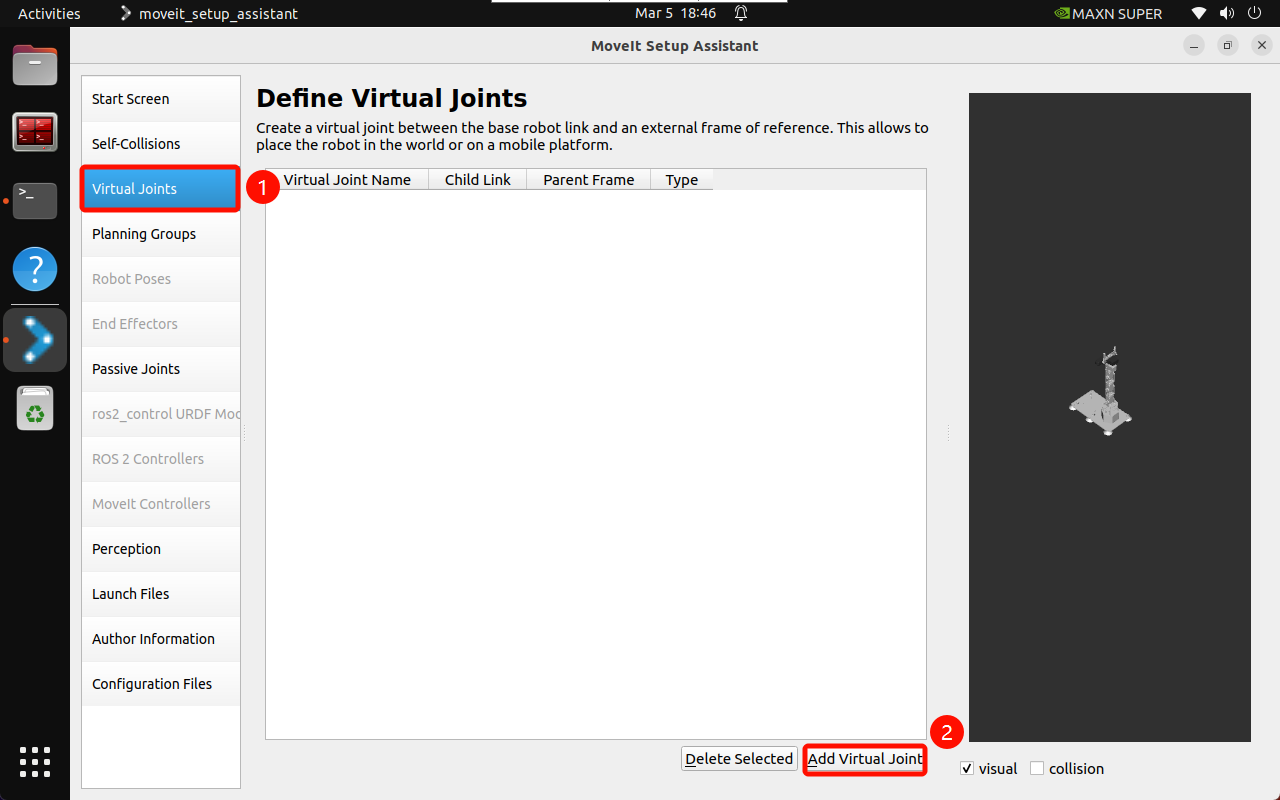

2.3. Virtual joints

A virtual joint is used to define the relationship between the robot model and the external world.

Virtual joints are usually used to describe the connection between the robot base and a fixed reference system (such as the world coordinate system).

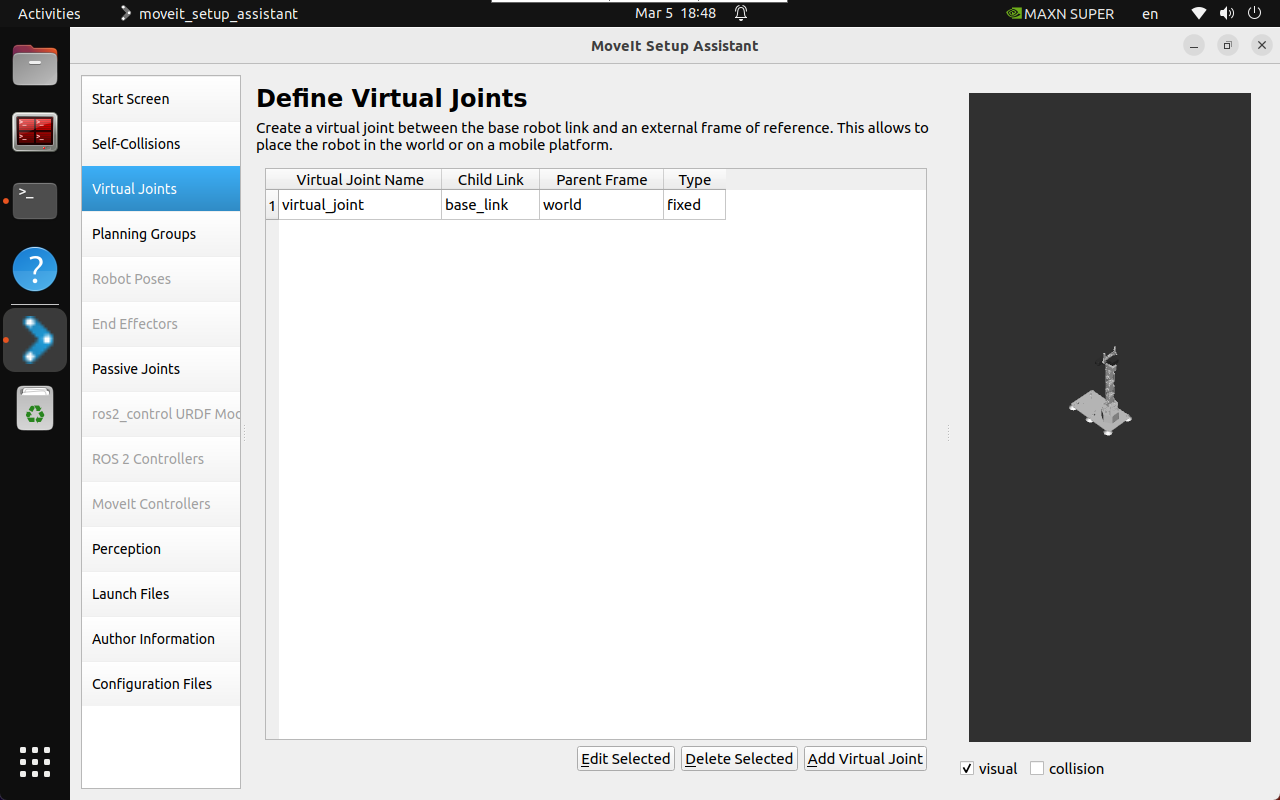

Fix the robot base link base_link and world:

• Virtual Joint Name: virtual_joint

• Child Link: base_link

• Parent Frame Name: world

• Joint Type: fixed

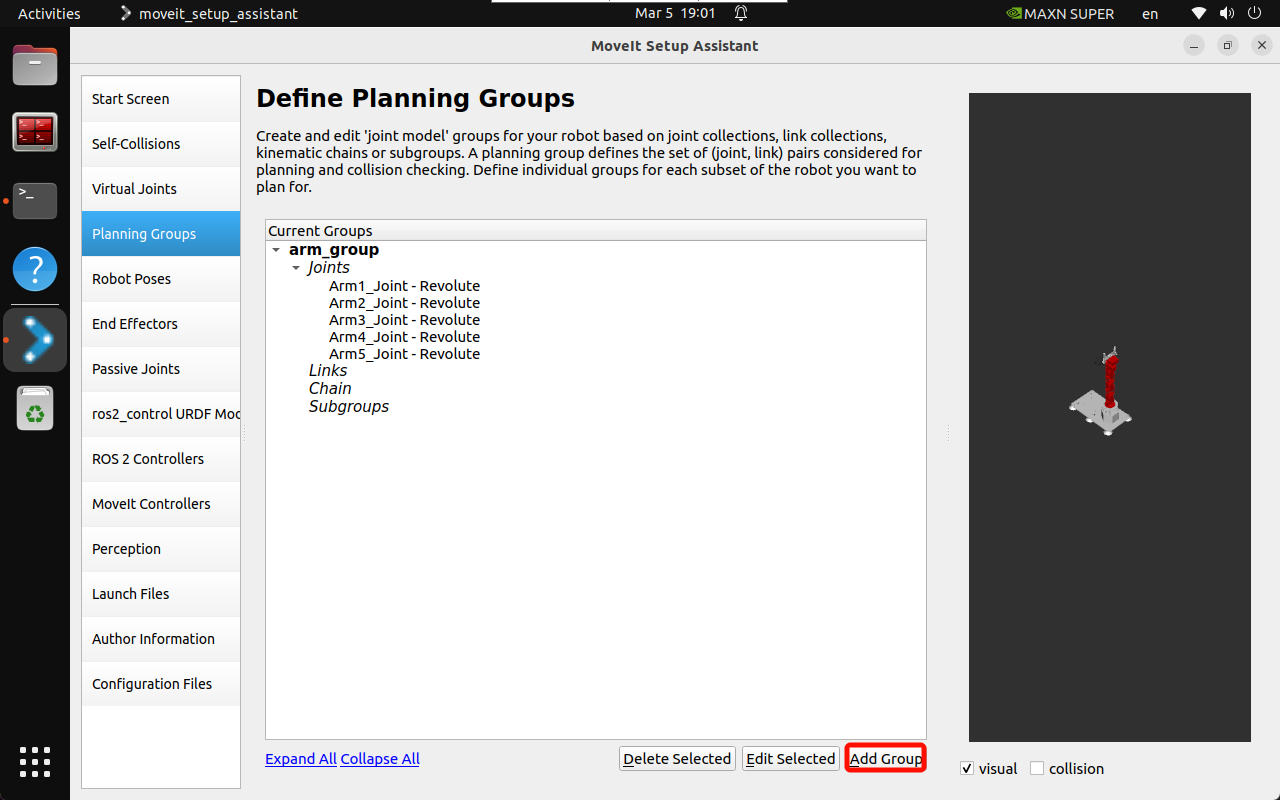

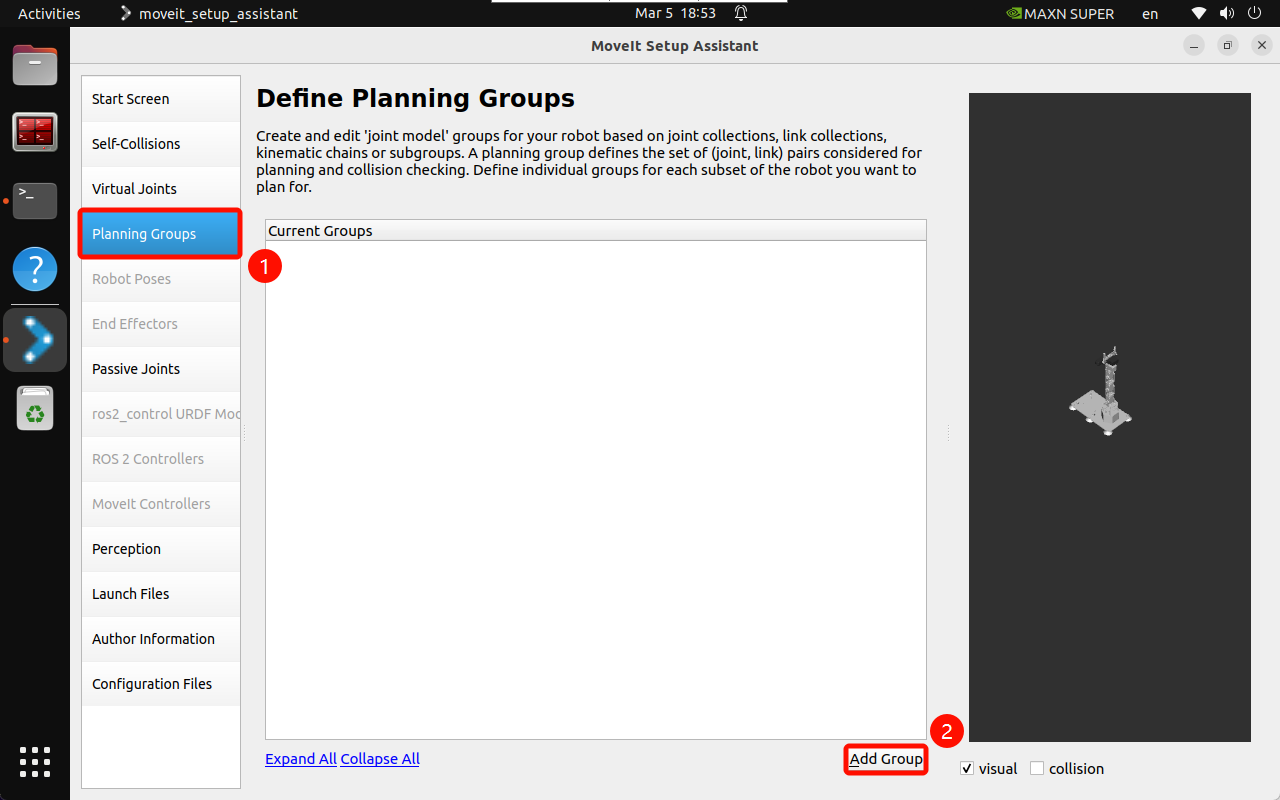

2.4, Motion Planning Group

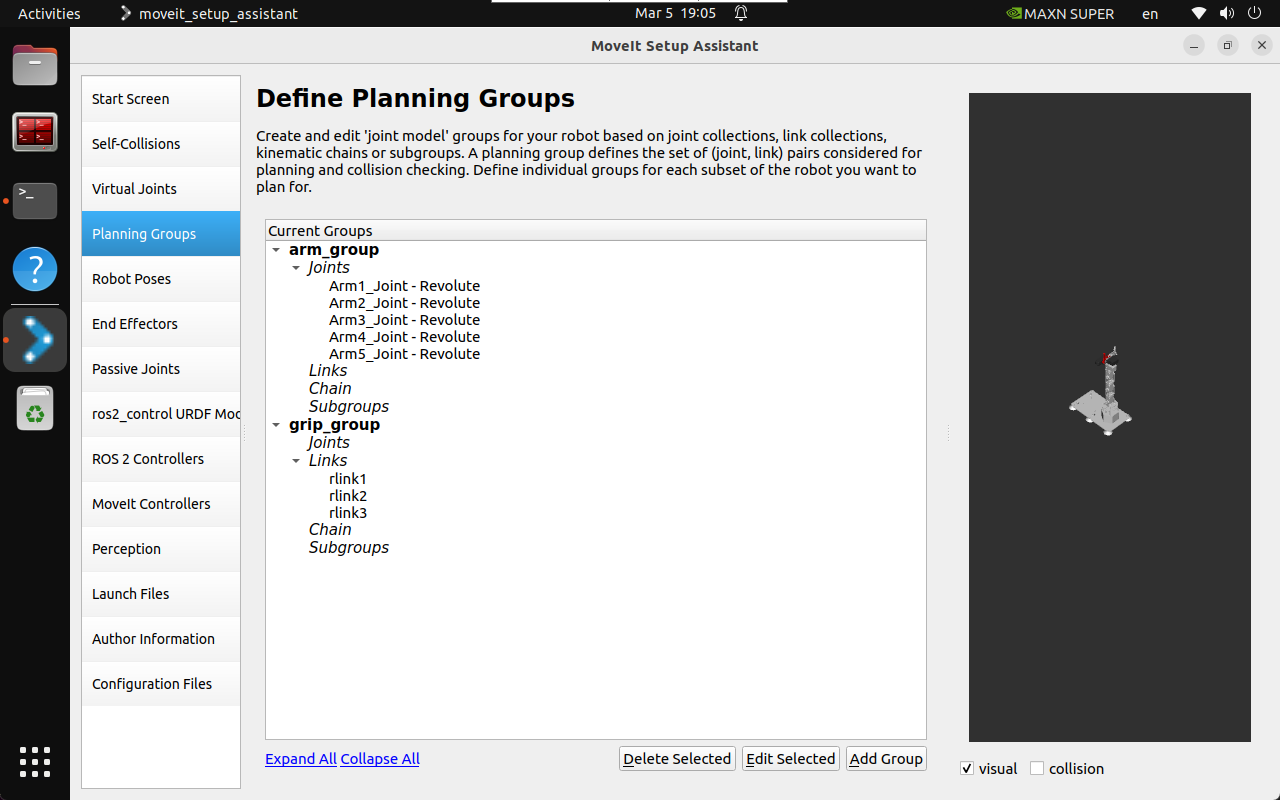

The planning group is a key step in configuring the robot's motion planning.

The planning group defines which joints and links in the robot can move together and how to plan their motion.

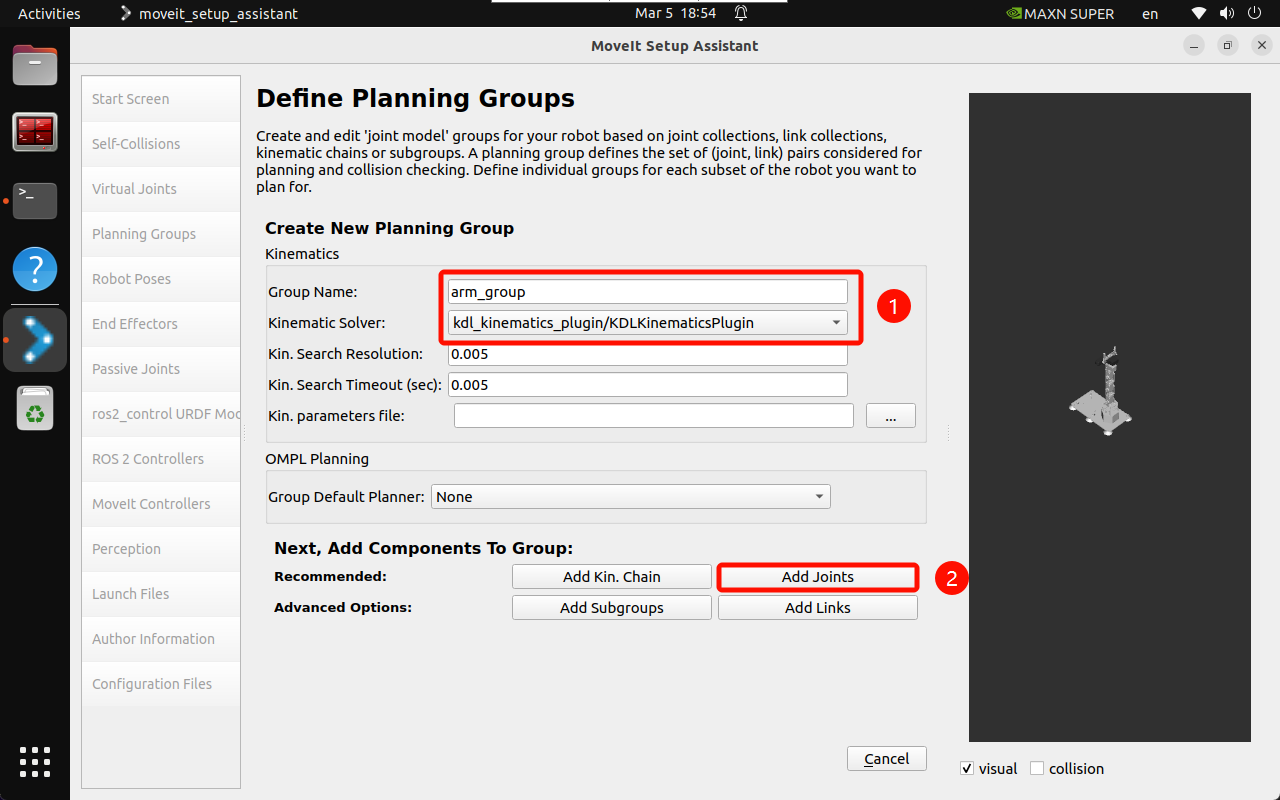

• Planning robot arm group: arm_group

  • Group Name: arm_group

  • Kinematic Solver: kdl_kinematics_plugin/KDLKinematicsPlugin

  • Kin. Search Resolution (sampling density of joint space): 0.005

  • Kin. Search Timeout (solution time): 0.005

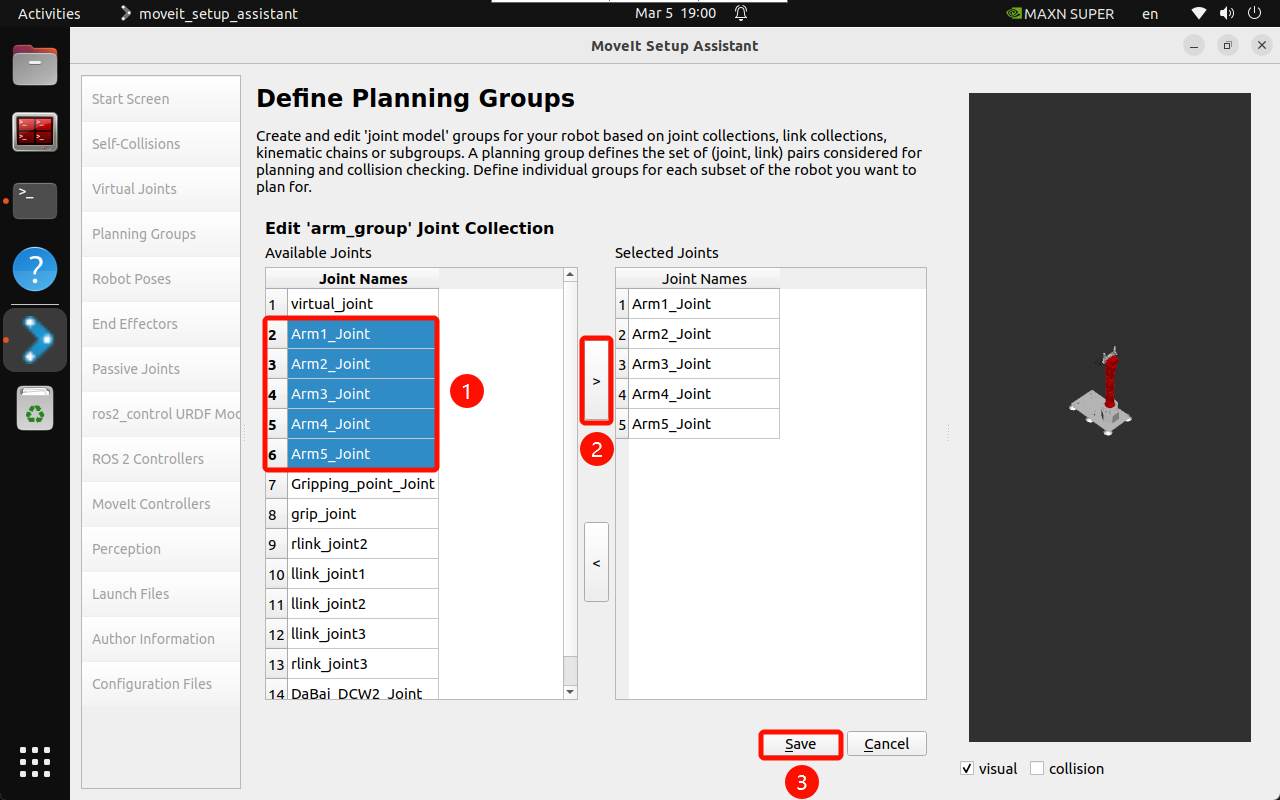

• Add Joints: Select the joints of the robot arm

Joints：Arm1_Joint、Arm2_Joint、Arm3_Joint、Arm4_Joint、Arm5_Joint

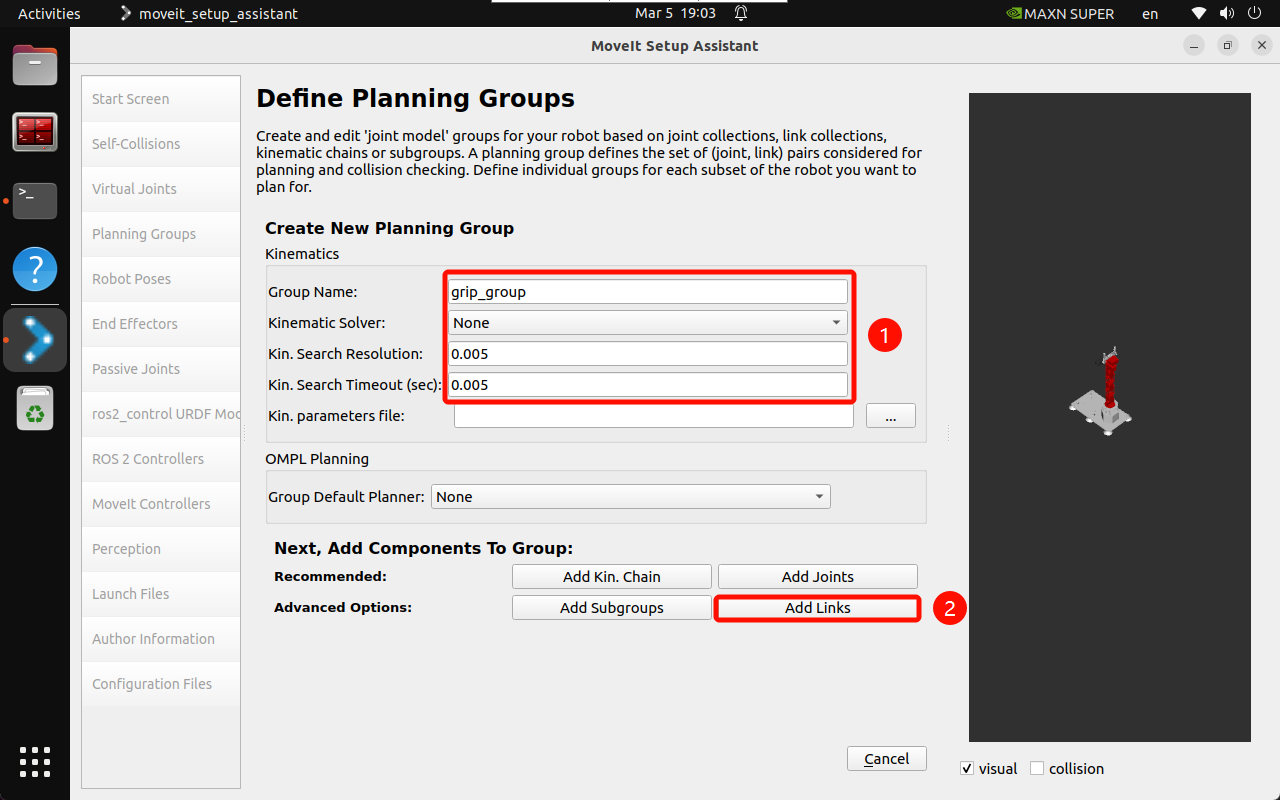

• Planning gripper group: grip_group

  • Group Name: grip_group

  • Kinematic Solver: None

  • Kin. Search Resolution: 0.005

  • Kin. Search Timeout: 0.005

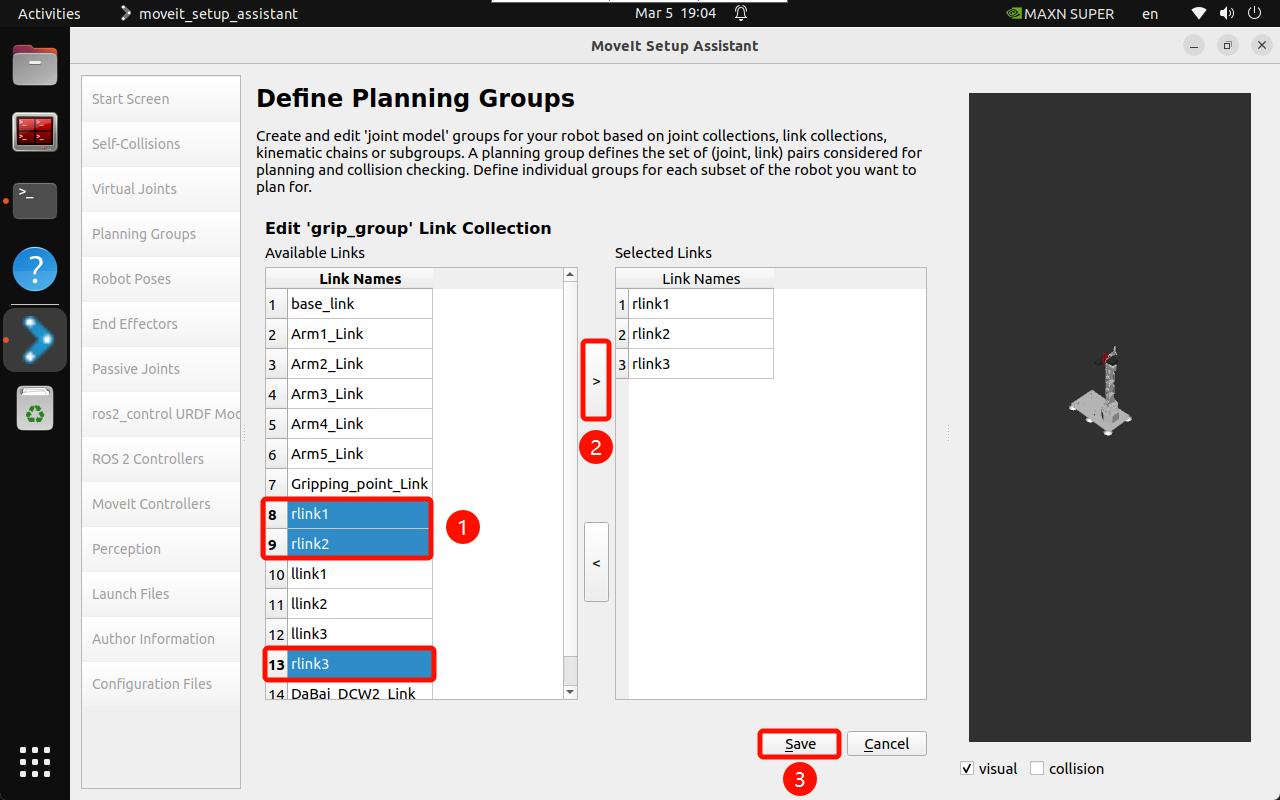

• Add Links: Select the connecting rod of the gripper

Links：rlink1、rlink2、rlink3

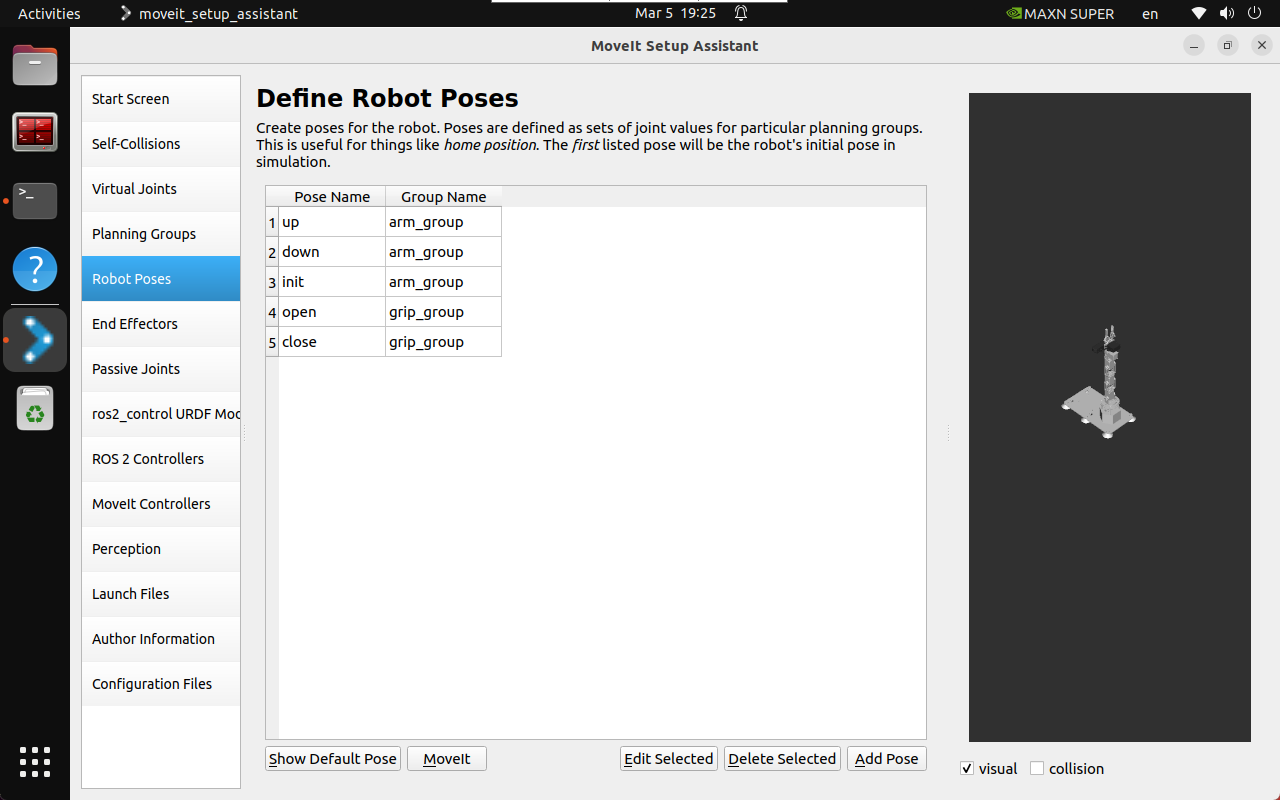

2.5. Robot position

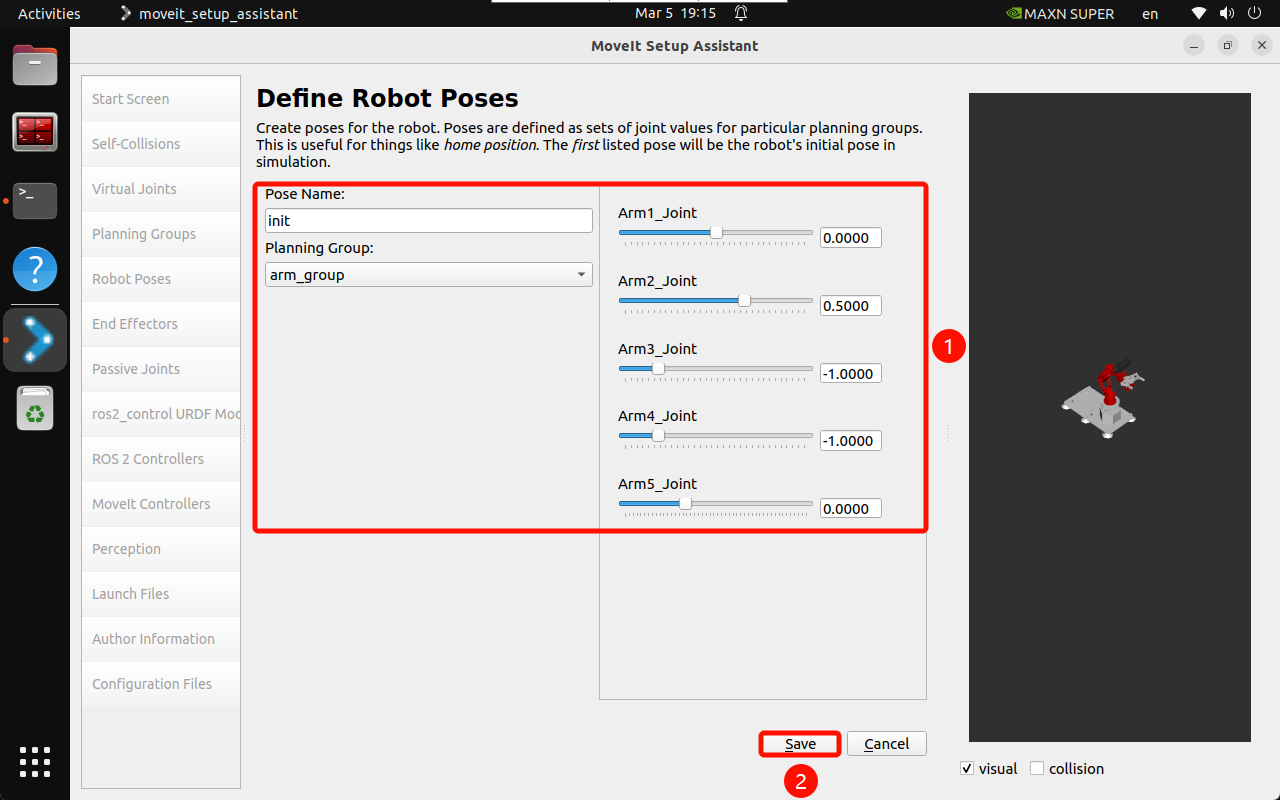

Robot arm position

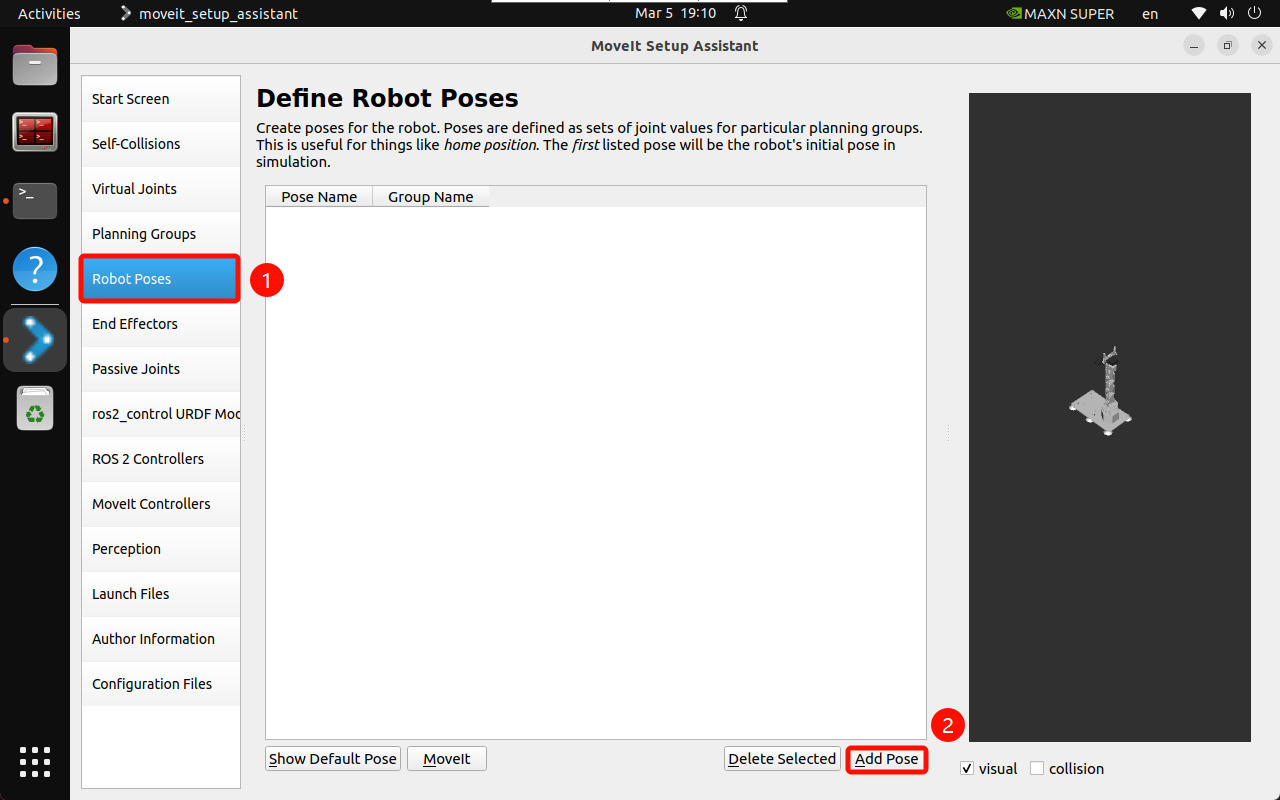

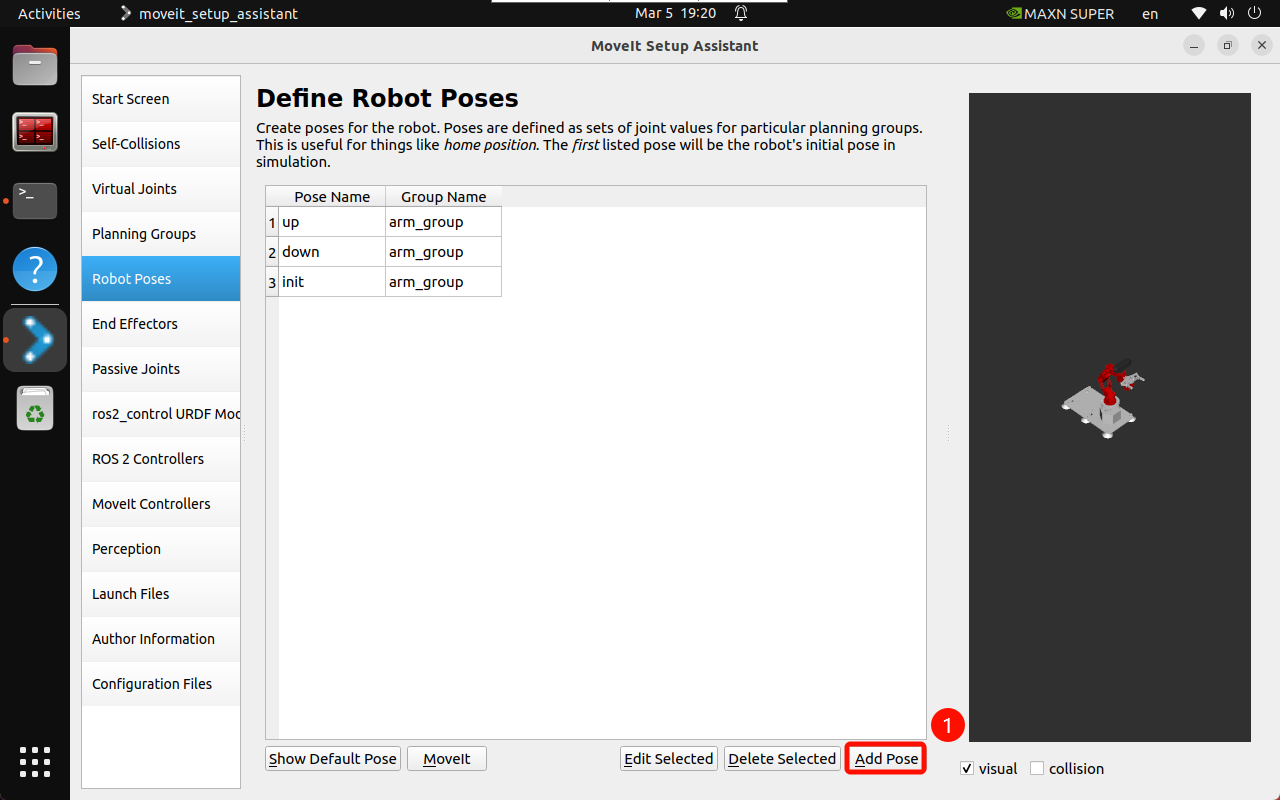

Set three sets of robot arm predefined postures to the robot configuration:

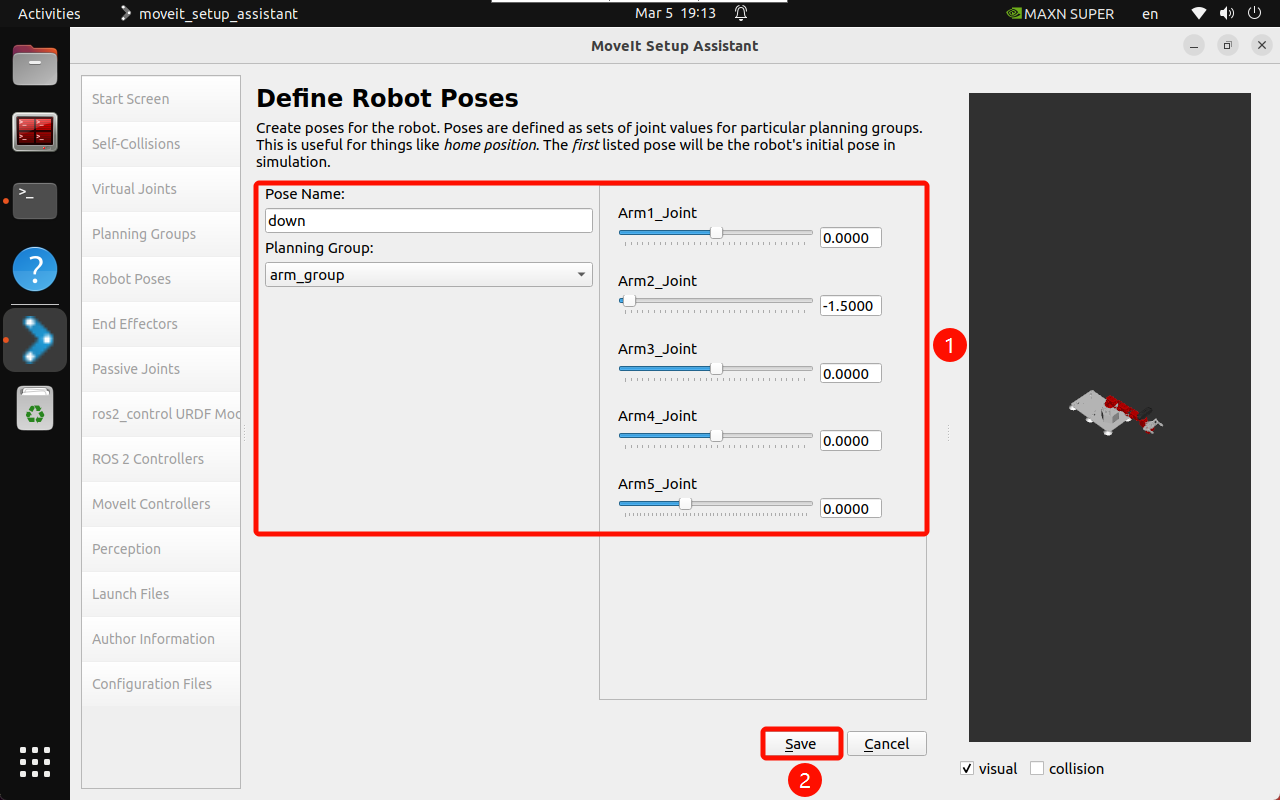

You can manually move the slider to set the state of each joint: up, down, init

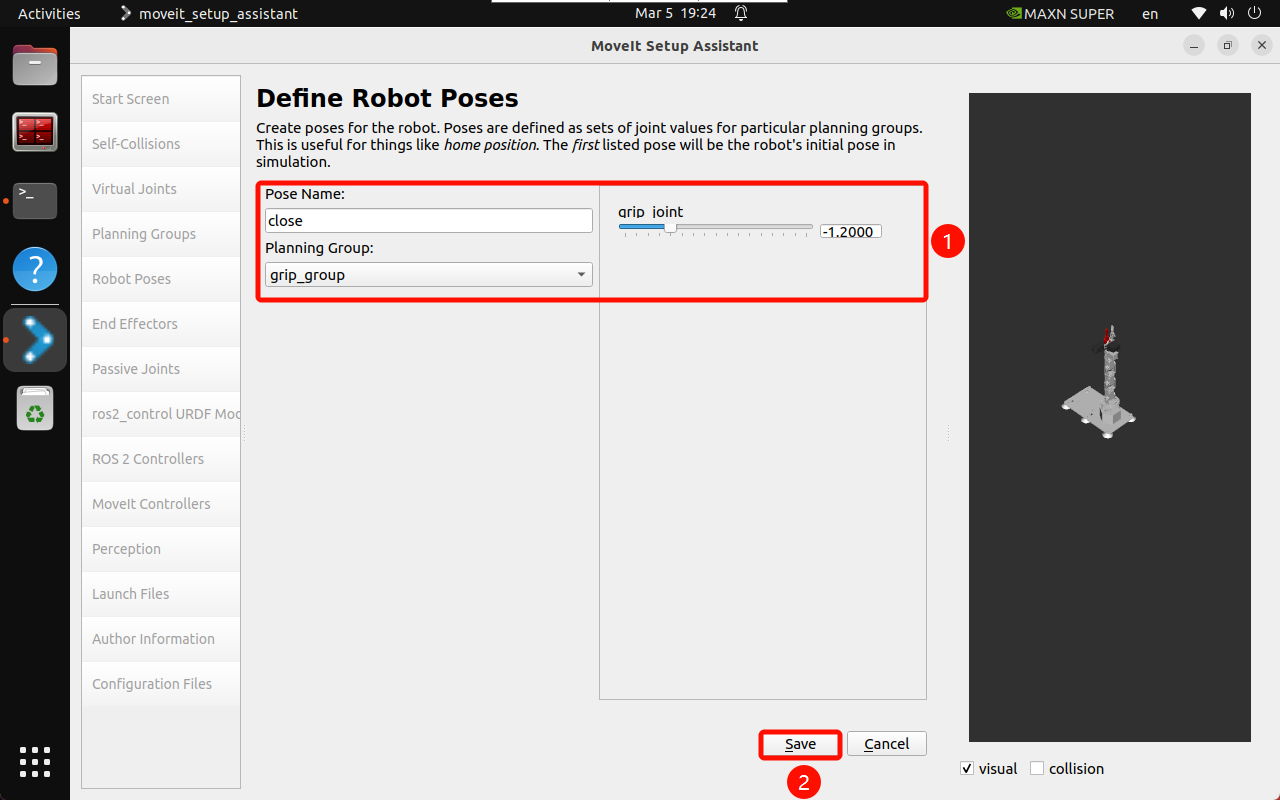

Jaw Position

Set two sets of predefined gripper poses to the robot configuration:

You can manually move the slider to set the gripper state: open, close

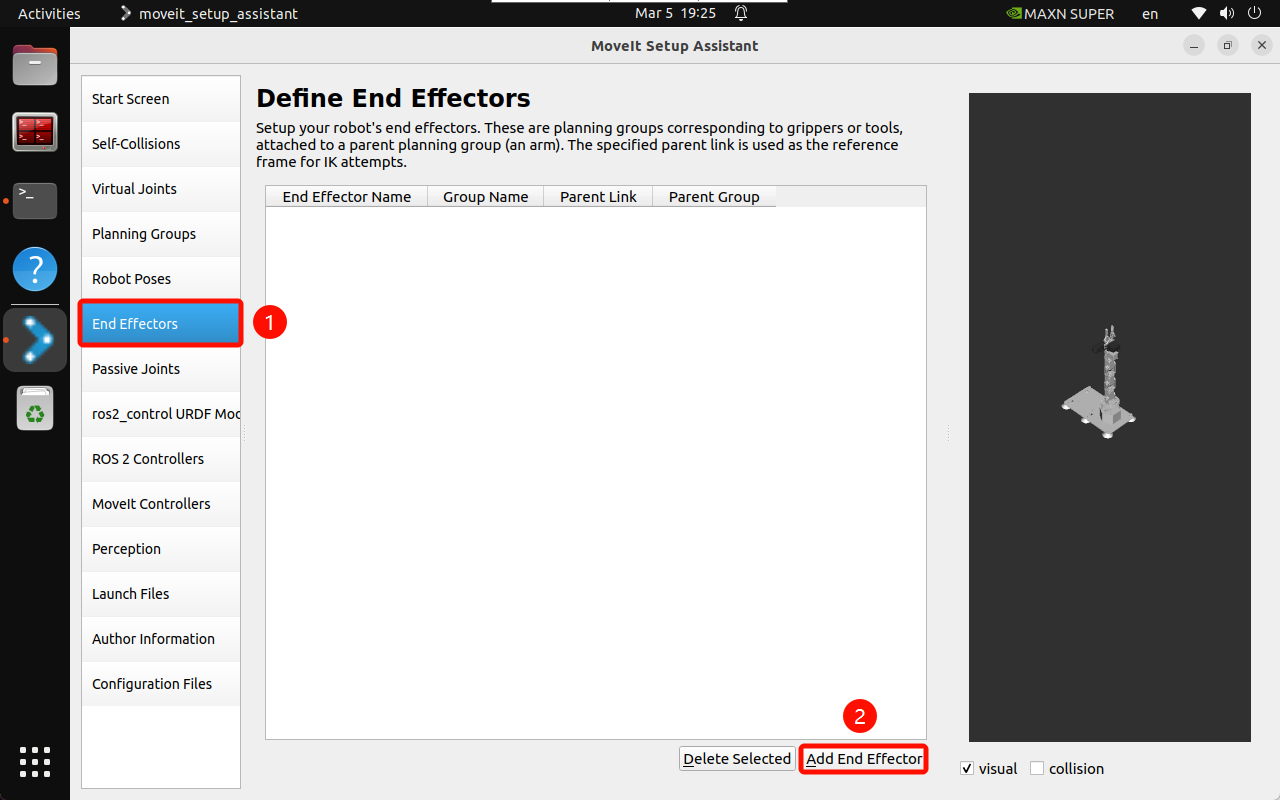

2.6. End effector

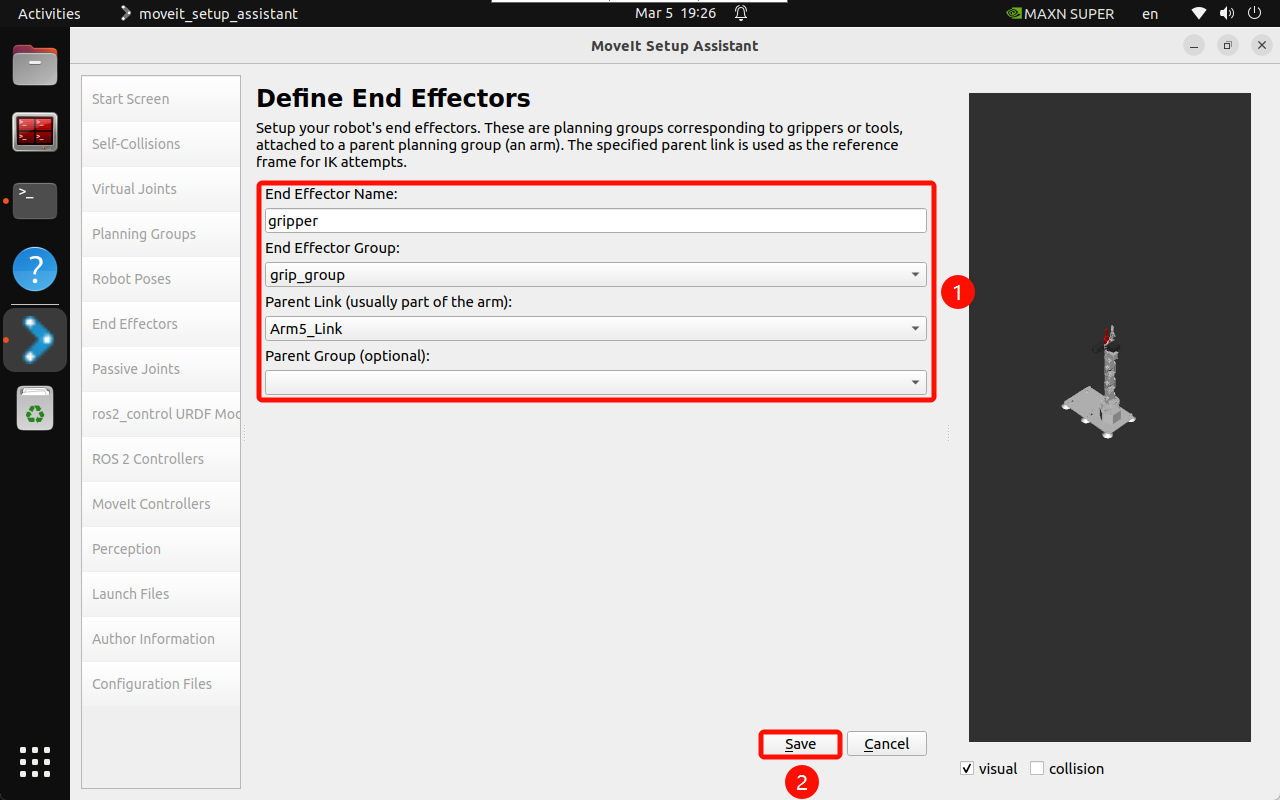

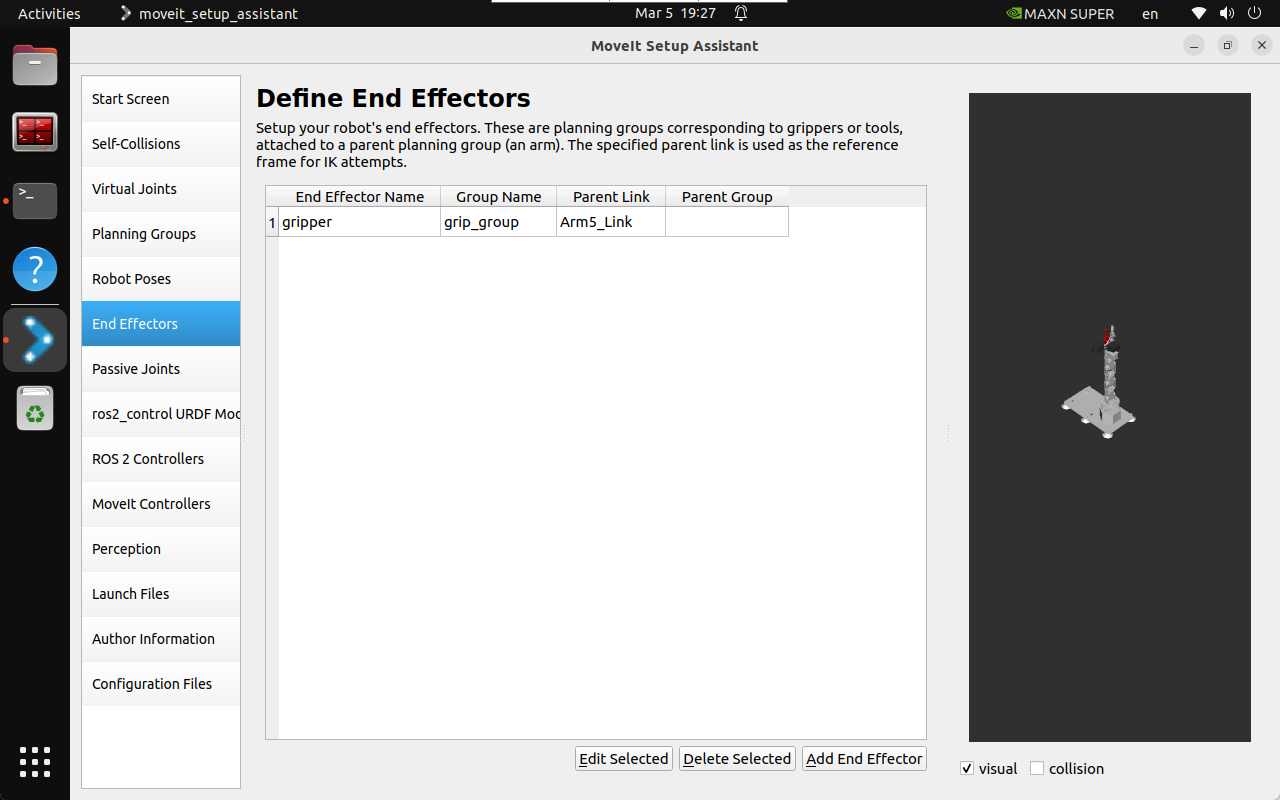

Set the gripper group as the end effector:

End Effector: gripper

• End Effector Name: gripper

• End Effector Group: gripp_group

• Parent Link: Arm5_Link

• Parent Group: None

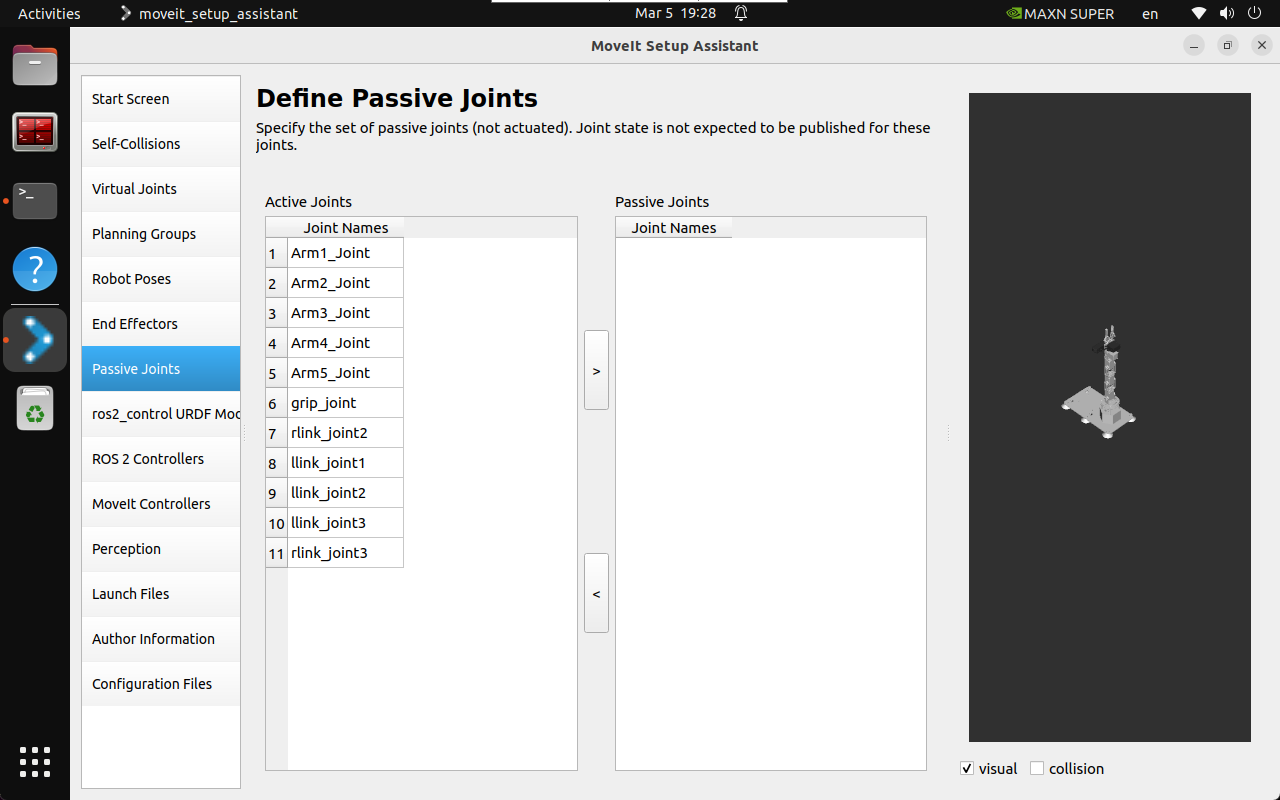

2.7 Passive joints

Passive joints are non-actuated joints that cannot be directly controlled: if the robot arm does not have passive joints, it will be skipped directly.

2.8, URDF file

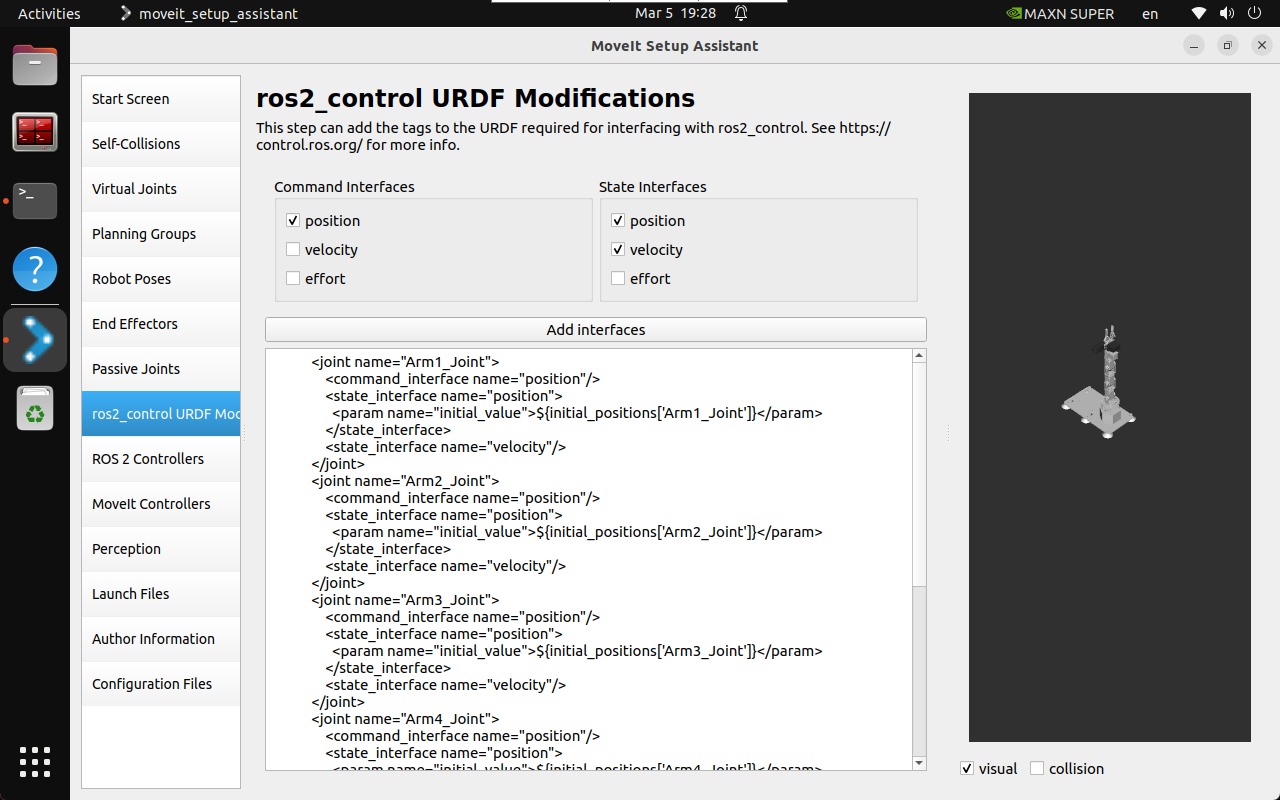

MoveIt Setup Assistant will automatically set up the command interface and status interface for each joint: use the default generated information.

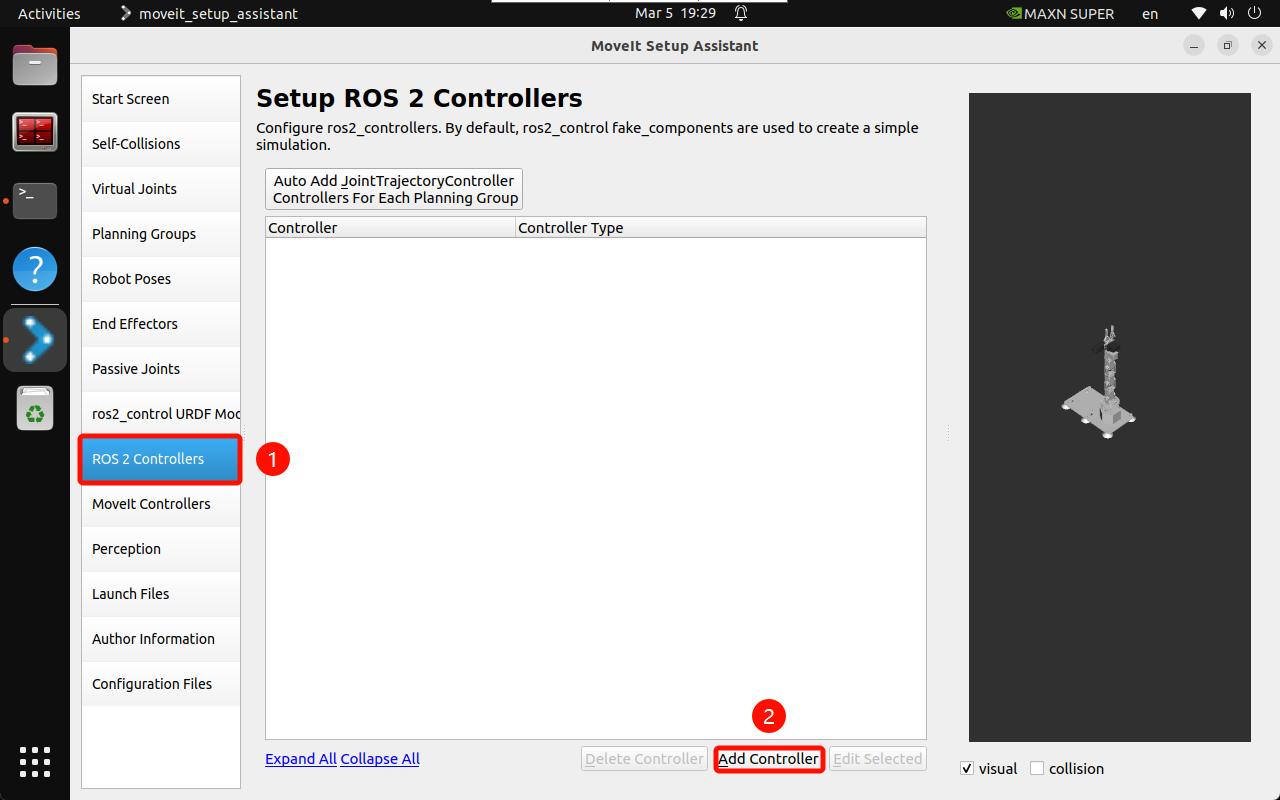

2.9, ROS2 Controllers

ROS2 Controllers is a framework for real-time robot control, which can be used to automatically generate simulation controllers to drive robot joints.

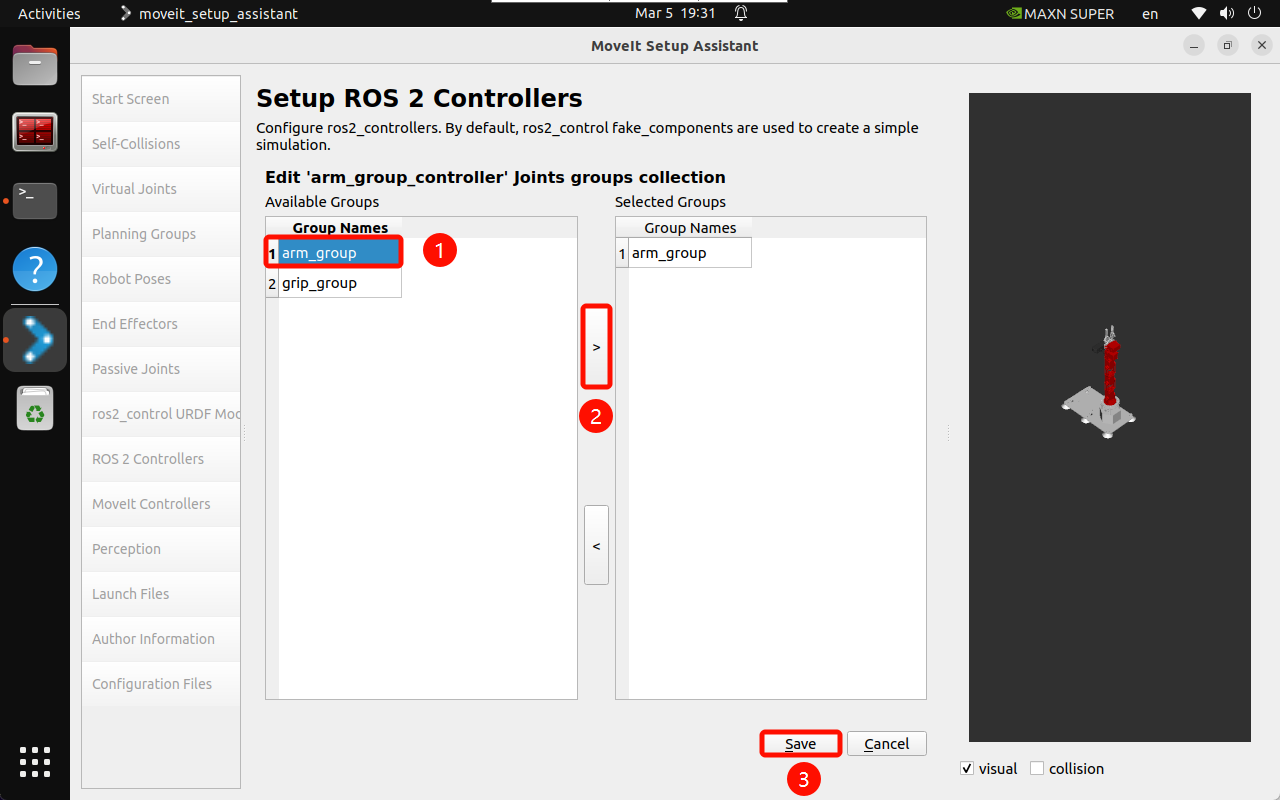

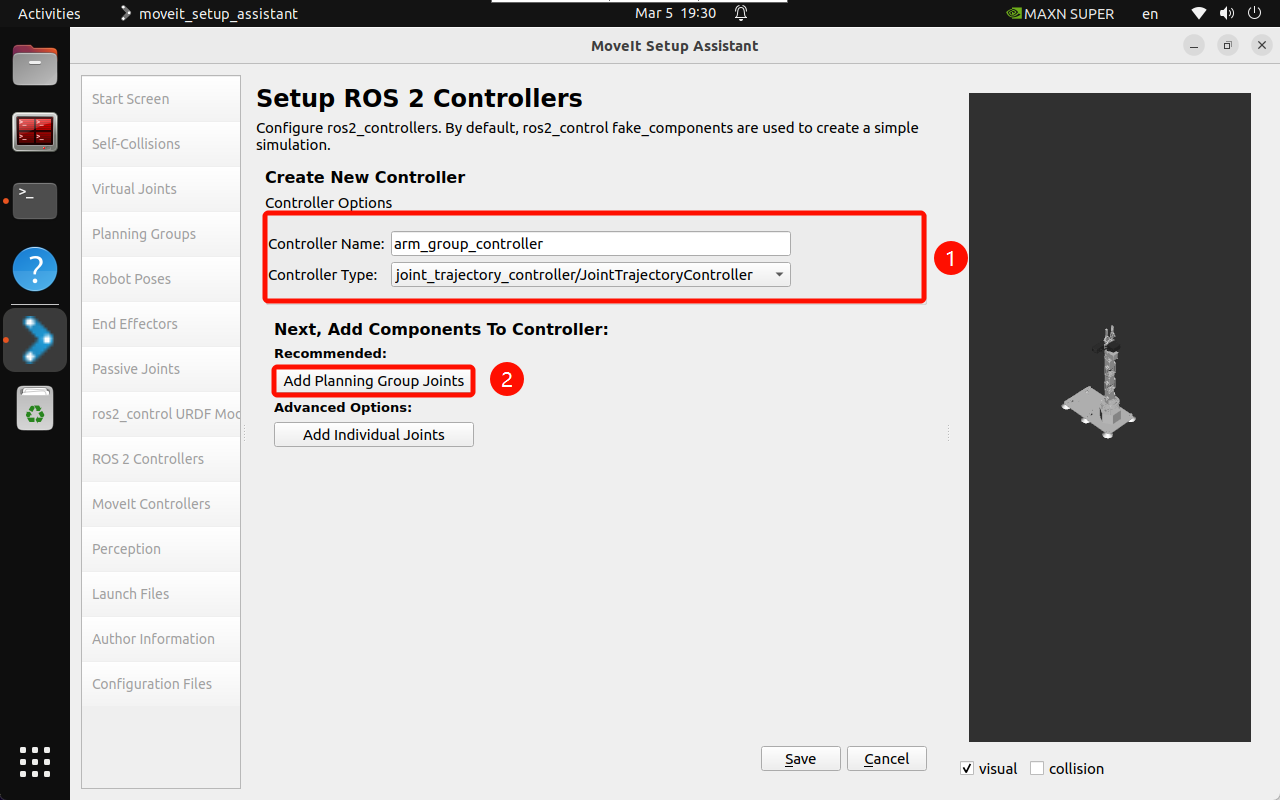

Add a robotic arm controller:

• Controller Name：arm_group_controller

• Controller Type：joint_trajectory_controller/JointTrajectoryController

• Add Planning Group Joints：arm_group

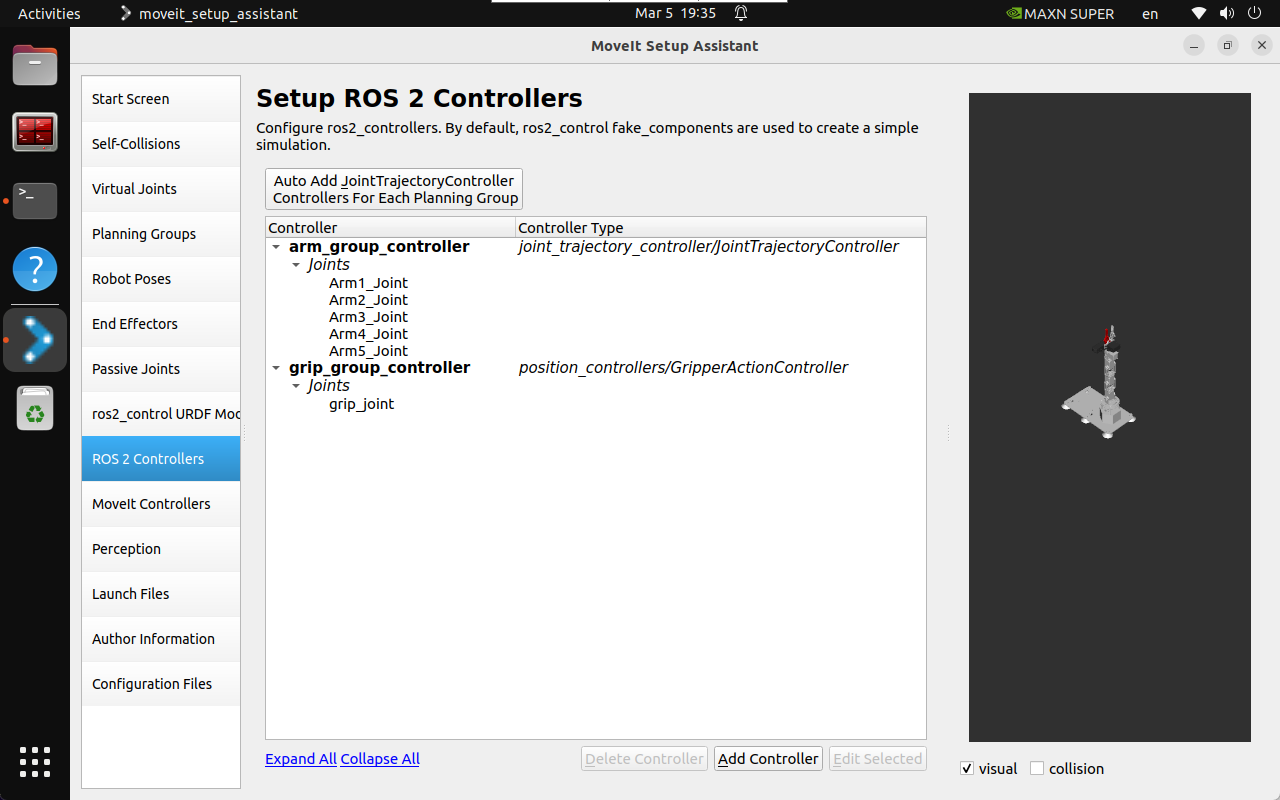

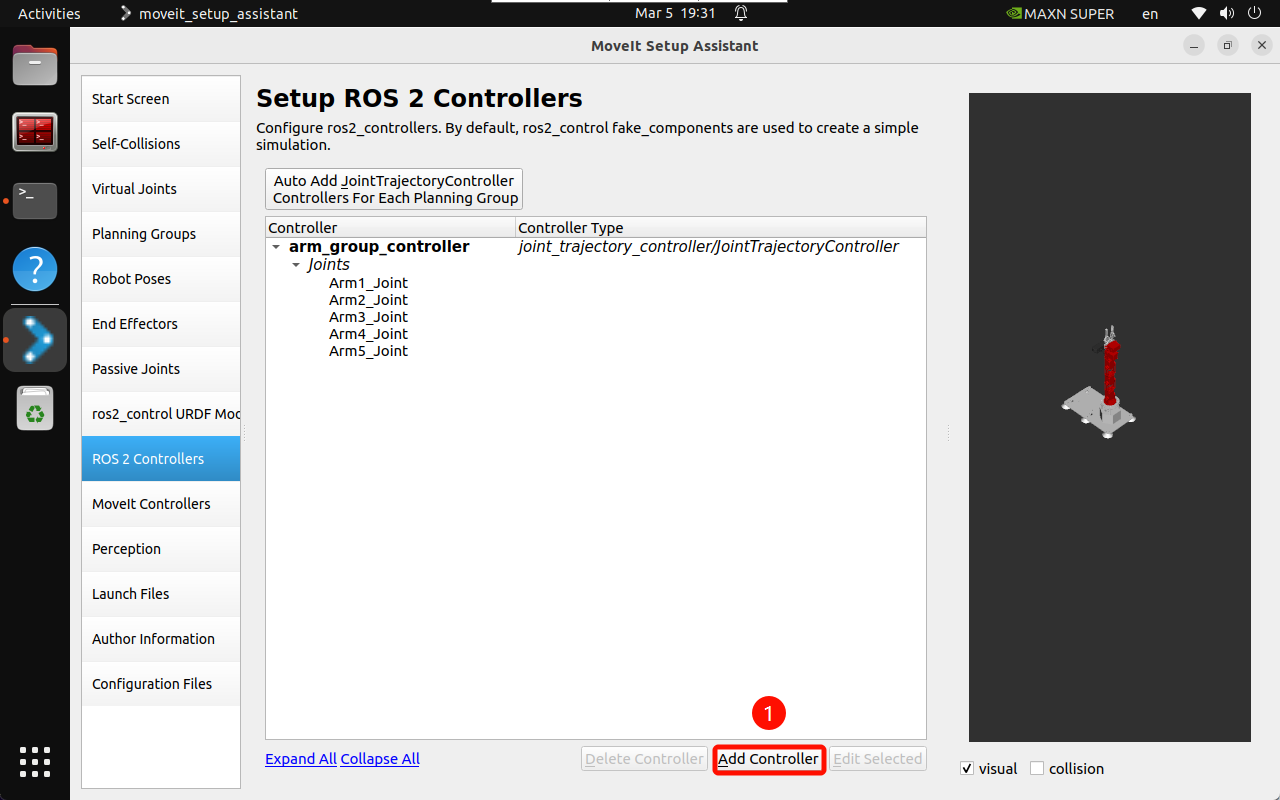

Add the gripper controller:

• Controller Name：grip_group_controller

• Controller Type：position_controllers/GripperActionController

• Add Planning Group Joints：grip_group

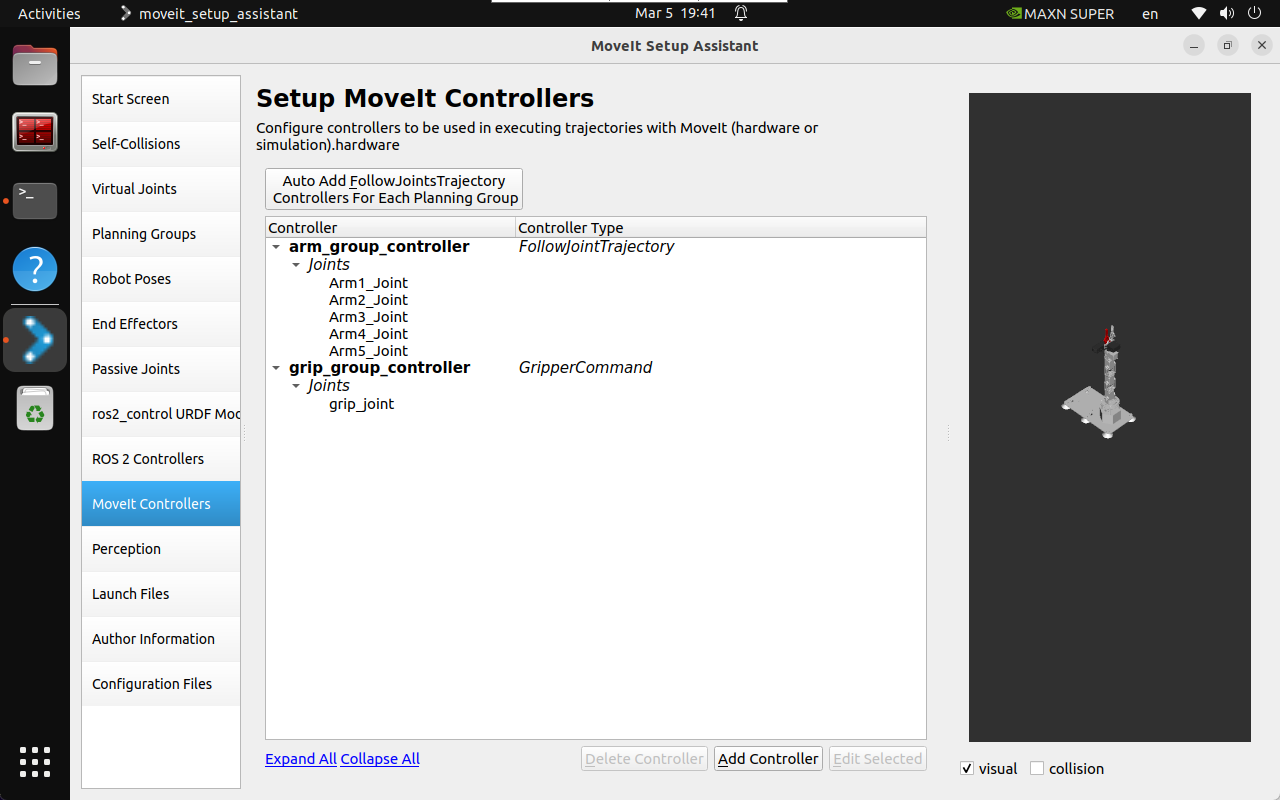

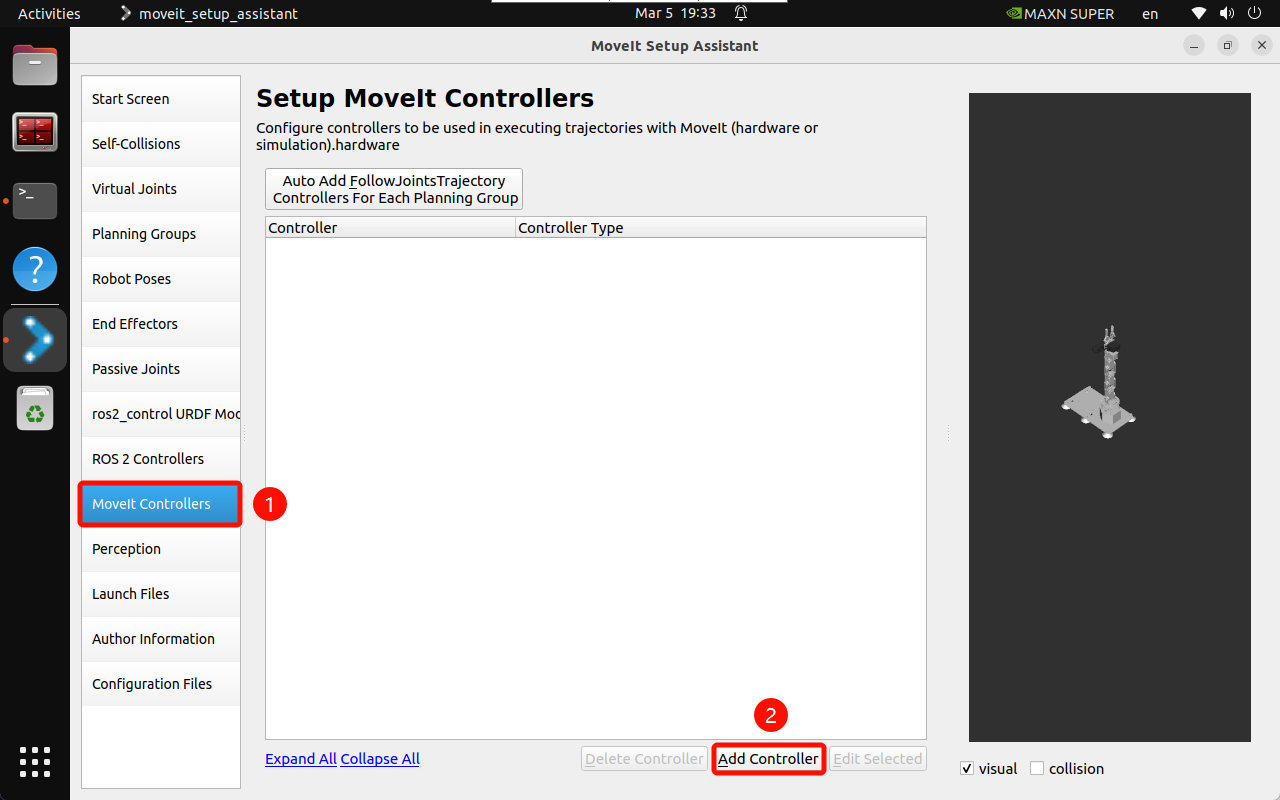

2.10, MoveIt Controllers

MoveIt requires a trajectory controller with the FollowJointTrajectoryAction interface to execute the planned trajectory, which sends the generated trajectory to the robot ROS2 controller.

Added MoveIt Controllers need to ensure that the controller name matches the name configured in ROS2 Controllers.

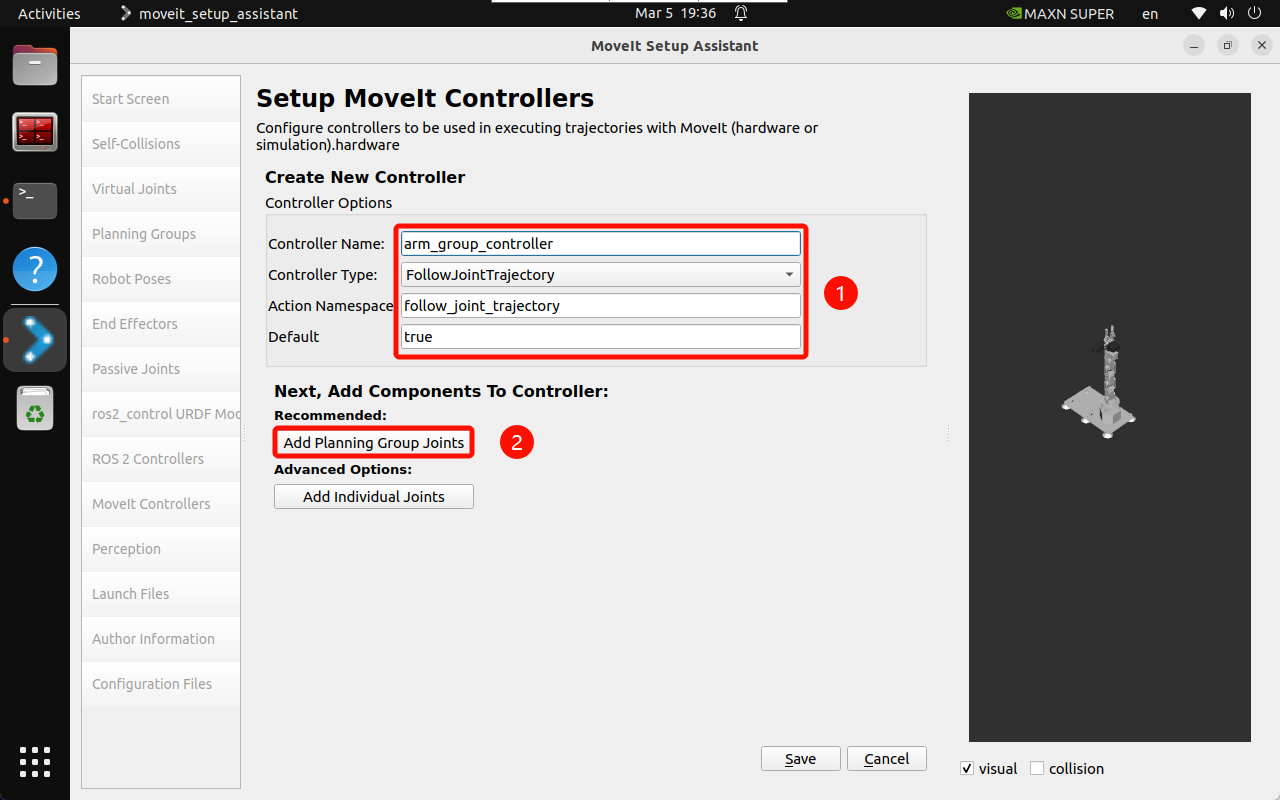

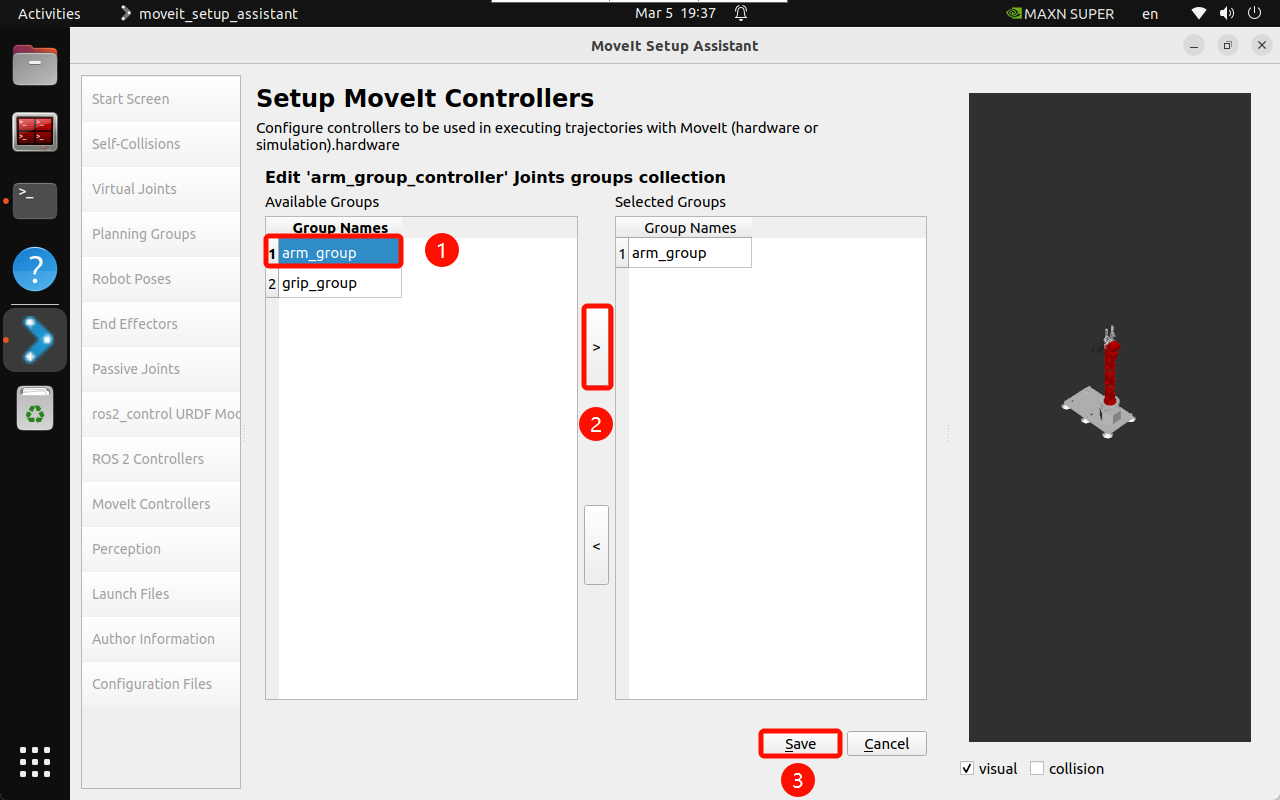

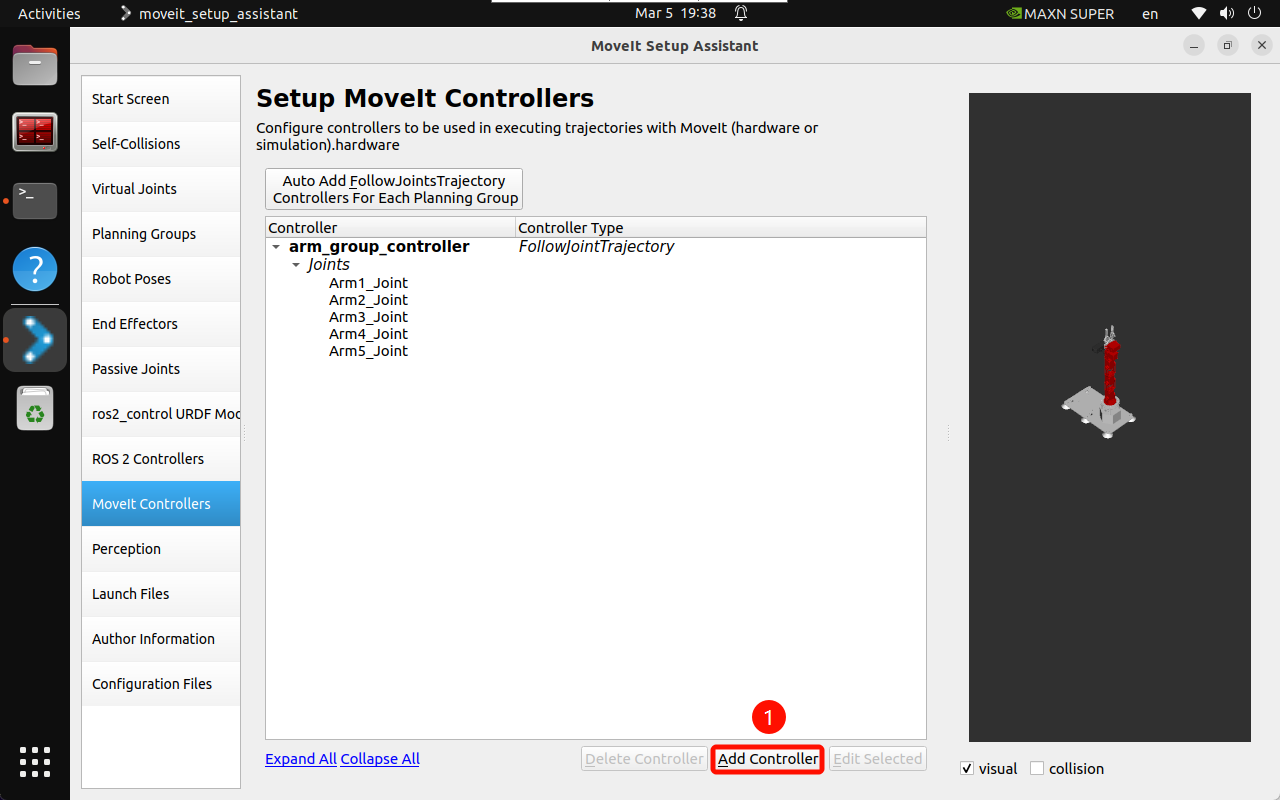

Add a robotic arm controller:

• Controller Name：arm_group_controller

• Controller Type：FollowJointTrajectory

• Add Planning Group Joints：arm_group

Add the gripper controller:

• Controller Name：grip_group_controller

• Controller Type：Gripper Command

• Add Planning Group Joints：grip_group

2.11. Sensors

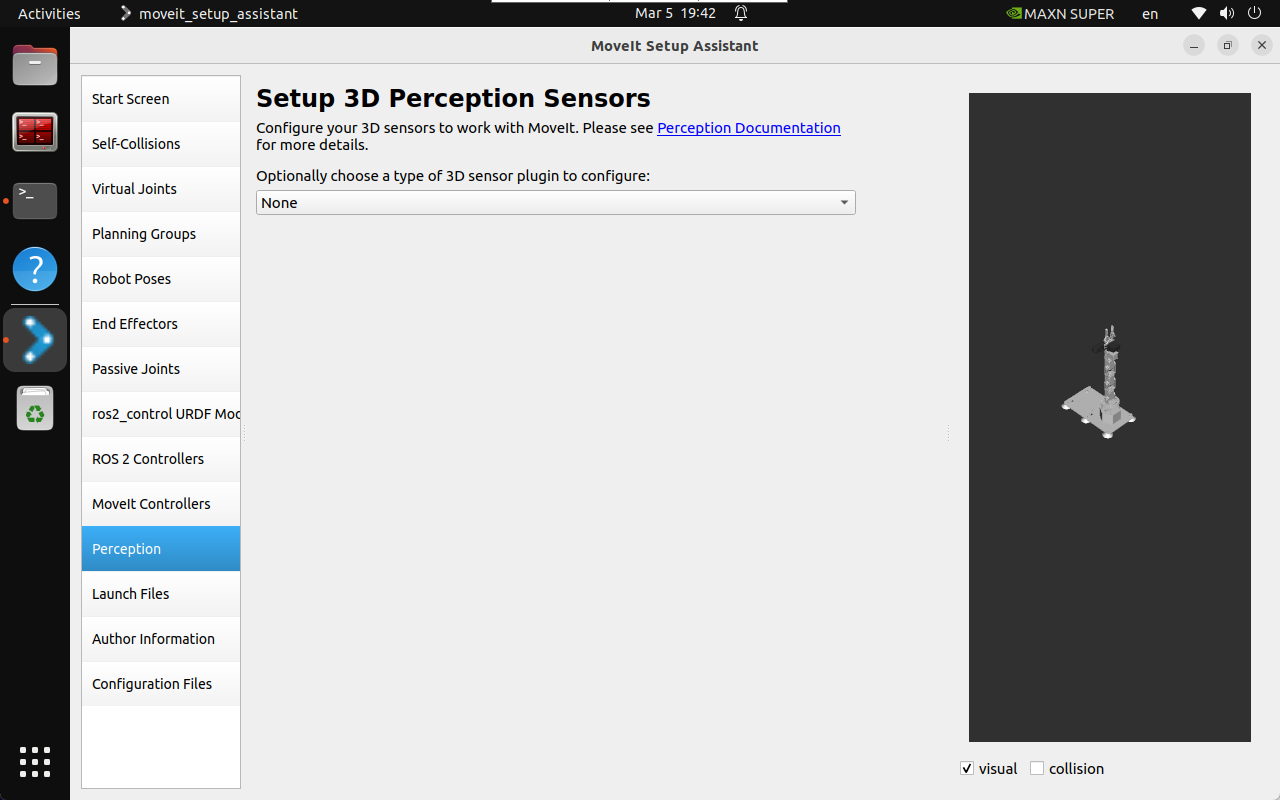

Configure the settings of the 3D sensor used by the robot: No configuration is required.

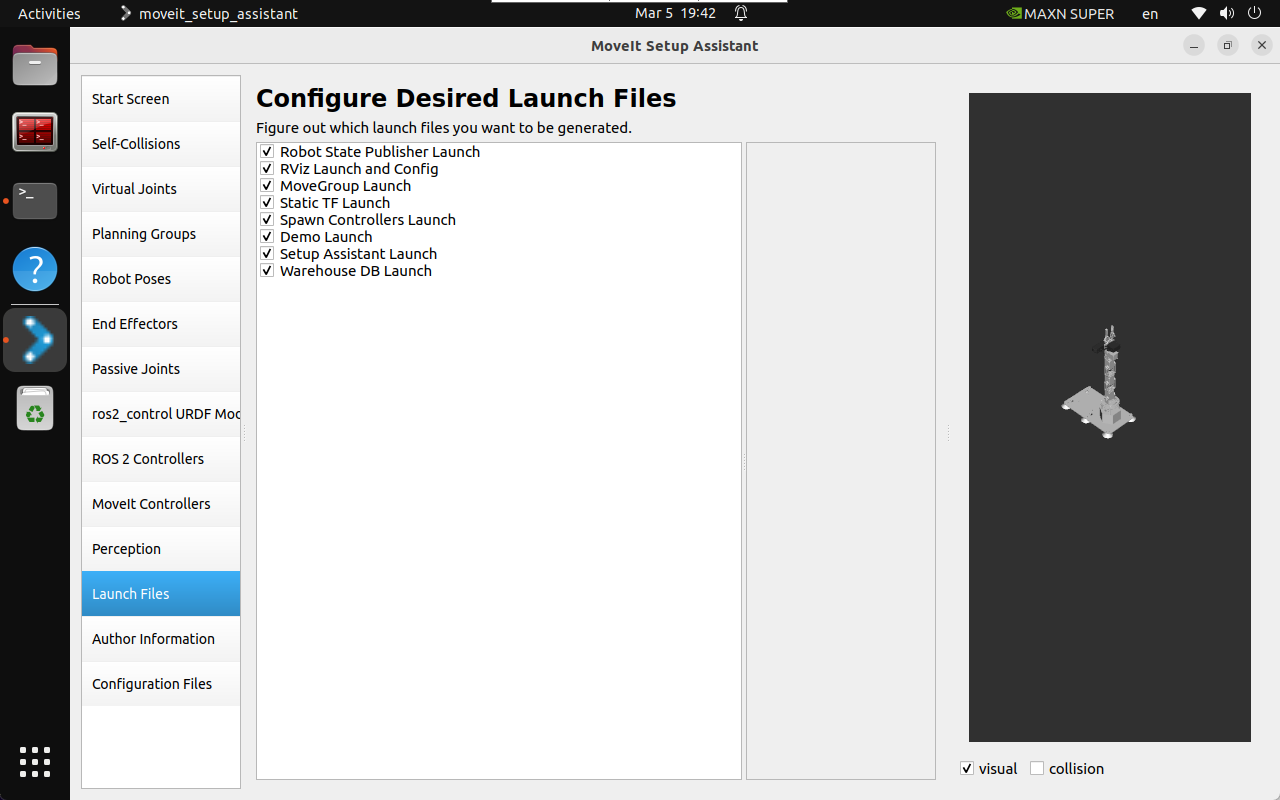

2.12, Startup file

Configure the automatically generated startup file: Use the default options.

2.13, Author information

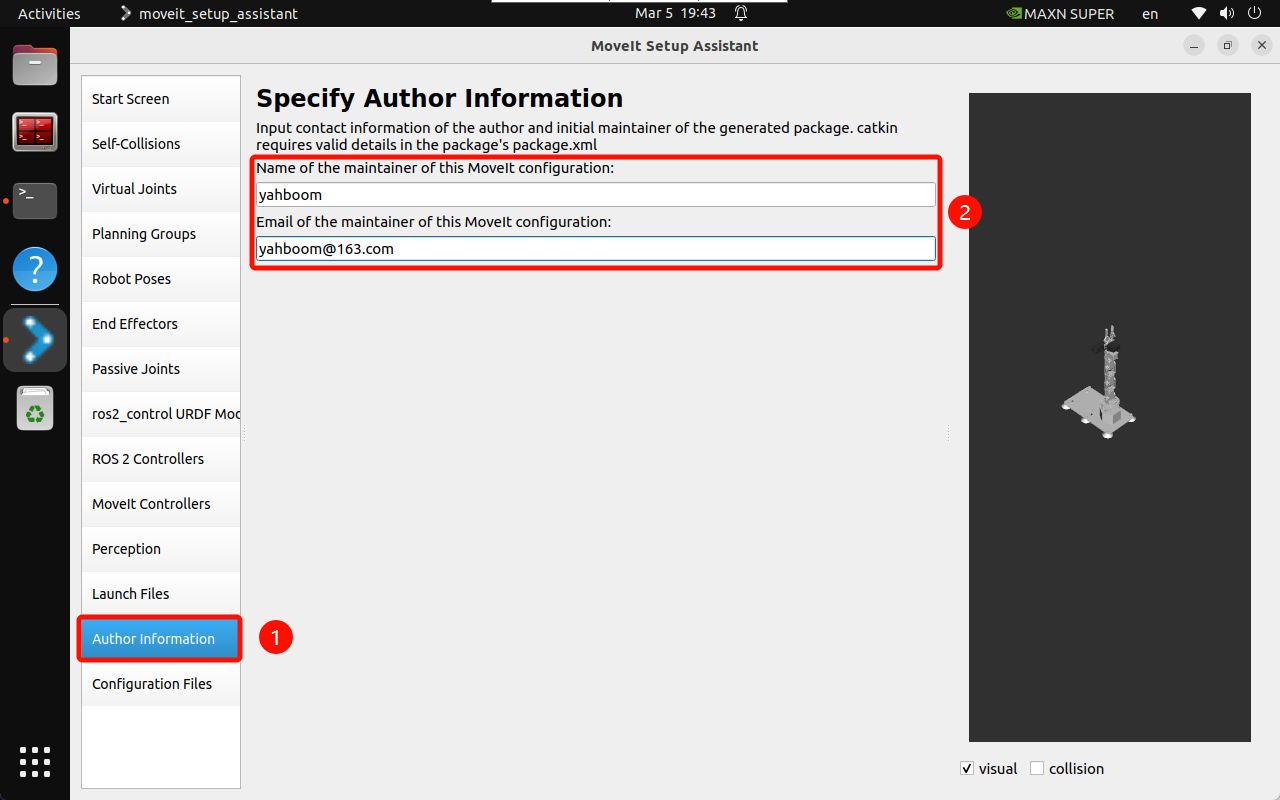

Add author information for software package generation:

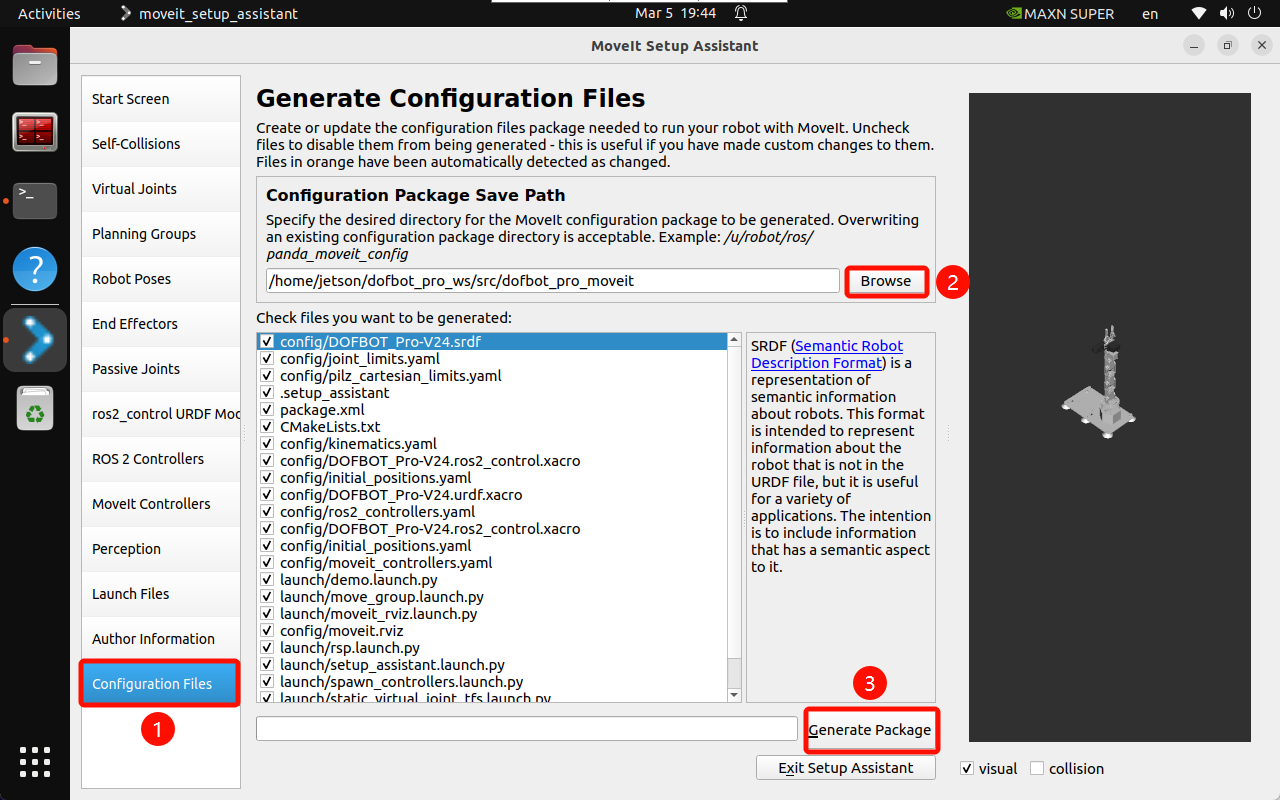

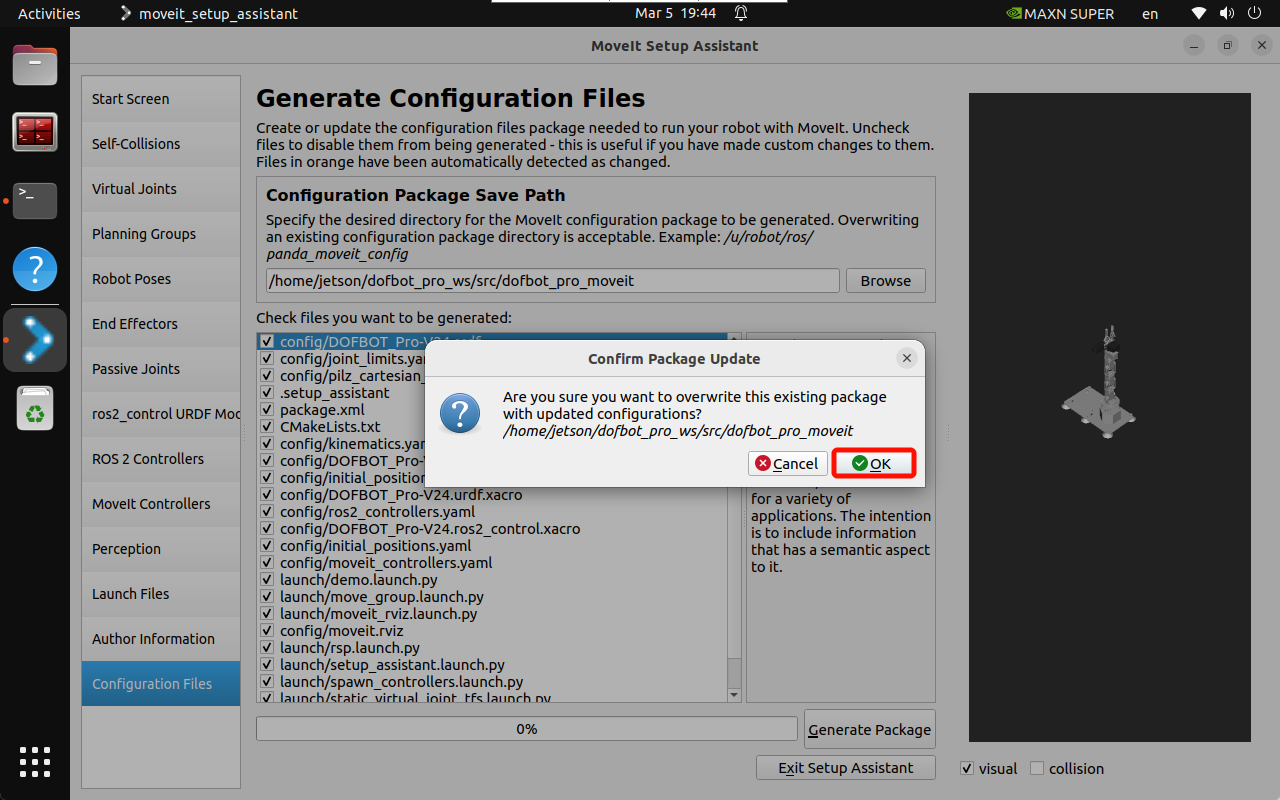

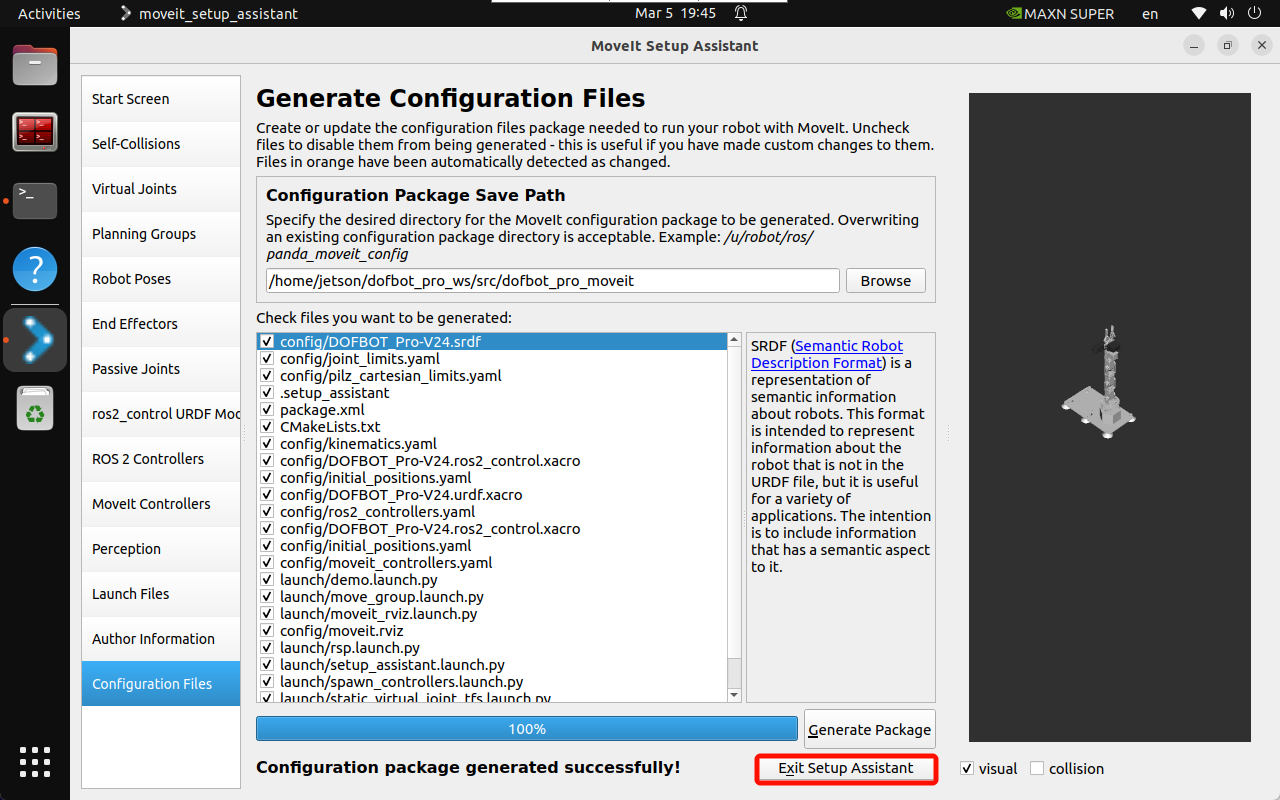

2.14. Generate configuration

Generate configuration files to the specified folder:

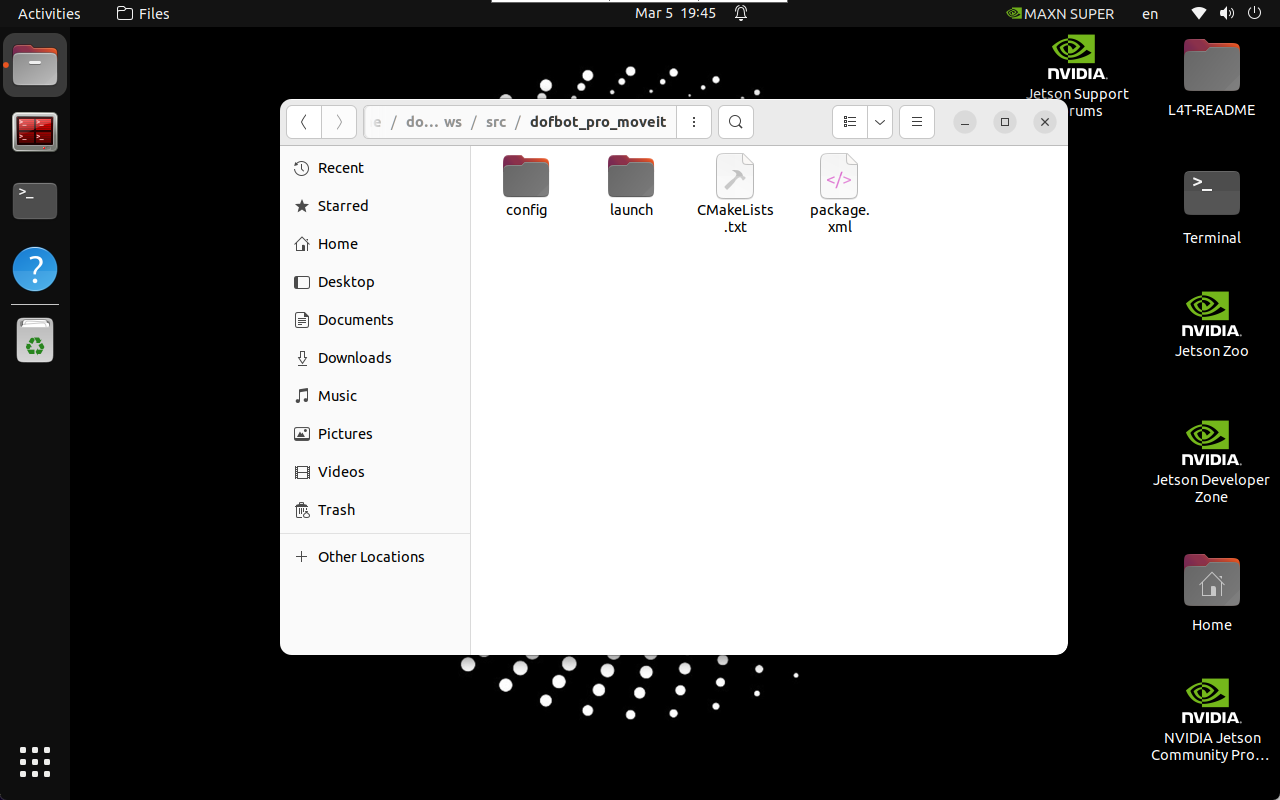

3. Configuration file

Enter the dofbot_pro_moveit folder:

4. Configuration Verification

The configuration file generated by MoveIt Setup Assistant needs to be modified to remove the warnings and model loading issues during startup.

4.1. Modify the configuration file

DOFBOT_Pro-V24.ros2_control.xacro

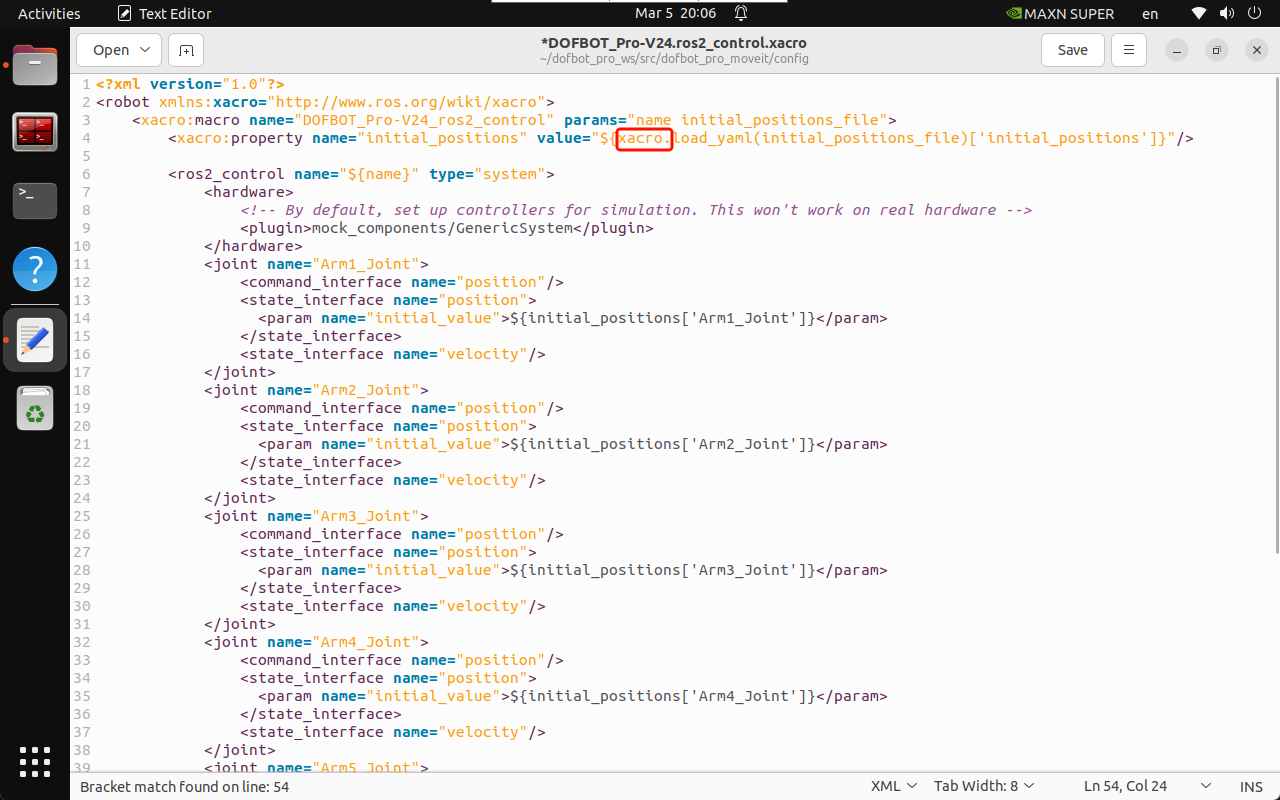

Modify the DOFBOT_Pro-V24.ros2_control.xacro file: modify the function of loading yaml

xxxxxxxxxx
load_yaml(initial_positions_file)['initial_positions']

xacro.load_yaml(initial_positions_file)['initial_positions']

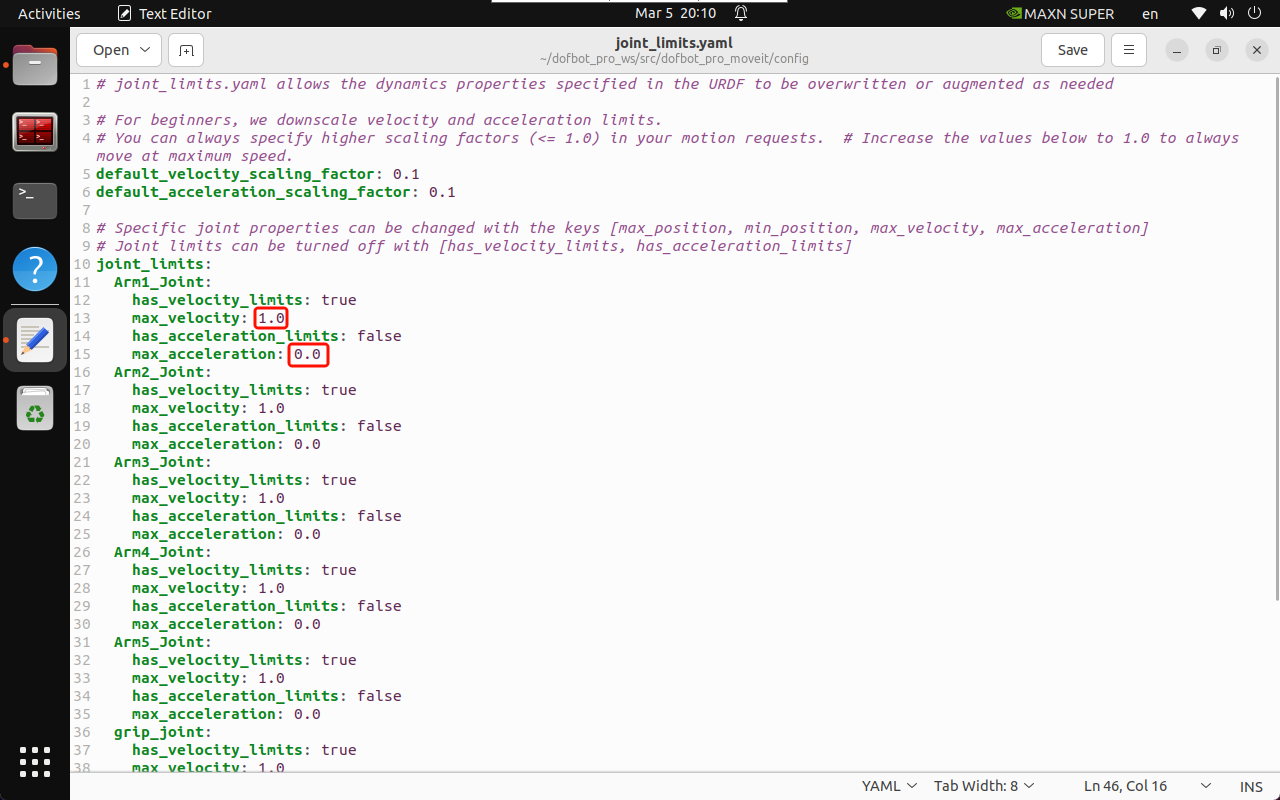

joint_limits.yaml

Modify the joint_limits.yaml file: change all joint maximum velocities and accelerations to decimals

4.2. Compile the software package

xxxxxxxxxx
cd ~/dofbot_pro_ws
colcon build --packages-select dofbot_pro_moveit
source install/setup.bash

4.3. Start MoveIt

xxxxxxxxxx

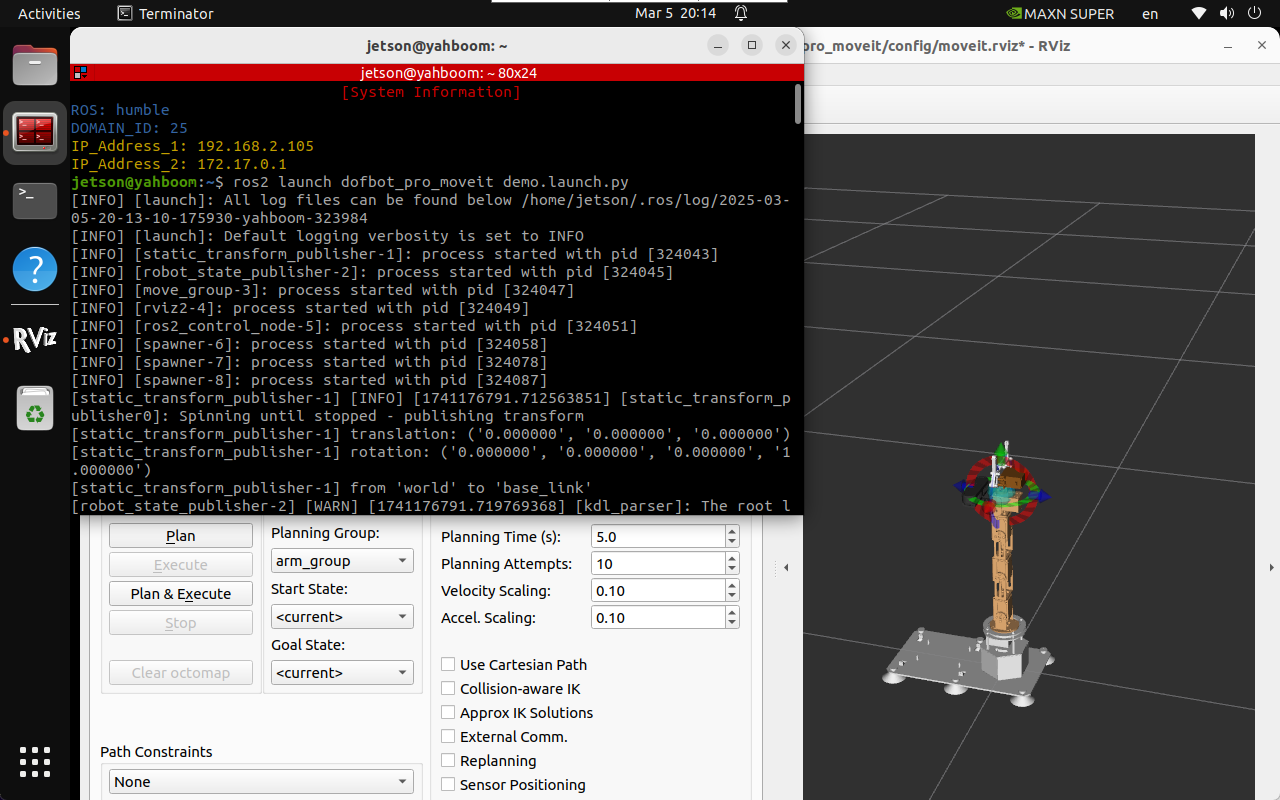

ros2 launch dofbot_pro_moveit demo.launch.py

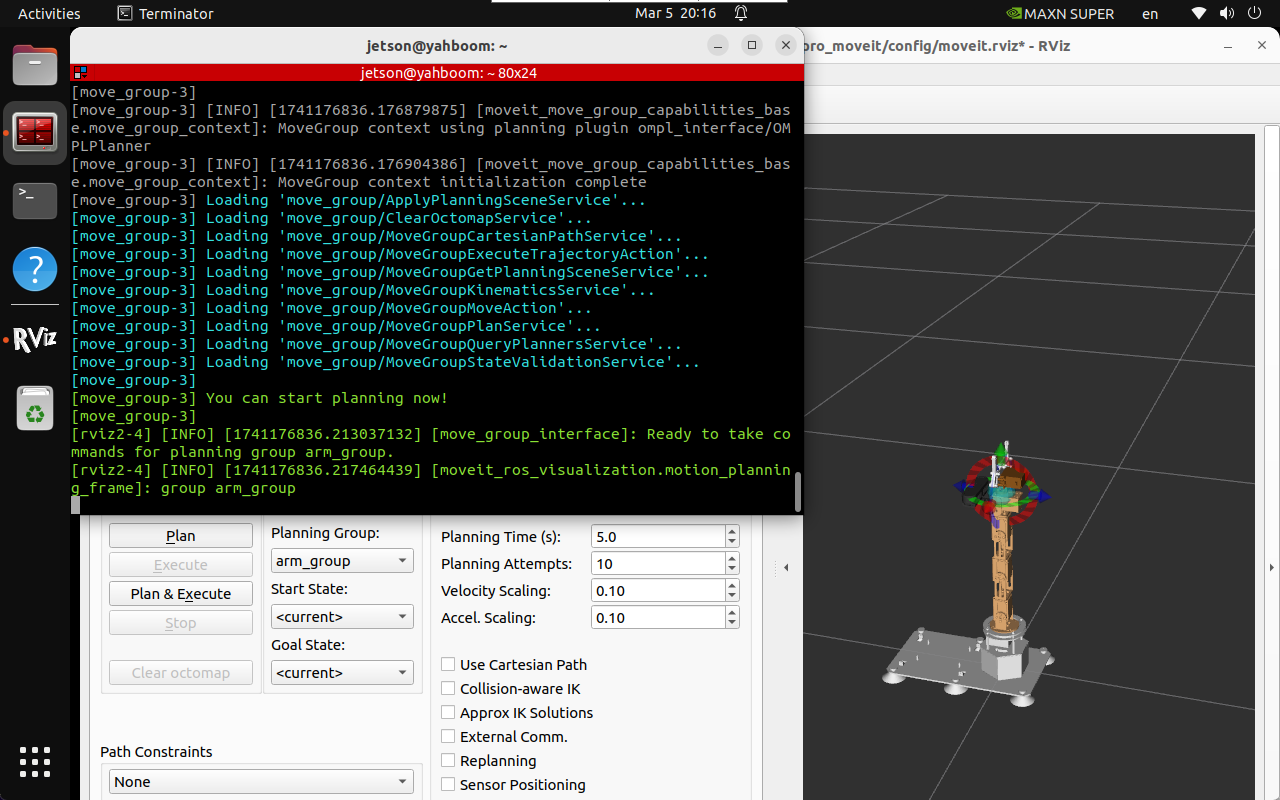

Starting the simulation is slow. Wait until the terminal displays You can start planning now! or the robot arm has a trackball (the trackball is a new sphere on the robot arm), indicating that the loading is complete.

References

MoveIt2 Humble：https://moveit.picknik.ai/humble/index.html

MoveIt2：https://moveit.picknik.ai/main/index.html
