3. Edge detection

3.1.OpenCV image edge detection

3.1.1. The purpose of image edge detection

Significantly reduce the data size of the image while retaining the original image attributes. There are currently many algorithms for edge detection. Although the Canny algorithm is old, it can be said that it is a standard algorithm for edge detection and is still widely used in research.

3.1.2.Canny edge detection algorithm

Among currently commonly used edge detection methods, the Canny edge detection algorithm is one of the methods that is strictly defined and can provide good and reliable detection. Because it has the advantages of meeting the three criteria of edge detection and being simple to implement, it has become one of the most popular algorithms for edge detection.

The Canny edge detection algorithm can be divided into the following 5 steps:

(1). Use Gaussian filter to smooth the image and filter out noise

(2). Calculate the gradient intensity and direction of each pixel in the image

(3). Apply non-maximum suppression to eliminate spurious responses caused by edge detection

(4). Apply double-threshold detection to determine real and potential edges

(5). Finally complete edge detection by suppressing isolated weak edges.

3.1.3. How do we implement it in OpenCV? It's very simple, divided into three steps

(1). Image grayscale: gray=cv2.cvtColor(img,cv2.COLOR_BGR2GRAY)

(2). Gaussian filtering (noise reduction processing) image: GaussianBlur (src, ksize, sigmaX [, dst [, sigmaY [, borderType]]]) -> dst

Parameter meaning:

src: input image, usually a grayscale image

ksize: Gaussian kernel size

sigmaX: Gaussian kernel standard deviation in the X direction

sigmaY: Gaussian kernel standard deviation in Y direction

dst: processed image

(3). The Canny method is used to process the image: edges=cv2.Canny(image, threshold1, threshold2[, apertureSize[, L2gradient]])

Parameter meaning:

edges: calculated edge image

image: The calculated edge image, usually the image obtained after Gaussian processing

threshold1: the first threshold in the process

threshold2: the second threshold during processing

apertureSize: aperture size of Sobel operator

L2gradient: The flag for calculating the gradient magnitude of the image. The default value is False. If True, the more accurate L2 norm is used for the calculation (that is, the sum of the squares of the derivatives in both directions and then the square root), otherwise the L1 norm is used (the absolute values of the derivatives in the two directions are directly added).

3.2 Actual effect display

Source code path:

/home/pi/DOGZILLA_Lite_class/4.Open Source CV/C.Image_Processing_Text_Drawing/03_Edge_Detection1.ipynb

/home/pi/Rider-pi_class/4.Open Source CV/C.Image_Processing_Text_Drawing/03_Edge_Detection2.ipynb

Method 1:

​x
import cv2
import numpy as np
import random
import matplotlib.pyplot as plt
​
img = cv2.imread('yahboom.jpg',1)
imgInfo = img.shape
height = imgInfo[0]
width = imgInfo[1]
#cv2.imshow('src',img)
#canny 1 gray 2 高斯 3 canny  canny 1 gray 2 gauss 3 canny
gray = cv2.cvtColor(img,cv2.COLOR_BGR2GRAY)
imgG = cv2.GaussianBlur(gray,(3,3),0)
dst = cv2.Canny(img,50,50) #图片卷积——》th Image convolution——》th
# cv2.imshow('dst',dst)
# cv2.waitKey(0)

xxxxxxxxxx

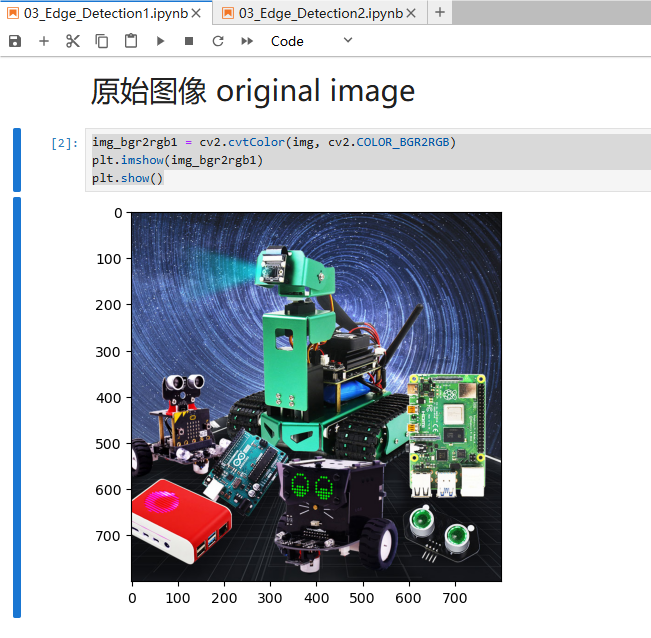

img_bgr2rgb1 = cv2.cvtColor(img, cv2.COLOR_BGR2RGB)
plt.imshow(img_bgr2rgb1)
plt.show()

xxxxxxxxxx

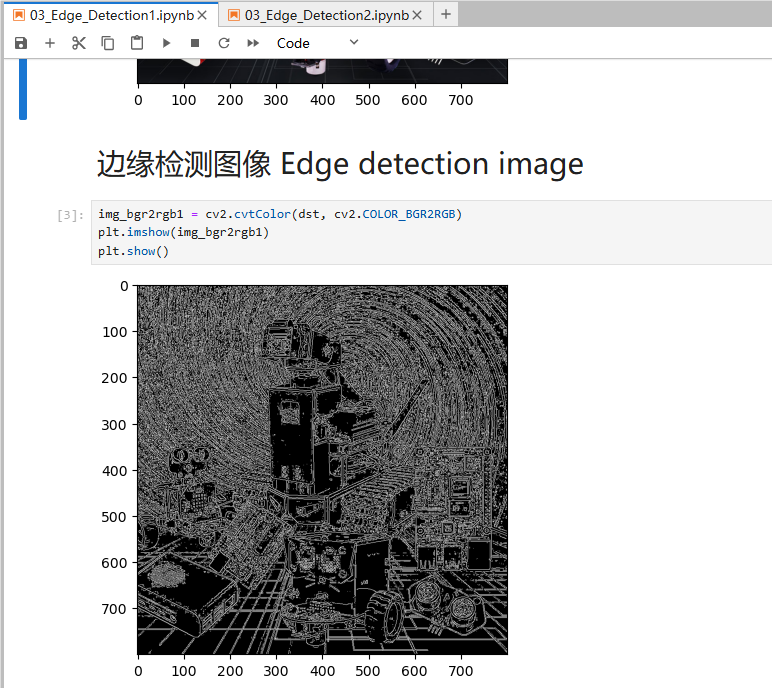

img_bgr2rgb1 = cv2.cvtColor(dst, cv2.COLOR_BGR2RGB)
plt.imshow(img_bgr2rgb1)
plt.show()

Method 2:

xxxxxxxxxx
import cv2
import numpy as np
import random
import math
img = cv2.imread('yahboom.jpg',1)
imgInfo = img.shape
height = imgInfo[0]
width = imgInfo[1]
# cv2.imshow('src',img)
# sobel 1 算子模版 2 图片卷积 3 阈值判决  sobel 1 operator template 2 image convolution 3 threshold decision
# [1 2 1          [ 1 0 -1
#  0 0 0            2 0 -2
# -1 -2 -1 ]       1 0 -1 ]

# [1 2 3 4] [a b c d] a*1+b*2+c*3+d*4 = dst
# sqrt(a*a+b*b) = f>th
gray = cv2.cvtColor(img,cv2.COLOR_BGR2GRAY)
dst = np.zeros((height,width,1),np.uint8)
for i in range(0,height-2):
    for j in range(0,width-2):
        gy = gray[i,j]*1+gray[i,j+1]*2+gray[i,j+2]*1-gray[i+2,j]*1-gray[i+2,j+1]*2-gray[i+2,j+2]*1
        gx = gray[i,j]+gray[i+1,j]*2+gray[i+2,j]-gray[i,j+2]-gray[i+1,j+2]*2-gray[i+2,j+2]
        grad = math.sqrt(gx*gx+gy*gy)
        if grad>50:
            dst[i,j] = 255
        else:
            dst[i,j] = 0
# cv2.imshow('dst',dst)
# cv2.waitKey(0)

xxxxxxxxxx

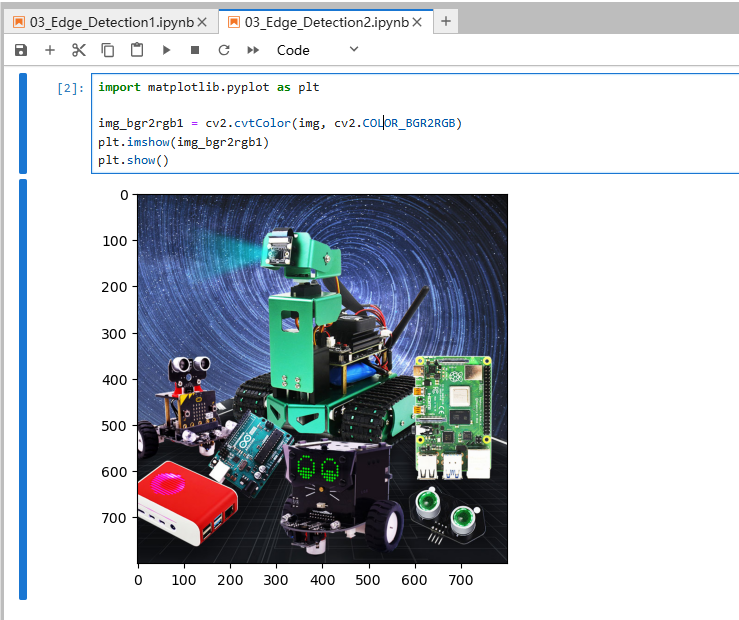

import matplotlib.pyplot as plt
​
img_bgr2rgb1 = cv2.cvtColor(img, cv2.COLOR_BGR2RGB)
plt.imshow(img_bgr2rgb1)
plt.show()

xxxxxxxxxx

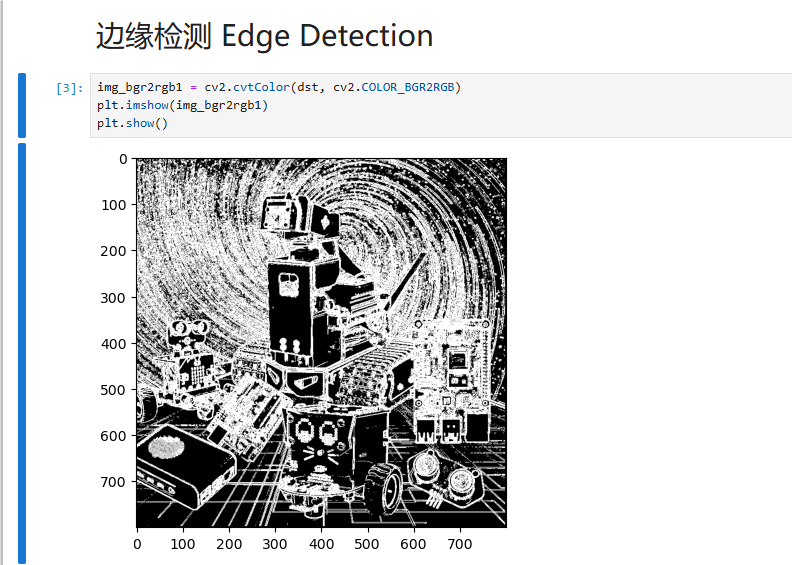

img_bgr2rgb1 = cv2.cvtColor(dst, cv2.COLOR_BGR2RGB)
plt.imshow(img_bgr2rgb1)
plt.show()
