myCobot 320 for M5
1 Profile

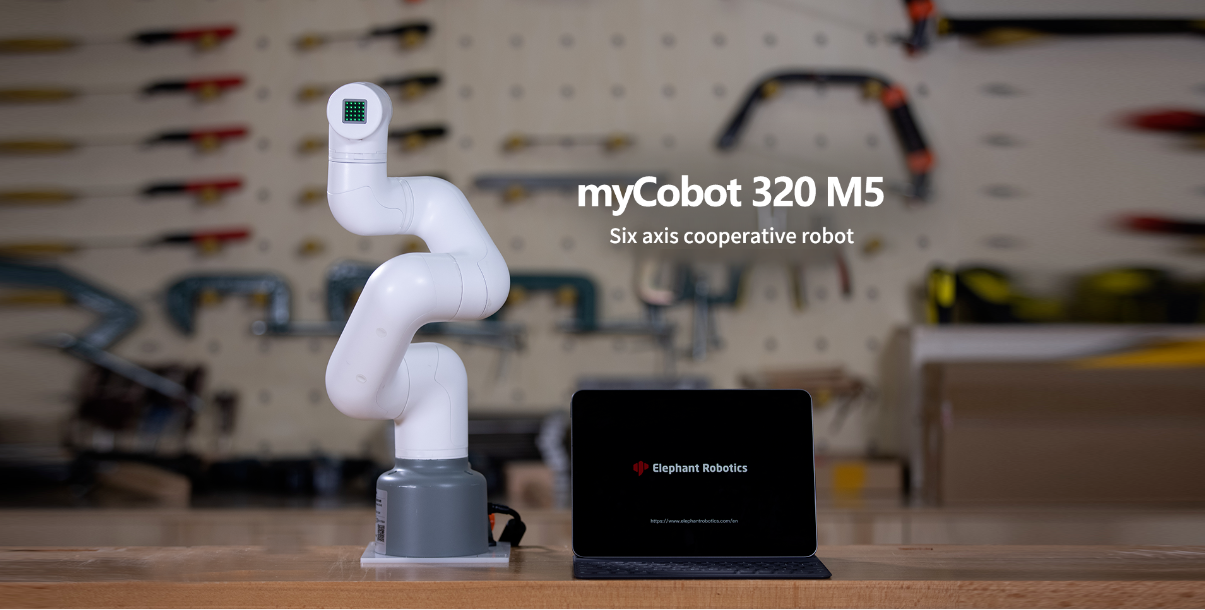

Updated from myCobot 280, myCobot 320 M5 is mainly developed for to assist users in program-editing. With delicate structure and all-in-one design, myCobot 320 has a maximum arm stretch of 350 mm, maximum load of 1 kg and repeated positioning precision of ±0.5mm.
myCobot 320 for M5 weights 3kg with a load of 1kg and working radius of 320mm. The small-sized product is endowed with powerful functions and is characterized by easy operation, ability to work with human safely.
2 Parameters
| Indicator | Parameter |
|---|---|
| Name | Baby elephant collaborative robot arm |
| Model | M5 |

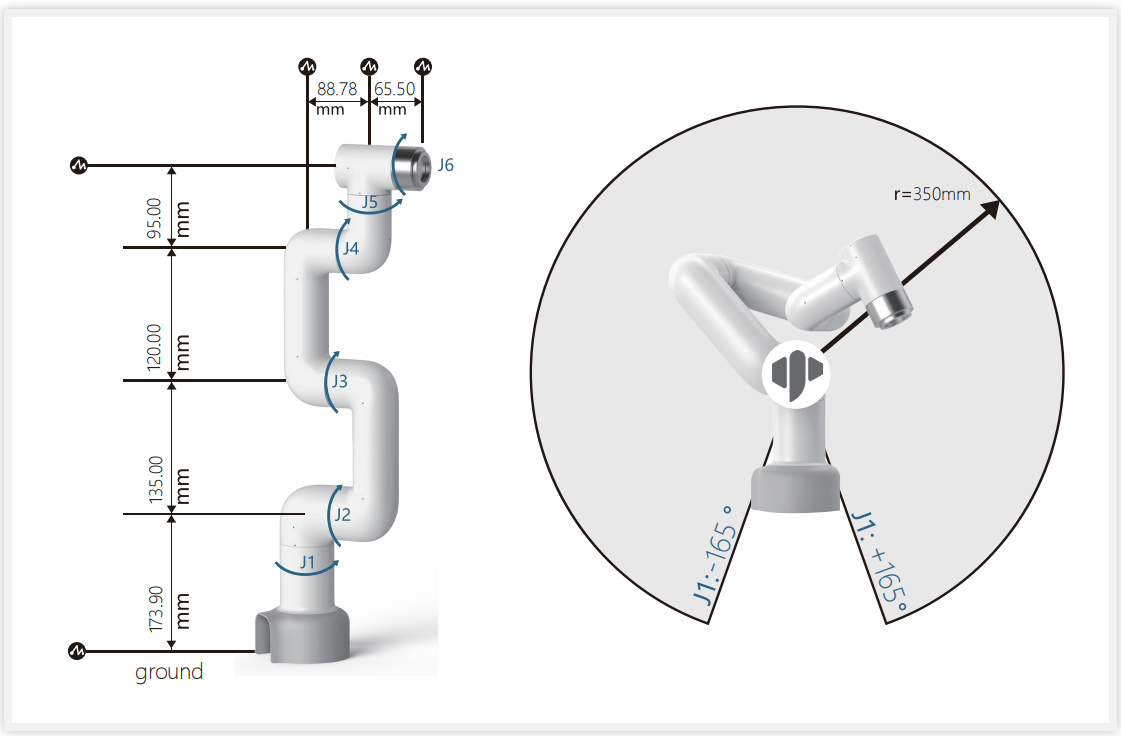

| Effective working radius | 350mm |
| Load | 1kg |
| Effective arms span | 350mm |
| Repeated positioning precision | ±0.5mm |
| Weight | 3kg |
| Power input | 24V,9.2A |
| Operational environment | 0°~45° |
| Communications | USB Type-C |
| Base IO | IN1,IN2,IN3,IN4,IN5,IN6 |
| Tool side IO | OUT1,OUT2,OUT3,OUT4,OUT5,OUT6 |
3 Features
Easy to operate and open-source
- Users can operate the robot via myBlockly and dragging teaching easily after quick-start learning.
- It supports the development systems, such as ROS and moveIt.
Economical and cost-effective
- It adopts a standardized 8-hour working system so as to replace human in doing repetitive and standard jobs.
- Worth over 10,000 RMB, it reduces costs and synergizes efforts for high-efficiency scientific research.
Powerful performance and equipped with two screens
- It adopts a brushless DC servo so as to realize repeated positioning precision of ±0.5mm.
- The body is equipped with two screens and supports M5 ecological applications, effectively expanding coordinative application.
On-in-all design and safe collaborative work
- With delicate structure, it optimizes space and integrates with application in a coordinated way.
- It also has kinematics self-interference detection, which can effectively avoid motion collisions.
4 Application
myCobot 320 M5 is not only a tool for production but also a tool to expand imagination boundary. It means it can work with multiple types of end effectors to adapt to a variety of application, such as scientific research, education and function showing, etc. The user experience is excellent.
