Window watchdog

Window watchdog1. Software-Hardware2. Brief principle1. Hardware schematic diagram2. Physical connection diagram3. Control principle3. Project configuration1. Description2. Pin configuration4. Main functionsHAL library function analysis5. Experimental phenomena

Demonstration in this tutorial: Combining onboard LEDs (LED1 and LED2) to demonstrate the Window Watchdog (WWDG) hardware fault detection function.

1. Software-Hardware

STM32F103CubeIDE
STM32 Robot Development Board
WWDG: chip internal peripherals
LED1, LED2: onboard
Type-C data cable or ST-Link
Download programs or simulate the development board

2. Brief principle

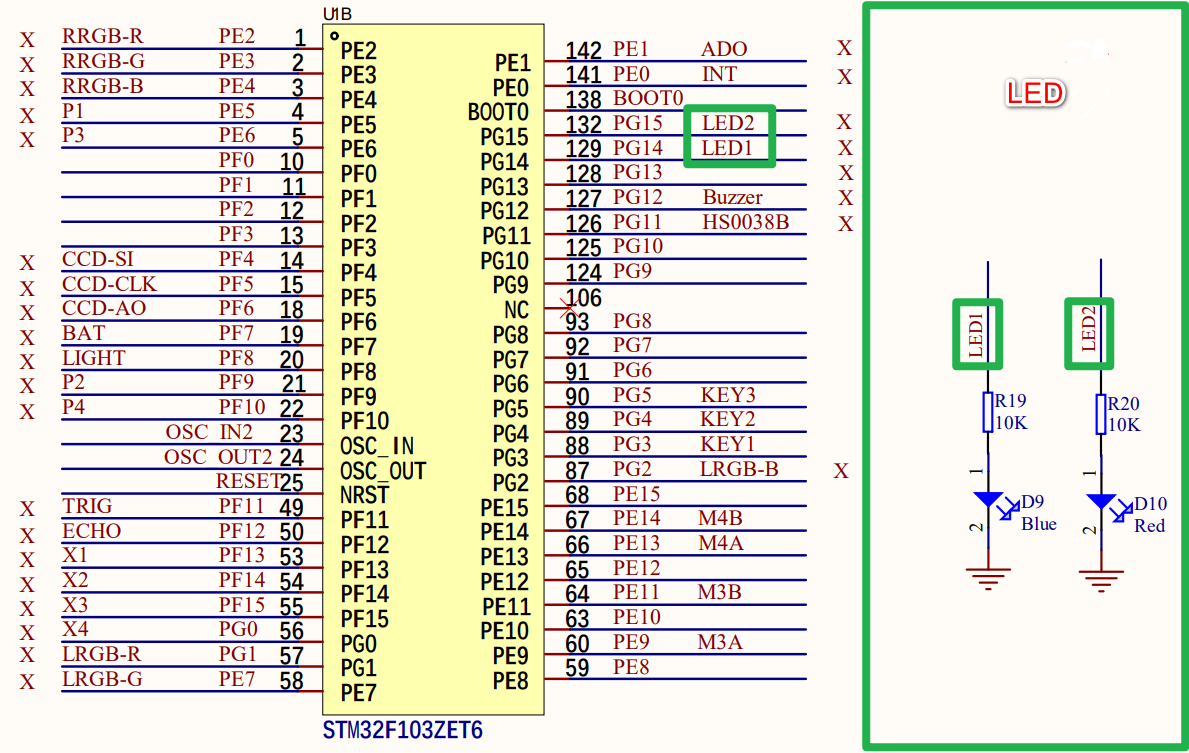

1. Hardware schematic diagram

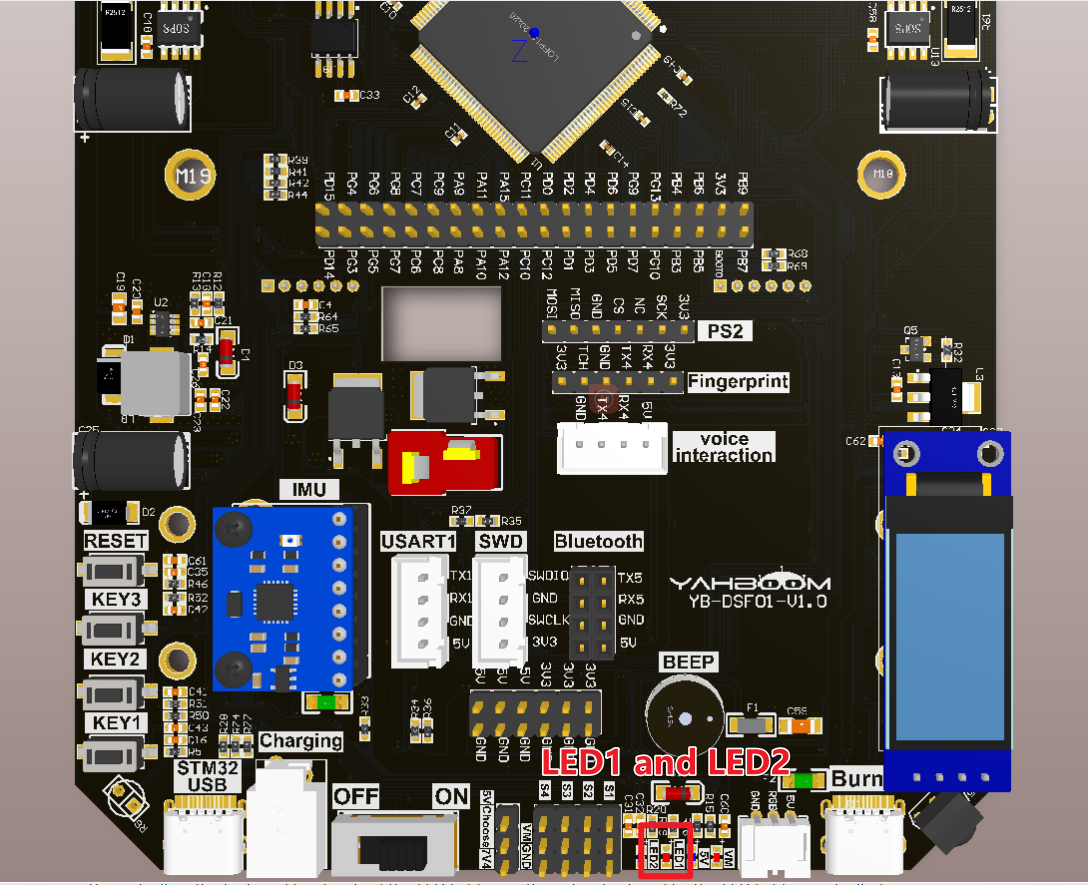

2. Physical connection diagram

3. Control principle

Use window watchdog to detect program running status.

GPIO output

By controlling the high and low levels of the LED light pins, the color displayed by the LED light is controlled.

LED: high level on, low level off

LED (schematic name)	Control pin	Function
LED1	PG14	Control LED1 on and off
LED2	PG15	Control LED2 on and off

Watchdog

STM32F103ZET6 has two built-in watchdogs (independent watchdog and window watchdog), which are mainly used for system fault detection and recovery.

Watchdog	Function
Independent Watchdog	Used to detect whether the system is running normally
Window Watchdog	Used to detect system failures

Window Watchdog

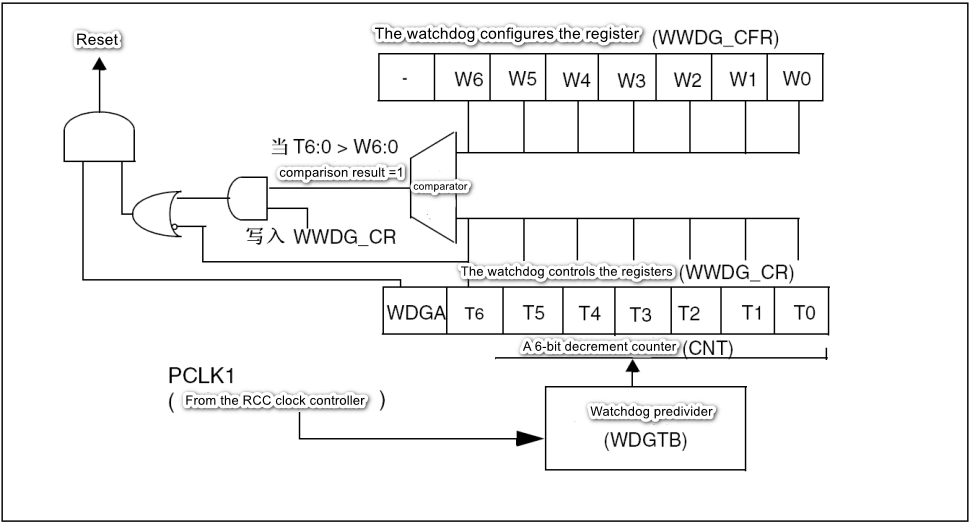

The window watchdog (WWDG) is driven by the clock obtained by dividing the APB1 clock and configures the time window to detect abnormal late or premature operations of the application.

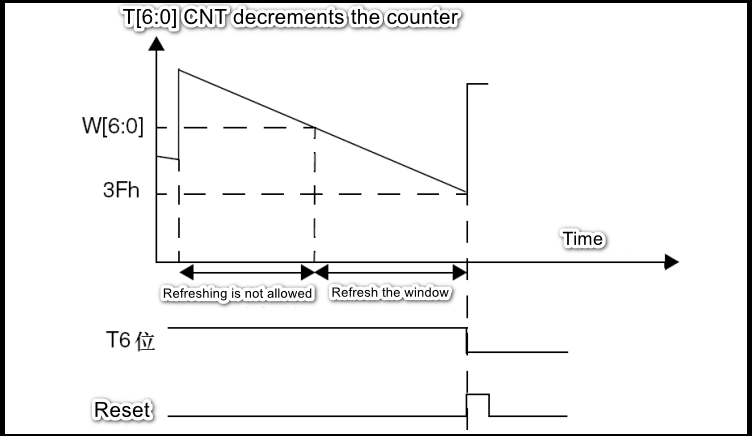

Window Watchdog	Status
When the count value > the upper limit of the window, feed the dog	Reset
When the upper limit of the window > the count value > the lower limit of the window, feed the dog	Do not reset
Count value < window lower limit value	Reset


xxxxxxxxxx
The main function of the window watchdog is to monitor the working status of the system and prevent deadlocks or infinite loops caused by software errors or unexpected events.

Independent watchdog feature
- Free running down counter
- conditional reset
  - When the down counter is reloaded outside the window, a reset is generated
  - When the value of the down counter is less than 0x40, a reset is generated
- If watchdog is enabled and interrupts are enabled
  - Early wake-up interrupt (EWI) is generated when the down counter equals 0x40, used to reload the counter to avoid WWDG reset

Window watchdog timeout: PCLK1=36MHz

WDGB	Minimum timeout	Maximum timeout
0	113us	7.28ms
1	227us	14.56ms
2	455us	29.12ms
3	910us	58.25ms


xxxxxxxxxx
The frequency division number set in the tutorial is 8, the window value is 5F, and the count value is 7F.

T_{W W D G (m s)} = T_{P C L K 1} * 4096 * 2^{W D G T B} * (T [5 : 0] + 1)

$T_{WWDG}$ : WWDG timeout time

$T_{PCLK1}$ : APB1 time interval in ms

Example: Counter decrement time (PCLK1=36MHz, frequency division number is 8)

T_{W W D G (m s)} = T_{P C L K 1} * 4096 * 2^{W D G T B} * (T [5 : 0] + 1) = \frac{1}{36000} * 4096 * 2^{3} * (1) = 0.910 m s

3. Project configuration

Project configuration: Prompt configuration options during STM32CubeIDE project configuration

1. Description

Omitted project configuration part: New project, chip selection, project configuration, SYS of pin configuration, RCC configuration, clock configuration and project configuration content

The project configuration part that is not omitted is the key point that needs to be configured in this tutorial.


xxxxxxxxxx
Please refer to [2. Development environment construction and use: STM32CubeIDE installation and use] to understand how to configure the omitted parts of the project.

2. Pin configuration

Configure specified pin function

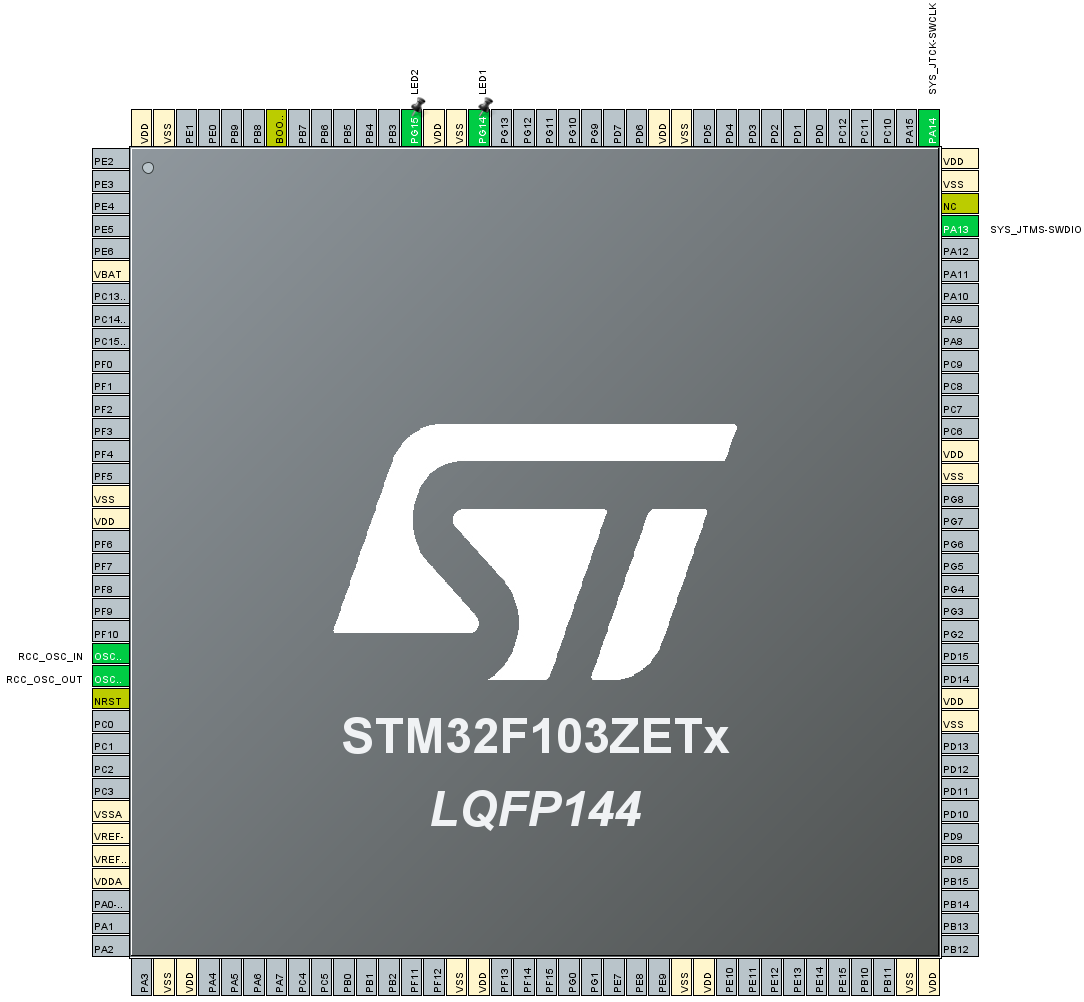

You can directly select the corresponding pin number in the pin view, and the corresponding options will appear when you left-click the mouse.

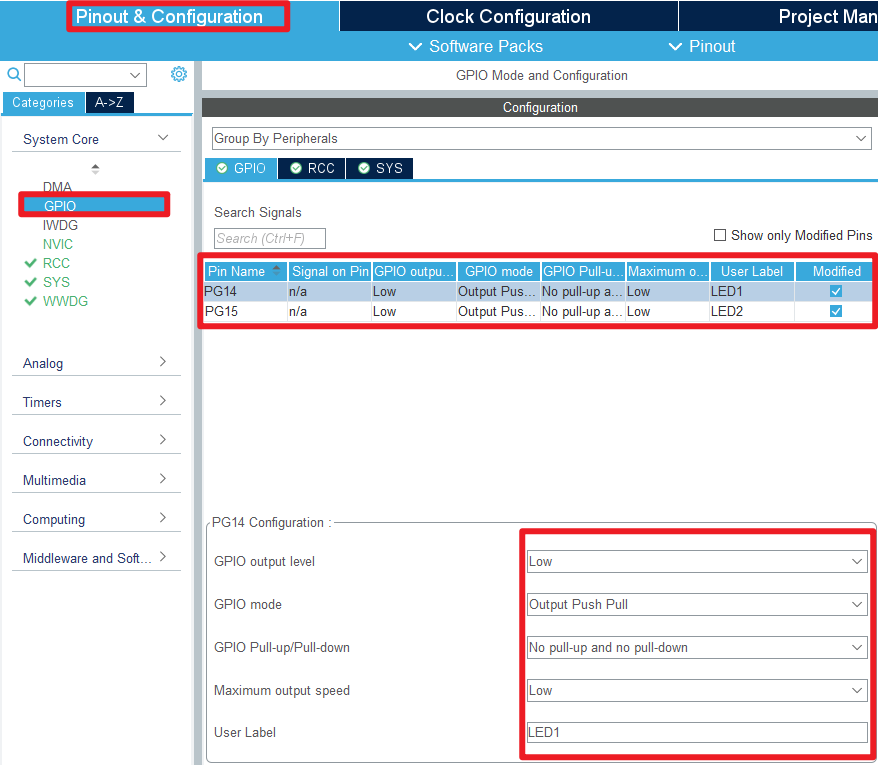

GPIO

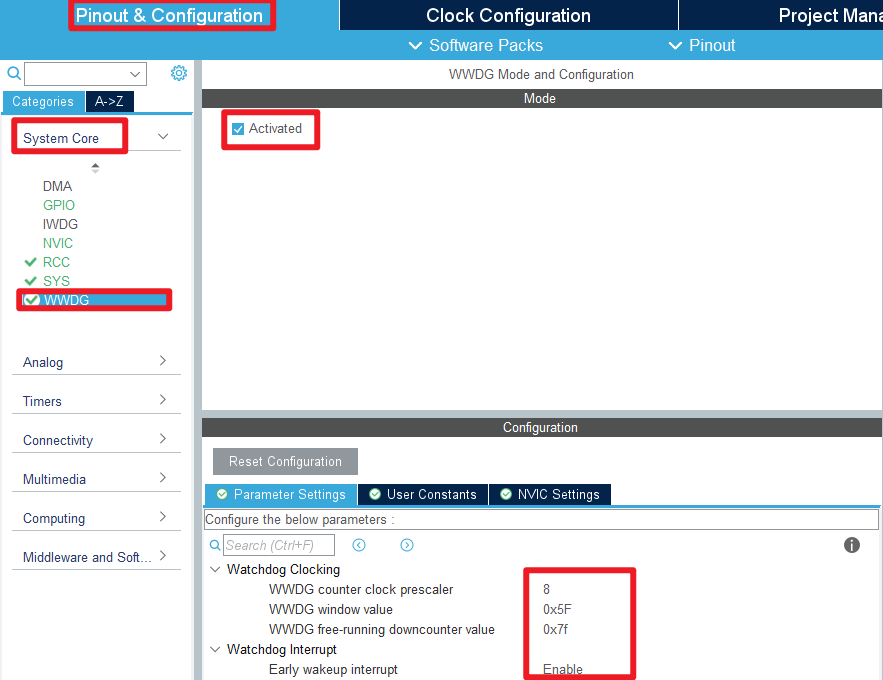

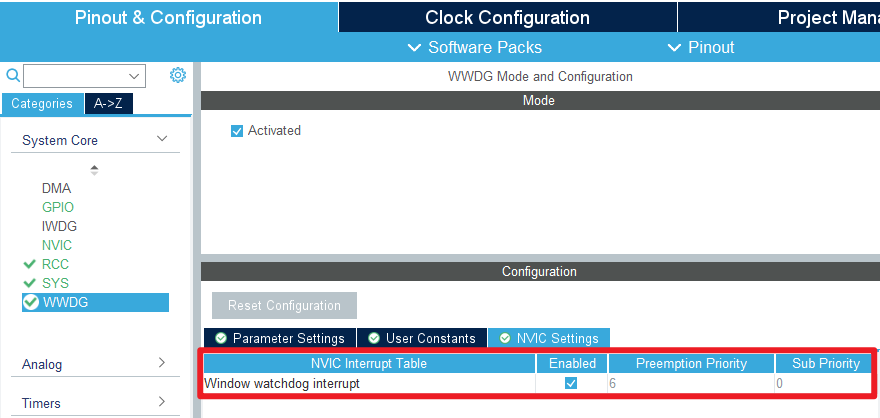

WWDG

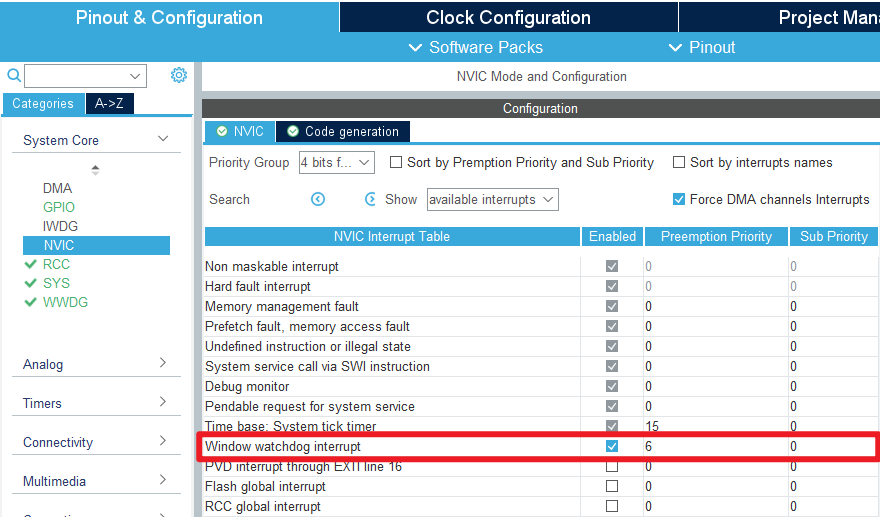

NVIC

Modify interrupt priority

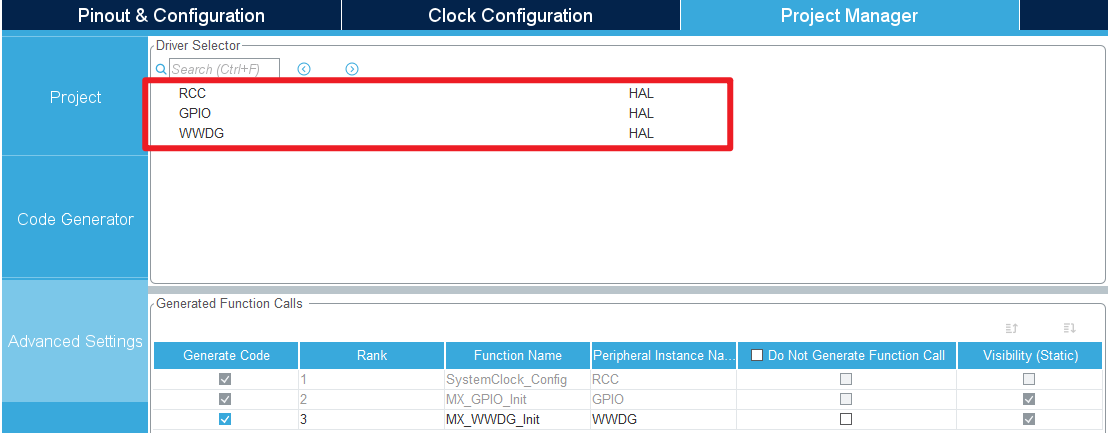

Advanced Settings

Generate code

4. Main functions

It mainly introduces the functional code written by the user. For detailed code, you can open the project file provided by us yourself and enter the Bsp folder to view the source code. **

HAL library function analysis

The HAL library functions that have been introduced in the previous tutorial will not be introduced again in the tutorial!


xxxxxxxxxx
If you want to find the HAL library and LL library function analysis involved in the entire tutorial, you can view the documents in the folder [8. STM32 Manual: STM32F1_HAL Library and LL Library_User Manual]

Function: HAL_WWDG_Init

Function prototype	HAL_StatusTypeDef HAL_WWDG_Init(WWDG_HandleTypeDef *hwwdg)
Function description	Initialize WWDG peripheral parameters
Input parameters	hwwdg: WWDG handle address
Return value	HAL status value: HAL_OK, HAL_ERROR, HAL_BUSY, HAL_TIMEOUT

Function: HAL_WWDG_MspInit

Function prototype	void HAL_WWDG_MspInit(WWDG_HandleTypeDef* wwdgHandle)
Function description	Initialize the clock and NVIC of WWDG peripherals
Input parameters	wwdgHandle: WWDG handle address
Return value	None

Function: HAL_WWDG_IRQHandler

Function prototype	void HAL_WWDG_IRQHandler(WWDG_HandleTypeDef *hwwdg)
Function description	WWDG interrupt handling function
Input parameters	hwwdg: WWDG handle address
Return value	None

Function: HAL_WWDG_Refresh

Function prototype	HAL_StatusTypeDef HAL_WWDG_Refresh(WWDG_HandleTypeDef *hwwdg)
Function description	Refresh WWDG (feed the dog)
Input parameters	hwwdg: WWDG handle address
Return value	HAL status value: HAL_OK, HAL_ERROR, HAL_BUSY, HAL_TIMEOUT

Function: HAL_WWDG_EarlyWakeupCallback

Function prototype	void HAL_WWDG_EarlyWakeupCallback(WWDG_HandleTypeDef *hwwdg)
Function description	Window watchdog wake-up interrupt processing callback function
Input parameters	hwwdg: WWDG handle address
Return value	None

5. Experimental phenomena

After downloading the program successfully, press the RESET button of the development board and observe the development board phenomenon!


xxxxxxxxxx
For program download, please refer to [2. Development environment construction and use: program download and simulation]

Phenomenon:

Feed the dog: LED2 goes off, LED1 flashes

The dog is not fed: LED1 goes out and LED2 flashes, indicating that the hardware watchdog is abnormal.


For experimental phenomena, you can see [Window Watchdog_Experimental Phenomenon.mp4]
