8.Trajectory planning

1. Start up

Start MoveIT

roslaunch dofbot_config demo.launch

Start trajectory planning node

xxxxxxxxxx
rosrun dofbot_moveit 06_multi_track_motion

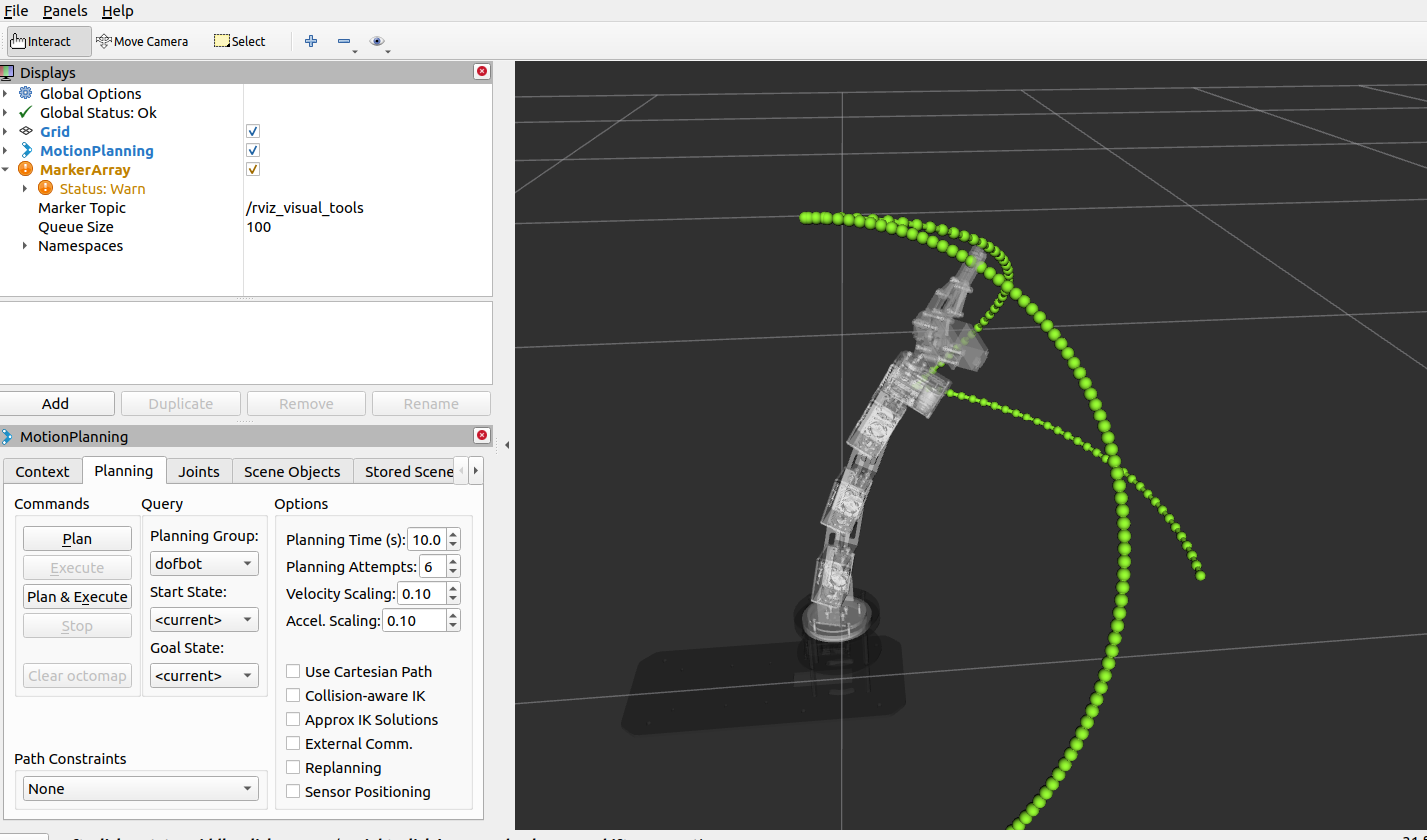

To view the trajectory, you need to add the [MarkerArray] plug-in and select the [/rviz_visual_tools] topic.

Given three reachable target points of the robotic arm, MoveIT will plan three feasible trajectories based on the target points, and then merge the three trajectories into one continuous trajectory.

2. Code

Set three reachable target points (you can have several target points, they must be reachable).

xxxxxxxxxx
    vector<vector<double>> poses{
            {1.34,  -1.0,  -0.61, 0.2,   0},
            {0,     0,     0,     0,     0},
            {-1.16, -0.97, -0.81, -0.79, 3.14}
    };
    for (int i = 0; i < poses.size(); ++i) {
        multi_trajectory(yahboomcar, poses.at(i), trajectory);
    }

Plan each trajectory

x
void multi_trajectory(
        moveit::planning_interface::MoveGroupInterface &yahboomcar,
        const vector<double> &pose, moveit_msgs::RobotTrajectory &trajectory) {
    moveit::planning_interface::MoveGroupInterface::Plan plan;
    const robot_state::JointModelGroup *joint_model_group;
    // Get the starting position of the robot
    moveit::core::RobotStatePtr start_state(yahboomcar.getCurrentState());
    joint_model_group = start_state->getJointModelGroup(yahboomcar.getName());
    yahboomcar.setJointValueTarget(pose);
    yahboomcar.plan(plan);
    start_state->setJointGroupPositions(joint_model_group, pose);
    yahboomcar.setStartState(*start_state);
    trajectory.joint_trajectory.joint_names = plan.trajectory_.joint_trajectory.joint_names;
    for (size_t j = 0; j < plan.trajectory_.joint_trajectory.points.size(); j++) {
        trajectory.joint_trajectory.points.push_back(plan.trajectory_.joint_trajectory.points[j]);
    }
}

Trajectory merge

xxxxxxxxxx
    moveit::planning_interface::MoveGroupInterface::Plan joinedPlan;
    robot_trajectory::RobotTrajectory rt(yahboomcar.getCurrentState()->getRobotModel(), "arm_group");
    rt.setRobotTrajectoryMsg(*yahboomcar.getCurrentState(), trajectory);
    trajectory_processing::IterativeParabolicTimeParameterization iptp;
    iptp.computeTimeStamps(rt, 1, 1);
    rt.getRobotTrajectoryMsg(trajectory);
    joinedPlan.trajectory_ = trajectory;

Track display

x
    moveit_visual_tools::MoveItVisualTools tool(yahboomcar.getPlanningFrame());
    tool.deleteAllMarkers();
    /*
     ...
    */
    // Show track
    tool.publishTrajectoryLine(joinedPlan.trajectory_, yahboomcar.getCurrentState()->getJointModelGroup("arm_group"));
    tool.trigger();

Execute trajectory planning

xxxxxxxxxx
    if (!yahboomcar.execute(joinedPlan)) {
        ROS_ERROR("Failed to execute plan");
        return false;
    }
