Release speed topic

1. Experimental purpose

Learn ESP32-microROS components, access the ROS2 environment, and publish the topic of odom speed of robot cars.

2. Hardware connection

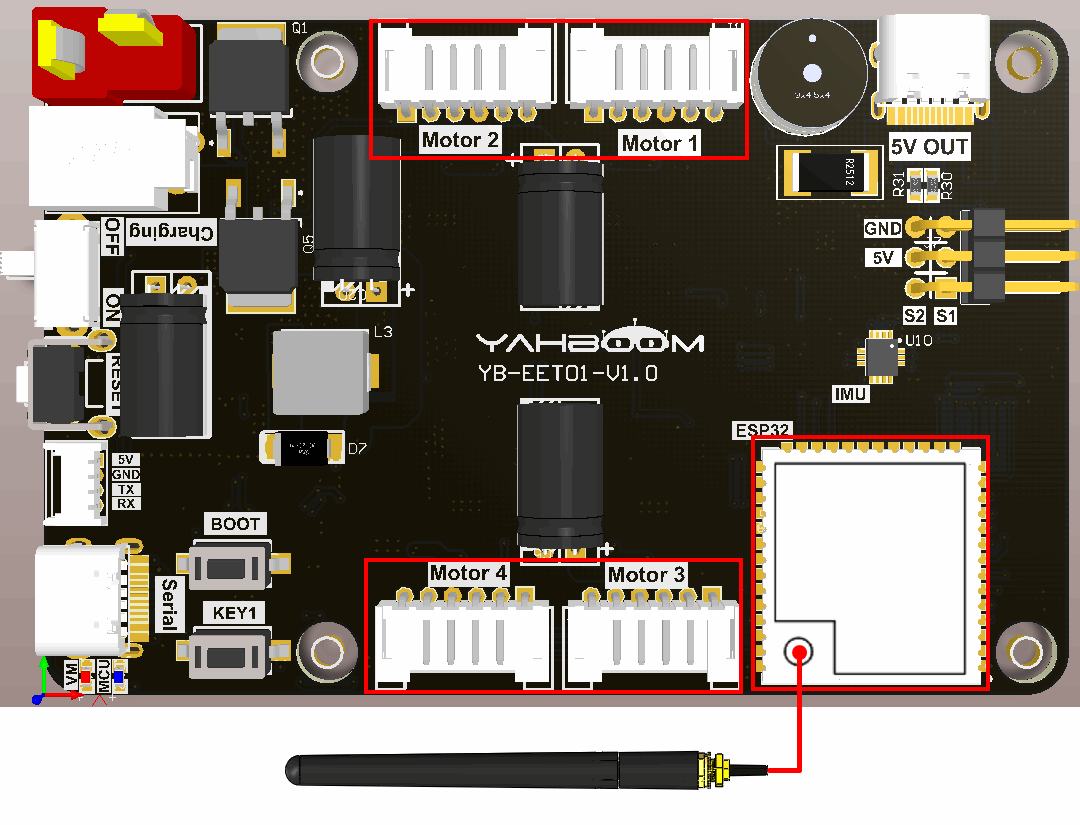

As shown in the figure below, the microROS control board integrates the ESP32-S3-WROOM core module with its own wireless WiFi function. The ESP32-S3 core module needs to be connected to the antenna, and then the four-way motors are connected to the motor interface. The type -C data cable connects the computer and microROS control board for firmware burning function.

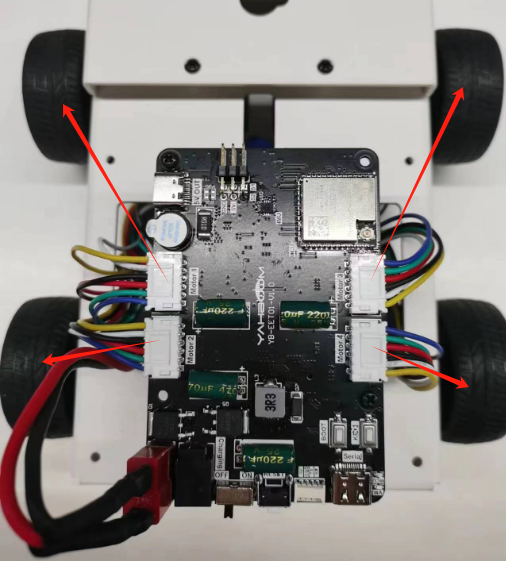

The corresponding names of the four motor interfaces are: left front wheel->Motor1, left rear wheel->Motor2, right front wheel->Motor3, right rear wheel->Motor4.

Motor interface line sequence, there is a detailed line sequence silk screen on the back of the microROS control board. Here we take Motor1 as an example. M1+ and M1- are the interfaces for controlling the rotation of the motor. GND and VCC are the power supply circuits of the encoder. H1A and H1B are the encoder pulses. detection pin.

Note: If you are using the 310 motor and motor cable provided by Yabo Intelligence, connect the white wire shell end to the interface on the microROS control board, and the black wire shell end to the 310 motor interface.

3. Core code analysis

The virtual machine path corresponding to the program source code is as follows

x
~/esp/Samples/microros_samples/odom_publisher

Based on twist_subscriber's subscription speed function, the function of publishing odom speed topics is added.

Initialize the odom information of the publishing speed, set the frame_id to "odom_frame", set the child_frame_id to "base_footprint", and then decide whether to add the ROS_NAMESPACE prefix based on whether ROS_NAMESPACE is empty.

xxxxxxxxxx
void odom_ros_init(void)
{
    char* content_frame_id = "odom_frame";
    char* content_child_frame_id = "base_footprint";
    int len_namespace = strlen(ROS_NAMESPACE);
    int len_frame_id_max = len_namespace + strlen(content_frame_id) + 2;
    int len_child_frame_id_max = len_namespace + strlen(content_child_frame_id) + 2;
    char* frame_id = malloc(len_frame_id_max);
    char* child_frame_id = malloc(len_child_frame_id_max);
    if (len_namespace == 0)
    {
        // ROS命名空间为空字符
        // The ROS namespace is empty characters
        sprintf(frame_id, "%s", content_frame_id);
        sprintf(child_frame_id, "%s", content_child_frame_id);
    }
    else
    {
        // 拼接命名空间和frame id
        // Concatenate the namespace and frame id
        sprintf(frame_id, "%s/%s", ROS_NAMESPACE, content_frame_id);
        sprintf(child_frame_id, "%s/%s", ROS_NAMESPACE, content_child_frame_id);
    }
    msg_odom.header.frame_id = micro_ros_string_utilities_set(msg_odom.header.frame_id, frame_id);
    msg_odom.child_frame_id = micro_ros_string_utilities_set(msg_odom.child_frame_id, child_frame_id);
    free(frame_id);
    free(child_frame_id);
}

Get the WiFi name and password to connect from the IDF configuration tool.

xxxxxxxxxx
#define ESP_WIFI_SSID      CONFIG_ESP_WIFI_SSID
#define ESP_WIFI_PASS      CONFIG_ESP_WIFI_PASSWORD
#define ESP_MAXIMUM_RETRY  CONFIG_ESP_MAXIMUM_RETRY

The uros_network_interface_initialize function will connect to WiFi hotspots based on the WiFi configuration in IDF.

xxxxxxxxxx
ESP_ERROR_CHECK(uros_network_interface_initialize());

Then obtain ROS_NAMESPACE, ROS_DOMAIN_ID, ROS_AGENT_IP and ROS_AGENT_PORT from the IDF configuration tool.

xxxxxxxxxx
#define ROS_NAMESPACE      CONFIG_MICRO_ROS_NAMESPACE
#define ROS_DOMAIN_ID      CONFIG_MICRO_ROS_DOMAIN_ID
#define ROS_AGENT_IP       CONFIG_MICRO_ROS_AGENT_IP
#define ROS_AGENT_PORT     CONFIG_MICRO_ROS_AGENT_PORT

Initialize the configuration of microROS, in which ROS_DOMAIN_ID, ROS_AGENT_IP and ROS_AGENT_PORT are modified in the IDF configuration tool according to actual needs.

​x
    rcl_allocator_t allocator = rcl_get_default_allocator();
    rclc_support_t support;

    // 创建rcl初始化选项
    // Create init_options.
    rcl_init_options_t init_options = rcl_get_zero_initialized_init_options();
    RCCHECK(rcl_init_options_init(&init_options, allocator));
    // 修改ROS域ID
    // change ros domain id
    RCCHECK(rcl_init_options_set_domain_id(&init_options, ROS_DOMAIN_ID));

    // 初始化rmw选项
    // Initialize the rmw options
    rmw_init_options_t *rmw_options = rcl_init_options_get_rmw_init_options(&init_options);

    // 设置静态代理IP和端口
    // Setup static agent IP and port
    RCCHECK(rmw_uros_options_set_udp_address(ROS_AGENT_IP, ROS_AGENT_PORT, rmw_options));

Try to connect to the proxy. If the connection is successful, go to the next step. If the connection to the proxy is unsuccessful, you will always be in the connected state.

xxxxxxxxxx
    while (1)
    {
        ESP_LOGI(TAG, "Connecting agent: %s:%s", ROS_AGENT_IP, ROS_AGENT_PORT);
        state_agent = rclc_support_init_with_options(&support, 0, NULL, &init_options, &allocator);
        if (state_agent == ESP_OK)
        {
            ESP_LOGI(TAG, "Connected agent: %s:%s", ROS_AGENT_IP, ROS_AGENT_PORT);
            break;
        }
        vTaskDelay(pdMS_TO_TICKS(500));
    }

Create the node "odom_publisher", in which ROS_NAMESPACE is empty by default and can be modified in the IDF configuration tool according to actual conditions.

xxxxxxxxxx
    rcl_node_t node;
    RCCHECK(rclc_node_init_default(&node, "odom_publisher", ROS_NAMESPACE, &support));

To create the publisher "odom_raw", you need to specify the publisher information as nav_msgs/msg/Odometry type.

xxxxxxxxxx
    RCCHECK(rclc_publisher_init_default(
        &publisher_odom,
        &node,
        ROSIDL_GET_MSG_TYPE_SUPPORT(nav_msgs, msg, Odometry),
        "odom_raw"));

Create a timer for the publisher with a publishing frequency of 20HZ.

xxxxxxxxxx
    const unsigned int timer_timeout = 50;
    RCCHECK(rclc_timer_init_default(
        &timer_odom,
        &support,
        RCL_MS_TO_NS(timer_timeout),
        timer_odom_callback));

Create an executor, where the three parameters are the numbers controlled by the executor, which should be greater than or equal to the number of subscribers and publishers added to the executor. and add the publisher's timer to the executor.

xxxxxxxxxx
    rclc_executor_t executor;
    int handle_num = 2;
    RCCHECK(rclc_executor_init(&executor, &support.context, handle_num, &allocator));

    RCCHECK(rclc_executor_add_timer(&executor, &timer_odom));
    RCCHECK(rclc_executor_add_subscription(
        &executor,
        &twist_subscriber,
        &twist_msg,
        &twist_Callback,
        ON_NEW_DATA));

The main function of odom's timer callback function is to update odom data and send the data.

xxxxxxxxxx
void timer_odom_callback(rcl_timer_t *timer, int64_t last_call_time)
{
    RCLC_UNUSED(last_call_time);
    if (timer != NULL)
    {
        struct timespec time_stamp = get_timespec();
        unsigned long now = get_millisecond();
        float vel_dt = (now - prev_odom_update) / 1000.0;
        prev_odom_update = now;
        Motion_Get_Speed(&car_motion);
        odom_update(
            vel_dt,
            car_motion.Vx,
            car_motion.Vy,
            car_motion.Wz);
        msg_odom.header.stamp.sec = time_stamp.tv_sec;
        msg_odom.header.stamp.nanosec = time_stamp.tv_nsec;
        RCSOFTCHECK(rcl_publish(&publisher_odom, &msg_odom, NULL));
    }
}

The speed read from the robot car, and the odom information is updated based on the car speed.

xxxxxxxxxx
void odom_update(float vel_dt, float linear_vel_x, float linear_vel_y, float angular_vel_z)
{
    float delta_heading = angular_vel_z * vel_dt; // radians
    float cos_h = cos(heading_);
    float sin_h = sin(heading_);
    float delta_x = (linear_vel_x * cos_h - linear_vel_y * sin_h) * vel_dt; // m
    float delta_y = (linear_vel_x * sin_h + linear_vel_y * cos_h) * vel_dt; // m

    // calculate current position of the robot
    x_pos_ += delta_x;
    y_pos_ += delta_y;
    heading_ += delta_heading;

    // calculate robot's heading in quaternion angle
    // ROS has a function to calculate yaw in quaternion angle
    float q[4];
    odom_euler_to_quat(0, 0, heading_, q);

    // robot's position in x,y, and z
    msg_odom.pose.pose.position.x = x_pos_;
    msg_odom.pose.pose.position.y = y_pos_;
    msg_odom.pose.pose.position.z = 0.0;

    // robot's heading in quaternion
    msg_odom.pose.pose.orientation.x = (double)q[1];
    msg_odom.pose.pose.orientation.y = (double)q[2];
    msg_odom.pose.pose.orientation.z = (double)q[3];
    msg_odom.pose.pose.orientation.w = (double)q[0];

    msg_odom.pose.covariance[0] = 0.001;
    msg_odom.pose.covariance[7] = 0.001;
    msg_odom.pose.covariance[35] = 0.001;

    // linear speed from encoders
    msg_odom.twist.twist.linear.x = linear_vel_x;
    msg_odom.twist.twist.linear.y = linear_vel_y;
    msg_odom.twist.twist.linear.z = 0.0;

    // angular speed from encoders
    msg_odom.twist.twist.angular.x = 0.0;
    msg_odom.twist.twist.angular.y = 0.0;
    msg_odom.twist.twist.angular.z = angular_vel_z;

    msg_odom.twist.covariance[0] = 0.0001;
    msg_odom.twist.covariance[7] = 0.0001;
    msg_odom.twist.covariance[35] = 0.0001;
}

Call rclc_executor_spin_some in the loop to make microros work normally.

xxxxxxxxxx
    while (1)
    {
        rclc_executor_spin_some(&executor, RCL_MS_TO_NS(100));
        usleep(1000);
    }

4. Compile, download and flash firmware

Use a Type-C data cable to connect the virtual machine/computer and the microROS control board. If the system pops up, choose to connect to the virtual machine.

Activate the ESP-IDF development environment. Note that every time you open a new terminal, you need to activate the ESP-IDF development environment before compiling the firmware.

xxxxxxxxxx
source ~/esp/esp-idf/export.sh

Enter the project directory

xxxxxxxxxx
cd ~/esp/Samples/microros_samples/odom_publisher

Open the ESP-IDF configuration tool.

xxxxxxxxxx
idf.py menuconfig

Open micro-ROS Settings, fill in the IP address of the agent host in micro-ROS Agent IP, and fill in the port number of the agent host in micro-ROS Agent Port.

Open micro-ROS Settings->WiFi Configuration in sequence, and fill in your own WiFi name and password in the WiFi SSID and WiFi Password fields.

Open the micro-ROS example-app settings. The Ros domain id of the micro-ROS defaults to 20. If multiple users are using it at the same time in the LAN, the parameters can be modified to avoid conflicts. Ros namespace of the micro-ROS is empty by default and does not need to be modified under normal circumstances. If non-empty characters (within 10 characters) are modified, the namespace parameter will be added before the node and topic.

After modification, press S to save, and then press Q to exit the configuration tool.

Compile, flash, and open the serial port simulator.

xxxxxxxxxx
idf.py build flash monitor

If you need to exit the serial port simulator, press Ctrl+].

5. Experimental results

After powering on, ESP32 tries to connect to the WiFi hotspot, and then tries to connect to the proxy IP and port.

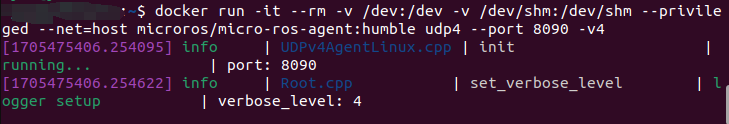

If the agent is not turned on in the virtual machine/computer terminal, please enter the following command to turn on the agent. If the agent is already started, there is no need to start the agent again.

xxxxxxxxxx
docker run -it --rm -v /dev:/dev -v /dev/shm:/dev/shm --privileged --net=host microros/micro-ros-agent:humble udp4 --port 8090 -v4

After the connection is successful, a node, a publisher and a subscriber are created.

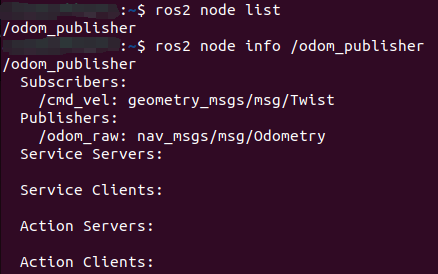

At this time, you can open another terminal in the virtual machine/computer and view the /odom_publisher node.

xxxxxxxxxx
ros2 node list
ros2 node info /odom_publisher

Publish data to the /cmd_vel topic and control the robot car to walk forward at 0.5m/s.

xxxxxxxxxx
ros2 topic pub --once /cmd_vel geometry_msgs/msg/Twist "{linear: {x: 0.5, y: 0.0, z: 0.0}, angular: {x: 0.0, y: 0.0, z: 0.0}}"

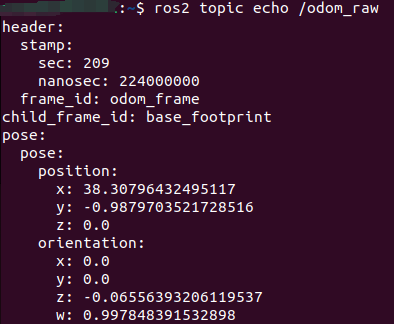

Subscribe to the data of the /odom_raw topic,

xxxxxxxxxx
ros2 topic echo /odom_raw

Press Ctrl+C to end the command

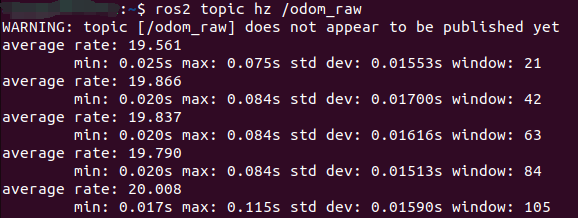

Check the frequency of the /odom_raw topic. It is normal if it is about 20hz.

xxxxxxxxxx
ros2 topic hz /odom_raw

Press Ctrl+C to end the command

Publish data to the /cmd_vel topic and control the robot car to stop.

xxxxxxxxxx
ros2 topic pub --once /cmd_vel geometry_msgs/msg/Twist "{linear: {x: 0.0, y: 0.0, z: 0.0}, angular: {x: 0.0, y: 0.0, z: 0.0}}"
