1 How to use the Astra camera

Official website link: http://www.orbbec.com.cn/

Developer Community: https://developer.orbbec.com.cn/

Astra Camera: https://github.com/orbbec/ros_astra_camera

Normal camera: https://github.com/bosch-ros-pkg/usb_cam.git

Astra SDK： https://developer.orbbec.com.cn/download.html?id=53

Basic use of Astra SDK for Windows: https://developer.orbbec.com.cn/course_details.html?id=53

Astra SDK environment setup: https://developer.orbbec.com.cn/course_details.html?id=16

• Create astra udev rule

In the new environment, you need to execute the [create_udev_rules] file in the [scripts] folder of the [astra_camera] function package, enter the directory where the file is located, and execute the command

./create_udev_rules

launch start command

Camera hardware structure diagram:

1.1 SDK usage - Linux

Operating environment: virtual machine or dual system

Developer Community: https://developer.orbbec.com.cn/download.html?id=53

1.1.1 dependent environment

xxxxxxxxxx
sudo apt-get install ros-melodic-serial ros-melodic-bfl ros-melodic-mbf-msgs ros-melodic-pointcloud-to-laserscan ros-melodic-rgbd-launch ros-melodic-libuvc-* ros-melodic-uvc-camera ros-melodic-usb-cam ros-melodic-ar-track-alvar ros-melodic-camera-calibration build-essential freeglut3 freeglut3-dev libsfml-dev

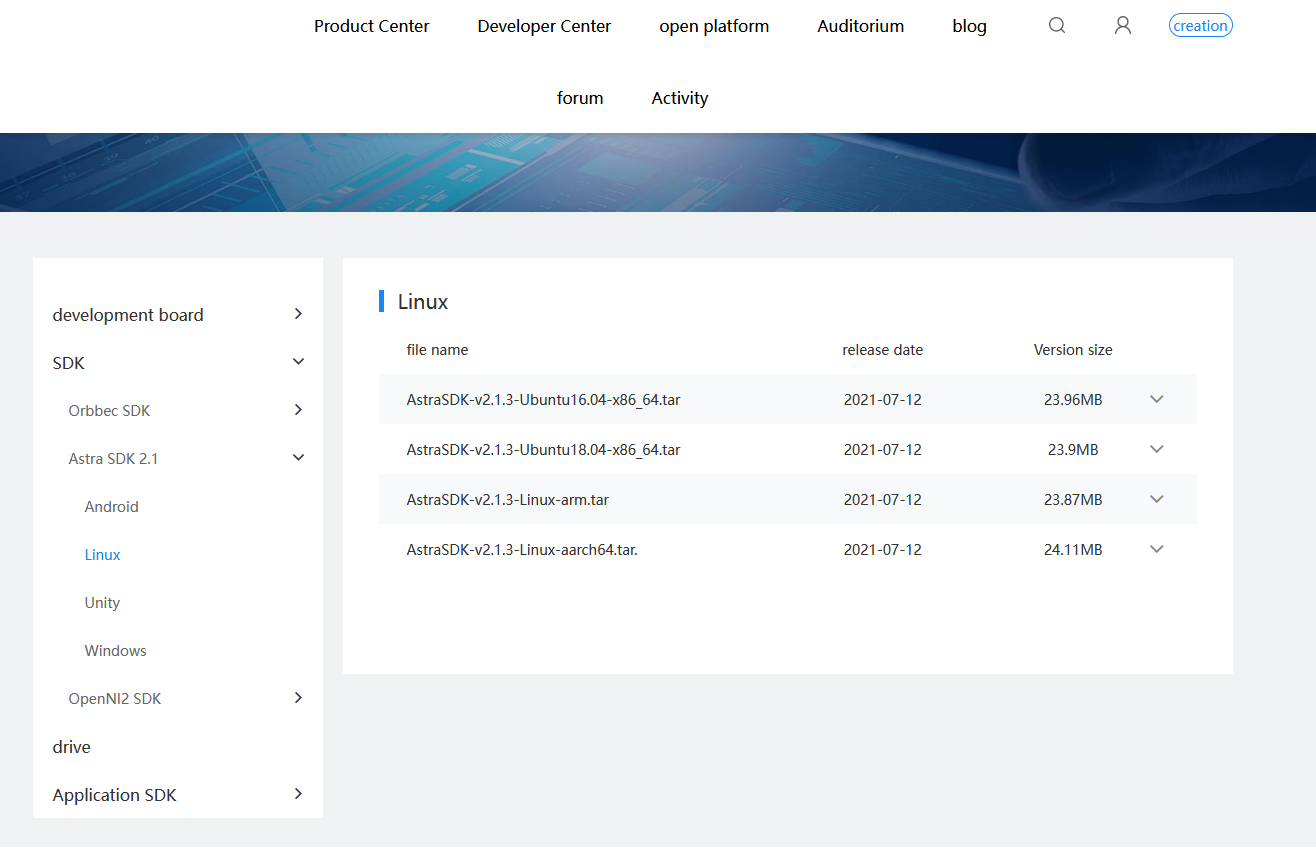

Go to the developer community to download the SDK file, that is(Astra SDK and OpenNI2 SDK, the version and system architecture must match).

Note: All searches on the Internet are for the latest version. The versions in our supporting materials include [v2.1.2], [v2.1.3], etc. The following takes [v2.1.2] as an example, other versions are similar.

1.1.2 Camera SDK&Samples

The folder name and file path may not be the same, change them according to your needs.

xxxxxxxxxx
tar -zxvf AstraSDK-v2.1.2-Ubuntu18.04-x86_64.tar.gz
cd AstraSDK-v2.1.2-Ubuntu18.04-x86_64/install  # Go to the install folder
sudo sh ./install.sh

The output contains the following two lines, pay attention to delete the install in the penultimate path:

xxxxxxxxxx
export ASTRA_SDK_INCLUDE=/home/yahboom/software/AstraSDK-v2.1.2-Ubuntu18.04-x86_64/install/include
export ASTRA_SDK_LIB=/home/yahboom/software/AstraSDK-v2.1.2-Ubuntu18.04-x86_64/install/lib

After deleting install:

xxxxxxxxxx
export ASTRA_SDK_INCLUDE=/home/yahboom/software/AstraSDK-v2.1.2-Ubuntu18.04-x86_64/include
export ASTRA_SDK_LIB=/home/yahboom/software/AstraSDK-v2.1.2-Ubuntu18.04-x86_64/lib

Copy the output to the end of ~/.bashrc

xxxxxxxxxx
gedit ~/.bashrc
source ~/.bashrc

The amples directory is the sample program, which needs to depend on the include and lib directories

• SFML effect demo

The bin folder is as follows:

Note: sudo ./ or ./ can be used to start the bin folder, and the files with the suffix -SFML will be displayed on the screen; the methods are similar, and other effects can be tested. If the virtual machine fails to start, please try several times, it is easier to start under the dual system.

xxxxxxxxxx
cd ~/AstraSDK-v2.1.2-Ubuntu18.04-x86_64/bin/
./SimpleBodyViewer-SFML    # Skeleton detection
./SimpleHandViewer-SFML    # finger following

1.1.3 OpenNI camera test tool

Install OpenNI

xxxxxxxxxx
unzip OpenNI_2.3.0.55.zip
cd OpenNI_2.3.0.55/Linux/OpenNI-Linux-x64-2.3.0.55
chmod +x install.sh
sudo ./install.sh

the device to initialize the OpenNI environment

xxxxxxxxxx
source OpenNIDevEnvironment

compile and run

xxxxxxxxxx
cd Samples/SimpleViewer
make
cd Bin/x64-Release
./SimpleViewer

1.2 AstraSDK-win

https://developer.orbbec.com.cn/download.html?id=32

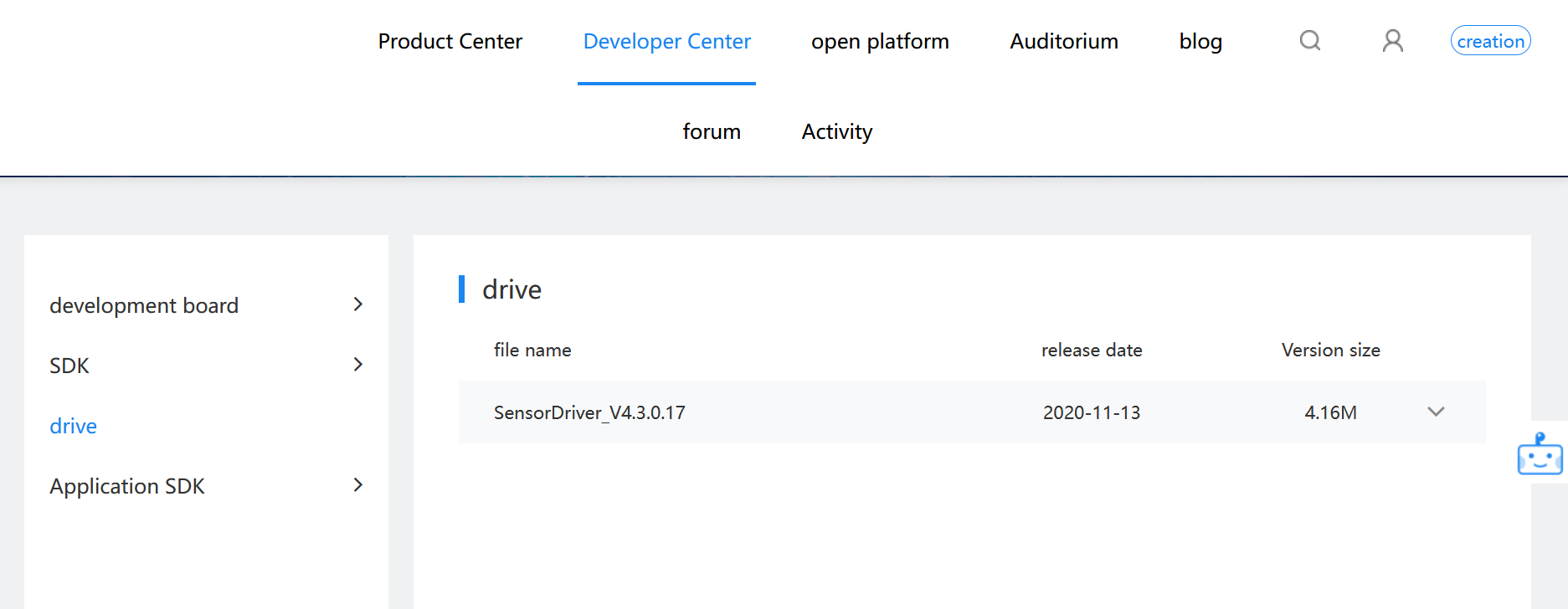

1.2.1 Install the driver

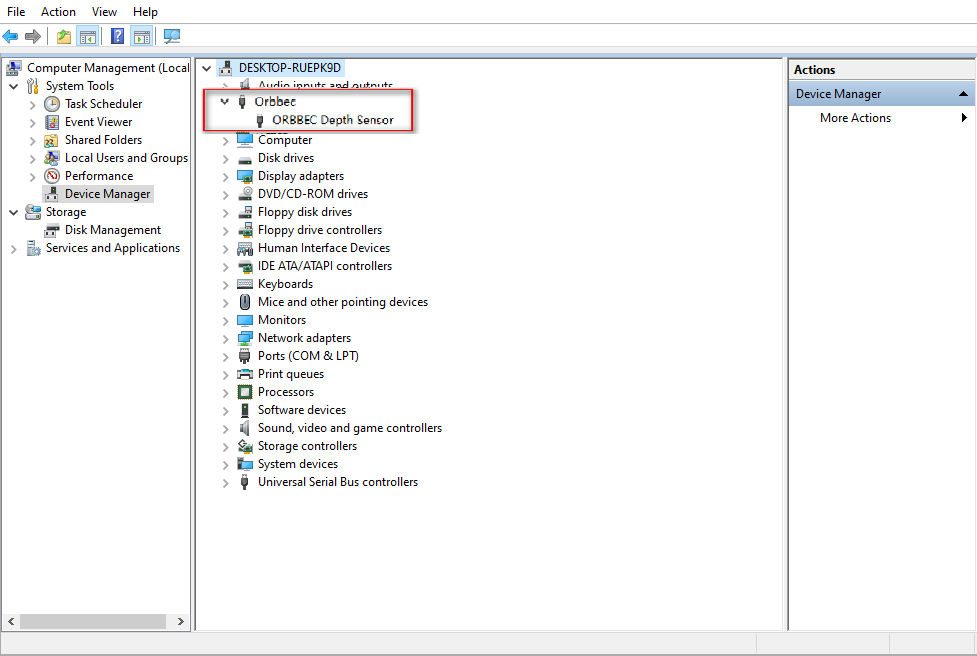

After the download is complete, double-click to install it. The signs of success are as follows

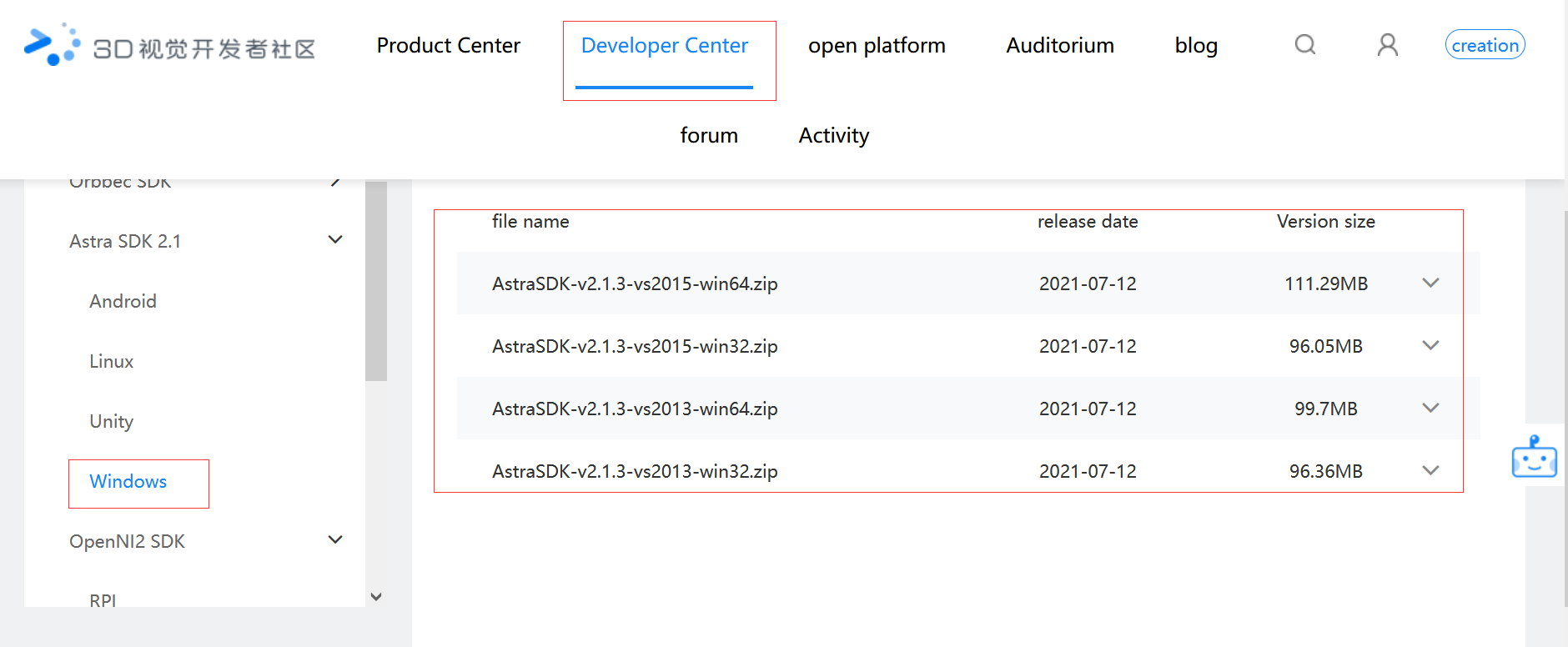

1.2.2 Download SDK

After the download is complete, unzip the folder,

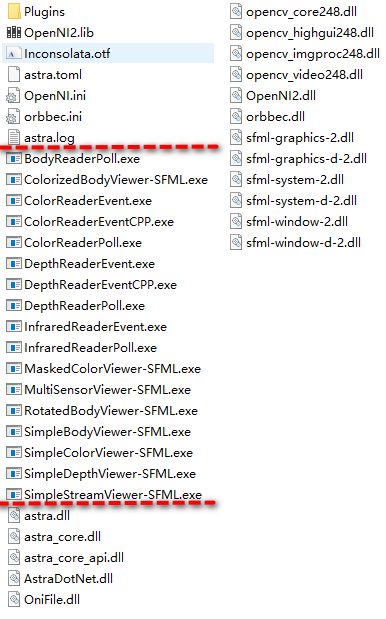

Enter the bin folder and double-click any file with the suffix exe to test it.

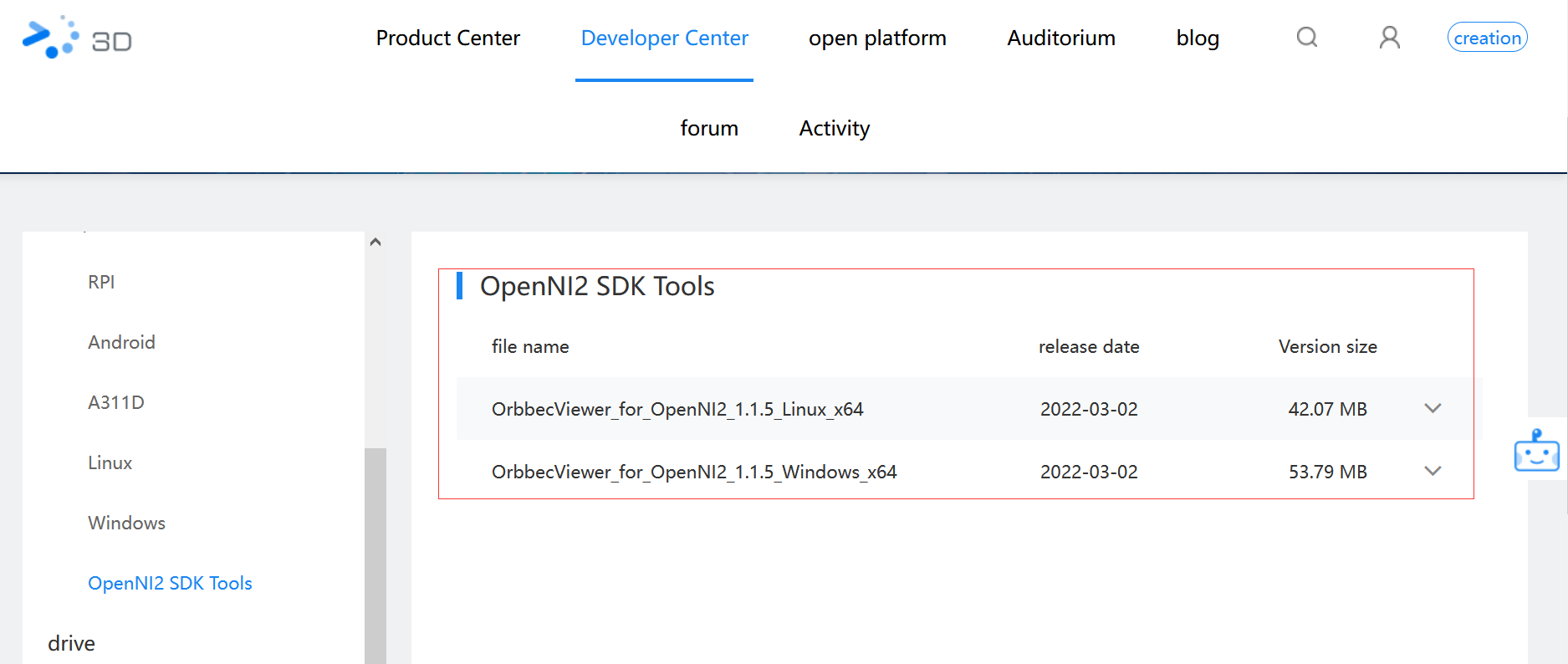

1.3 OrbbecViewer-win

https://developer.orbbec.com.cn/download.html?id=77

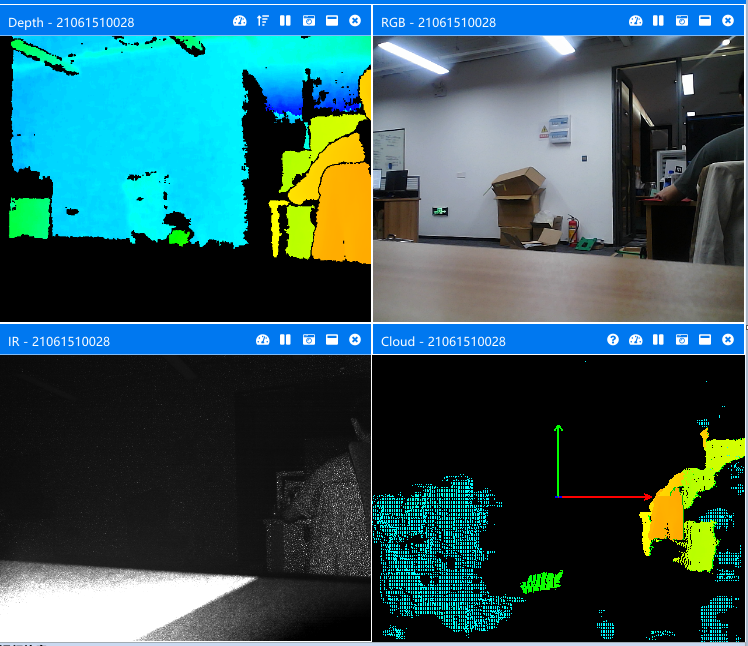

Unzip, enter the OrbbecViewer_v1.1.1 folder, double-click That's it.

1.4 Web monitoring

xxxxxxxxxx
#Raspberry Pi 5 master needs to enter docker first, please perform this step
#If running the script into docker fails, please refer to ROS2/07, Docker tutorial
~/run_docker.sh

Environment construction

xxxxxxxxxx
sudo apt-get install ros-melodic-async-web-server-cpp ros-melodic-web-video-server ros-melodic-usb-cam

Start the camera

roslaunch astra_camera astraproplus.launch     # Astra
roslaunch usb_cam usb_cam-test.launch      # USB

<PI5 needs to open another terminal and enter the same docker container

start web_video_server

xxxxxxxxxx
rosrun  web_video_server  web_video_server

Check

xxxxxxxxxx
View in local web browser
http://localhost:8080/
It must be under the same local area network, and other devices can view it
http://192.168.2.103:8080/
(192.168.2.103 is the IP address of the master)
Note: It is recommended to use Google Chrome or mobile QQ browser, other browsers may not be able to open the image
