RDK X3 leads to the SPI2
bus of the X3M chip on the physical pins 19, 21, 23, 24
on 40Pin, supports one chip select, and the IO voltage is 3.3V.
RDK Ultra leads to the SPI0
bus on the physical pins 19, 21, 23, 24, 26
on 40Pin, supports two chip selects, and the IO voltage is 3.3V.
Please refer to /app/40pin_samples/test_spi.py
for details on how to use SPI.
Connect MISO and MOSI on the hardware, then run the spi test program to perform write and read operations. The expected result is that the read data is exactly equal to the written data.

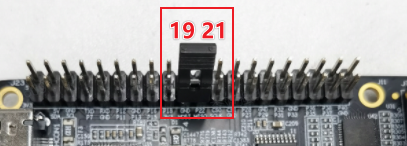

Connect MISO and MOSI together directly through the jumper cap
python3 /app/40pin_samples/test_spi.py
spidev2.0
, the bus num
is 2, and the cs num
is 0. Press Enter to confirm.xxxxxxxxxx
List of enabled spi controllers:
/dev/spidev2.0
Please input SPI bus num:2
Please input SPI cs num:0
0x55 0xAA
. If it prints 0x00 0x00
, it means that the SPI loopback test has failed.xxxxxxxxxx

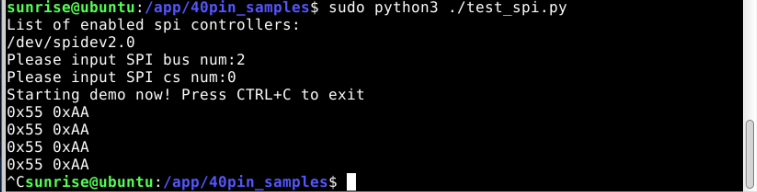

Starting demo now! Press CTRL+C to exit
0x55 0xAA
0x55 0xAA
x
#!/usr/bin/env python3
from __future__ import print_function
import sys
import os
import time
# Import spidev module
import spidev
def BytesToHex(Bytes):
return ''.join(["0x%02X " % x for x in Bytes]).strip()
def spidevTest():
# Set the SPI bus number (0, 1, 2) and chip select (0, 1)
spi_bus = input("Please input SPI bus num:")
spi_device = input("Please input SPI cs num:")
# Create an object of spidev class to access spidev based Python functions.
spi=spidev.SpiDev()
# Open the spi bus handle
spi.open(int(spi_bus), int(spi_device))
# Set spi frequency to 12MHz
spi.max_speed_hz = 12000000
print("Starting demo now! Press CTRL+C to exit")
# Send [0x55, 0xAA], receive should also be [0x55, 0xAA]
try:
while True:
resp = spi.xfer2([0x55, 0xAA])
print(BytesToHex(resp))
time.sleep(1)
except KeyboardInterrupt:
spi.close()
if __name__ == '__main__':
print("List of enabled spi controllers:")
os.system('ls /dev/spidev*')
spidevTest()
