DOGZILLA-Lite Introduction

Basic Introduction

DOGZILLA-Lite is a robot dog developed jointly by Luwu and Yahboom.

1. It is equipped with an AI module using Raspberry Pi technology, a 2.0-inch IPS color display screen and 4 programmable buttons, a 5-megapixel camera, a digital microphone and a cavity speaker.
2. AI terminals with human-computer interaction capabilities can realize functions such as image recognition, face detection, voice recognition, embodied intelligence, and target detection, helping robot enthusiasts learn AI knowledge.

Technical Parameters

Machine parameters

• Model:DOGZILLA-Lite
• Size: Default stance 250-145-170mm
• Weight: 575g
• Material: The body is 1mm aviation aluminum, and the legs are ABS engineering plastic.
• Screen: 2.0 inch 320*240 pixel full color IPS
• Camera: 5 megapixel OV5647
• Microphone: Dual MEMS digital microphones
• Speaker: 8 ohm 2 watt cavity
• Storage: Micro SD card 32G

Servo parameters:

• Model: Bus serial port servo
• Output torque: 2.3KG•CM;
• Speed (S/60°): 0.1 S/60°;
• Operating voltage range: 4.8V～7.4V
• Working temperature: -20℃～ +60℃;
• Angle range: 0-300°;
• Weight: 13±1g.
• Motor Type: Iron Core

Power system parameters

• Charging port: Standard Type-C 5V 1A
• Battery: 18650 standard 2500 mAh 3C discharge

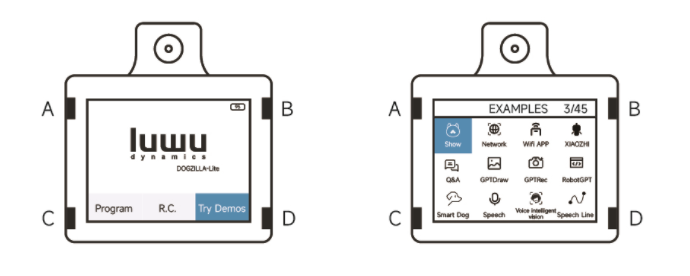

The functions of the dog head screen are as shown in the figure: the A and B keys are the left and right selection keys, the C key is the exit key, and the D key is the confirmation key.
