Introduction to 4-channel motor drive board
Product Introduction:
The 4-channel encoder motor driver module integrates a high-performance single-chip coprocessor, which can be seamlessly connected with multiple controllers such as MSPM0, STM32, Raspberry Pi and Jetson through serial port or IIC communication, simplifying the driving process.
Only four connecting wires are needed to achieve efficient communication with the main control unit to easily control the motor and obtain encoder data, reducing the number of wiring and reducing the difficulty of operation.
At the same time, it supports driving most Hall encoder TT motors, 520/310 and other DC reduction motors on the market.
Parameter table:
| Tech specs | Parameters |
|---|---|
| Input Voltage recommended | 5-12v |
| DC Current for 5v Pin | 0.7A |
| DC Current for 3.3v Pin | 500ma |
| Single motor continuous drive current | Default 4A (maximum output 5.5A) |
| Length * Width * High | 56 * 65 * 13.4mm |

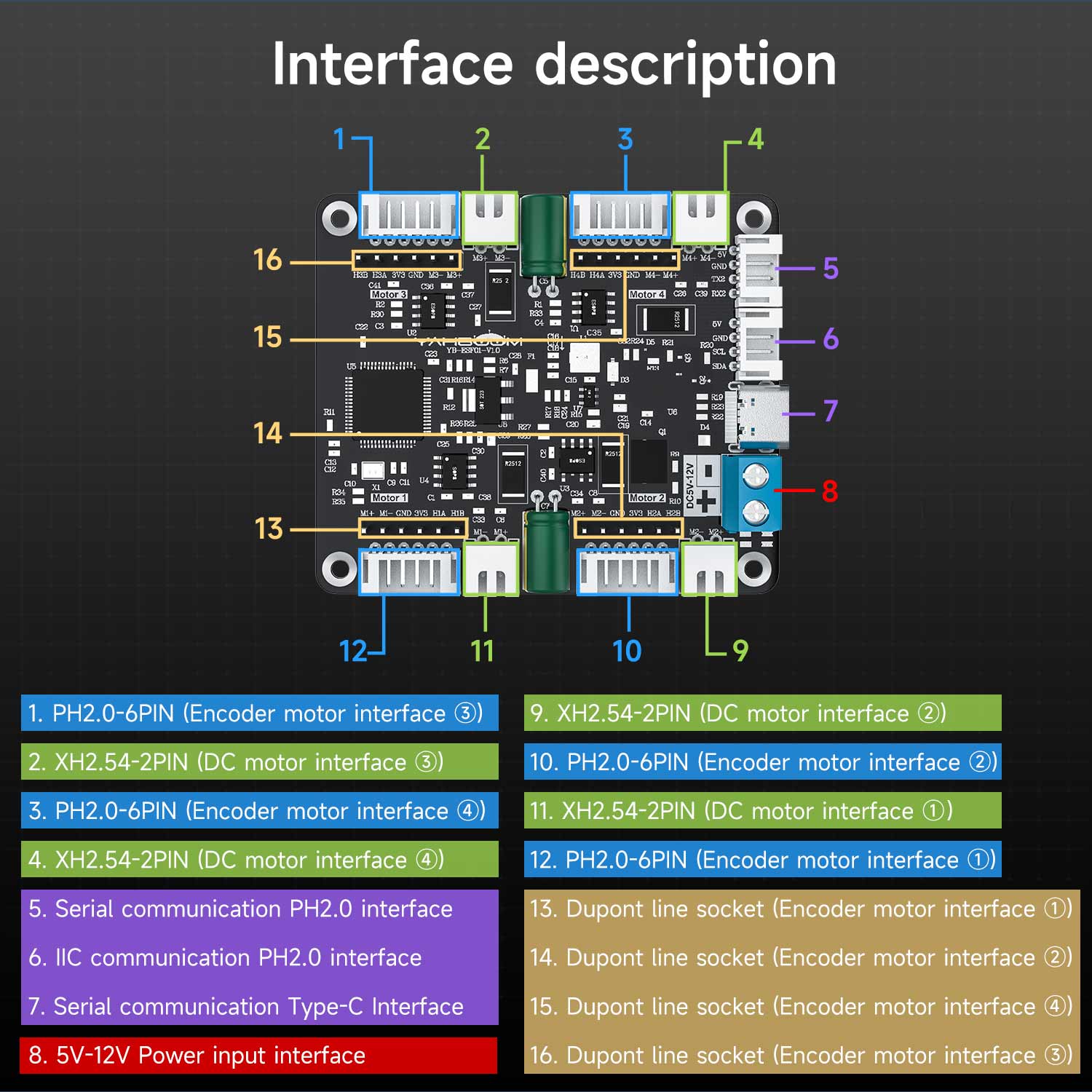

| Encoder motor interface | PH2.0-6PIN、Dupont line socket |
| DC motor interface | XH2.54-2PIN |
