Embodied Intelligent Gameplay Core Source Code Interpretation

1. Course Content

1. Embodied Intelligent Gameplay for large AI models is a complex function that involves the coordinated implementation of multiple node programs. This course explains the core code.

2. Source Code Package Structure

2.1 Package File Structure

The ROS package for the AI large model embodied intelligence is called largemodel. The package path is:

Jetson Orin Nano, Jetson Orin NX Host:

/home/jetson/M3Pro_ws/src/largemodel

Jetson Nano, Raspberry Pi Host:

You need to first enter Docker.

xxxxxxxxxx
root/jetson/M3Pro_ws/src/largemodel

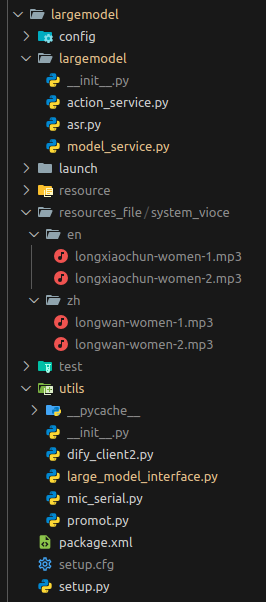

The package file structure is as follows:

Folder and file functions are explained below:

2.1.1 config

Configuration folder, storing configuration files

• large_model_interface.yaml

Large model interface configuration file, used to configure the API keys and large model parameters for each platform.

• map_mapping.yaml

Map mapping file, used to map the raster map to real-world regions.

• yahboom.yaml

Node configuration file: used to configure core node parameters.

2.1.2 largemodel

Source code folder, core program for the AI large model embodying intelligent gameplay.

• asr.py

Speech recognition program file, used to run the speech recognition model and interact with the user.

• model_service.py

Model server program file, used to call various model interfaces to implement the model inference architecture.

• action_service.py

Action server program file, used to receive action lists requested by the model server, control robot movements, and play sounds.

2.1.3 launch

Startup file folder, used to store ROS2 node startup files.

• largemodel_control.launch.py

The startup file for the AI large model embodying intelligent gameplay: starts multiple nodes, with two startup modes: voice interaction mode and text interaction mode.

2.1.4 resources_file

Stores audio files for system sounds

2.1.5 utils

Component folder, stores program files for non-core functions

• large_model_interface.py

The large model interface program file contains the underlying interface for calling the large model on various platforms. The calling procedures vary between different platforms and models, so the interface file manages the calling methods uniformly.

• mic_serial.py

The voice module driver file is used to drive the voice module's wake-up word function.

• promot.py

The large model prompt word file: used to generate prompt words for the execution layer large model.

• dify_client2.py

The dify API function is used by the international version of dify to request the local dify application.

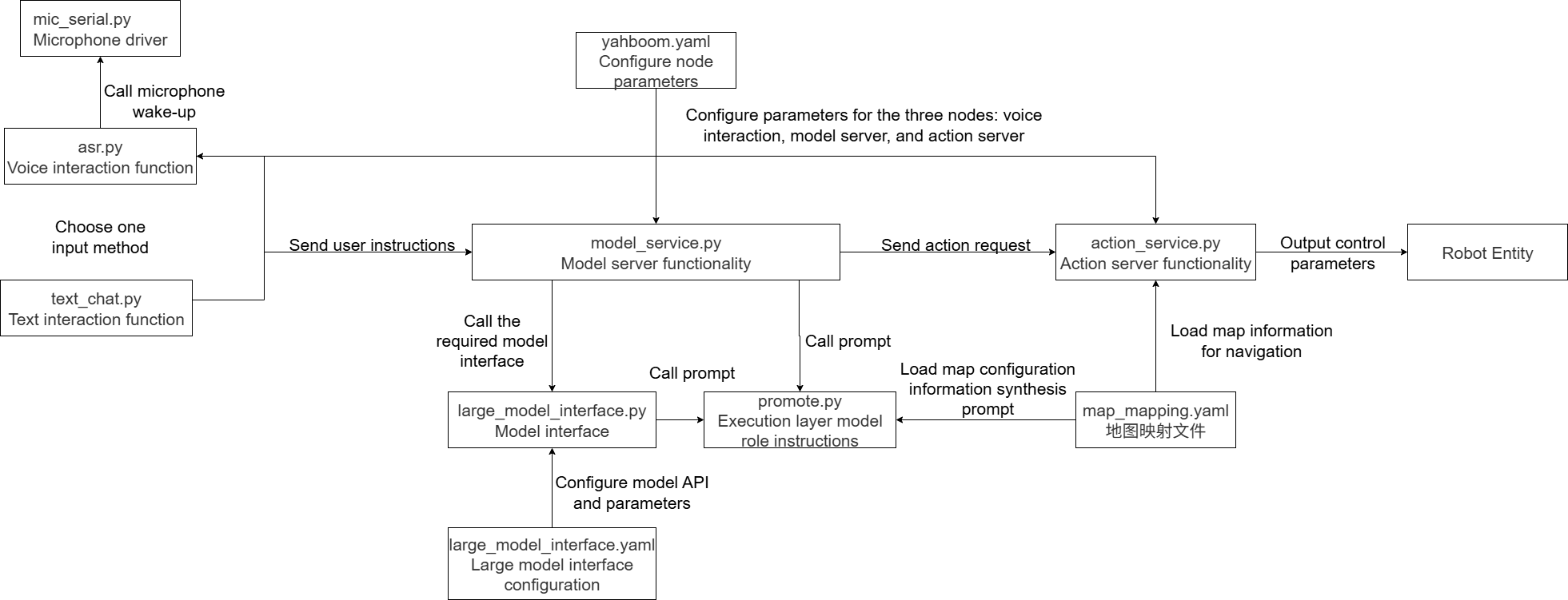

2.2 Inter-program call diagram

3. Speech Recognition Function

The speech recognition function includes two parts: VAD voice activity detection and speech-to-text conversion. Source code path:

Jetson Orin Nano, Jetson Orin NX host:

xxxxxxxxxx
/home/jetson/M3Pro_ws/src/largemodel/largemodel/asr.py

Jetson Nano, Raspberry Pi host:

You need to enter Docker first.

xxxxxxxxxx
root/M3Pro_ws/src/largemodel/largemodel/asr.py

3.1 Program Flowchart

asr program flowchart

3.2 VAD Voice Activity Detection

Implementation: The listen_for_speech method in the ASRNode class

Program Explanation: Records real-time audio from a specified microphone and uses VAD (Voice Activity Detection) to determine whether speech is currently occurring. When a segment of speech is detected (continuous silence exceeds a set number of frames), recording stops and the valid speech content is saved to a file.

Detailed logic is as follows:

1. Initialize the audio stream and configure parameters (such as sampling rate and number of channels).
2. Continuously read audio frames and perform voice activity detection.
3. If speech starts, add the audio frame to the buffer. If continuous silence exceeds a threshold (90 frames, approximately 1 second), recording ends.
4. After recording is complete, remove the trailing silence and save the valid speech content as a WAV file.
5. If no valid speech is detected, the file is not saved.

xxxxxxxxxx
  def listen_for_speech(self, mic_index=0):
        p = pyaudio.PyAudio()
        audio_buffer = []
        silence_counter = 0
        MAX_SILENCE_FRAMES = 90  # 30帧*30ms=900ms静音后停止 / Stop after 900ms of silence (30 frames * 30ms)
        speaking = False  # 语音活动标志 / Flag indicating speech activity
        frame_counter = 0  # 计数器 / Frame counter
        stream_kwargs = {
            "format": pyaudio.paInt16,
            "channels": 1,
            "rate": self.sample_rate,
            "input": True,
            "frames_per_buffer": self.frame_bytes,
        }
        if mic_index != 0:
            stream_kwargs["input_device_index"] = mic_index
​
        # 通过蜂鸣器提示用户讲话 / Prompt the user to speak via the buzzer
        self.pub_beep.publish(UInt16(data=1))
        time.sleep(0.5)
        self.pub_beep.publish(UInt16(data=0))
​
        try:
            # 打开音频流 / Open audio stream
            stream = p.open(**stream_kwargs)
            while True:
                if self.stop_event.is_set():
                    return False
​
                frame = stream.read(
                    self.frame_bytes, exception_on_overflow=False
                )  # 读取音频数据 / Read audio data
                is_speech = self.vad.is_speech(
                    frame, self.sample_rate
                )  # VAD检测 / VAD detection
​
                if is_speech:
                    # 检测到语音活动 / Detected speech activity
                    speaking = True
                    audio_buffer.append(frame)
                    silence_counter = 0
                else:
                    if speaking:
                        # 在语音活动后检测静音 / Detect silence after speech activity
                        silence_counter += 1
                        audio_buffer.append(
                            frame
                        )  # 持续记录缓冲 / Continue recording buffer
​
                        # 静音持续时间达标时结束录音 / End recording when silence duration meets the threshold
                        if silence_counter >= MAX_SILENCE_FRAMES:
                            break
                frame_counter += 1
                if frame_counter % 2 == 0:
                    self.get_logger().info("1" if is_speech else "-")
                    # print('1-' if is_speech else '0-', end='', flush=True)  # 实时状态显示方式 / Real-time status display
        finally:
            stream.stop_stream()
            stream.close()
            p.terminate()
​
        # 保存有效录音（去除尾部静音） / Save valid recording (remove trailing silence)
        if speaking and len(audio_buffer) > 0:
            # 裁剪最后静音部分 / Trim the last silent part
            clean_buffer = (
                audio_buffer[:-MAX_SILENCE_FRAMES]
                if len(audio_buffer) > MAX_SILENCE_FRAMES
                else audio_buffer
            )
​
            with wave.open(self.user_speechdir, "wb") as wf:
                wf.setnchannels(1)
                wf.setsampwidth(p.get_sample_size(pyaudio.paInt16))
                wf.setframerate(self.sample_rate)
                wf.writeframes(b"".join(clean_buffer))
                return True

3.3 ASR Speech Recognition

Implementation: The ASR_conversion method in the ASRNode class converts the recording file into text.

Call the speech recognition model interface function in the large_model_interface.py large model interface file.

Note: Text recognized by speech recognition with less than 4 characters is considered invalid. This is to prevent the content after false activation from being mistaken for valid content.

Program Explanation:

1. If using oline_asr, call the corresponding method and check whether the result is valid text (length greater than 4). If successful, return the recognized content; otherwise, log the error and return 'error'.
2. Otherwise, use SenseVoiceSmall_ASR for recognition and perform the same result judgment and processing.

SenseVoiceSmall_ASR is a local model speech recognition method and is only available on Jetson Orin Nano and Jetson Orin NX hosts.

xxxxxxxxxx
def ASR_conversion(self, input_file):
    if self.use_oline_asr:
        result=self.modelinterface.oline_asr(input_file)
        if result[0] == 'ok' and len(result[1]) > 4:
            return result[1]
        else:
            self.get_logger().error(f'ASR Error:{result[1]}')
            return 'error'
    else:
        result=self.modelinterface.SenseVoiceSmall_ASR(input_file)
        if result[0] == 'ok' and len(result[1]) > 4:
            return result[1]
        else:
            self.get_logger().error(f'ASR Error:{result[1]}')
            return 'error'

4. Model Server Functionality

The implementation program is model_service.py, which receives voice recognition results in voice interaction mode or terminal input in text interaction mode, and implements the large model inference logic. Source code path:

Jetson Orin Nano, Jetson Orin NX host:

xxxxxxxxxx
/home/jetson/M3Pro_ws/src/largemodel/largemodel/model_service.py

Jetson Nano, Raspberry Pi host:

You need to enter Docker first.

xxxxxxxxxx
root/M3Pro_ws/src/largemodel/largemodel/model_service.py

4.1 Program Flowchart

model_service program flowchart

4.2 Dual-Model Inference (Domestic Version)

Dual-model inference mode is used by default. The implementation program is the dual_large_model_mode and instruction_process methods in the LargeModelService class.

Program Explanation:

1. If this is a new instruction cycle (self.new_order_cycle is True):

• Initialize the multimodal history context;
• Use the task decision model to perform task planning based on the user input prompt;
• Pass the planning results to the instruction execution layer model for processing;
• Set new_order_cycle to False, indicating that execution of the current instruction cycle has begun.

2. Otherwise (not a new cycle):

• Directly pass the input prompt and type to the instruction execution layer model for processing.

xxxxxxxxxx
def dual_large_model_mode(self, type, prompt=""):
    """
    此函数实现了双模型推理模式，即先由文本生成模型进行任务规划，然后由多模态大模型生成动作列表
    This function implements the dual model inference mode, where the text generation model first plans the task, and then the multimodal large model generates the action list.
    """
    if (
        self.new_order_cycle
    ):  # 判断是否是新任务周期 / Determine if it is a new task cycle
        # 判断上一轮对话指令是否完成如果完成就清空历史上下文，开启新的上下文 / Determine if the previous round of dialogue instructions are completed. If completed, clear the historical context and start a new context
        self.model_client.init_Multimodal_history(
            get_prompt()
        )  # 初始化执行层上下文历史 / Initialize execution layer context history
        execute_instructions = self.model_client.TaskDecision(
            prompt
        )  # 调用决策层大模型进行任务规划 / Call the decision layer large model for task planning
​
        if not execute_instructions == "error":
            if self.text_chat_mode:
                msg = String(
                    data=f"The upcoming task to be carried out：{execute_instructions}"
                )
                self.text_pub.publish(msg)
            else:
                self.get_logger().info(
                    f"The upcoming task to be carried out：{execute_instructions}"
                )  # 即将执行的任务：...
            self.instruction_process(
                type="text",
                prompt=f"用户：{prompt},决策层AI规划:{execute_instructions}",
            )  # 传递决策层模型规划好的执行步骤给执行层模型 / Pass the planned execution steps from the decision layer model to the execution layer model
            self.new_order_cycle = (
                False  # 重置指令周期标志位 / Reset the instruction cycle flag
            )
        else:
            self.get_logger().info(
                "The model service is abnormal. Check the large model account or configuration options"
            )  # 模型推理失败，请检查模型配额和账户是否正常！！！
    else:
        self.instruction_process(
            prompt, type
        )  # 调用执行层大模型生成成动作列表并执行 / Call the execution layer large model to generate an action list and execute
​
def instruction_process(self, prompt, type, conversation_id=None):
    """
    根据输入信息的类型（文字/图片），构建不同的请求体进行推理，并返回结果）
    Based on the type of input information (text/image), construct different request bodies for inference and return the result.
    """
    if self.regional_setting == "China":  # 国内版
        if type == "text":
            raw_content = self.model_client.multimodalinfer(prompt)
        elif type == "image":
            self.save_single_image()
            raw_content = self.model_client.multimodalinfer(
                "机器人反馈:执行seewhat()完成", image_path=self.image_save_path
            )
        json_str = self.extract_json_content(raw_content)
​
    elif self.regional_setting == "international":  # 国际版
        if type == "text":
            result = self.model_client.TaskExecution(
                input=prompt,
                map_mapping=self.map_mapping,
                language=self.language_dict[self.language],
                conversation_id=conversation_id,
            )
            if result[0]:
                json_str = self.extract_json_content(result[1])
                self.conversation_id = result[2]
            else:
                self.get_logger().info(f"ERROR:{result[1]}")
        elif type == "image":
            self.save_single_image()
            result = self.model_client.TaskExecution(
                input="机器人反馈:执行seewhat()完成",
                map_mapping=self.map_mapping,
                language=self.language_dict[self.language],
                image_path=self.image_save_path,
                conversation_id=conversation_id,
            )
            if result[0]:
                json_str = self.extract_json_content(result[1])
                self.conversation_id = result[2]
            else:
                self.get_logger().info(f"ERROR:{result[1]}")
​
    if json_str is not None:
        # 解析JSON字符串,分离"action"、"response"字段 / Parse JSON string, separate "action" and "response" fields
        action_plan_json = json.loads(json_str)
        action_list = action_plan_json.get("action", [])
        llm_response = action_plan_json.get("response", "")
    else:
        self.get_logger().info(
            f"LargeScaleModel return: {json_str},The format was unexpected. The output format of the AI model at the execution layer did not meet the requirements"
        )
        return
​
    if self.text_chat_mode:
        msg = String(data=f'"action": {action_list}, "response": {llm_response}')
        self.text_pub.publish(msg)
    else:
        self.get_logger().info(
            f'"action": {action_list}, "response": {llm_response}'
        )
​
    self.send_action_service(
        action_list, llm_response
    )  # 异步发送动作列表、回复内容给ActionServer / Asynchronously send action list and response content to ActionServer

4.3 Dual-Model Inference (International Version)

7. The program implementation logic is the same as the domestic version. The difference is that the international version requests the local Dify application, which then requests the large cloud model.

xxxxxxxxxx
def dual_large_model_international_model(self, type, prompt=""):
    """
    此函数适用于国际版双模型推理模式,使用dify作为中间件
    """
    if (
        self.new_order_cycle
    ):  # 判断是否是新任务周期 / Determine if it is a new task cycle
        self.conversation_id = None
        result = self.model_client.TaskDecision(prompt)
        if result[0]:
            if self.text_chat_mode:  # 文字交互模式 / Text interaction mode
                msg = String(
                    data=f"The upcoming task to be carried out:{result[1]}"
                )
                self.text_pub.publish(msg)
            else:  # 语音交互模式 / Voice interaction mode
                self.get_logger().info(
                    f"The upcoming task to be carried out:{result[1]}"
                )
​
            self.instruction_process(
                type="text", prompt=f"用户：{prompt},决策层AI规划:{result[1]}"
            )
            self.new_order_cycle = (
                False  # 重置指令周期标志位 / Reset the instruction cycle flag
            )
        else:
            self.get_logger().info(f"ERROR: {result[1]}")
​
    else:
        self.instruction_process(
            prompt, type, conversation_id=self.conversation_id
        )  # 调用执行层大模型生成成动作列表并执行 / Call the execution layer large model to generate an action list and execute

5. Action Server Functionality

The implementation program is action_service.py, which receives the action list requested by the model server, parses the action list, and executes it. Source code path:

Jetson Orin Nano, Jetson Orin NX host:

xxxxxxxxxx
/home/jetson/M3Pro_ws/src/largemodel/largemodel/action_service.py

Jetson Nano, Raspberry Pi host:

You need to enter Docker first.

xxxxxxxxxx
root/M3Pro_ws/src/largemodel/largemodel/action_service.py

5.1 Program Flowchart

action_service program flowchart

5.2 Action Function Library

The robot's action functions are derived from methods in the CustomActionServer class, which contains functions for various sub-actions. Here, we'll use the action function that controls the robot's chassis movement as an example. Other action functions will be explained in subsequent chapters when they first appear.

Program Explanation:

1. Convert the input string parameter to a floating-point number.
2. Create and set a Twist-type motion command.
3. Publish the corresponding speed topic and stop when finished.
4. Determine whether to publish a completion message based on the mode.

xxxxxxxxxx
def set_cmdvel(self,linear_x,linear_y, angular_z,duration):#发布cmd_vel
    # 将参数从字符串转换为浮点数 Converts the argument from a string to a floating point number
    linear_x = float(linear_x)
    linear_y = float(linear_y)
    angular_z = float(angular_z)
    duration = float(duration)
    twist = Twist()
    twist.linear.x =  linear_x
    twist.linear.y = linear_y
    twist.angular.z = angular_z
    self._execute_action(twist,durationtime=duration)
    self.stop()
    if self.combination_mode:#是否为组合模式，组合模型需要执行完 Is it a combination mode? The combination model needs to be executed
        return
    else:
        self.action_status_pub(f'机器人反馈:执行set_cmdvel({linear_x},{linear_y},{angular_z},{duration})完成')

5.3 Parsing the Action List to Control Robot Functions

Parse the action list generated by the large model into functions that control the robot entity and execute them. This is implemented in the execute_callback method of the CustomActionServer class.

Program Explanation:

1. Receive the action list (string format) sent by the client;
2. If the action list is empty, return a success result;
3. If there is only one action, parse and execute the corresponding method; abort if failure occurs;
4. If there are multiple actions, execute them sequentially in combined mode, logging and providing feedback as they occur;
5. After all actions are executed, call stop() to stop the robot;
6. Finally, return a successful result to the client.

xxxxxxxxxx
def execute_callback(self, goal_handle):
    feedback_msg = Rot.Feedback()
    stop = getattr(self, "stop")  # 获取停止方法，通过发布话题的方法停止机器人运动     Get the stop method and stop the robot movement by publishing the topic
    actions=goal_handle.request.actions
    if not actions: # 如果动作列表为空，直接返回成功 If the action list is empty, return success directly
        if not self.text_chat_mode:
           self.send_Audiorequest(goal_handle.request.llm_response)
​
        if self.use_double_llm:
            self.action_status_pub('机器人反馈：回复用户完成')
​
        goal_handle.succeed()
        result = Rot.Result()
        result.success = True
        return result
    elif len(actions) == 1:# 动作列表只有一个动作，正常执行流程 The action list has only one action, and the execution process is normal
        # 情况2：列表只有一个元素 Case 2: The list has only one element
        action = actions[0]
        if not self.text_chat_mode:
           self.send_Audiorequest(goal_handle.request.llm_response)
​
        match = re.match(r"(\w+)\((.*)\)", action)
        if not match:
            self.get_logger().warning(f'action_service: {action} is invalid action,skip execution')
            goal_handle.abort()
            result = Rot.Result()
            result.success = False
            return result
        else:
            action_name, args_str = match.groups()
            args = [arg.strip() for arg in args_str.split(",")] if args_str else []
            try:
                if hasattr(self, action_name):
                    method = getattr(self, action_name)
                    method(*args)
                    feedback_msg.status = f'action service execute  {action}  successed'
                    # self.get_logger().info(feedback_msg.status)  # 添加日志
                    goal_handle.publish_feedback(feedback_msg)
                else:
                    self.get_logger().warning(f'action_service:inviald: {action_name},skip execution')
                    self.action_status_pub('机器人反馈:动作函数不存在，无法执行')
                    goal_handle.abort()
                    result = Rot.Result()
                    result.success = False
                    return result
            except Exception as e:
                self.get_logger().error(f'action_service:execute action: {action} failed,error-log: {str(e)}')
                goal_handle.abort()
                result = Rot.Result()
                result.success = False
                return result
    else:#如果动作列表有多个动作，使能组合模式 If the action list has multiple actions, enable combination mode
        if not self.text_chat_mode:
           self.send_Audiorequest(goal_handle.request.llm_response)
​
        self.combination_mode=True
        for action in actions:
            # 使用正则表达式解析动作名称和参数 Parsing action names and parameters using regular expressions
            match = re.match(r"(\w+)\((.*)\)", action)
            if not match:
                self.get_logger().warning(f'action_service: {action} is invalid action，skip execution')
                continue
​
            action_name, args_str = match.groups()
            args = [arg.strip() for arg in args_str.split(",")] if args_str else []
​
            try:
​
                # 检查动作是否是 CustomActionServer 类中的方法 Check if the action is a method in the CustomActionServer class
                if hasattr(self, action_name):
                    method = getattr(self, action_name)
                    # 动态调用方法并传递参数 Dynamically call methods and pass parameters
                    method(*args)
                    # method(*converted_args)
                    feedback_msg.status = f'action service execute  {action}  successed'
                    self.get_logger().info(feedback_msg.status)  # 添加日志 Add log
                    goal_handle.publish_feedback(feedback_msg)
                else:
                    self.get_logger().warning(f'action_service:inviald: {action_name}，skip execution')
            except Exception as e:
                self.get_logger().error(f'action_service:execute action: {action} failed,error-log: {str(e)}')
                goal_handle.abort()
                result = Rot.Result()
                result.success = False
                return result
​
        self.action_status_pub(f'机器人反馈：执行{actions}完成')
        self.combination_mode=False#重置组合模式标志位 Reset the combination mode flag
    stop()  # 执行完全部动作停止机器人 Stop the robot after executing all actions
    # 返回成功信息给客户端 Return success information to the client
    goal_handle.succeed()
    result = Rot.Result()
    result.success = True
    return result

6. Interruption Functionality

The robot supports interruptions at any stage, specifically during recording, conversation, and action. The principles for interruption in each stage are explained here.

6.1 Interruption During Recording

If you notice a mistake during recording, or are dissatisfied with the content and need to re-record, you can simply wake up the recording process, interrupt the previous recording, and restart the recording.

• The logic is implemented in the main_loop method of the ASRNode class in the asr.py file:
• Each time the robot wakes up, if there is already a thread running to wake up the recording, it is interrupted via the stop_event thread event and waits for it to complete.
• After clearing the stop event flag, a new recording thread is started.

xxxxxxxxxx
def main_loop(self):
    while rclpy.ok():
        while (
            self.audio_request_queue.qsize() > 1
        ):  # 只处理最近的一次唤醒请求，防止重复唤醒 / Process only the most recent wake-up request to prevent duplicates
            self.audio_request_queue.get()
​
        if not self.audio_request_queue.empty():
            self.audio_request_queue.get()
            self.wakeup_pub.publish(
                Bool(data=True)
            )  # 发布唤醒信号 / Publish wake-up signal
            self.get_logger().info("I'm here")
            playsound(
                self.audio_dict[self.first_response]
            )  # 应答用户 / Respond to the user
​
            if (
                self.current_thread and self.current_thread.is_alive()
            ):  # 打断上次的唤醒处理线程 / Interrupt the previous wake-up handling thread
                self.stop_event.set()
                self.current_thread.join()  # 等待当前线程结束 / Wait for the current thread to finish
                self.stop_event.clear()  # 清除事件 / Clear the event
            self.current_thread = threading.Thread(target=self.kws_handler)
            self.current_thread.daemon = True
            self.current_thread.start()
        rclpy.spin_once(self, timeout_sec=0.1)
        time.sleep(0.1)

6.2 Interrupting the Conversation Phase

If you're dissatisfied with the robot's response or don't want it to continue, you can interrupt it using the wakeup word and start recording. At this point, you can give the robot new commands (while still in the current task cycle), or say "End current task" to end the current task and start a new one.

• The logic is implemented in the wakeup_callback and play_audio methods of the CustomActionServer class in the action_service.py file:
• wakeup_callback is the wakeup callback function. Each time the asr.py program wakes up, it publishes a wakeup signal via topic communication, which wakeup_callback subscribes to and handles.
• Each time it wakes up, it checks whether pygame.mixer is playing audio. If so, it notifies the playback thread to stop playback via the thread event self.stop_event.
• If the previous action is detected to be running after wakeup, the self.interrupt_flag flag is set to interrupt subsequent actions.

xxxxxxxxxx
def wakeup_callback(self, msg):
    if msg.data:
        if pygame.mixer.music.get_busy():
            self.stop_event.set()
        if self.action_runing:
            self.interrupt_flag = True
            self.stop()
            self.pubSix_Arm(self.init_joints)

When play_audio plays audio, it will detect whether self.stop_event is set. Once it detects that it is set, it will stop the currently playing audio immediately.

xxxxxxxxxx
def play_audio(self, file_path: str, feedback: Bool = False) -> None:
    """
    同步方式播放音频函数The function for playing audio in synchronous mode
    """
    pygame.mixer.music.load(file_path)
    pygame.mixer.music.play()
    while pygame.mixer.music.get_busy():
        if self.stop_event.is_set():
            pygame.mixer.music.stop()
            self.stop_event.clear()  # 清除事件
            return
        pygame.time.Clock().tick(10)
    if feedback:
        self.action_status_pub("机器人反馈：回复用户完成")

6.3 Action Phase Interruption

If the robot is awakened during an action, it will stop the current action and resume its initial posture. This can be categorized as either a standard action interruption or an action interruption with a child process.

6.3.1 Standard Action Interruption

The implementation is in the _execute_action and pubSix_Arm methods in the CustomActionServer class in action_service.py.

• The robot chassis and arm movements are controlled by publishing velocity topics and arm joint angle topics.
• The _execute_action chassis control function continuously checks the interrupt flag (self.interrupt_flag). If it is set, the chassis stops immediately.
• Similarly, the pubSix_Arm arm control function checks the interrupt flag (self.interrupt_flag). Only when it is not set will it publish the arm joint angle topic.

xxxxxxxxxx
def _execute_action(self, twist, num=1, durationtime=3.0):
    for _ in range(num):
        start_time = time.time()
        while (time.time() - start_time) < durationtime:
            if self.interrupt_flag:
                self.stop()
                return
            self.publisher.publish(twist)
            time.sleep(0.1)

def pubSix_Arm(self, joints, id=6, angle=180.0, runtime=2000):
    arm_joint = ArmJoints()
    arm_joint.joint1 = joints[0]
    arm_joint.joint2 = joints[1]
    arm_joint.joint3 = joints[2]
    arm_joint.joint4 = joints[3]
    arm_joint.joint5 = joints[4]
    arm_joint.joint6 = joints[5]
    arm_joint.time = runtime
    if not self.interrupt_flag:
        self.TargetAngle_pub.publish(arm_joint)

6.3.2 Interrupting Actions with Subprocesses

For example, actions like robotic gripping and sorting machine code require launching an external program within a subprocess. Here, we use the robotic gripping action function grasp_obj as an example:

When the robotic gripper is not completed, it waits in a while not self.grasp_obj_future.done(): loop. During this process, if the interrupt flag self.interrupt_flag is set, it first calls the self.kill_process_tree function to recursively terminate the subprocess tree and then terminate the action.

xxxxxxxxxx
def grasp_obj(self, x1, y1, x2, y2):
    process_1 = subprocess.Popen(["ros2", "run", "largemodel_arm", "grasp_desktop"])
    time.sleep(2.0)  # 睡眠2秒等待线程稳定
    process_2 = subprocess.Popen(["ros2", "run", "largemodel_arm", "KCF_follow"])
    process_3 = subprocess.Popen(
        ["ros2", "run", "M3Pro_KCF", "ALM_KCF_Tracker_Node"]
    )
    time.sleep(3.0)  # 睡眠3秒等待线程稳定
    x1 = int(x1)
    y1 = int(y1)
    x2 = int(x2)
    y2 = int(y2)
    self.object_position_pub.publish(Int16MultiArray(data=[x1, y1, x2, y2]))
    timeout = 180.0
    start_time = time.time()
    while not self.grasp_obj_future.done():
        if self.interrupt_flag:
            self.pubSix_Arm(self.init_joints)
            break
        if time.time() - start_time > timeout:
            self.kill_process_tree(process_1.pid)
            self.kill_process_tree(process_2.pid)
            self.kill_process_tree(process_3.pid)
            self.grasp_obj_future = Future()  # 复位Future对象
            self.pubSix_Arm(self.init_joints)
            self.get_logger().info(
                f"Robot feedback: The execution of grasp_obj({x1},{y1},{x2},{y2}) timed out"
            )
            self.action_status_pub(
                f"机器人反馈:执行grasp_obj({x1},{y1},{x2},{y2})失败"
            )
            break
        time.sleep(0.1)
​
    result = self.grasp_obj_future.result()
    if not self.interrupt_flag:
        if result.data == "grasp_obj_done":
            self.action_status_pub(
                f"机器人反馈:执行grasp_obj({x1},{y1},{x2},{y2})完成"
            )
        else:
            self.action_status_pub(
                f"机器人反馈:执行grasp_obj({x1},{y1},{x2},{y2})失败"
            )
​
    self.kill_process_tree(process_1.pid)
    self.kill_process_tree(process_2.pid)
    self.kill_process_tree(process_3.pid)
    self.grasp_obj_future = Future()  # 复位Future对象
