slam-toolbox Mapping

slam-toolbox Mapping1. Course Content2. slam-toolbox Introduction2.1 Core Technical Principles2.1.1 Frontend Processing (Laser Scan Matching)2.1.2 Backend Optimization (Graph Optimization)3. Start the Agent4. Run the Example4.1 Synchronous Mapping Mode4.2 Save the Grid Map4.3 Asynchronous Mapping Mode4.4 Difference Between Synchronous and Asynchronous Mapping Modes5. Node Analysis5.1 Display Node Computation Graph5.2 TF Transformation6. Configuration Parameters

1. Course Content

Basic: Run the sample program to build and save a grid map using the slam-toolbox mapping algorithm.

Advanced: Understand the configuration parameters of slam-toolbox.

[!TIP]
The ROSMASTER-M3 has a built-in shortcut command for SLAM mapping. Simply enter slam in the terminal to start SLAM mapping. The shortcut command uses the synchronous mapping mode of slam_toolbox by default.

2. slam-toolbox Introduction

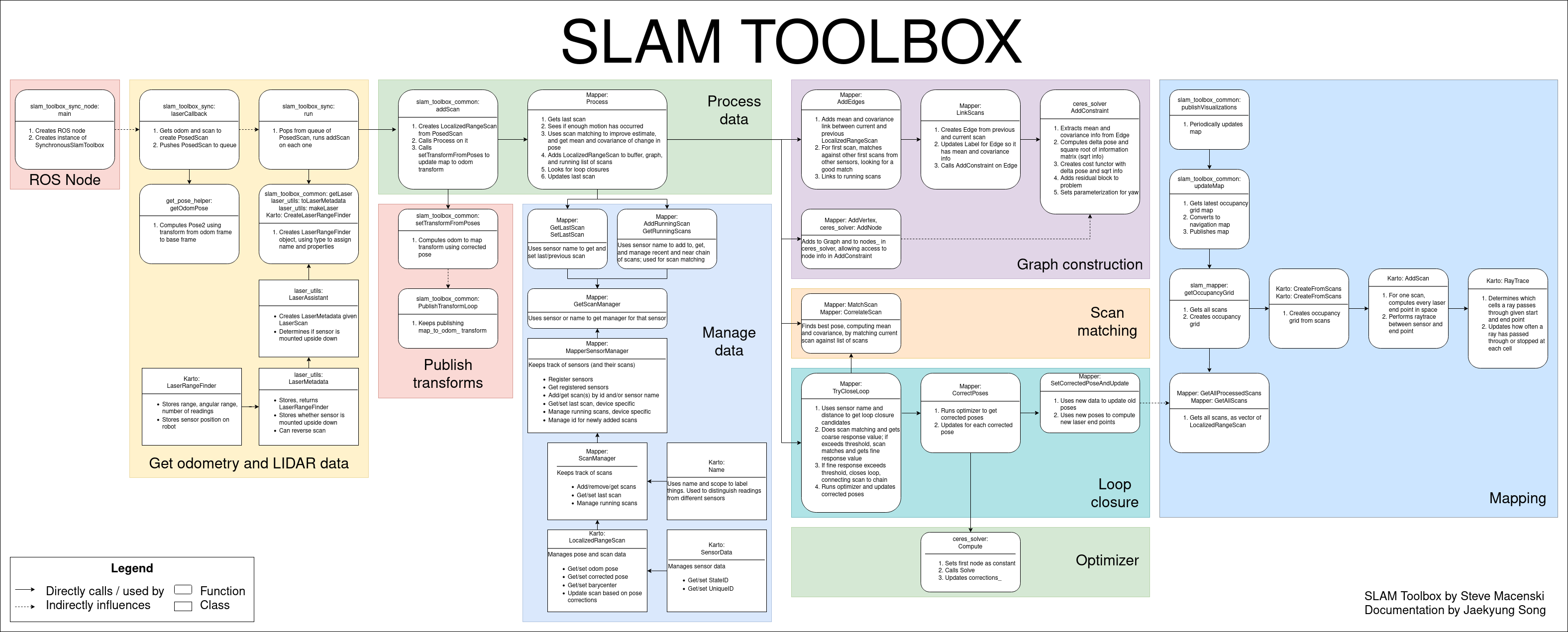

s-toolbox is an open-source 2D SLAM (Simultaneous Localization and Mapping) algorithm package based on ROS, primarily used for mapping and localization of mobile robots in unknown environments. It is based on a Graph Optimization framework, combining data from sensors like 2D LiDAR and IMU to build a 2D grid map of the environment and update the robot's pose in real-time.

2.1 Core Technical Principles

2.1.1 Frontend Processing (Laser Scan Matching)

GICP Algorithm: Estimates the robot's relative pose change by iteratively calculating the optimal match between the current laser scan and the map. Compared to traditional ICP, GICP introduces a probabilistic model, making it more robust to outliers.
Motion Compensation: Uses IMU data to compensate for laser scan distortion during the robot's movement, improving matching accuracy in dynamic environments.

2.1.2 Backend Optimization (Graph Optimization)

Pose Graph Construction: Constructs a graph structure with the robot's pose nodes and the relative pose constraints obtained from scan matching.
Global Optimization: Uses a non-linear optimization algorithm (like Ceres Solver) to optimize the pose graph, eliminating accumulated errors and achieving global map consistency.

3. Start the Agent

Note: If it is already running, you do not need to start it again.

Enter the command in the vehicle's terminal:


start_agent

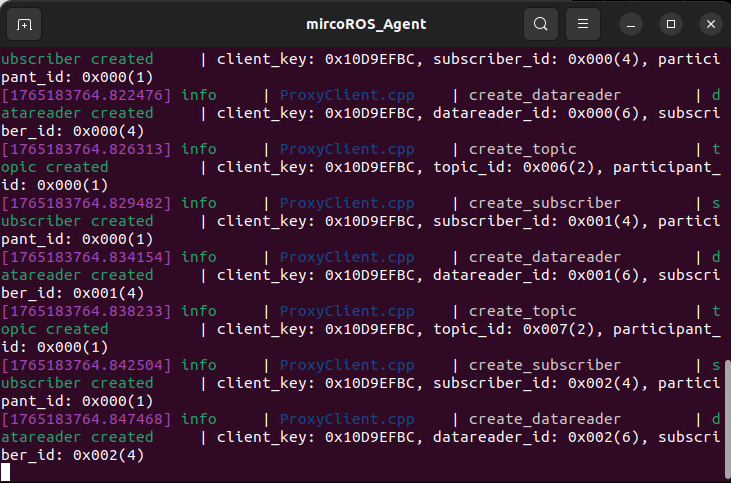

The terminal will print the following information, indicating a successful connection:

4. Run the Example

4.1 Synchronous Mapping Mode

Launch the mapping command in the vehicle's terminal:

For Raspberry Pi 5 users, if the ROS container is not started, you need to start it first,


xxxxxxxxxx
bringup_m3

Open a terminal inside the container,


xxxxxxxxxx
exec_m3

(ORIN board)


xxxxxxxxxx
ros2 launch m3_bringup slam_toolbox.launch.py

(RDK & PI5 boards) Run in separate steps, with visualization launched on the accompanying virtual machine Rosmaster-M3-Ubuntu22.04,


xxxxxxxxxx
# On the virtual machine
rviz2 -d /home/yahboom/yahboomM3_ws/user_ws/src/m3_bringup/rviz/slam_toolbox_rviz.rviz
# On the host machine
ros2 launch m3_bringup slam_toolbox.launch.py gui:=False

[!NOTE]

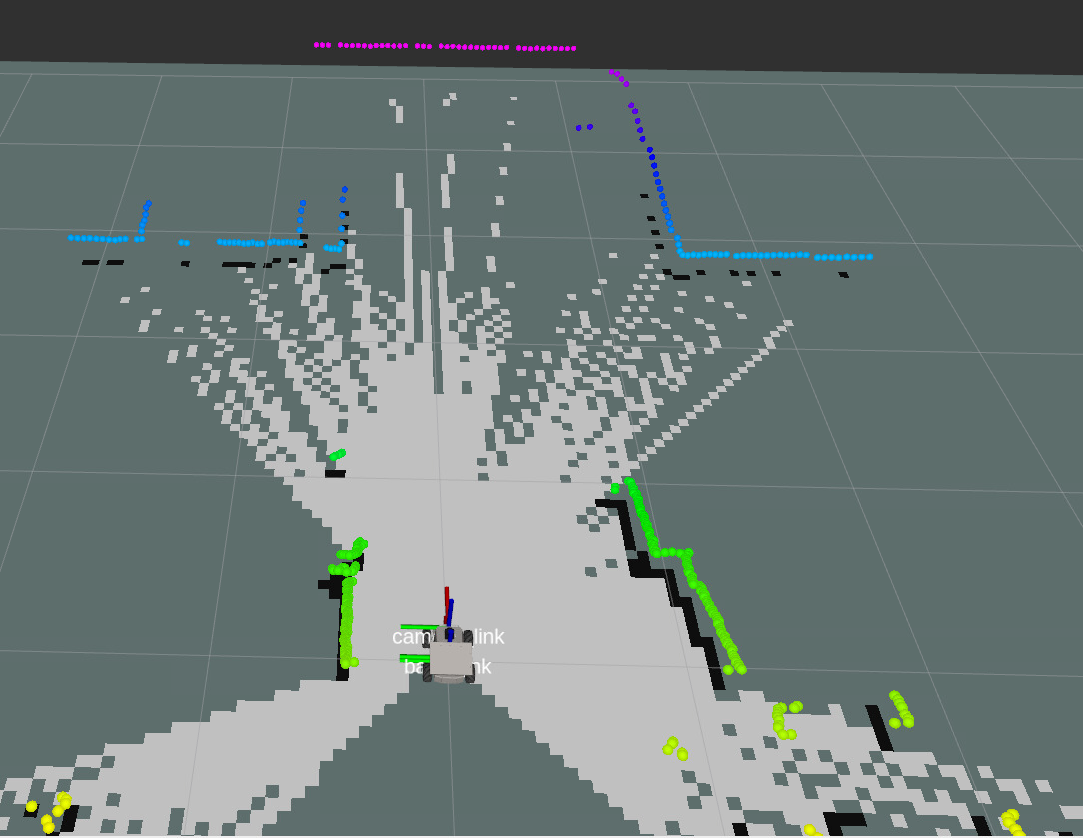

By default, the synchronous mapping mode of slam_toolbox is used.

To control the vehicle's movement, you can use either keyboard or joystick control. Here, we use keyboard control as an example:


xxxxxxxxxx

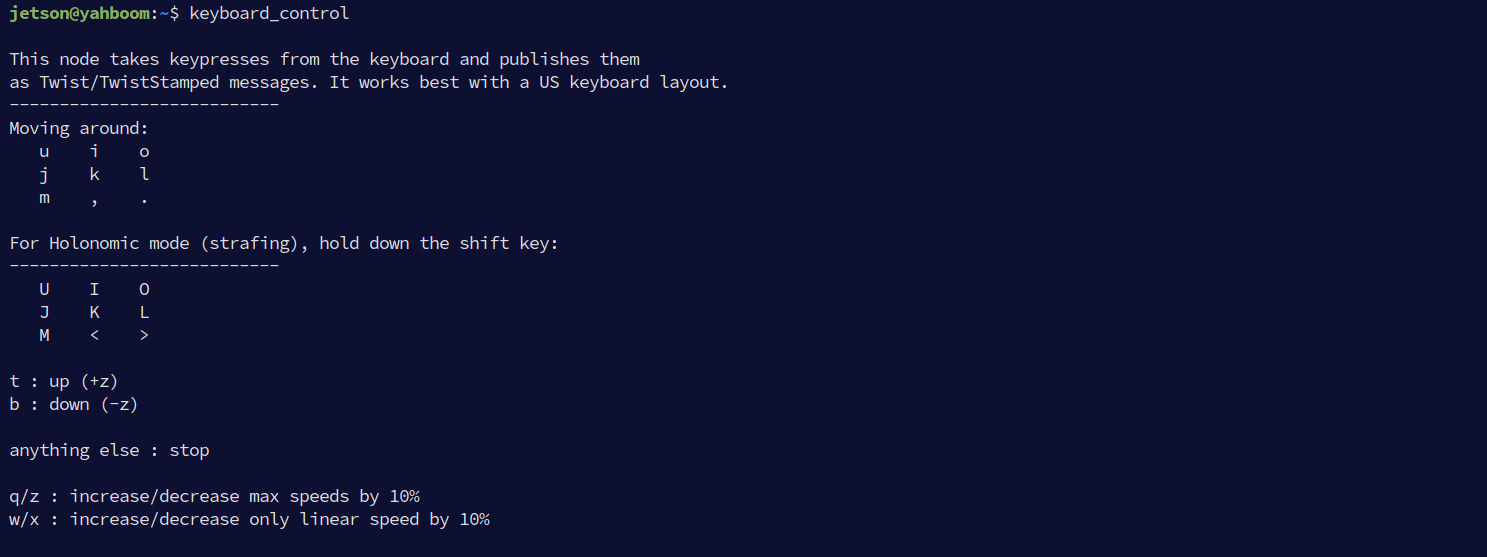

keyboard_control

Click on the terminal window with the mouse and press z to reduce the speed appropriately.

Press I, <, J, L to control the car to move forward, backward, turn left, and turn right, respectively, to complete the mapping slowly.

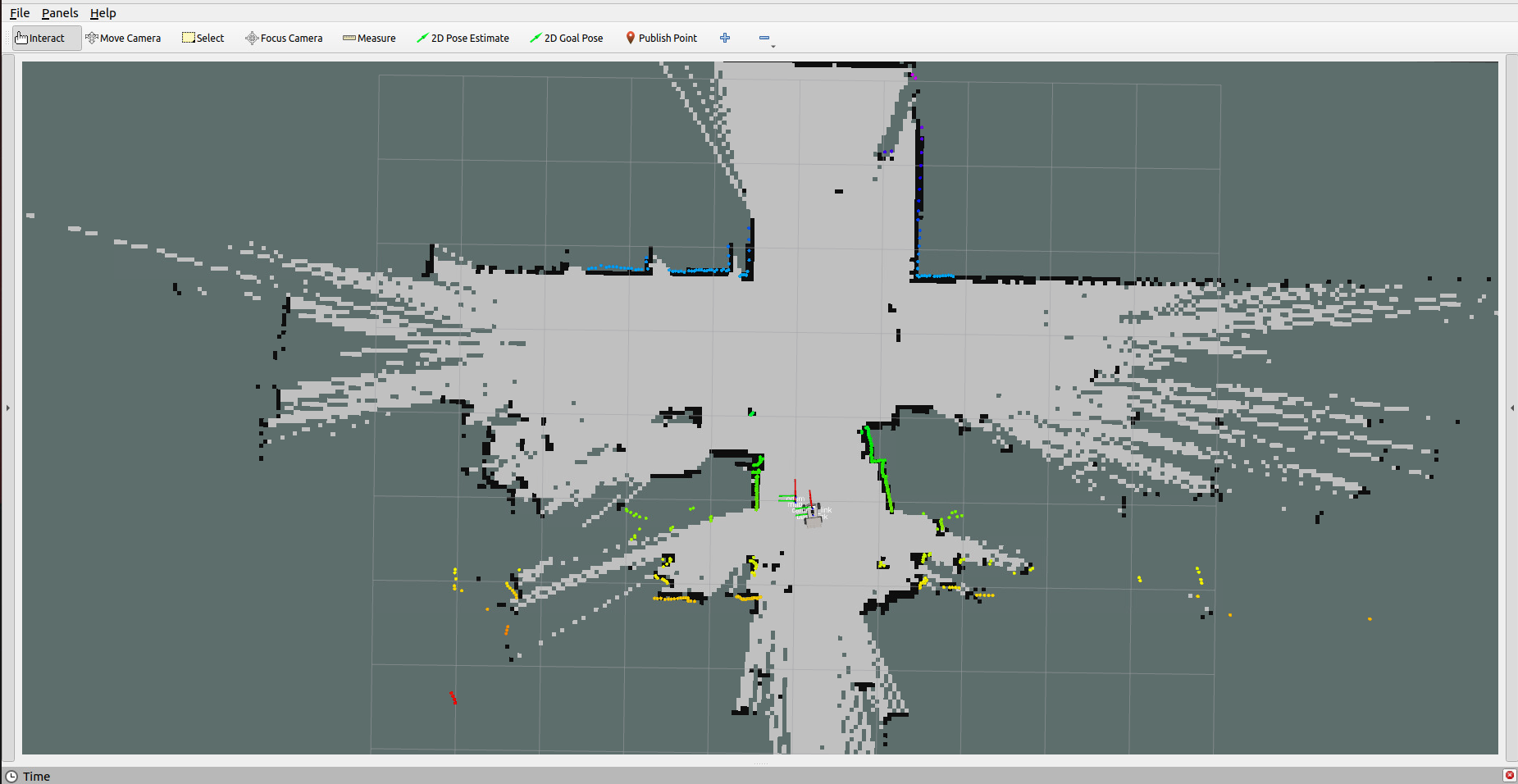

4.2 Save the Grid Map

Run the following command in the terminal to save the map:


xxxxxxxxxx
ros2 launch m3_bringup save_map.launch.py

[!TIP]
Optional Parameters:
map_name: Specifies the name of the saved map, with the default value being map.
For example, to save a map named test.yaml, add the parameter: ros2 launch m3_bringup save_map.launch.py map_name:=test

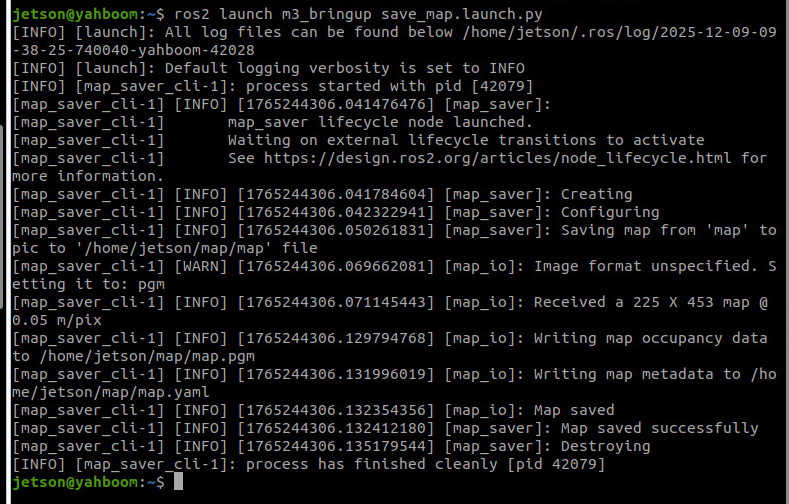

The terminal prompt Map saved successfully indicates that the map was saved successfully.

4.3 Asynchronous Mapping Mode


xxxxxxxxxx
ros2 launch m3_bringup slam_toolbox.launch.py slam_mode:=async

[!NOTE]
The mapping command here is the same as for synchronous mapping. The mapping mode is determined by the slam_mode launch parameter.

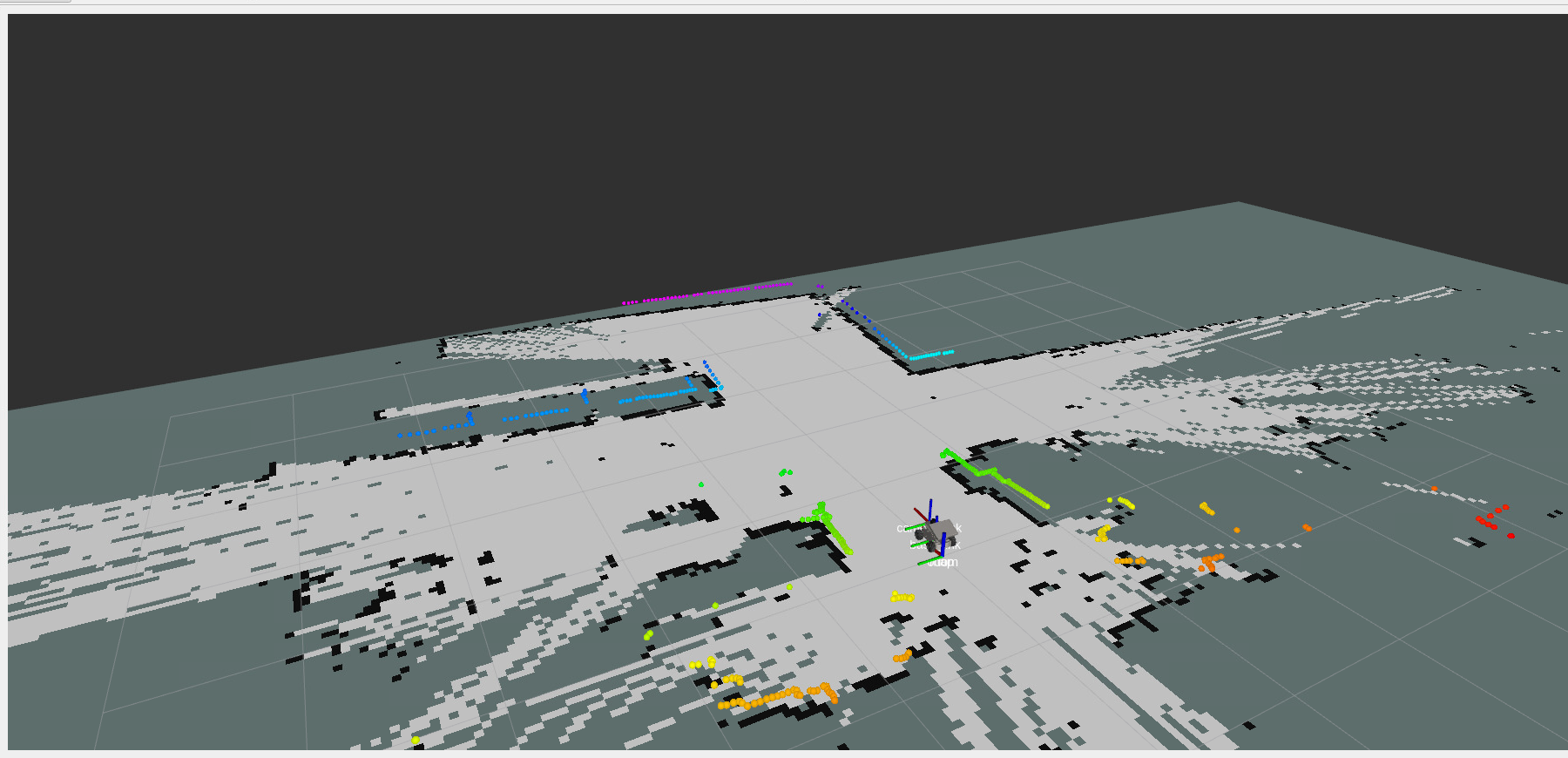

The mapping operation process is the same for both asynchronous and synchronous mapping.

4.4 Difference Between Synchronous and Asynchronous Mapping Modes

Synchronous Mode:
- Suitable for scenarios with strict data processing order requirements, ensuring that scan data is processed in the order it is received.
- Suitable for medium-sized environments.
- Better for scenarios with high mapping accuracy requirements where some latency is acceptable.
Asynchronous Mode:
- Suitable for large-scale environments or scenarios with high real-time requirements, avoiding delays caused by queue accumulation.
- Performs better when mapping in larger spaces.
- Suitable for scenarios where the robot moves quickly and needs to respond rapidly to new scan data.

5. Node Analysis

5.1 Display Node Computation Graph


xxxxxxxxxx
ros2 run rqt_graph rqt_graph

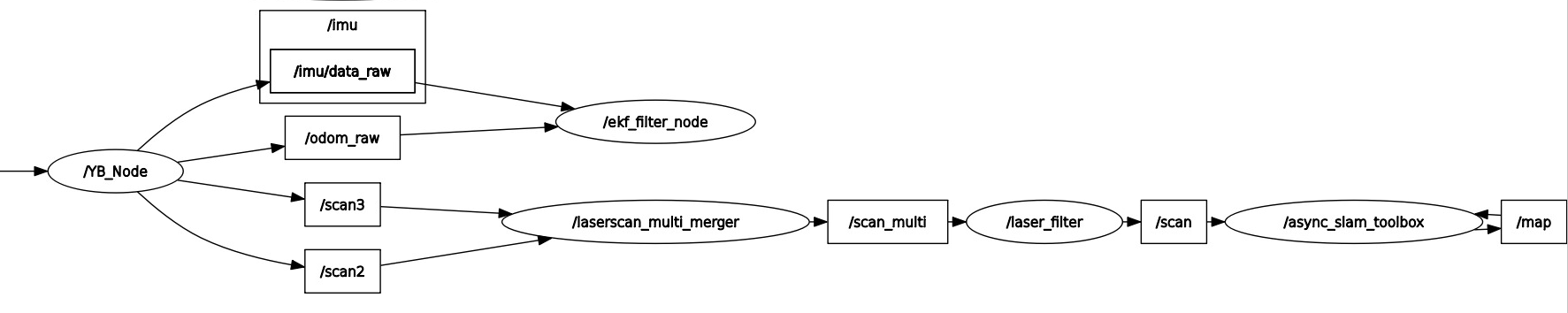

As can be seen from the figure above, the slam_toolbox mapping node receives /scan Lidar data and /odom odometry data to build the map.

5.2 TF Transformation


xxxxxxxxxx
ros2 run rqt_tf_tree rqt_tf_tree

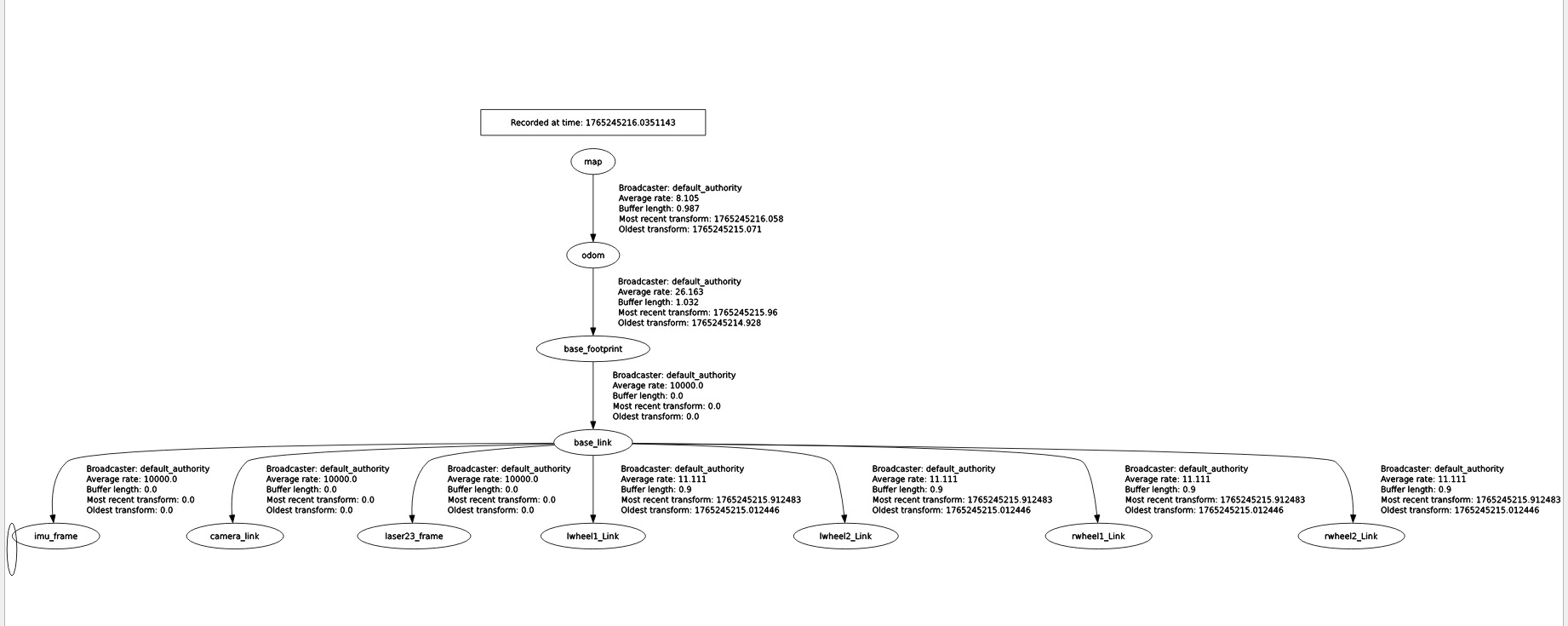

The slam_toolbox provides the TF transformation between the map and odom coordinate frames.

6. Configuration Parameters

Synchronous mapping mode parameter file path:


xxxxxxxxxx
~/yahboomM3_ws/user_ws/src/m3_bringup/config/slam_toolbox_config/mapper_params_online_sync.yaml

See the comments for the meaning of the parameters.


x
sync_slam_toolbox:
  ros__parameters:
    # Plugin parameters (optimization)
    solver_plugin: solver_plugins::CeresSolver  # Optimization solver plugin, using Ceres Solver
    ceres_linear_solver: SPARSE_NORMAL_CHOLESKY  # Ceres linear solver type, sparse normal Cholesky decomposition
    ceres_preconditioner: SCHUR_JACOBI  # Ceres preconditioner type, Schur-Jacobi preconditioner
    ceres_trust_strategy: LEVENBERG_MARQUARDT  # Ceres trust-region strategy, Levenberg-Marquardt method
    ceres_dogleg_type: TRADITIONAL_DOGLEG  # Ceres dogleg type, traditional dogleg (only effective when trust-region strategy is DOGLEG)
    ceres_loss_function: None  # Ceres loss function, none (uses default squared loss)
    # ROS parameters
    odom_frame: odom  # Odometry coordinate frame name
    map_frame: map  # Map coordinate frame name
    base_frame: base_footprint  # Robot base coordinate frame name
    scan_topic: /scan  # Lidar scan data topic (absolute path)
    use_map_saver: true  # Whether to enable the map saver service and subscribe to the map topic
    mode: mapping  # Operating mode, mapping or localization
    # Map loading related parameters (if enabled, will load a map from the specified file and continue mapping)
    map_file_name: ""  # Pose graph file name to load (empty means do not load)
    # map_start_pose: [0.0, 0.0, 0.0]  # Starting pose [x, y, yaw] when loading a map (mutually exclusive with map_start_at_dock, this parameter has priority)
    map_start_at_dock: true  # Whether to start loading from the first node (dock position) of the map
    debug_logging: false  # Whether to enable debug logging output
    throttle_scans: 1  # Number of scans to throttle in synchronous mode (process 1 frame every n frames)
    transform_publish_period: 0.02  # Publication period of the map-to-odometry transform (in seconds), 0 means do not publish
    map_update_interval: 5.0  # Update interval for the 2D occupancy grid map (in seconds, for visualization or other applications)
    resolution: 0.05  # Resolution of the 2D occupancy grid map (meters/pixel)
    min_laser_range: 0.05  # Minimum effective laser range for grid map generation (meters)
    max_laser_range: 12.0  # Maximum effective laser range for grid map generation (meters)
    minimum_time_interval: 0.5  # Minimum time interval between processing two scan frames in synchronous mode (seconds)
    transform_timeout: 0.2  # Timeout for TF coordinate transform lookup (seconds)
    tf_buffer_duration: 30.  # Buffer duration for TF messages (seconds)
    stack_size_to_use: 40000000  # Program stack size (bytes), for serialization/deserialization of large maps
    enable_interactive_mode: true  # Whether to enable interactive mode (retains laser scan cache for RVIZ interaction, increases memory usage)
    # General parameters
    use_scan_matching: true  # Whether to use scan matching
    use_scan_barycenter: true  # Whether to use the scan barycenter (improves matching stability)
    minimum_travel_distance: 0.5  # Minimum distance the robot must move before processing a new scan (meters)
    minimum_travel_heading: 0.5  # Minimum angle the robot must turn before processing a new scan (radians)
    scan_buffer_size: 10  # Scan data buffer size (stores the last n scans)
    scan_buffer_maximum_scan_distance: 10.0  # Maximum distance of laser points in the scan buffer (meters, points beyond this are filtered)
    link_match_minimum_response_fine: 0.1  # Minimum response value for link matching in fine matching (for constraints between adjacent nodes)
    link_scan_maximum_distance: 1.5  # Maximum distance between adjacent scans (meters, for building links between nodes)
    loop_search_maximum_distance: 3.0  # Maximum search distance for loop closure detection (meters)
    do_loop_closing: true  # Whether to enable loop closure detection
    loop_match_minimum_chain_size: 10  # Minimum node chain length required for loop closure detection (avoids mismatches from short chains)
    loop_match_maximum_variance_coarse: 3.0  # Maximum variance threshold for coarse matching (for filtering candidate loop closures)
    loop_match_minimum_response_coarse: 0.35  # Minimum response value for loop closures in coarse matching
    loop_match_minimum_response_fine: 0.45  # Minimum response value for loop closures in fine matching
    # Correlation Parameters - Scan Matching Parameters
    correlation_search_space_dimension: 0.5  # Search space size for scan matching (meters, search for optimal match within this range)
    correlation_search_space_resolution: 0.01  # Resolution of the scan matching search space (meters, affects matching accuracy and speed)
    correlation_search_space_smear_deviation: 0.1  # Smear deviation of laser points in scan matching (meters, increases robustness)
    # Correlation Parameters - Loop Closure Parameters
    loop_search_space_dimension: 8.0  # Search space size for loop closure detection (meters)
    loop_search_space_resolution: 0.05  # Resolution of the loop closure search space (meters)
    loop_search_space_smear_deviation: 0.03  # Smear deviation of laser points in loop closure detection (meters)
    # Scan Matcher Parameters
    distance_variance_penalty: 0.5  # Distance variance penalty coefficient (affects the weight of distance error in matching)
    angle_variance_penalty: 1.0  # Angle variance penalty coefficient (affects the weight of angle error in matching)
    fine_search_angle_offset: 0.00349  # Angle offset for fine search (radians, approx. 0.2 degrees)
    coarse_search_angle_offset: 0.349  # Angle offset for coarse search (radians, approx. 20 degrees)
    coarse_angle_resolution: 0.0349  # Angle resolution for coarse search (radians, approx. 2 degrees)
    minimum_angle_penalty: 0.9  # Minimum angle penalty coefficient (filters matches with large angle deviations)
    minimum_distance_penalty: 0.5  # Minimum distance penalty coefficient (filters matches with large distance deviations)
    use_response_expansion: true  # Whether to use response expansion (improves matching stability)
    min_pass_through: 2  # Minimum number of points to pass through in scan matching (filters invalid matches)
    occupancy_threshold: 0.1  # Occupancy grid threshold (for determining if a grid cell is occupied)

Asynchronous mapping mode parameter file path:


xxxxxxxxxx
~/yahboomM3_ws/user_ws/src/m3_bringup/config/slam_toolbox_config/mapper_params_online_async.yaml

The parameter meanings are the same as for synchronous mapping.


xxxxxxxxxx
async_slam_toolbox:
  ros__parameters:
    # Plugin params
    solver_plugin: solver_plugins::CeresSolver
    ceres_linear_solver: SPARSE_NORMAL_CHOLESKY
    ceres_preconditioner: SCHUR_JACOBI
    ceres_trust_strategy: LEVENBERG_MARQUARDT
    ceres_dogleg_type: TRADITIONAL_DOGLEG
    ceres_loss_function: None
    # ROS Parameters
    odom_frame: odom
    map_frame: map
    base_frame: base_footprint
    scan_topic: /scan
    use_map_saver: true
    mode: mapping #localization
    # if you'd like to immediately start continuing a map at a given pose
    # or at the dock, but they are mutually exclusive, if pose is given
    # will use pose
    map_file_name: ""
    # map_start_pose: [0.0, 0.0, 0.0]
    #map_start_at_dock: true
    debug_logging: false
    throttle_scans: 1
    transform_publish_period: 0.02 #if 0 never publishes odometry
    map_update_interval: 5.0
    resolution: 0.05
    min_laser_range: 0.05 #for rastering images
    max_laser_range: 12.0 #for rastering images
    minimum_time_interval: 0.5
    transform_timeout: 0.2
    tf_buffer_duration: 30.
    stack_size_to_use: 40000000 #// program needs a larger stack size to serialize large maps
    enable_interactive_mode: true
    # General Parameters
    use_scan_matching: true
    use_scan_barycenter: true
    minimum_travel_distance: 0.5
    minimum_travel_heading: 0.5
    scan_buffer_size: 10
    scan_buffer_maximum_scan_distance: 10.0
    link_match_minimum_response_fine: 0.1
    link_scan_maximum_distance: 1.5
    loop_search_maximum_distance: 3.0
    do_loop_closing: true
    loop_match_minimum_chain_size: 10
    loop_match_maximum_variance_coarse: 3.0
    loop_match_minimum_response_coarse: 0.35
    loop_match_minimum_response_fine: 0.45
    # Correlation Parameters - Correlation Parameters
    correlation_search_space_dimension: 0.5
    correlation_search_space_resolution: 0.01
    correlation_search_space_smear_deviation: 0.1
    # Correlation Parameters - Loop Closure Parameters
    loop_search_space_dimension: 8.0
    loop_search_space_resolution: 0.05
    loop_search_space_smear_deviation: 0.03
    # Scan Matcher Parameters
    distance_variance_penalty: 0.5
    angle_variance_penalty: 1.0
    fine_search_angle_offset: 0.00349
    coarse_search_angle_offset: 0.349
    coarse_angle_resolution: 0.0349
    minimum_angle_penalty: 0.9
    minimum_distance_penalty: 0.5
    use_response_expansion: true
    min_pass_through: 2
    occupancy_threshold: 0.1
