Install and start the Microros agent

Install and start the Microros agent1. Docker starts the microros agentDocker starts the serial port proxyAgent startup failure2. Start microros agent from source codeInstall tinyxml2 dependenciesInstall the python3-rosdep toolCompile the micro_ros_setup environmentCompile the micro_ros_agent environmentStart the microros serial port proxy from source code3. Start the microros agent with the factory image

Note: You can select any one of the three startup methods.

1. Docker starts the microros agent

Docker starts the serial port proxy


docker run -it --rm -v /dev:/dev -v /dev/shm:/dev/shm --privileged --net=host microros/micro-ros-agent:humble serial --dev /dev/myserial -b 2000000 -v4

Among them, --dev /dev/myserial is the bound serial port device, which can also be changed to /dev/ttyUSB0, etc.

-b 2000000 is the baud rate.

To exit the proxy, press Ctrl+C in the terminal.

Note that you cannot close the terminal directly, otherwise Docker will continue to run in the background.

If the MCU starts the reconnection proxy multiple times, causing ROS2 to search for multiple identical nodes, it will not actually affect the use. Press Ctrl+C to end the proxy and then reset the MCU to reconnect to the proxy.

Agent startup failure

The microROS agent can only be started in one terminal. If a terminal has already started the microROS agent in the background, an error will be reported when starting the agent again. Please press Ctrl+C to exit the agent in the original agent terminal before running the agent again.

If the next time you start the agent, it fails because you directly closed the terminal, you can restart the virtual machine/computer to solve it, or manually end Docker to solve it.

How to manually end docker:

Please first query the current Docker process number and end the current proxy Docker process.


xxxxxxxxxx
docker ps -a | grep microros/micro-ros-agent
docker stop xxxxxxxxxx

2. Start microros agent from source code

Install tinyxml2 dependencies

Enter the following command in the terminal to install tinyxml2


xxxxxxxxxx
cd ~/
git clone https://github.com/leethomason/tinyxml2.git
cd tinyxml2
mkdir build
cd build
sudo cmake ..
sudo make
sudo make install

Install the python3-rosdep tool

Enter the following command in the terminal to install the rosdep tool. If it has already been installed, you can skip this step.


xxxxxxxxxx
sudo apt install python3-rosdep

Compile the micro_ros_setup environment

Activate the ROS2 environment variables. Here we take the humble version as an example. If it has already been activated, you can skip the activation step.


xxxxxxxxxx
source /opt/ros/humble/setup.bash

Create and enter the workspace uros_ws in the user directory


xxxxxxxxxx
mkdir ~/uros_ws && cd ~/uros_ws
mkdir src

Download the micro_ros_setup file to the src folder


xxxxxxxxxx
git clone -b $ROS_DISTRO https://github.com/micro-ROS/micro_ros_setup.git src/micro_ros_setup

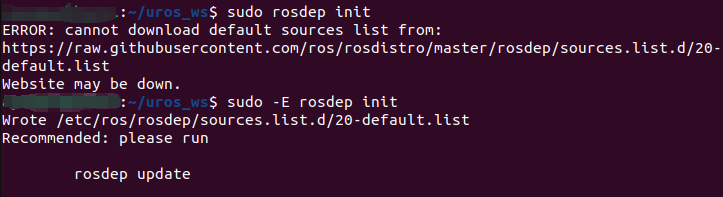

Initialize rosdep


xxxxxxxxxx
sudo rosdep init

If there is a network problem, please add the -E parameter


xxxxxxxxxx
sudo -E rosdep init

If all the above steps return an error and rosdep still cannot be initialized, you can create a new 20-default.list file in the /etc/ros/rosdep/sources.list.d/ directory and add the following content, then proceed to the next step.


x
# os-specific listings first
yaml https://raw.githubusercontent.com/ros/rosdistro/master/rosdep/osx-homebrew.yaml osx
# generic
yaml https://raw.githubusercontent.com/ros/rosdistro/master/rosdep/base.yaml
yaml https://raw.githubusercontent.com/ros/rosdistro/master/rosdep/python.yaml
yaml https://raw.githubusercontent.com/ros/rosdistro/master/rosdep/ruby.yaml
gbpdistro https://raw.githubusercontent.com/ros/rosdistro/master/releases/fuerte.yaml fuerte
# newer distributions (Groovy, Hydro, ...) must not be listed anymore, they are being fetched from the rosdistro index.yaml instead

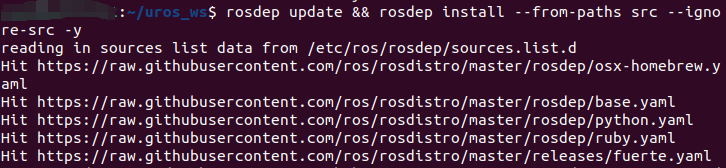

Update rosdep and install related driver packages


xxxxxxxxxx
rosdep update && rosdep install --from-paths src --ignore-src -y

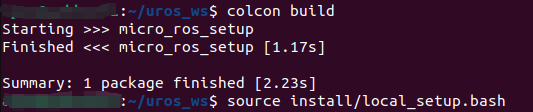

Compile Workspace


xxxxxxxxxx
colcon build

Activate the micro_ros_setup environment


xxxxxxxxxx
source install/local_setup.bash

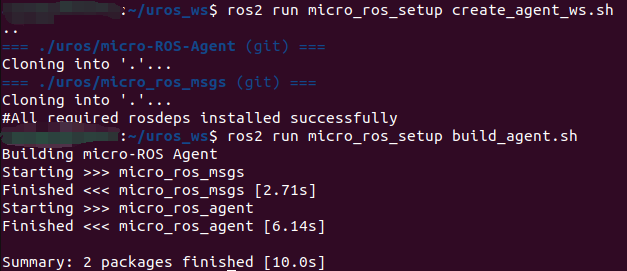

Compile the micro_ros_agent environment


xxxxxxxxxx
ros2 run micro_ros_setup create_agent_ws.sh
ros2 run micro_ros_setup build_agent.sh

If an error occurs when executing build_agent.sh, compile again.

Start the microros serial port proxy from source code

Activate the micro_ros_agent agent environment


xxxxxxxxxx
source ~/uros_ws/install/local_setup.sh

Enter the following command to start the serial port proxy from the ROS2 environment


xxxxxxxxxx
ros2 run micro_ros_agent micro_ros_agent serial --dev /dev/myserial -b  2000000  -v4

Among them, --dev /dev/myserial is the bound serial port device, which can also be changed to /dev/ttyUSB0, etc.

-b 2000000 is the baud rate.

To exit the proxy, press Ctrl+C in the terminal.

3. Start the microros agent with the factory image

The factory image system has integrated the proxy function and made it into a script. You only need to run the following command to enable the proxy.


xxxxxxxxxx
sh ~/start_agent.sh
