Welcome to Jetson Aluminum Alloy Case repository

Installation Video For Jetson NANO B01

<iframe width="800" height="500" src="https://www.youtube.com/embed/tD6CRyJJF00" title="YouTube video player" frameborder="0" allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture" allowfullscreen></iframe>

Installation Video For Orin Nano SUPER/Orin NX SUPER/Xavier NX/TX2-NX

<iframe width="800" height="500" src="https://www.youtube.com/embed/FwMrekiBBxc" title="YouTube video player" frameborder="0" allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture" allowfullscreen></iframe>

Notes of wiring:

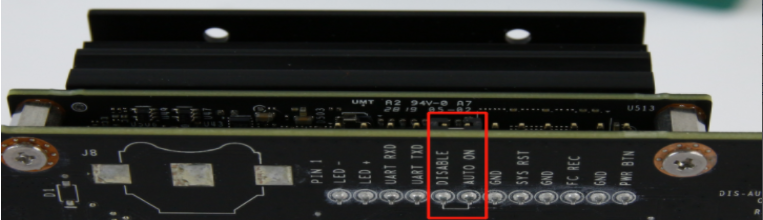

1. Using a jumper cap to connect the [DISABLE] and [AUTO ON] pins of the development board, as shown below.

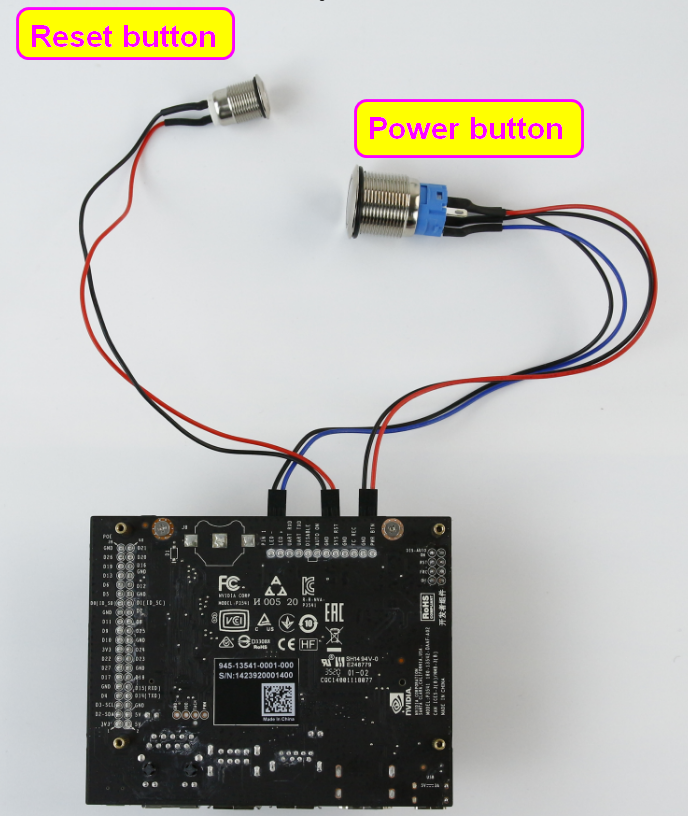

2. Wiring of power button and reset button:

1) Power button

Blue-black line group: blue->【LED+】, black->【LED-】

Red-black line group: red->【PWR BTN】, black->【GND】

2) Reset button

Red and black wire group: red ->【SYS RST】, black ->【GND】
