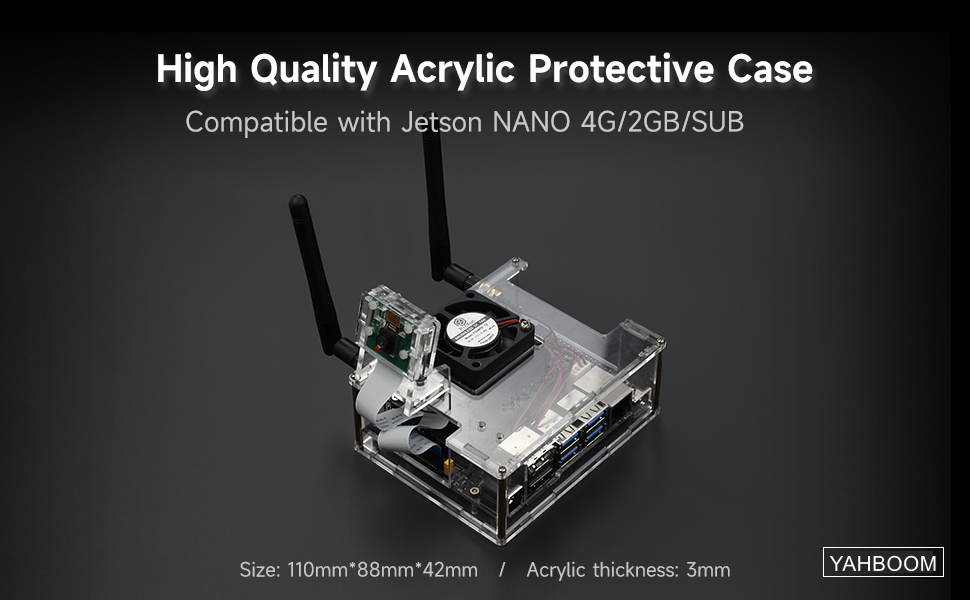

Welcome to Jetson NANO B01 Acrylic Case repository
Jeston NANO 4G (A02/B01) Acrylic case installation video
A02-B01-Case-Installation-manual.zip
Download
Jeston NANO 2G Acrylic case new installation video
Jeston NANO 2G Acrylic case old installation video
Note:
1) When installing the bottom plate of the acrylic shell, the side with the Yahboom website address need to face the bottom.
2) There is no screw threads on the heat sink of the Jetson Nano board, it is normally. You can install cooling fan by force.

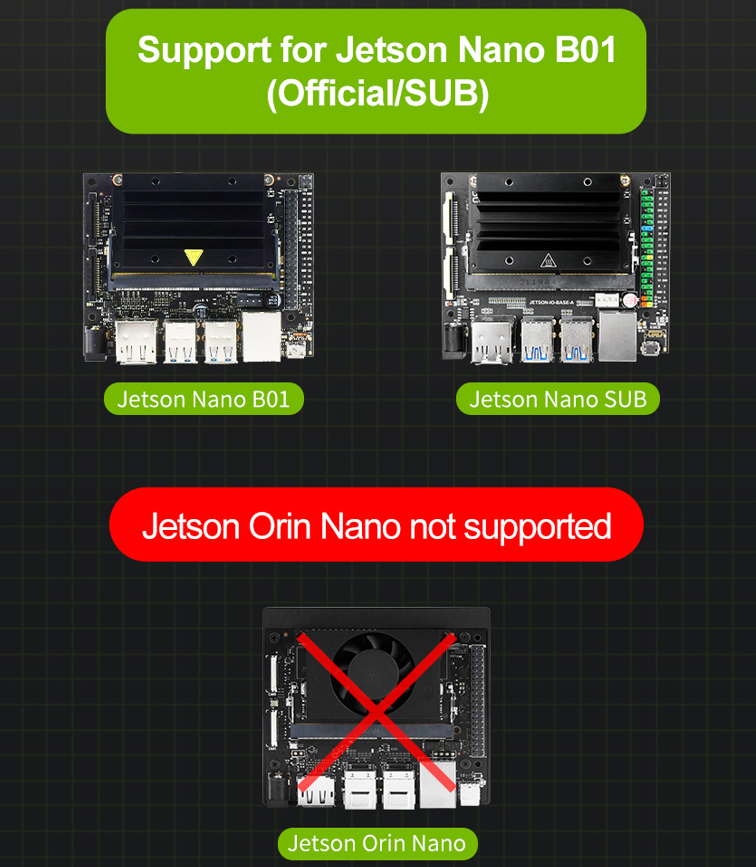

3) 2G and A02 versions only support the installation of a single camera, and the B01 version supports the installation of dual cameras.

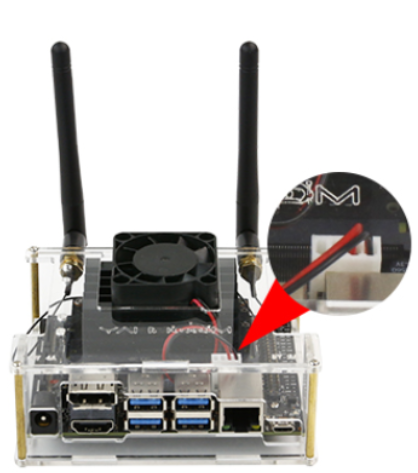

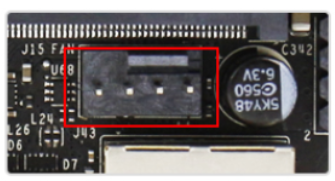

4) The cooling fan adopts anti-reverse plug.

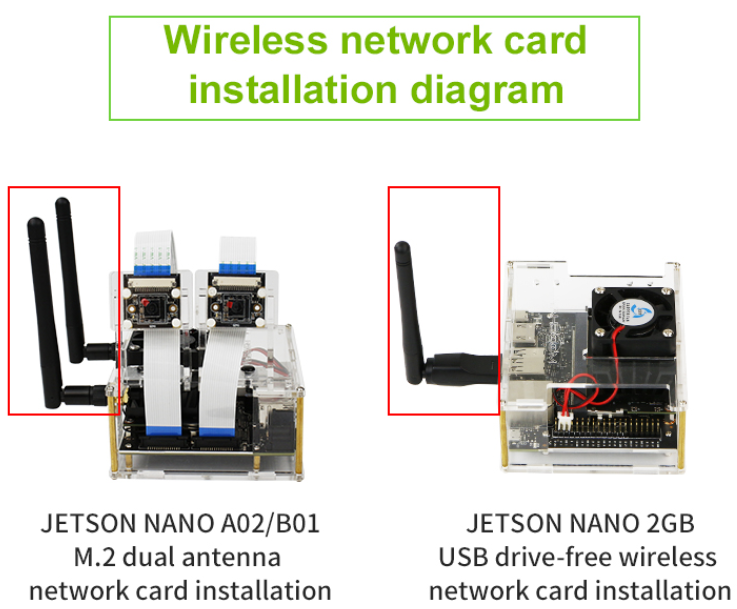

5) A02 and B01 versions support M.2 dual antenna network card and USB wireless network card; the 2GB version only supports USB wireless network card.
The video installation tutorial takes the most complicated B01 version as an example.
