Micro:bit expansion board

Description:

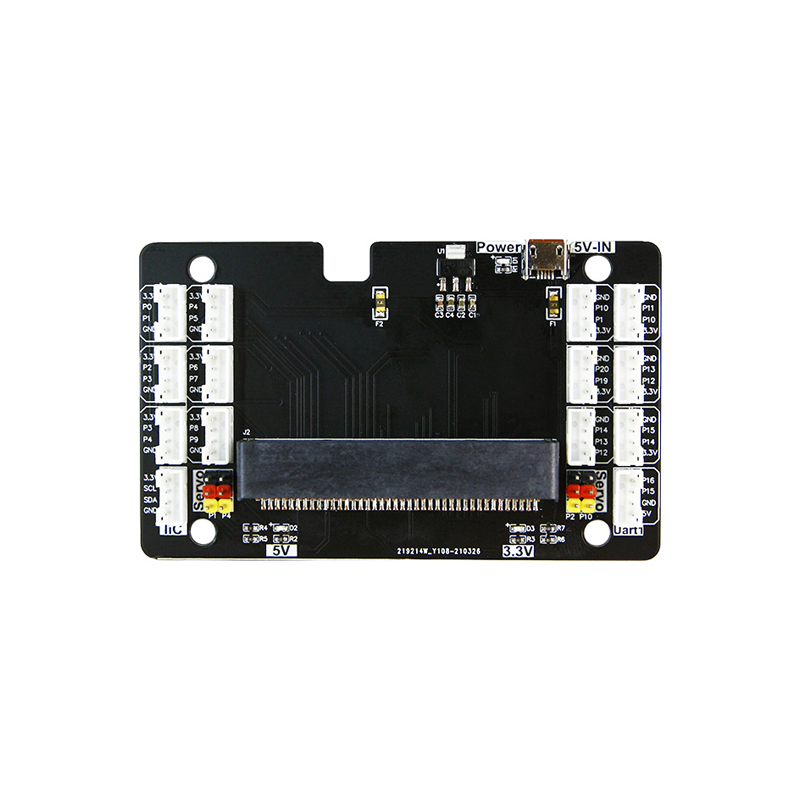

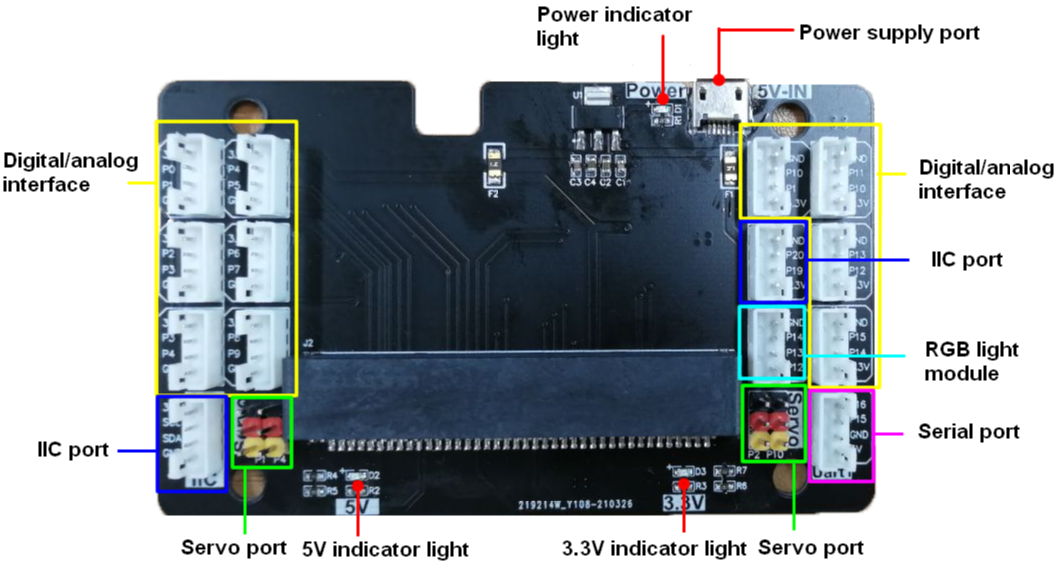

This expansion board expand all the pins on the Micro:bit board. Every two adjacent pins are combined with GND and VCC to form a 4Pin PH2.0 interface, which can be connected to various sensors through the PH2.0 cable. We also designed 4 sets of servo pins on the expansion board, which can be used to connect all the servos. This expansion board is perfectly compatible with Yahboom world of module series and 3 in 1 series sensor modules.

Features:

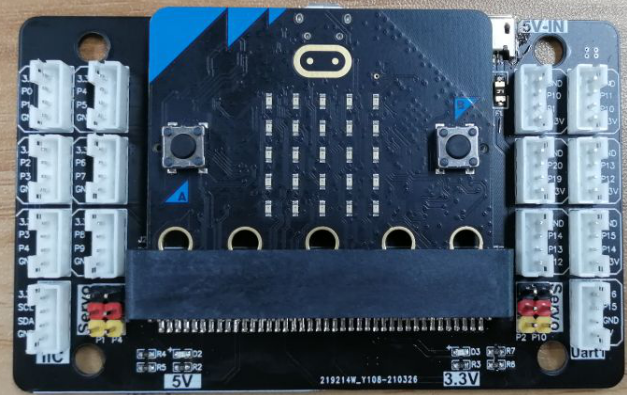

Micro:bit is easily plugged into this expansion board.

Compatible with Yahboom world of module series and 3 in 1 series sensor modules.

PH2.0 interface is adopted to effectively prevent the user from reverse connection.

Can be used to create some interesting Micro:bit building block sensor kits.
