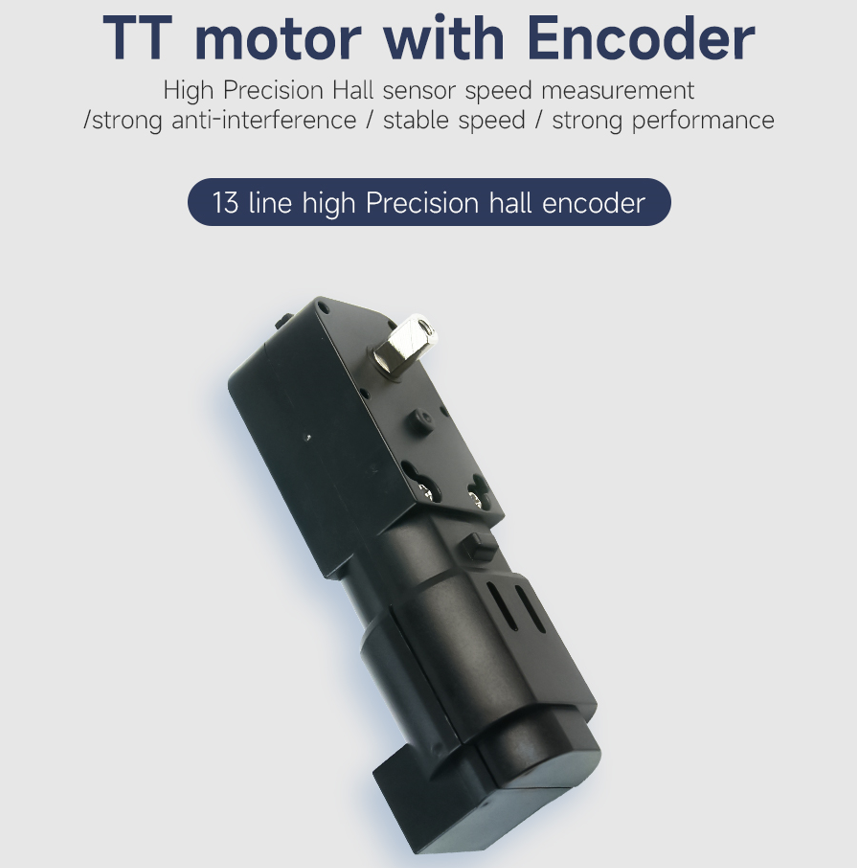

Welcome to Motor with Encoder repository
1.Introduction

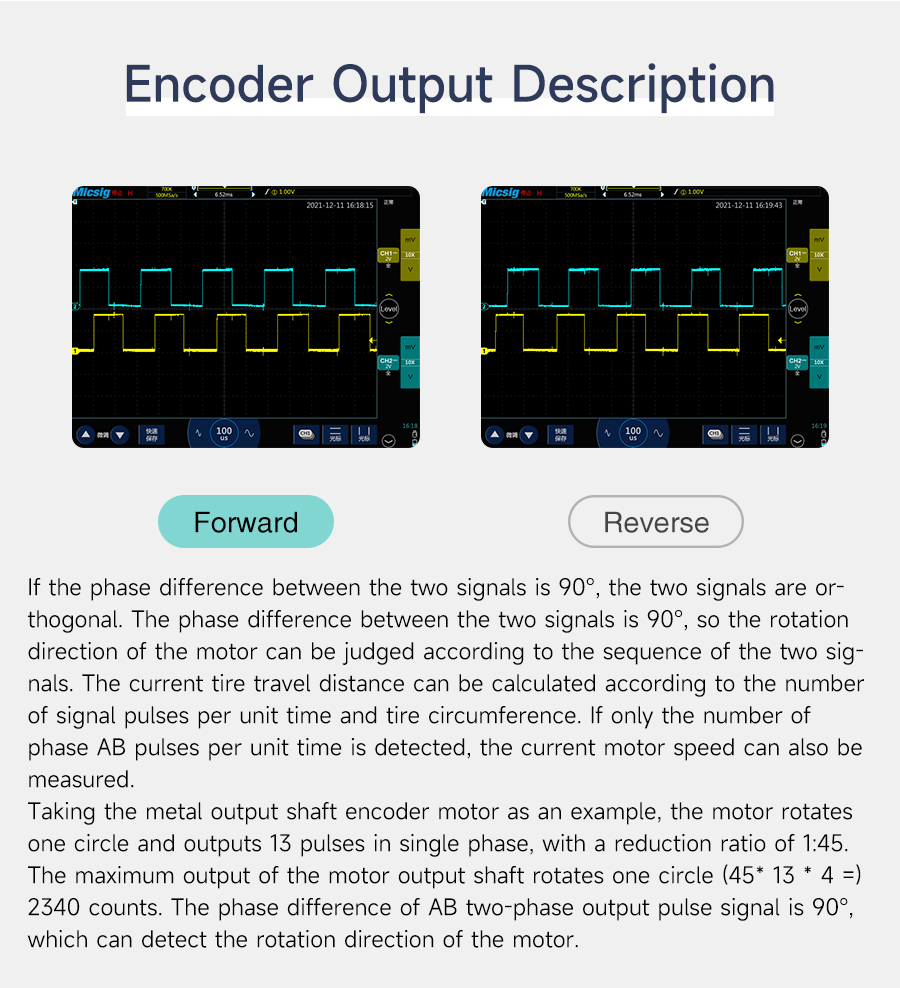

This high-quality TT motors are equipped with high-precision hall sensors for accurate speed measurement. And it has better anti-interference ability, stable speed, and supports PID control. It can also be used with a motor bracket to install it on the smart car. For these two motors, we will provide detailed drive codes and tutorial materials for user reference.
Blue 3-line motor:
1) Working voltage 6V, rated current 0.25A, torque 1.2N.m, maximum speed can reach 7000+5%rpm.
2) Plastic double shafts, wider applicability.
3) Built-in carbon brush motor, low power consumption.
4) Suitable for basic smart car, Mecanum wheel car or student user groups with limited funds.
