Get distance information (PC)
Get distance information (PC)1. Experimental Preparation2. Experimental wiring3. Open the serial port assistant and configure it as follows
1. Experimental Preparation
- TinyF laser ranging module
- USB to TTL
2. Experimental wiring
| USB to TTL | TinyF |
|---|---|
| RXD | TX |
| 5V | 5V |
| GND | GND |

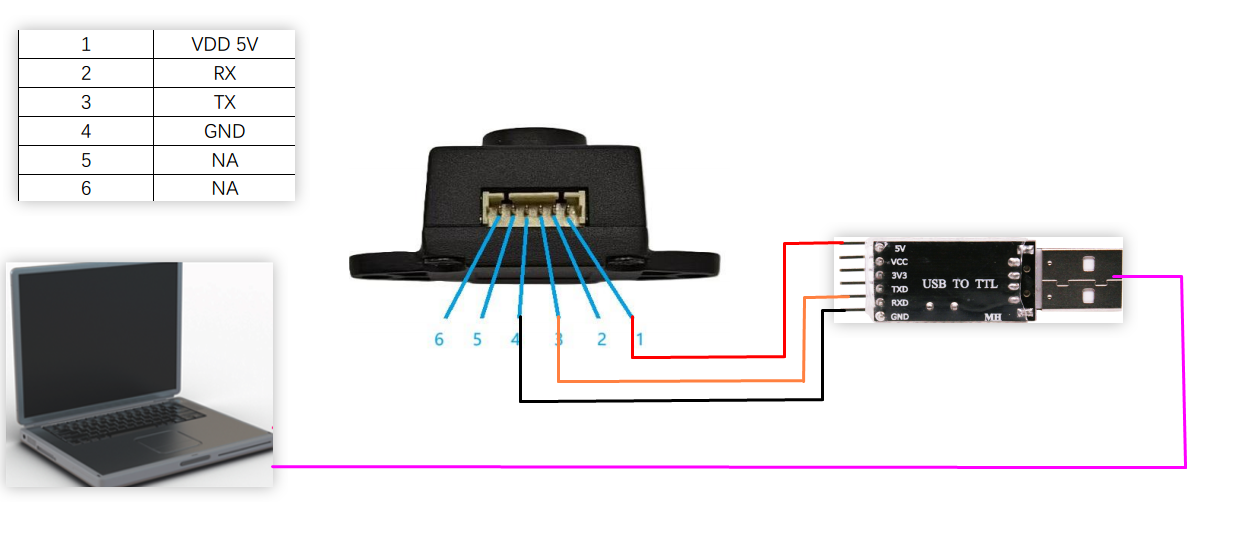

The wiring diagram is as follows

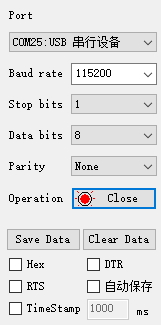

3. Open the serial port assistant and configure it as follows

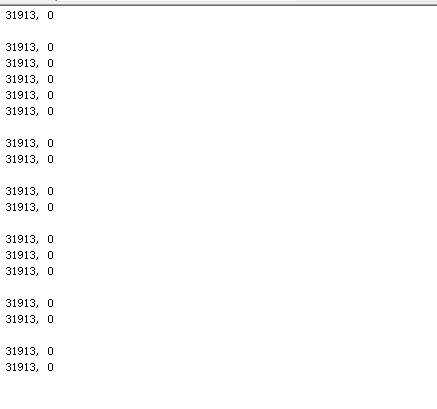

The left side is the distance information, the unit is (mm); the right side is the confidence level.
