TinyF and microbit serial communication

TinyF and microbit serial communication0. Introduction to TinyF1. Experimental Preparation2. Experimental wiring3. Main code explanation4. Experimental Phenomena5.Some important parameters of TinyF

0. Introduction to TinyF

The TinyF laser ranging module is based on a D-TOF single-point laser sensor, an onboard MCU, and a housing. It features built-in sunlight rejection and anti-cover contamination algorithms, enabling accurate and rapid distance measurement. Even in extremely bright ambient light (100-190K Lux), it can accurately measure even the smallest objects, unaffected by variations in reflectivity, achieving precise ranging of 2m to 4m.

1. Experimental Preparation

TinyF laser ranging module
This tutorial uses a micro:bit
Superbit 2.0 multi-function expansion board + 18650 battery（optional）

2. Experimental wiring

microbit	TinyF
P1	TX
GND	GND
5V	5V

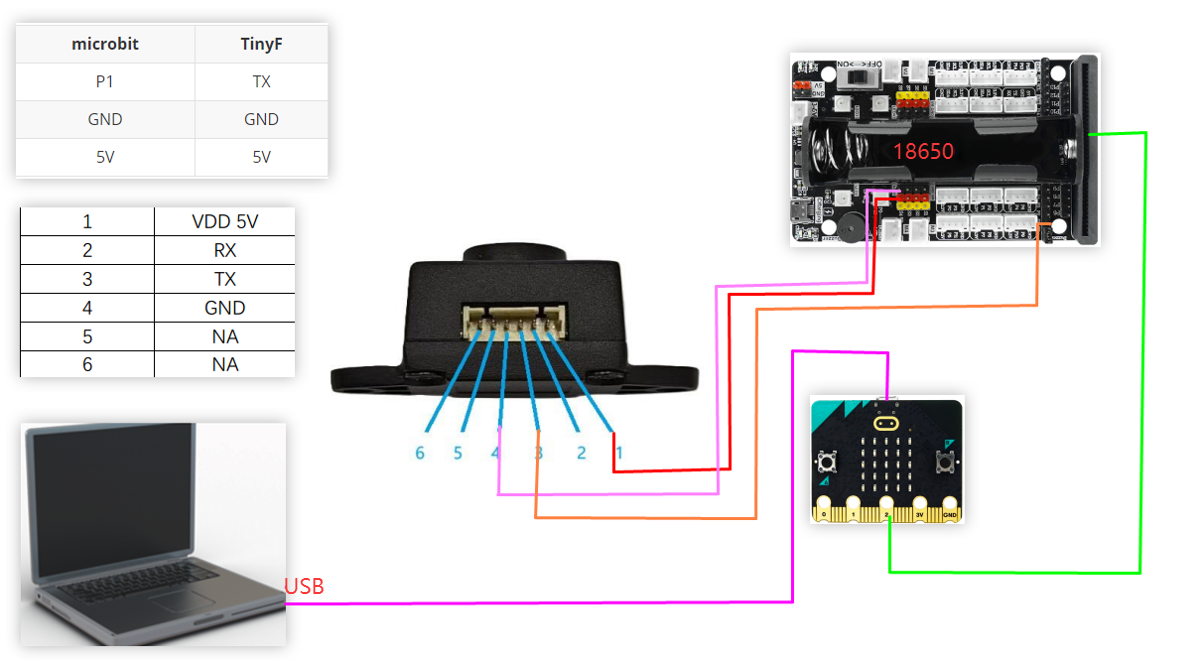

Wiring diagram

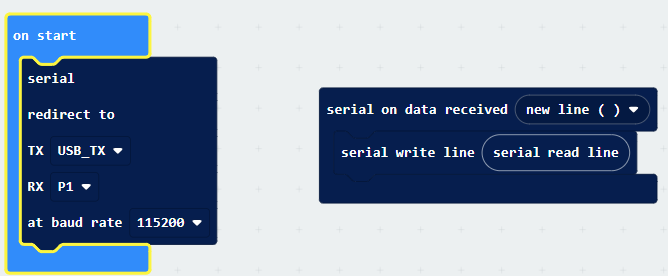

3. Main code explanation

4. Experimental Phenomena

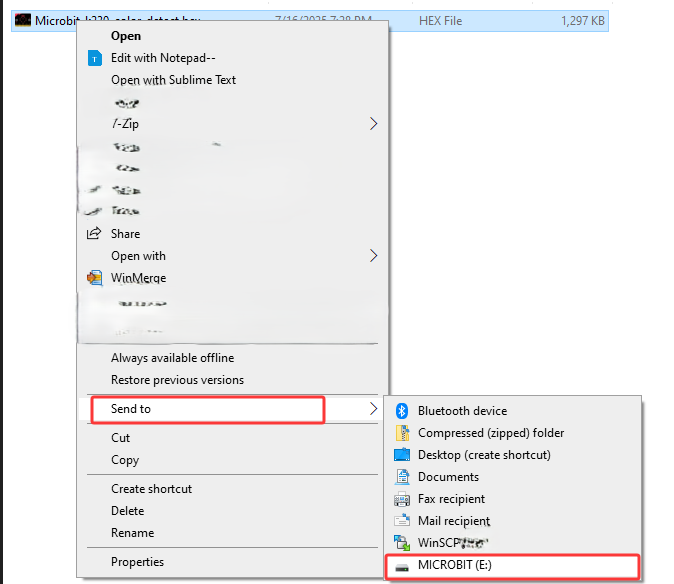

Upload the hex program provided by the example to the microbit

Connect the wires according to the wiring diagram, plug in the battery, and turn on the switch.

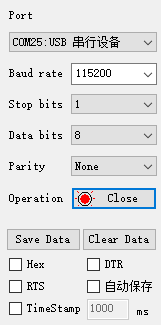

Set the serial port assistant to the interface shown in the figure

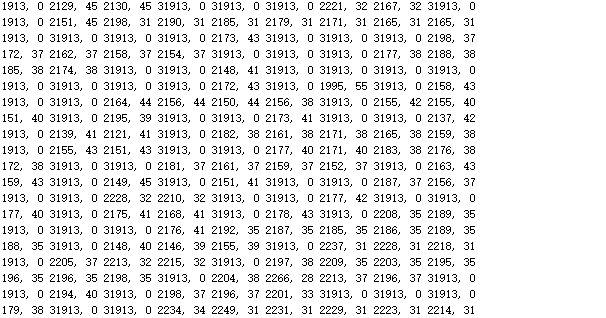

After power on, the serial port assistant will print the following information

5.Some important parameters of TinyF

Related parameter description

name	value
Baud rate	115200
Effective minimum distance (theoretical value)	20，unit:mm
Effective maximum distance (theoretical value)	4000，unit:mm
Confidence	0~62,The larger the value, the higher the distance reliability.

Data format

Data frame structure:

Example:

Field	Number of bytes	Example(Hex)	ASCII characters
Frame header (fixed value)	1	20	space
Distance value（distance）	1~5	33 32 37	327
Delimiter (fixed value)	2	2C 20	，space
Confidence（confidence）	1~2	36 31	61
Frame tail (fixed value)	1	0A	\n
