GPS module information

The GPS module is a high-performance BDS/GNSS positioning and navigation module based on ATGM336H-5N. The module supports a variety of satellite navigation systems, including all the satellites of China's Beidou-2 and Beidou-3, the United States' GPS, Russia's GLONASS, and Japan's QZSS. It can simultaneously receive the satellite signals of the above satellite navigation systems, and realize joint positioning and navigation. And timing, the module has the advantages of high sensitivity, low power consumption, low cost, etc., suitable for vehicle navigation, handheld positioning, wearable devices.

1. Module Features

• Support all Beidou-2 and Beidou-3 satellites 1~63
• Support single-system positioning of BDS/GPS/QZSS satellite navigation system, and multi-system joint positioning in any combination.
• Support A-GNSS
• Cold start capture sensitivity: -148dBm
• Tracking sensitivity: -162dBm
• Positioning accuracy: 2.5 meters (CEP50)
• First positioning time: 32 seconds
• Low power consumption: continuous operation 25mA@3.3V
• Built-in antenna detection and antenna short circuit protection function

2. GPS module interface description

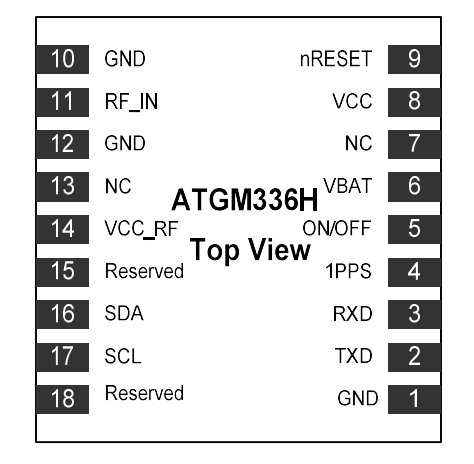

2.1. PINArrangement Diagram

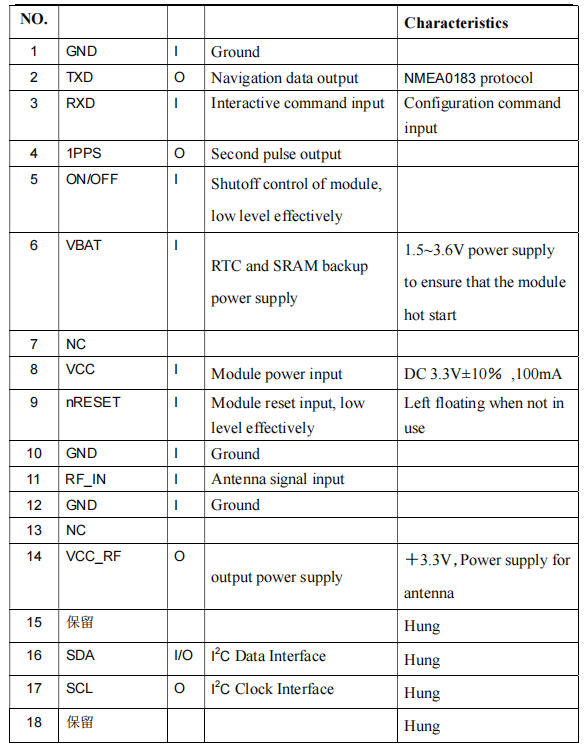

2.2. Pin Definition

3. Communication protocol

For detailed communication protocol, please refer to CASIC Multimode Satellite Navigation Receiver Protocol Specification.pdf.
