Fusion of IMU and GPS data

This function fuses IMU and GPS data and displays the fused data in Rviz.

1. Run

terminal input

roslaunch imu_gps_localization imu_gps_localization.launch
rosbag play gps.bag

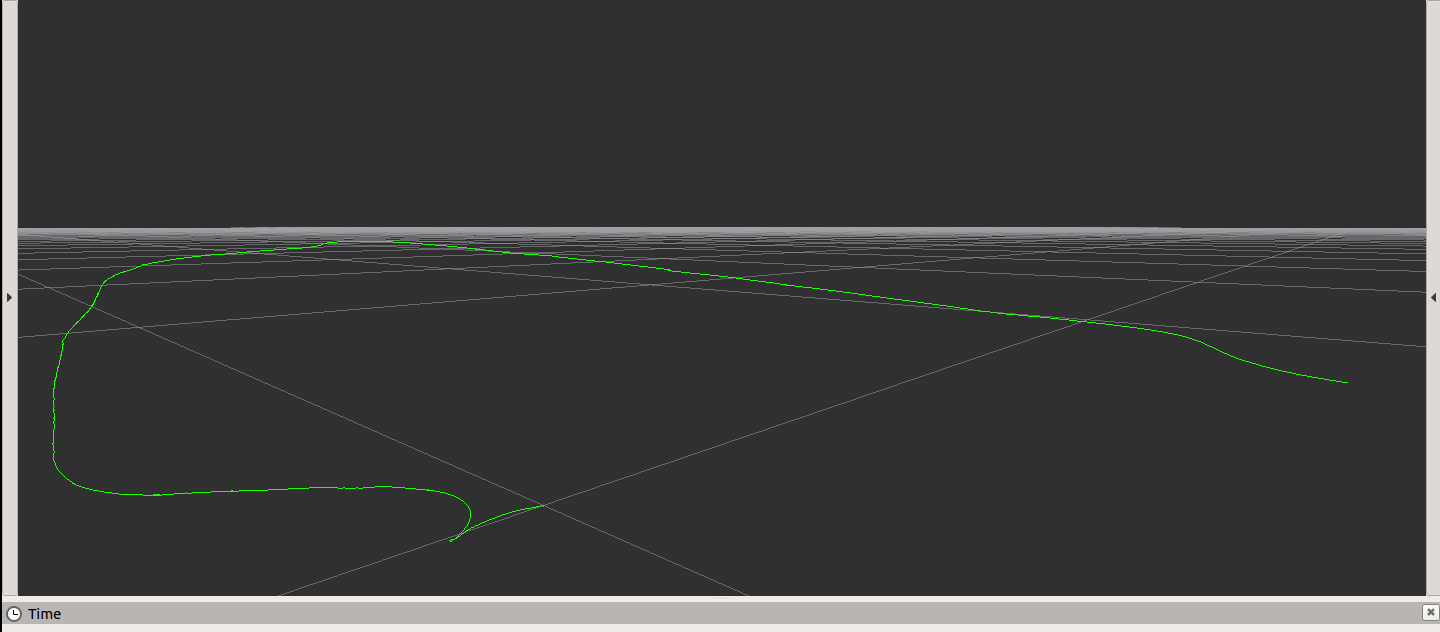

After running, with the playback of data packets, in Rviz the green track is also continuously extended, representing the position after fusion,

In this case, we use the data package in the folder as a demonstration. In actual development, we need to use the rosbag tool to record the data of IMU and GPS.

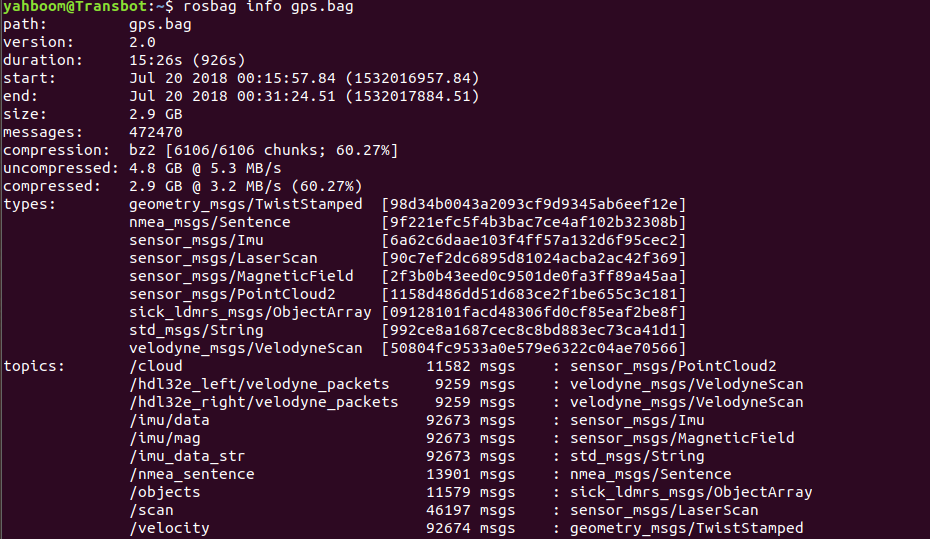

We can view the contents of this packet through rosbag info gps.bag ,

The content of the topic part is the topic recorded by this data packet. It can be seen that IMU (/imu/data and /imu/mag and GPS (/nmea_sentence) data are included.

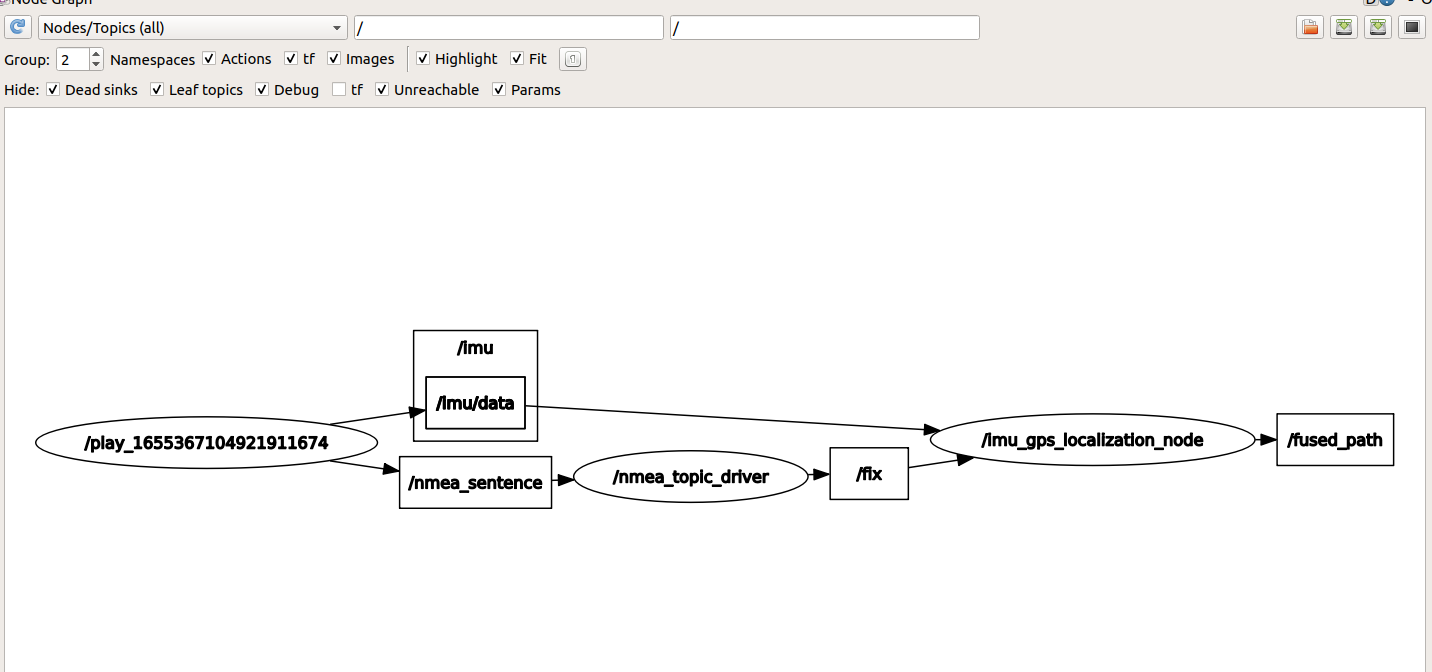

During operation, we can also view the node graph to see the topic transmission between nodes, terminal input

xxxxxxxxxx
rosrun rqt_graph rqt_graph

2、launch file

​x
<launch>
    <param name="acc_noise"       type="double" value="1e-2" />
    <param name="gyro_noise"      type="double" value="1e-4" />
    <param name="acc_bias_noise"  type="double" value="1e-6" />
    <param name="gyro_bias_noise" type="double" value="1e-8" />

    <param name="I_p_Gps_x"       type="double" value="0.0" />
    <param name="I_p_Gps_y"       type="double" value="0.0" />
    <param name="I_p_Gps_z"       type="double" value="0.0" />

    <param name="log_folder"      type="string" value="$(find imu_gps_localization)" />

    <node name="nmea_topic_driver" pkg="nmea_navsat_driver" type="nmea_topic_driver" output="screen" />
    <node name="imu_gps_localization_node" pkg="imu_gps_localization" type="imu_gps_localization_node" output="screen" />

    <node pkg="rviz" type="rviz" name="rviz" output="screen"
      args="-d $(find imu_gps_localization)/ros_wrapper/rviz/default.rviz" required="true">
    </node>

</launch>

Among them, the node imu_gps_localization_node is used to fuse IMU and GPS data. Its source code is located in imu_gps_localization-master/ros_wrapper/src. The focus is on localization_wrapper.cpp , which includes subscription topics, fusion data and publishing topic data.
