1. Learning target

In this course, we will earn how to use Micro:bit and button module to read button status.

2. Preparation

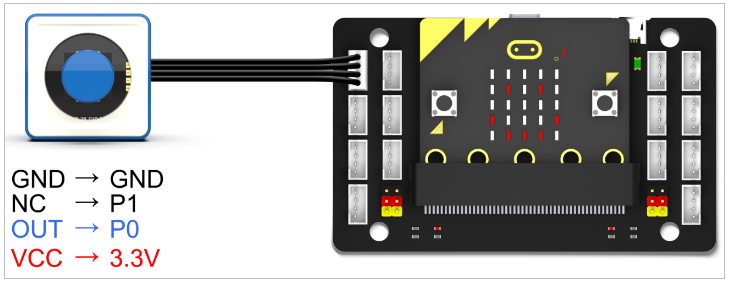

Connect the module to Micro:bit board by expansion board, as shown below.

!Tips: Button connect to P0 pin of Micro:bit in this course.

3.Programming method

Mode 1 online programming: First, we need to connect the micro:bit to the computer by USB cable. The computer will pop up a USB flash drive and click on the URL in the USB flash drive: http://microbit.org/ to enter the programming interface. Add the Yahboom package https://github.com/YahboomTechnology/Module-World to program.

Mode 2 offline programming: We need to open the offline programming software. After the installation is complete, enter the programming interface, click【New Project】, add Yahboom package: https://github.com/YahboomTechnology/Module-World , you can start programming.

4.Looking for blocks

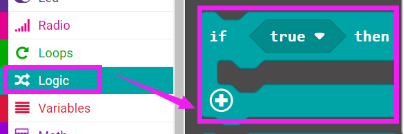

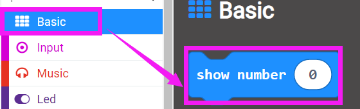

The following is the location of the building blocks required for this programming.

5.Combine block

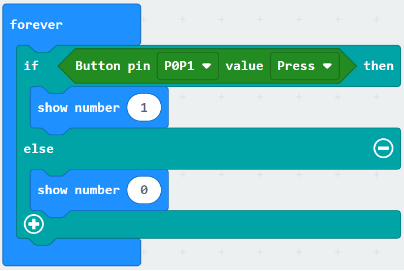

The summary program is shown below.

6. Experimental phenomena

After the program is downloaded successfully. When we press button, Micro:bit dot matrix will display 1, otherwise Micro:bit dot matrix will display 0.
