Welcome to DOFBOT-JetsonNANO repository

3.GPIO reading

GPIO reading

GPIO reading1. GPIO pin diagram2. Run the program3. Program effect

1. GPIO pin diagram

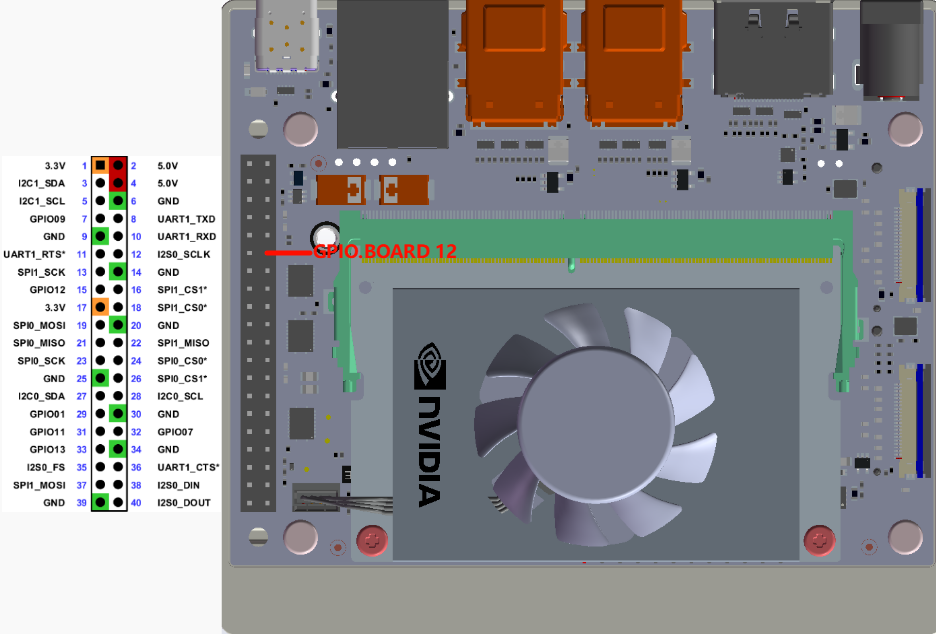

GPIO.BOARD 12 pin corresponds to GPIO.BCM 18 pin:

image-20250110104406267

2. Run the program

xxxxxxxxxx
cd ~/jetson-gpio/samples
xxxxxxxxxx
export JETSON_MODEL_NAME=JETSON_ORIN_NX
xxxxxxxxxx
python3 simple_input.py

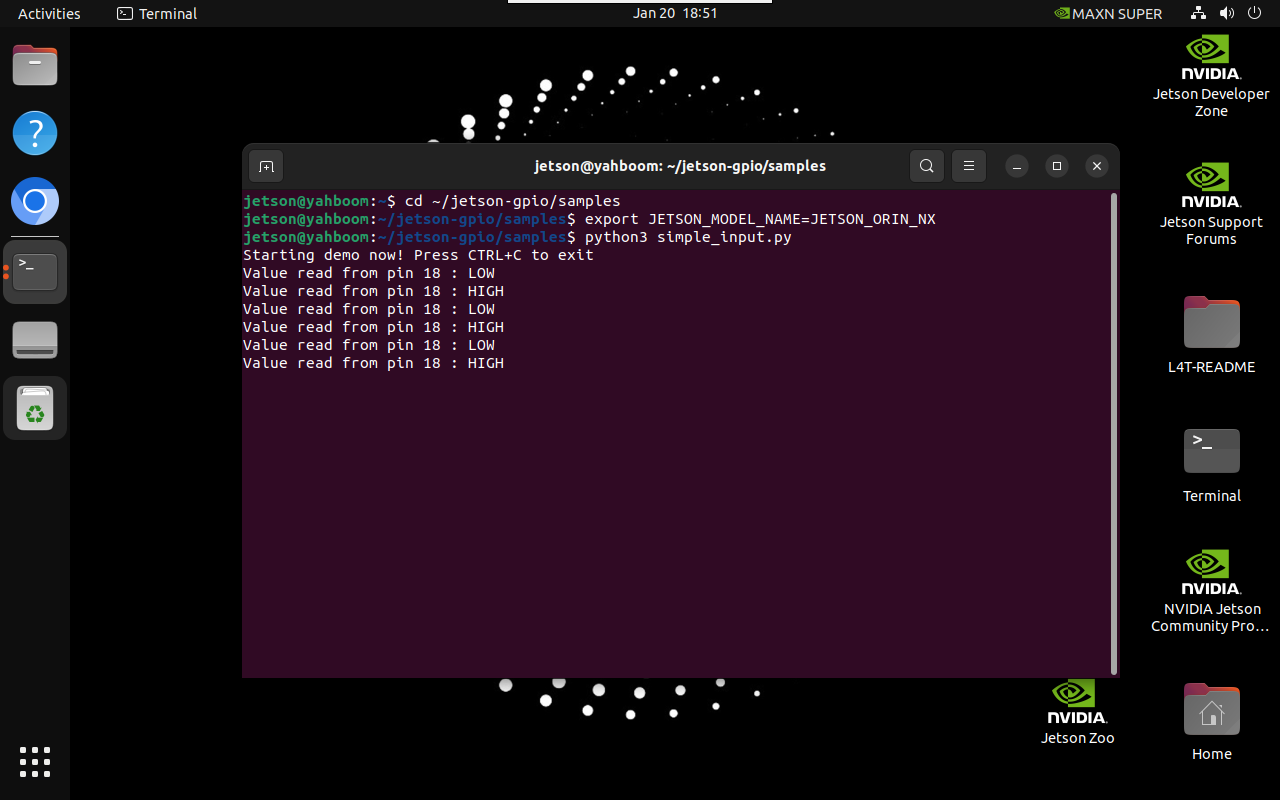

3. Program effect

Use Dupont wire to connect GPIO.BOARD 12 pin to GND and 3.3V pin on the motherboard, and test the reading of high and low levels:

Note: Do not connect incorrectly or cause pin short circuit, as mistakes may cause damage to the motherboard hardware!

image-20250110103545095

GPIO library installation
GPIO output
