20.Back up system image

20.Back up system image

1. Preparation

  1. TF card
  2. Card reader

2. Backup (restore) system image on Windows

If you do not have a Linux operating system, you can also back up under Windows, but the size of the backed up file is actually the size of the SD card.

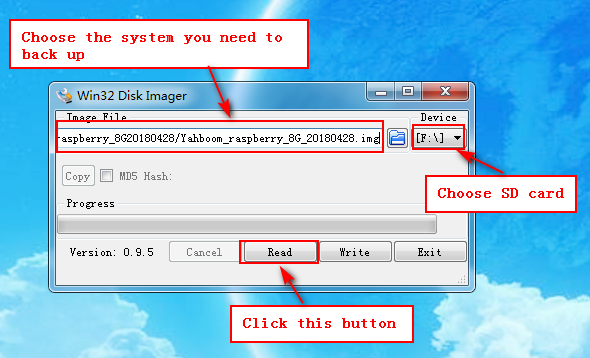

First create a new blank file with the .img suffix, then select read directly to back up the system, and then reinstall to restore it.
