Target Detection Algorithm - YOLOv5

1. Environment Preparation

This example is based on the YOLOv5 model and implements a camera target detection algorithm function. Users can preview the detection results through a monitor.

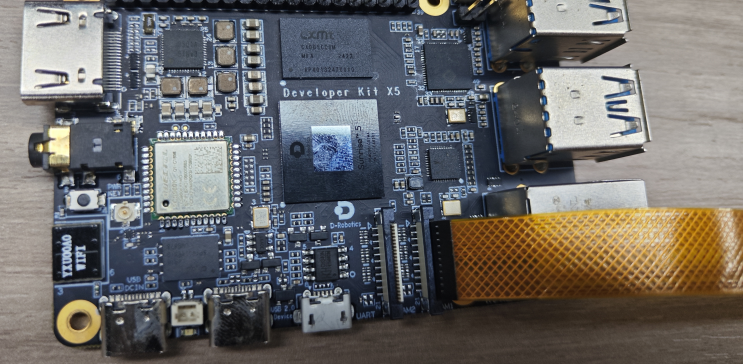

• With the development board powered off, connect the MIPI camera to the development board
• Connect the development board and the monitor with an HDMI cable
• Power on the development board and log in through the command line

2. How to Run

To run this case, you need to turn off the screen display first

xxxxxxxxxx
sudo systemctl stop lightdm

After turning off the screen, perform the following operations:

Place the 01_mipi_camera_yolov5s.py program from the source code summary into (replace it in) the /app/pydev_demo/08_mipi_camera_sample path on the RDK X5.

xxxxxxxxxx
cd /app/pydev_demo/08_mipi_camera_sample
sudo python3 ./01_mipi_camera_yolov5s.py --model-path /app/model/basic/yolov5s_672x672_nv12.bin

Parameter configuration:

• --model-path : Model path

If you want to turn the screen back on, enter sudo systemctl start lightdm

3. Expected Results

After the program runs correctly, it will output the video and the rendered image after algorithm detection through the HDMI interface. Users can preview it through the monitor.

The running log is as follows:

​x
set camera fps: 30,width: -1,height: -1
Camera 0:
        mipi_host: 0
Camera 1:
        mipi_host: 2
Camera 2:
        mipi_host: 0
Camera 3:
        mipi_host: 0
mipi mclk is not configed.
Searching camera sensor on device: /proc/device-tree/soc/cam/vcon@0 i2c bus: 6 mipi rx phy: 0
WARN: Sensor Name: sc1330t, Expected Chip ID: 0xCA18, Actual Chip ID Read: 0x00
WARN: Sensor Name: irs2875-tof, Expected Chip ID: 0x2875, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc230ai-10fps, Expected Chip ID: 0xCB34, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc230ai-10fps, Expected Chip ID: 0xCB34, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc230ai-10fps, Expected Chip ID: 0xCB34, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc230ai-30fps, Expected Chip ID: 0xCB34, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc230ai-30fps, Expected Chip ID: 0xCB34, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc230ai-30fps, Expected Chip ID: 0xCB34, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc132gs-1280p, Expected Chip ID: 0x132, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc132gs-1280p, Expected Chip ID: 0x132, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc132gs-1280p, Expected Chip ID: 0x132, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc132gs-1280p, Expected Chip ID: 0x132, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc132gs-1280p, Expected Chip ID: 0x132, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc132gs-hdr-2lane, Expected Chip ID: 0x132, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc132gs-hdr-2lane, Expected Chip ID: 0x132, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc132gs-hdr-2lane, Expected Chip ID: 0x132, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc132gs-hdr-2lane, Expected Chip ID: 0x132, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc132gs-hdr-2lane, Expected Chip ID: 0x132, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc035hgs, Expected Chip ID: 0x31, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc035hgs_mono, Expected Chip ID: 0x31, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc035hgs_mono, Expected Chip ID: 0x31, Actual Chip ID Read: 0x00
WARN: Sensor Name: ov5640, Expected Chip ID: 0x5640, Actual Chip ID Read: 0x00
WARN: Sensor Name: f37, Expected Chip ID: 0xF37, Actual Chip ID Read: 0x00
[0] INFO: Found sensor name:imx415-30fps-2lane on mipi rx csi 0, i2c addr 0x1a, config_file:linear_3840x2160_raw10_30fps_2lane.c
[1] INFO: Found sensor name:imx415-30fps-4lane on mipi rx csi 0, i2c addr 0x1a, config_file:linear_3840x2160_raw10_30fps_4lane.c
WARN: Sensor Name: sc202cs-1600x1200, Expected Chip ID: 0xEB52, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc202cs-1600x1200, Expected Chip ID: 0xEB52, Actual Chip ID Read: 0x00
WARN: Sensor Name: irs2381c-tof, Expected Chip ID: 0x2381, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc035hgs-vc0, Expected Chip ID: 0x35, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc035hgs-vc1, Expected Chip ID: 0x35, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc231ai-30fps, Expected Chip ID: 0xCB6A, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc231ai-30fps, Expected Chip ID: 0xCB6A, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc231ai-30fps, Expected Chip ID: 0xCB6A, Actual Chip ID Read: 0x00
WARN: Sensor Name: imx586-30fps-4lane, Expected Chip ID: 0x586, Actual Chip ID Read: 0x00
WARN: Sensor Name: imx586-30fps-4lane, Expected Chip ID: 0x586, Actual Chip ID Read: 0x00
WARN: Sensor Name: os08c10-30fps-2lane, Expected Chip ID: 0x53, Actual Chip ID Read: 0x00
WARN: Sensor Name: os08c10-30fps-2lane, Expected Chip ID: 0x53, Actual Chip ID Read: 0x00
WARN: Sensor Name: ar0233-30fps, Expected Chip ID: 0xCB34, Actual Chip ID Read: 0x00
WARN: Sensor Name: ar0233-30fps, Expected Chip ID: 0xCB34, Actual Chip ID Read: 0x00
WARN: Sensor Name: ar0820std-30fps, Expected Chip ID: 0xCB34, Actual Chip ID Read: 0x00
WARN: Sensor Name: ar0820std-30fps, Expected Chip ID: 0xCB34, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc1336, Expected Chip ID: 0xCA3F, Actual Chip ID Read: 0x00
WARN: Sensor Name: dummy, Expected Chip ID: 0x00, Actual Chip ID Read: 0x00
WARN: Sensor Name: ar0233-30fps, Expected Chip ID: 0xA55A, Actual Chip ID Read: 0x00
WARN: Sensor Name: ar0233-30fps, Expected Chip ID: 0xA55A, Actual Chip ID Read: 0x00
WARN: Sensor Name: ar0233-30fps, Expected Chip ID: 0xA55A, Actual Chip ID Read: 0x00
WARN: Sensor Name: ar0233-30fps, Expected Chip ID: 0xA55A, Actual Chip ID Read: 0x00
WARN: Sensor Name: ov9782-200fps-2lane, Expected Chip ID: 0x9281, Actual Chip ID Read: 0x00
WARN: Sensor Name: ov9782-200fps-2lane, Expected Chip ID: 0x9281, Actual Chip ID Read: 0x00
WARN: Sensor Name: ov9782-120fps-2lane, Expected Chip ID: 0x9281, Actual Chip ID Read: 0x00
​
