1.AT8236 drive tutorials

AT8236 drive tutorials

1. Learning objectives

Use AT8236 motor driver module to drive the motor.

2. Hardware connection

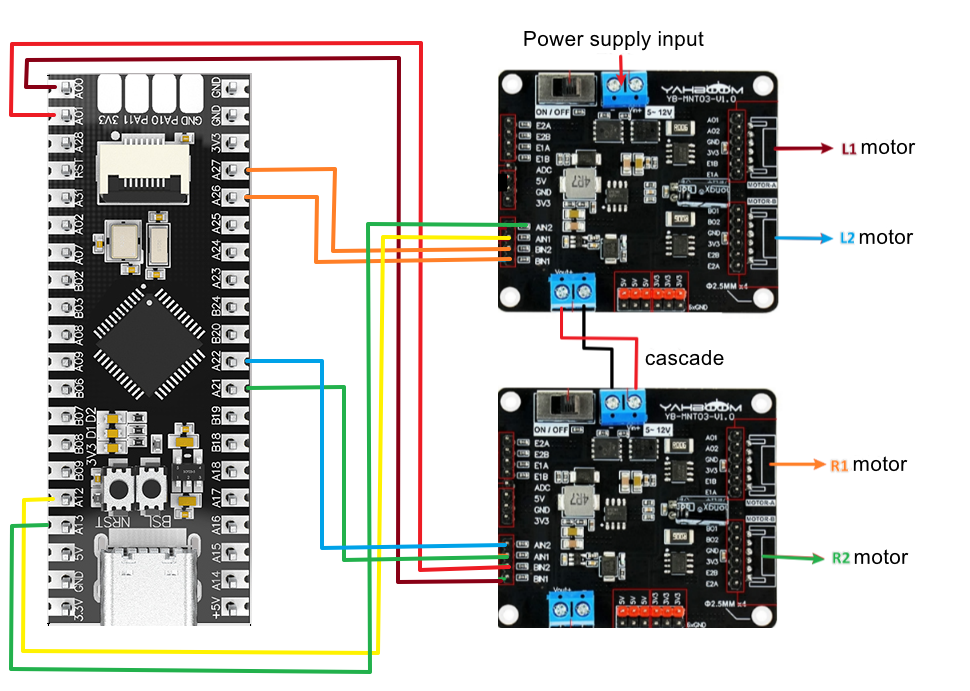

Connect the pins of MSPM0G3507 and AT8236

image-20241210105955329

L1 motor:

MSPM0G3507AT8236
PA12AIN1
PA13AIN2

L2 motor:

MSPM0G3507AT8236
PA26BIN1
PA27BIN2

R1 motor:

MSPM0G3507AT8236
PA21AIN1
PA22AIN2

R2 motor:

MSPM0G3507AT8236
PA0BIN1
PA1BIN2

Motor and voltage regulator board pin connection.

AT8236Motor
AO1Motor+
AO2Motor-

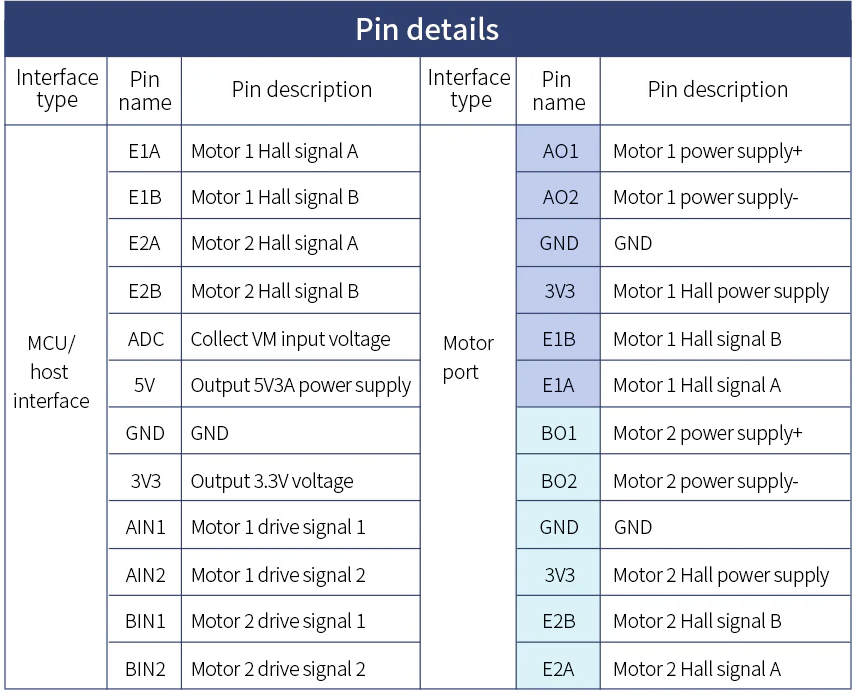

AT8236 motor driver module voltage standard version pin description.

2

3. Code analysis

  • bsp_at8236.h
​x
#ifndef __BSP_TB6612_H_
#define __BSP_TB6612_H_

#include "ti_msp_dl_config.h"


void init_motor(void);

void L1_control(uint16_t motor_speed,uint8_t dir);
void L2_control(uint16_t motor_speed,uint8_t dir);
void R1_control(uint16_t motor_speed,uint8_t dir);
void R2_control(uint16_t motor_speed,uint8_t dir);

#endif

Define four motor control functions.

  • bsp_at8236.c
xxxxxxxxxx
void L1_control(uint16_t motor_speed,uint8_t dir)
{
    if(dir)
    {
            DL_TimerA_setCaptureCompareValue(PWM_L1_INST, motor_speed, DL_TIMER_CC_0_INDEX);
            DL_TimerA_setCaptureCompareValue(PWM_L1_INST, 0, DL_TIMER_CC_1_INDEX);
    }
    else
    {
            DL_TimerA_setCaptureCompareValue(PWM_L1_INST, 0, DL_TIMER_CC_0_INDEX);
            DL_TimerA_setCaptureCompareValue(PWM_L1_INST, motor_speed, DL_TIMER_CC_1_INDEX);
    }

}

The L1_control function is used to control the speed and direction of the L1 motor by adjusting the duty cycle of the PWM signal.

motor_speed and dir represent the motor speed and motor direction of the motor respectively.

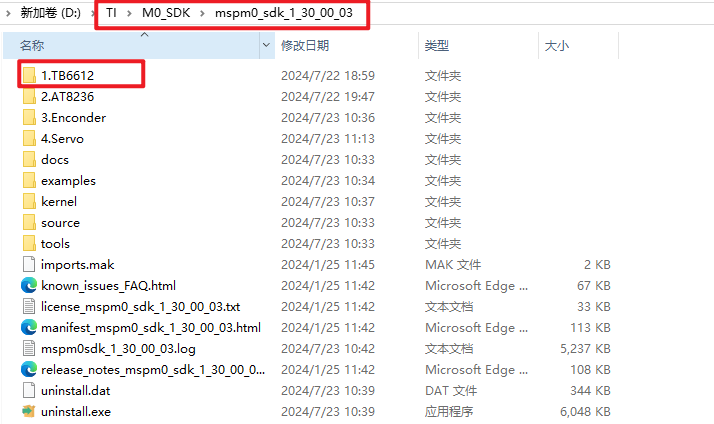

Note: The project source code must be placed in the SDK path for compilation,

For example, path: D:\TI\M0_SDK\mspm0_sdk_1_30_00_03\TB6612

4
