2.Handheld lidar mapping

2. Handheld lidar mapping

It is recommended to directly use the virtual machine or Raspberry Pi 5 image we provide, because it may not run due to environmental differences

1. Install dependent libraries, take the ros-melodic version as an example, enter in the terminal,

sudo apt install ros-melodic-moveit ros-melodic-moveit-visual-tools ros-melodic-kdl-* ros-melodic-joint-state-publisher-gui ros-melodic-trac-ik liborocos-kdl-dev ros-melodic -teleop-twist-keyboard ros-melodic-moveit-resources ros-melodic-navigation ros-melodic-gmapping ros-melodic-hector-slam ros-melodic-slam-karto ros-melodic-robot-state-publisher ros-melodic- geographic-msgs ros-melodic-libuvc-* ros-melodic-rtabmap-ros libavformat-dev libavcodec-dev libswresample-dev libswscale-dev libavutil-dev libsdl1.2-dev ros-melodic-pointcloud-to-laserscan ros-melodic- mbf-msgs ros-melodic-mbf-costmap-core ros-melodic-costmap-converter ros-melodic-bfl ros-melodic-serial ros-melodic-teleop-twist-joy ros-melodic-laser-proc ros-melodic-rosserial -arduino ros-melodic-rosserial-python ros-melodic-rosserial-server ros-melodic-rosserial-client ros-melodic-rosserial-msgs ros-melodic-amcl ros-melodic-map-server ros-melodic-urdf ros-melodic -xacro ros-melodic-interactive-markers ros-melodic-octomap* ros-melodic-joy* ros-melodic-dwa-local-planner ros-melodic-multirobot-map-merge python-catkin-tools python3-dev python3-catkin -pkg-modules python3-numpy python3-yaml build-essential ros-melodic-imu-tools ros-melodic-cartographer*

2. Start the mapping command

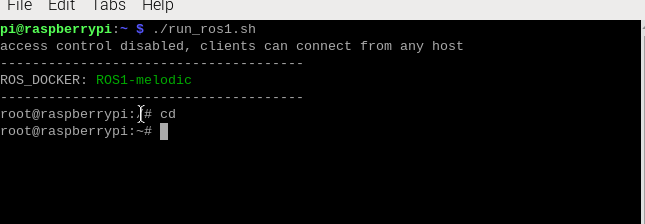

First go into the docker we provide, open a terminal in the Raspberry Pi directory and enter,

xxxxxxxxxx
./run_ros1.sh

image-20240423195440851

Take gmapping mapping as an example, enter in the terminal,

xxxxxxxxxx
roslaunch oradar_lidar test_gmapping.launch

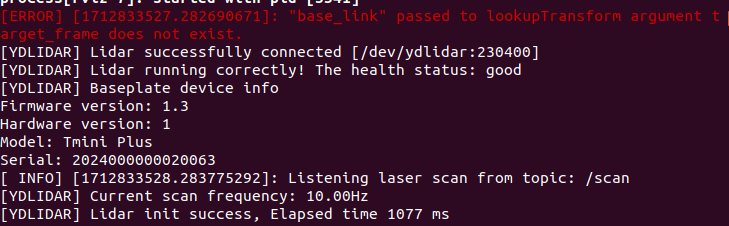

It is normal for this error to appear at the beginning of running the program, because the tf conversion was not converted at the beginning, but was converted later.

image-20240411190651441

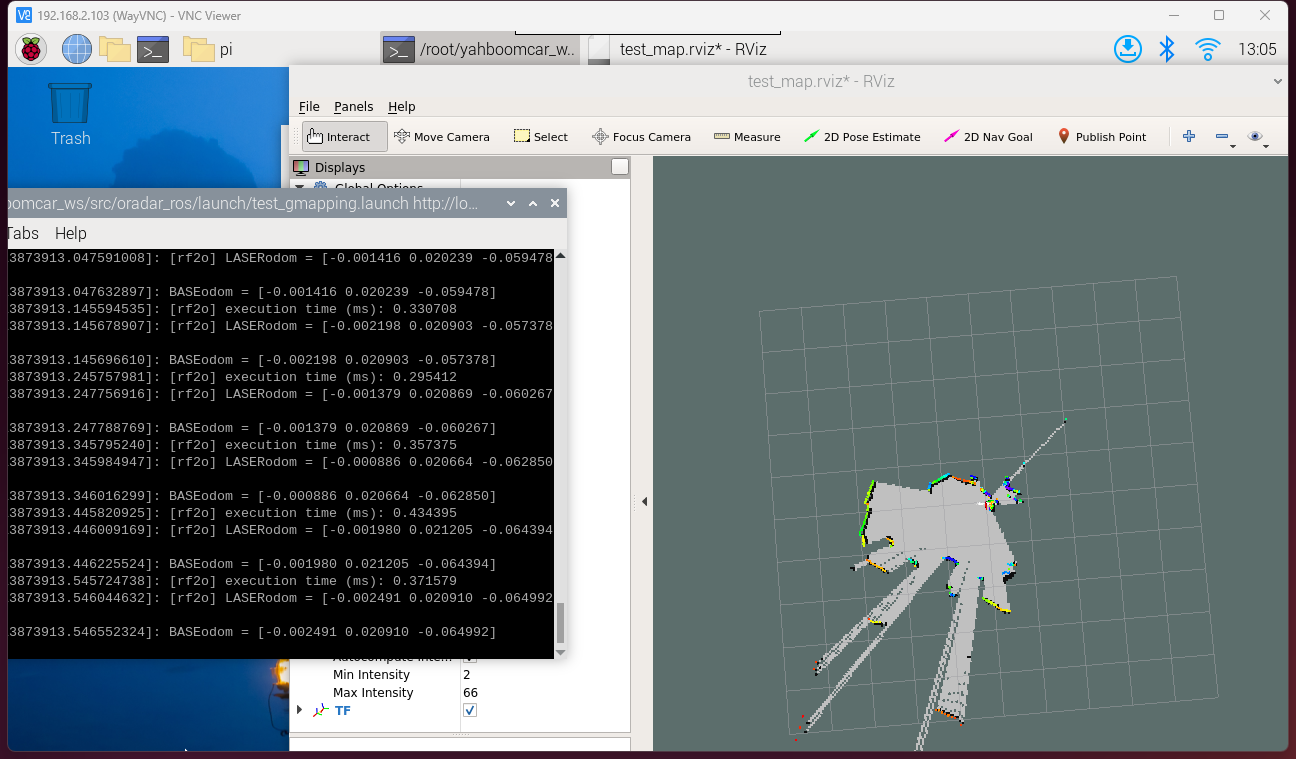

The following screen appears, indicating successful operation.

image-20240423200552222

3. Save the map

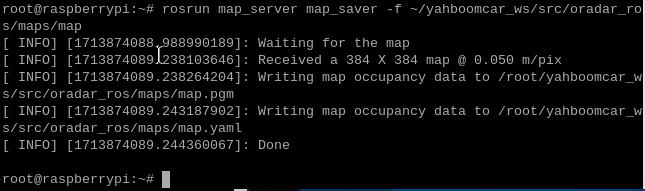

Taking gmapping as an example, the map saving command is,

xxxxxxxxxx
rosrun map_server map_saver -f ~/yahboomcar_ws/src/oradar_ros/maps/map

image-20240423200857122

The map will be saved to the ~/ydlidar_ws/src/oradar_ros/maps/ folder, a pgm image and a yaml file.

map.yaml

​x
image: /home/yahboom/yahboomcar_ws/src/oradar_ros/maps/map.pgm
resolution: 0.050000
origin: [-10.000000, -10.000000, 0.000000]
Negate: 0
occupied_thresh: 0.65
free_thresh: 0.196
​

Parameter analysis:

  • image: The path of the map file, which can be an absolute path or a relative path.

  • resolution: resolution of the map, meters/pixel

  • Origin: 2D pose (x, y, yaw) in the lower left corner of the map. The yaw here is rotated counterclockwise (yaw=0 means no rotation

    change). Many parts of the current system ignore the yaw value.

  • negate: whether to reverse the meaning of white/black and free/occupied (the interpretation of the threshold is not affected)

  • occupied_thresh: Pixels with an occupation probability greater than this threshold will be considered fully occupied.

  • free_thresh: Pixels with occupancy probability less than this threshold will be considered completely free.

4. View relevant information

View tf tree

xxxxxxxxxx
rosrun rqt_tf_tree rqt_tf_tree

Node communication view

xxxxxxxxxx
rosrun rqt_graph rqt_graph

5. Algorithm information reference website

5.1. Graphing algorithm

Gmapping: http://wiki.ros.org/gmapping/

hector_slam: http://wiki.ros.org/hector_slam

hector_slam/Tutorials: http://wiki.ros.org/hector_slam/Tutorials/SettingUpForYourRobot

hector_mapping: http://wiki.ros.org/hector_mapping

karto: http://wiki.ros.org/slam_karto

Cartographer: https://google-cartographer.readthedocs.io/en/latest/

Cartographer ROS: https://google-cartographer-ros.readthedocs.io/en/latest/

5.2. Independent map navigation

rrt_exploration: http://wiki.ros.org/rrt_exploration

rrt_exploration/Tutorials: http://wiki.ros.org/rrt_exploration/Tutorials

5.3. Save the map

map_server: https://wiki.ros.org/map_server
